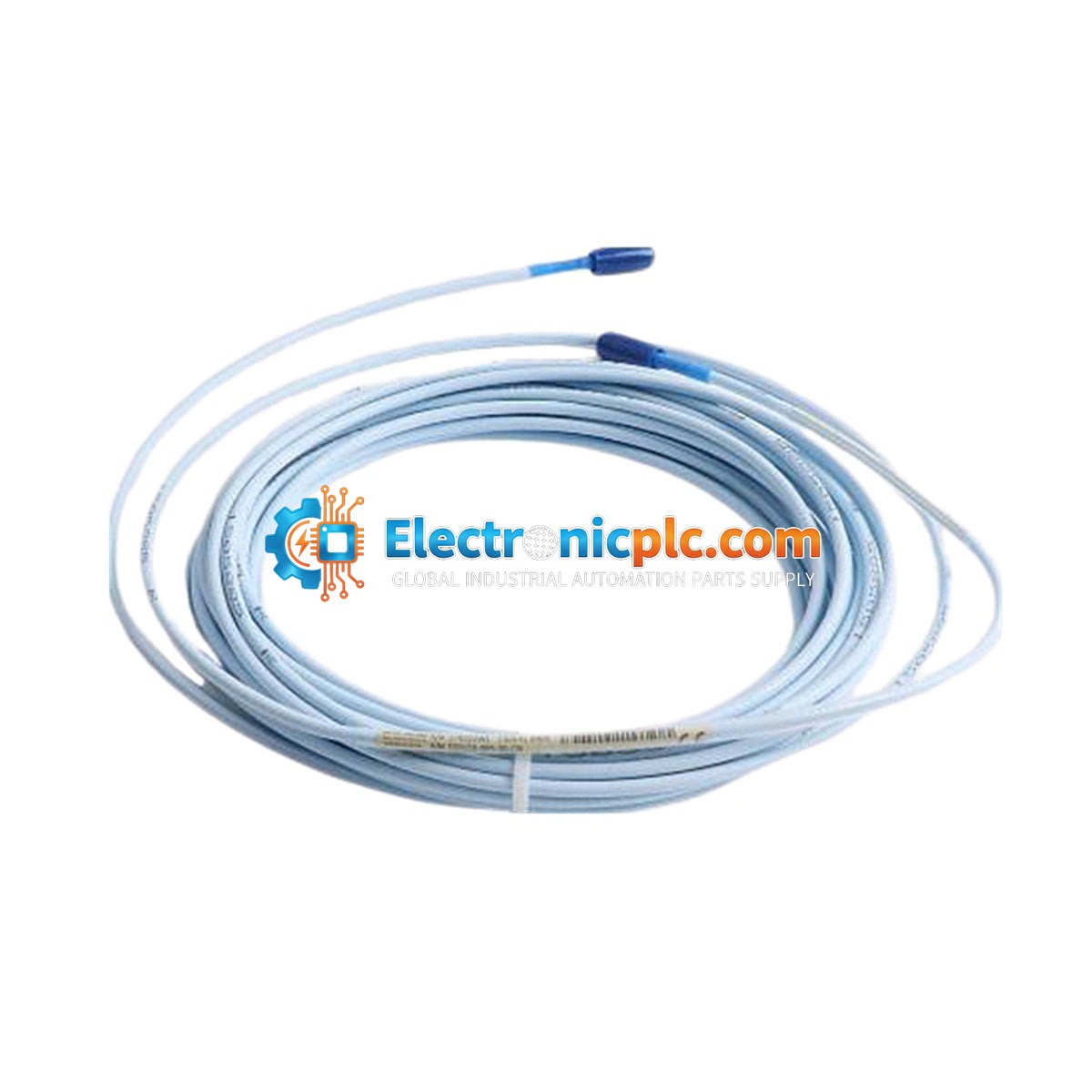

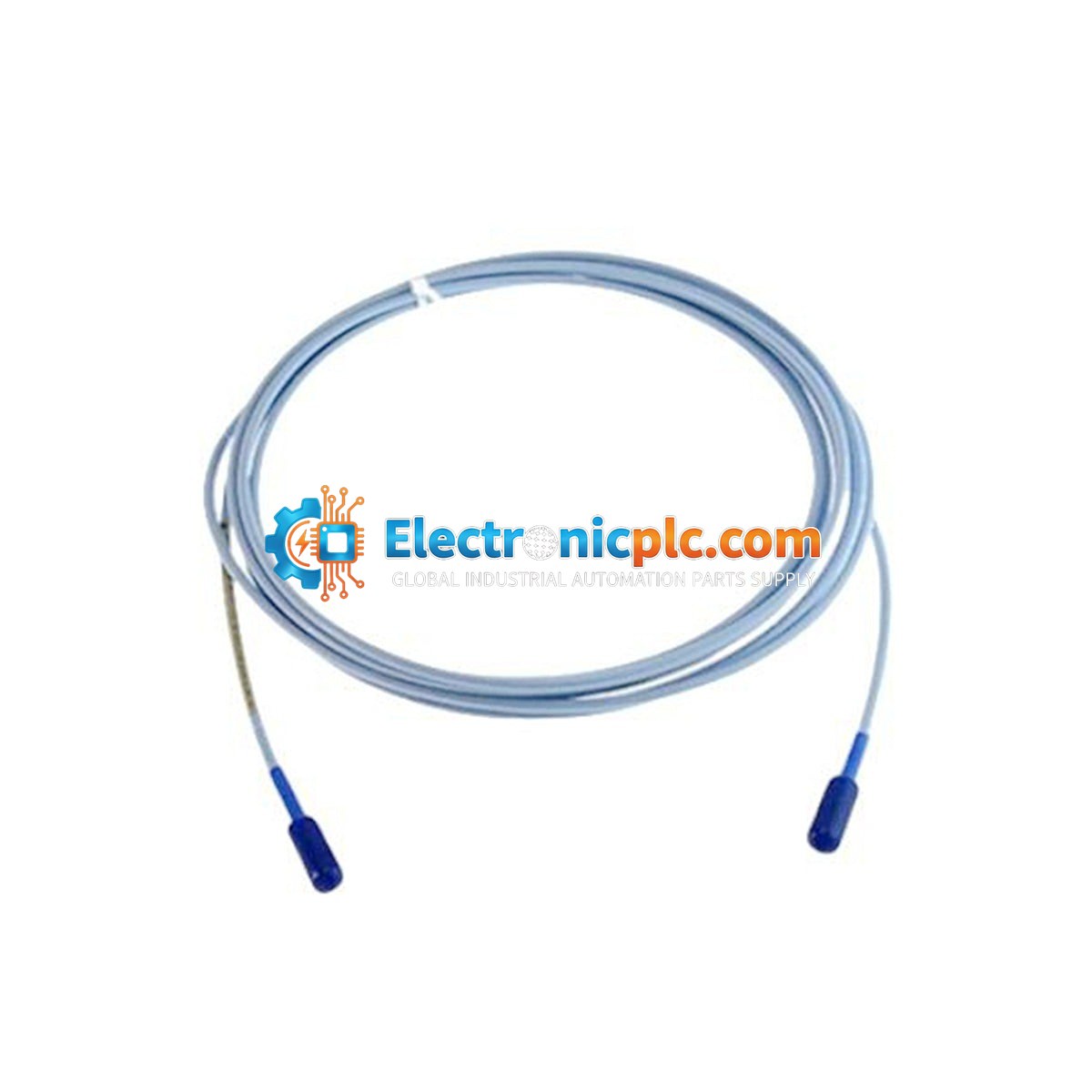

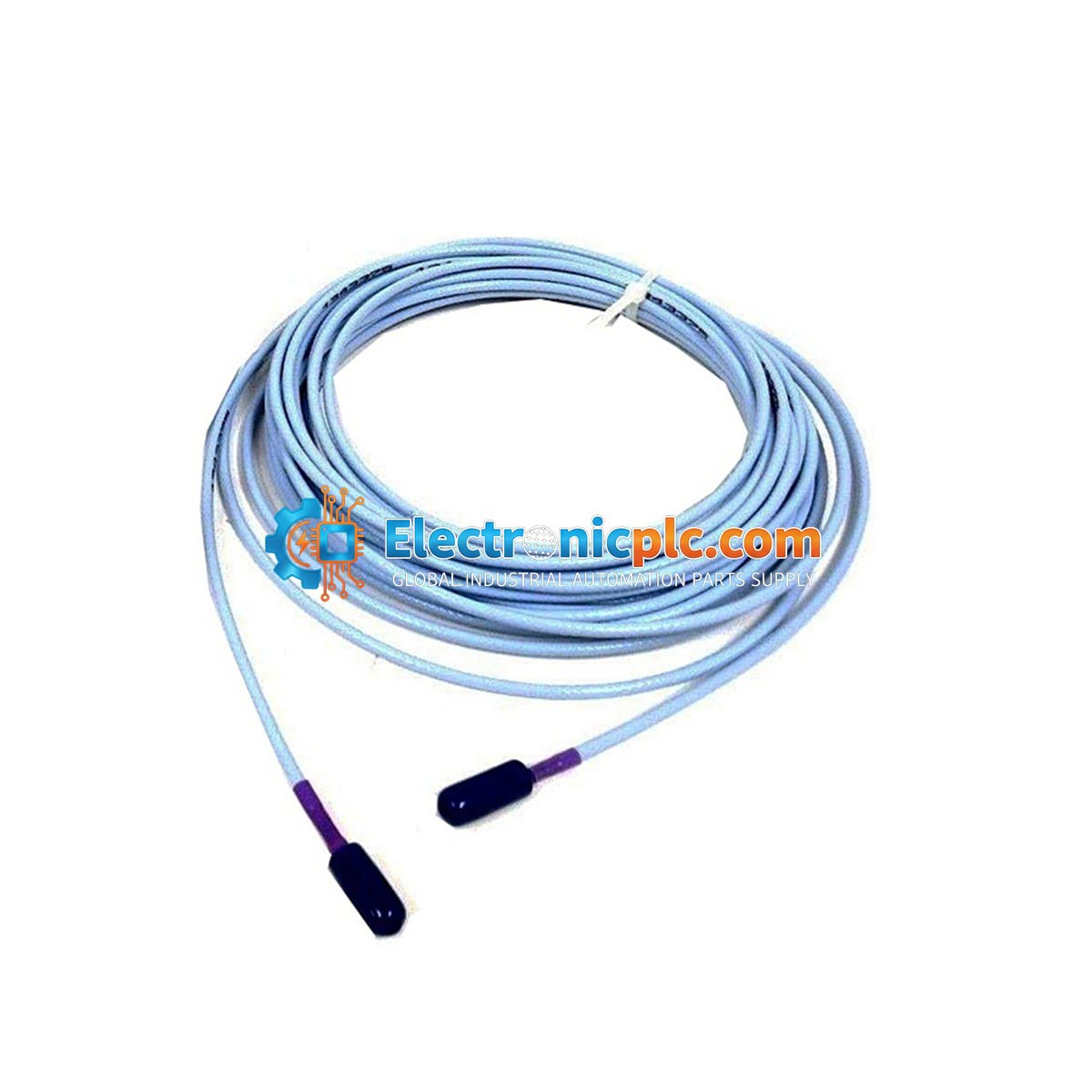

Bently Nevada 330730-040-03-00 3300 XL 11 mm Extension Cable

Bently Nevada 330730-040-03-00 3300 XL 11 mm Extension Cable

Description

The Bently Nevada 330730-040-03-00 is a 4.0-meter extension cable designed for the 3300 XL 11 mm Transducer System. This cable provides a reliable connection between the 11 mm proximity probe...

21 people are viewing this right now

Availability: Low stock: 6 left

SKU: 330730-040-03-00
Vendor: Bently Nevada
Category: Extension Cable
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Bently Nevada 330730-040-03-00 is a 4.0-meter extension cable designed for the 3300 XL 11 mm Transducer System. This cable provides a reliable connection between the 11 mm proximity probe and the Proximitor sensor, ensuring high-accuracy transmission of eddy current signals for vibration and displacement monitoring in critical rotating machinery.

Features

  • Designed for 3300 XL 11 mm transducer systems
  • 4.0-meter (13.1 feet) total length
  • Armored cable construction with connector protector for enhanced durability in harsh industrial environments
  • ClickLoc connector design for secure, reliable signal transmission
  • Improved RFI/EMI immunity compared to legacy systems
  • Complete interchangeability without requiring individual bench calibration

Applications

  • Axial (thrust) position measurements
  • Ramp differential expansion measurements on steam turbines
  • Rod position or rod drop measurements on reciprocating compressors
  • Tachometer and zero speed measurements
  • Phase reference (Keyphasor) signals

Technical Specifications

Model 330730-040-03-00
System Type 3300 XL 11 mm
Cable Length 4.0 meters (13.1 feet)
Cable Option Armored with connector protector
Output Resistance 50 Ohm
Operating Temperature -40 degC to +85 degC
Storage Temperature -52 degC to +105 degC
Probe Case Material AISI 304 Stainless Steel

Installation Guidelines

  • Ensure the system is powered down before connecting or disconnecting any transducer components.
  • Use ClickLoc connectors to ensure a secure fit; tighten to finger-tight, with a maximum torque of 0.565 N-m (5 in-lb).
  • Route cables away from high-power lines or high-EMI sources to maintain signal integrity.
  • Ensure the cable is properly supported and protected from mechanical stress or excessive vibration at the connection points.
  • When upgrading from 7200-series systems, all components (probe, extension cable, and Proximitor) must be replaced with 3300 XL 11 mm compatible parts.

FAQs

What is the primary function of this extension cable?

It acts as the signal transmission link between the 11 mm proximity probe and the Proximitor sensor, allowing the monitoring system to detect critical faults such as shaft cracks, bearing failures, and rotor-to-stator rubs.

Is this cable compatible with non-XL 3300 series components?

The 3300 XL series is generally backward compatible with older 3300 series 11 mm components, but it is not compatible with the 7200-series transducer systems.

What does the 03 option code indicate?

The 03 option code specifies that the cable is armored and includes a connector protector for added physical protection in industrial settings.
