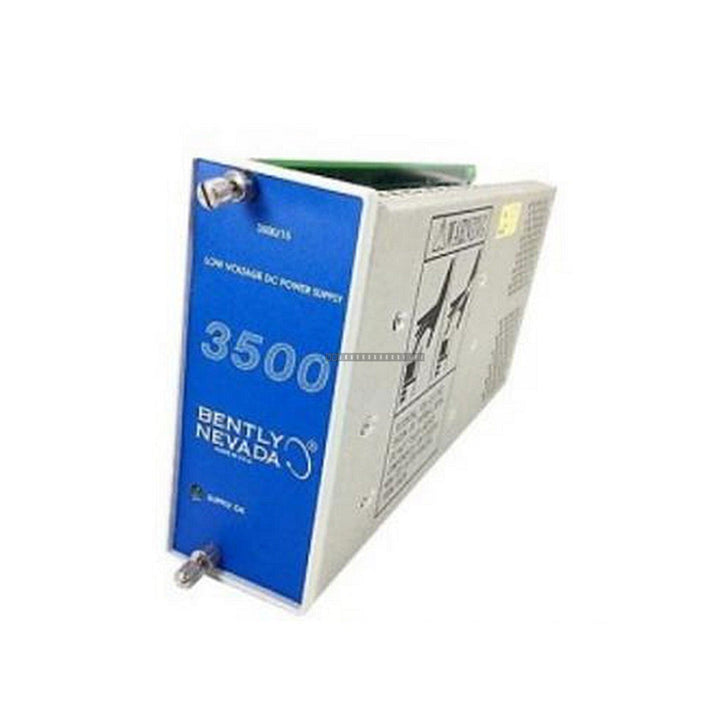

Bently Nevada 3500/15 114M5330-01 Low Voltage DC Power Supply

Bently Nevada 3500/15 114M5330-01 Low Voltage DC Power Supply

The Bently Nevada 3500/15 114M5330-01 is a Low Voltage DC Power Supply module designed for the 3500 Series Machinery Protection System. This module converts an input voltage of 20 V...

19 people are viewing this right now

Availability: Low stock: 10 left

SKU: 3500/15
Vendor: Bently Nevada
Category: Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Bently Nevada 3500/15 114M5330-01 is a Low Voltage DC Power Supply module designed for the 3500 Series Machinery Protection System. This module converts an input voltage of 20 V to 30 V DC into the regulated DC voltages required by other modules within the 3500 rack.

Features

  • Half-height module design occupying two dedicated slots on the left side of the 3500 rack.
  • Supports redundant configurations: two power supplies can be installed in a single rack, with the lower slot acting as the primary and the upper as the backup.
  • Hot-swappable capability: modules can be removed or inserted without disrupting rack operation, provided a second supply is active.
  • Requires a 114M5335-01 Power Input Module (PIM) installed directly behind the supply for physical power interface and fusing.
  • Wide operating temperature range suitable for industrial environments.

Applications

  • Critical machinery protection for turbines, compressors, and generators.
  • Condition monitoring and predictive maintenance in the oil and gas industry.
  • High-reliability monitoring in petrochemical and chemical processing plants.
  • Uninterrupted power supply for utility monitoring equipment in power generation.

Technical Specifications

Model 3500/15 114M5330-01
Input Voltage 20 to 30 Vdc
Operating Temperature -30 degC to +65 degC (-22 degF to +150 degF)
Storage Temperature -40 degC to +85 degC (-40 degF to +185 degF)
Humidity 95%, non-condensing
Weight 1.25 kg

Installation Guidelines

  • Ensure the 3500 rack is powered down or that a redundant supply is active before installation or removal.
  • The module must be installed in the designated power supply slots on the left side of the 3500 rack.
  • Always pair this module with the corresponding 114M5335-01 Power Input Module (PIM) located in the rear of the rack.
  • Maintain adequate airflow around the rack to ensure operating temperatures remain within the specified limits.
  • Handle with standard ESD precautions to prevent damage to sensitive internal components.

FAQ

What is the function of the 114M5330-01?

It is a Low Voltage DC Power Supply module that converts input power to the regulated DC voltages required by all other modules installed in the 3500 rack.

Can the 3500/15 power supply be hot-swapped?

Yes, the module supports hot-swapping. Removing or inserting the power supply does not disrupt rack operation as long as a second redundant power supply is installed.

What is the input voltage range for this module?

The 114M5330-01 is designed for an input range of 20 to 30 Vdc.
