Product Description

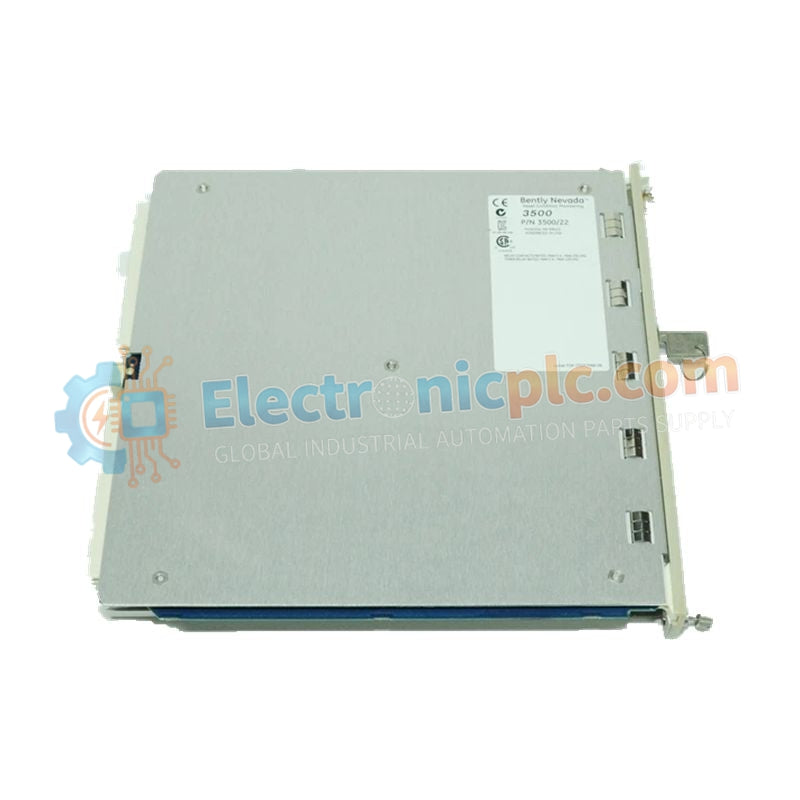

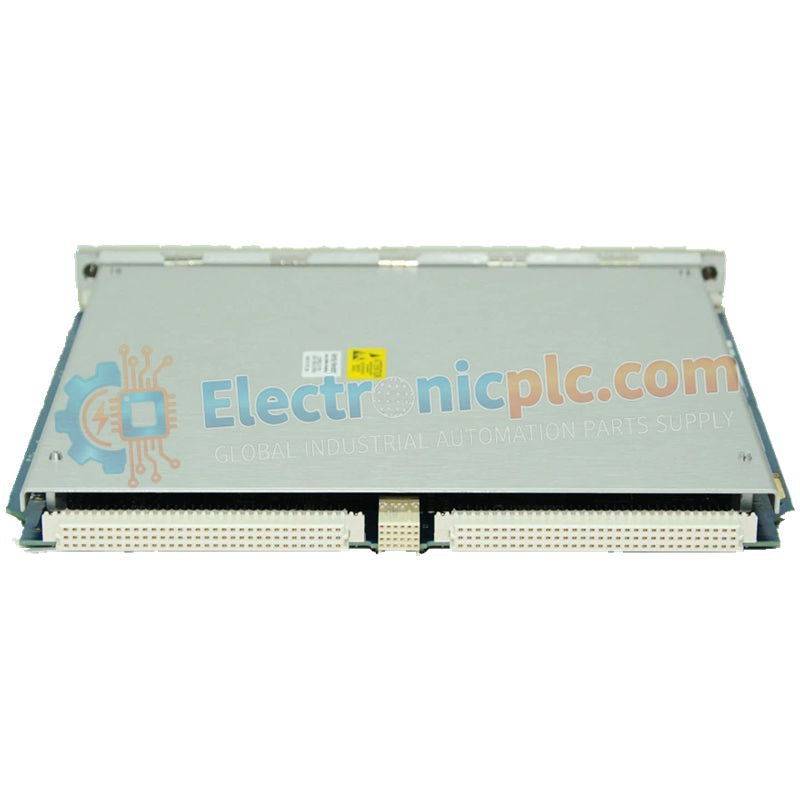

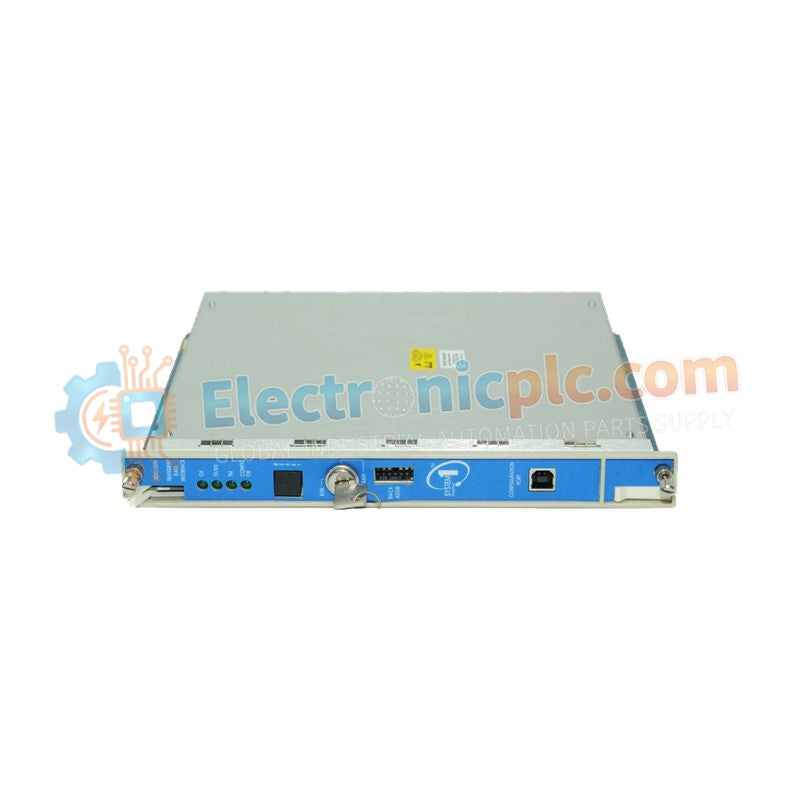

The 3500/22-01-01-01 is a complete Transient Data Interface (TDI) assembly for the 3500 Machinery Protection System developed by Bently Nevada.

This configuration includes a standard TDI module paired with a high-speed Ethernet I/O interface, enabling seamless communication between the monitoring rack and external diagnostic software such as System 1.

The module captures both steady-state and transient waveform data, providing comprehensive machinery health visibility during critical operating phases including startup, coast-down, and alarm events. This makes it essential for predictive maintenance and advanced root cause diagnostics.

Technical Specifications

Parameter Specification
Full Assembly Part Number 3500/22-01-01-01
TDI Type Standard Transient Data Interface
I/O Connectivity 10Base-T / 100Base-TX Ethernet
Hazardous Area Certification CSA / NRTL/C certified
Primary Function Rack communication and dynamic data acquisition
Communication Protocols Ethernet TCP/IP
 Weight 1.11 kg
System Slot Requirement Dedicated RIM/TDI slot in 3500/05 rack
Operating Environment High-availability industrial monitoring

System Capabilities

The 3500/22-01-01-01 is designed to replace legacy Rack Interface Modules (RIM), offering significantly improved data throughput and diagnostic capability.

It supports simultaneous transmission of:

  • Static process data (gap voltage, overall vibration levels)

  • Dynamic waveform data (orbits, timebase signals)

When integrated with System 1 software, engineers can perform advanced visualization and diagnostics such as:

  • Orbit plots

  • Bode plots

  • Timebase analysis

  • Spectrum and cascade diagrams

These capabilities help detect early-stage machinery faults such as shaft cracks, bearing wear, rotor imbalance, and misalignment conditions.

Technical FAQ

Q1: Does the 3500/22-01-01-01 support Modbus communication?

A: Yes. With appropriate configuration and supporting I/O hardware, the TDI can transmit rack data using Modbus over Ethernet for integration with PLC or DCS systems.

Q2: Is the CSA/NRTL/C certification valid for hazardous environments?

A: Yes. The 01 Agency Approval option meets safety standards for Class I, Division 2 hazardous industrial locations in North America when installed according to manufacturer specifications.
