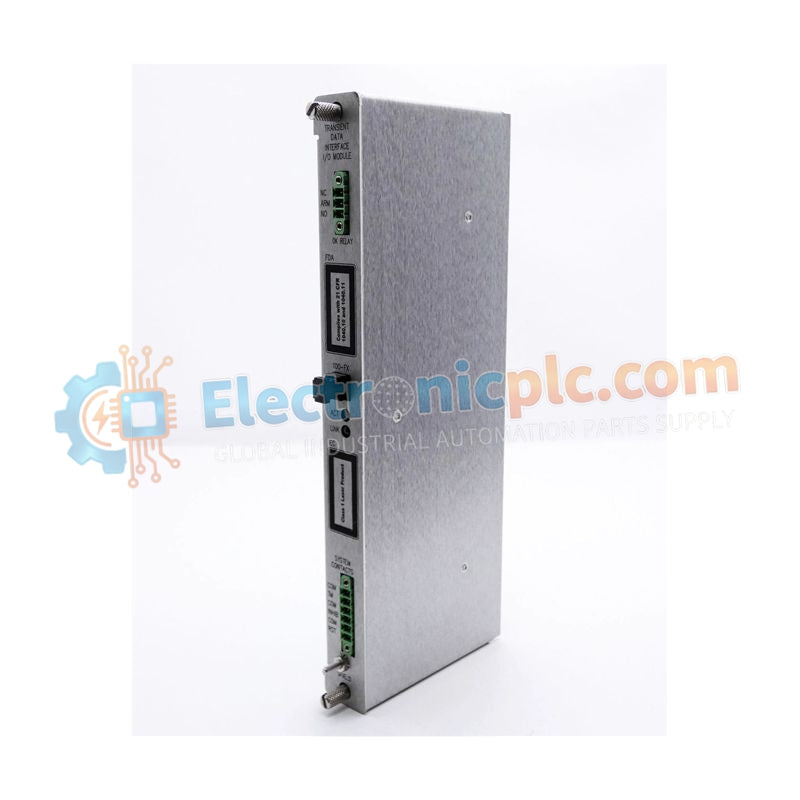

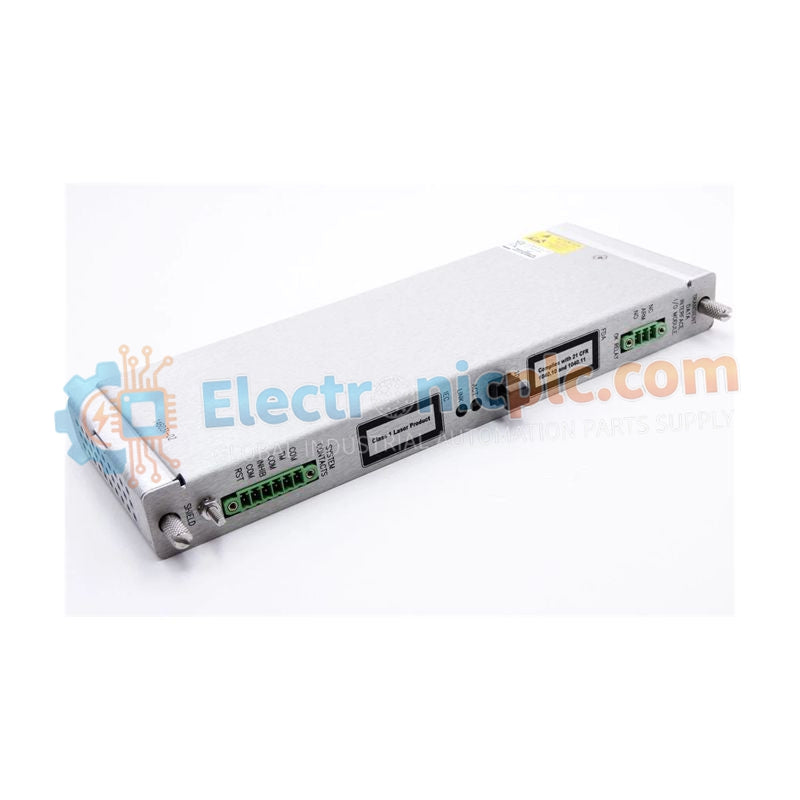

3500/22 125768-01 Bently Nevada Rack Interface I/O Module

3500/22 125768-01 Bently Nevada Rack Interface I/O Module

Product Description

The 3500/22 (125768-01) is a specialized Rack Interface I/O Module for the Bently Nevada 3500 Machinery Protection System. Installed at the rear of the 3500 rack, it provides the physical connection for Ethernet communications and rack...

29 people are viewing this right now

Availability: Low stock: 10 left

SKU: 3500/22 125768-01
Vendor: Bently Nevada
Category: Rack Interface I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The 3500/22 (125768-01) is a specialized Rack Interface I/O Module for the Bently Nevada 3500 Machinery Protection System. Installed at the rear of the 3500 rack, it provides the physical connection for Ethernet communications and rack configuration.

Working alongside the 3500/22 TDI, this module enables high-speed data transfer for vibration waveform capture and transient machinery events such as startups and shutdowns.

Specifications

Specification Details
Module Interface 10Base-T/100Base-TX Ethernet (RJ45)
Compatibility For use with 3500/22 TDI only
Electrical Connection Differential input with high common-mode rejection
Network Speed Auto-negotiating 10/100 Mbps
Operating Temperature -40°C to +85°C
Dimensions 2.5 × 11.2 × 24.2 cm
Weight 0.45 kg

Installation and Application

The 125768-01 must be installed directly behind the 3500/22 TDI processor. While the front module handles data processing, this I/O module provides the network ports required for communication with the plant system. Its rugged design ensures reliable operation in industrial environments with vibration and temperature fluctuations.

FAQ

Is the 3500/22 (125768-01) standalone?
No. It is the I/O portion of the 3500/22 system and requires a 3500/22 TDI processor module to function.

Does this version support fiber optics?
No. The 125768-01 uses copper Ethernet (RJ45). Fiber-optic connectivity requires a different I/O module, such as 146031-02.
