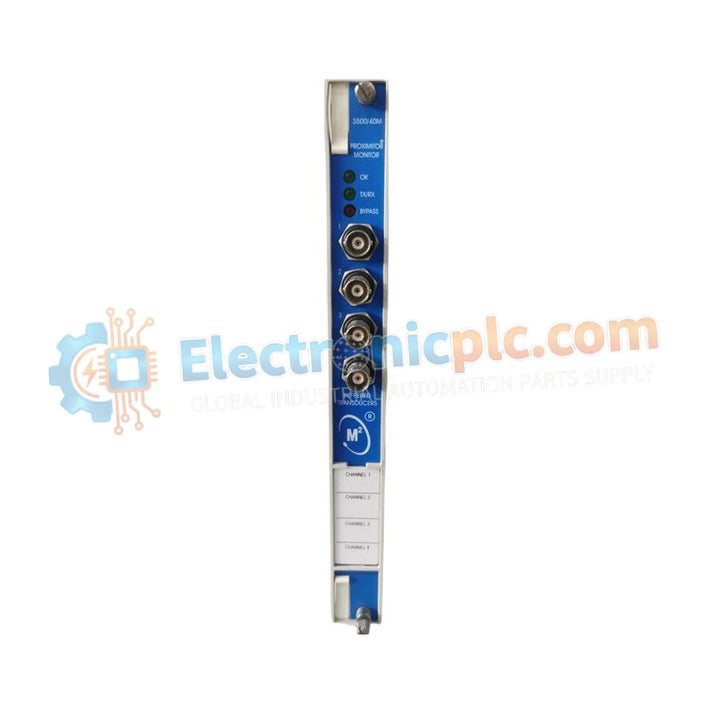

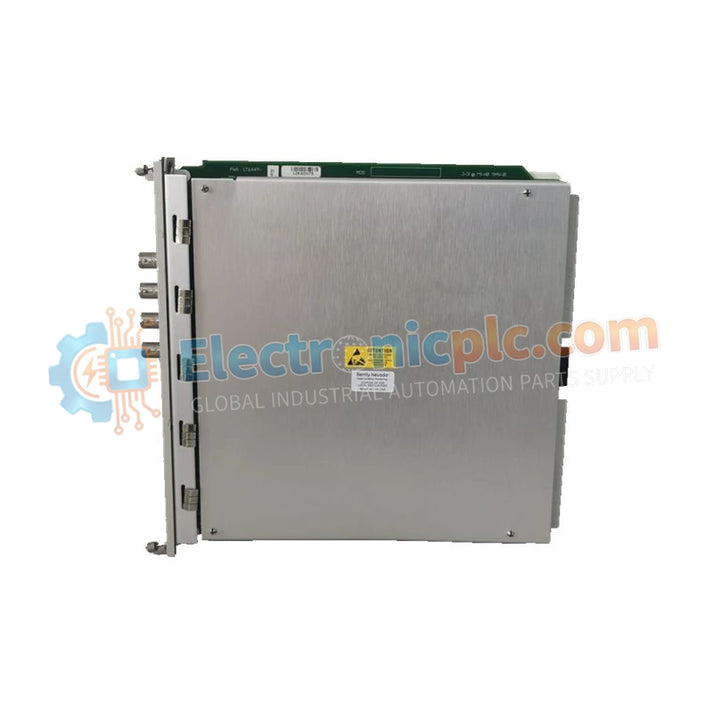

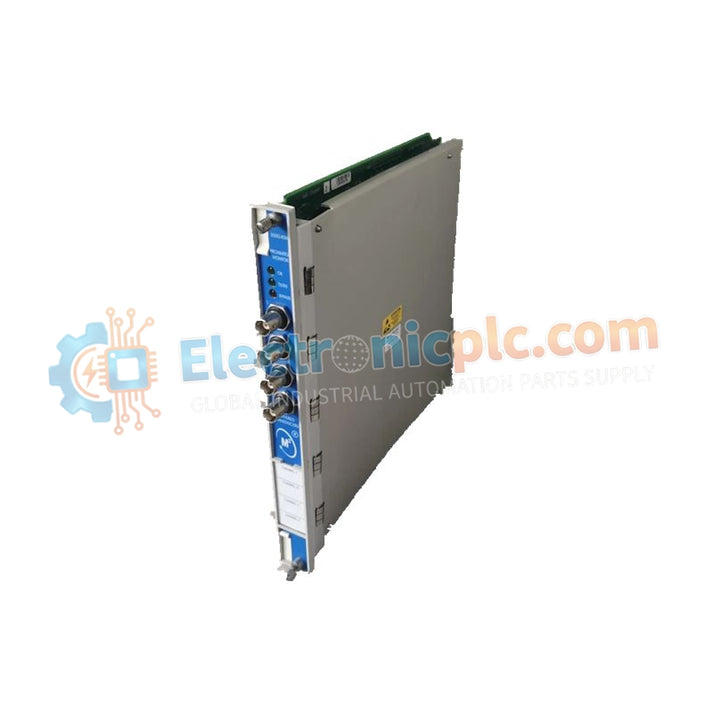

3500/40 143488-01 Proximitor I/O Module Bently Nevada

3500/40 143488-01 Proximitor I/O Module Bently Nevada

Product Description

The 3500/40M (Part Number: 143488-01) is a Proximitor I/O module for the Bently Nevada 3500 machinery protection system. It provides a reliable interface between field-mounted proximity transducers and the monitor module, ensuring accurate transmission of...

15 people are viewing this right now

Availability: Low stock: 10 left

SKU: 3500/40 143488-01
Vendor: Bently Nevada
Category: Proximitor I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The 3500/40M (Part Number: 143488-01) is a Proximitor I/O module for the Bently Nevada 3500 machinery protection system. It provides a reliable interface between field-mounted proximity transducers and the monitor module, ensuring accurate transmission of vibration and displacement signals for critical rotating machinery.

Designed for industrial environments, the module maintains signal integrity under demanding conditions and supports 4-channel monitor configurations.

Technical Specifications

Specification Details
Model Designation 3500/40M
Part Number 143488-01
Component Type Proximitor I/O Module
Channel Support 4 Channels
Input Interface Eddy current proximity probe signals
Dimensions 263 mm × 58 mm × 28 mm
Net Weight 0.8 kg

System Deployment

The 143488-01 module is used in turbine supervision systems, centrifugal compressor racks, and large motor protection setups. It ensures high-fidelity signal routing from proximity probes to the 3500 series monitor, maintaining reliable machinery condition monitoring and supporting preventive maintenance.

Frequently Asked Questions

What is the function of the 143488-01 module?
It acts as the interface and signal processor, allowing proximity transducer inputs to be accurately communicated to the 3500 monitor module.

Is this module compatible with all 3500 series racks?
Yes. It fits standard 3500 rack backplanes, though monitor firmware compatibility should be checked during commissioning.

Does this module provide power to the proximity probes?
Yes. It routes the -24 VDC transducer supply from the monitor to the field sensors.
