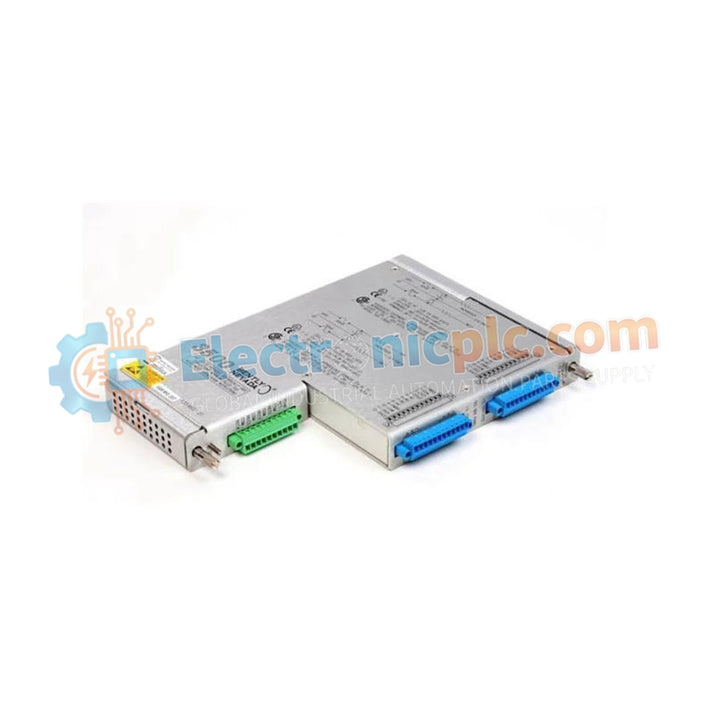

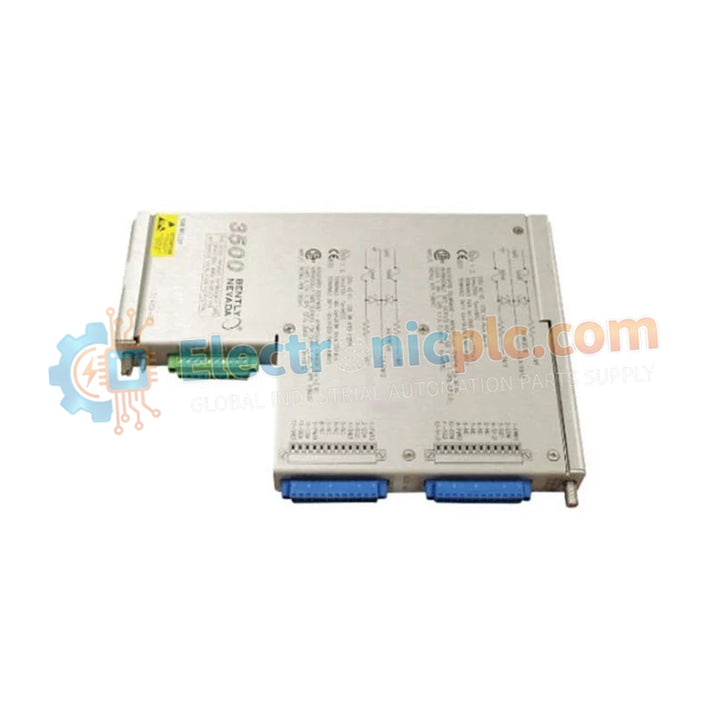

The 3500/40M (135489-04) is a high-specification I/O interface module designed for the 3500 Machinery Protection System developed by Bently Nevada. This module is engineered with integrated intrinsic safety (IS) barriers, allowing direct connection to Proximitor sensors installed in hazardous locations without requiring external zener safety barriers.
By integrating safety protection directly into the module, the 3500/40M significantly reduces cabinet wiring complexity and optimizes rack space utilization. The module is primarily used for vibration, shaft position, and rotational speed monitoring on critical rotating assets.
The internal intrinsic safety architecture ensures that electrical energy delivered to hazardous zones is strictly limited, reducing ignition risk while maintaining high-precision signal transmission for radial vibration and thrust position measurements. Internal terminations allow direct rear-rack field wiring, simplifying installation and maintenance.
| Item | Specification |
|---|---|
| Model Number | 3500/40M (135489-04) |
| Monitor Compatibility | 3500/40M Proximitor Monitor |
| Termination Type | Internal Termination (Direct rack wiring) |
| Safety Architecture | Integrated Intrinsic Safety (IS) Barriers |
| Channel Capacity | 4 Channels |
| Hazardous Area Rating | Class I, Div 1 / Zone 0 interface capable |
| Weight | 2 kg |
The 3500/40M (135489-04) is widely deployed in:
Steam turbine monitoring systems
Centrifugal compressor vibration protection
High-speed gearbox condition monitoring
Offshore and refinery machinery installations
It is especially valuable in explosive atmosphere environments where intrinsic safety compliance is mandatory for field instrumentation deployment.
Can this module be used with standard non-IS Proximitor sensors?
Yes. The 135489-04 can interface with standard sensors provided that hazardous area wiring, grounding, and installation drawings for the 3500 system are strictly followed.
Does the internal barrier affect signal accuracy?
No. The internal intrinsic safety barriers are precision engineered to match monitor input impedance characteristics, ensuring vibration and gap voltage measurements remain within Bently Nevada accuracy tolerances.
