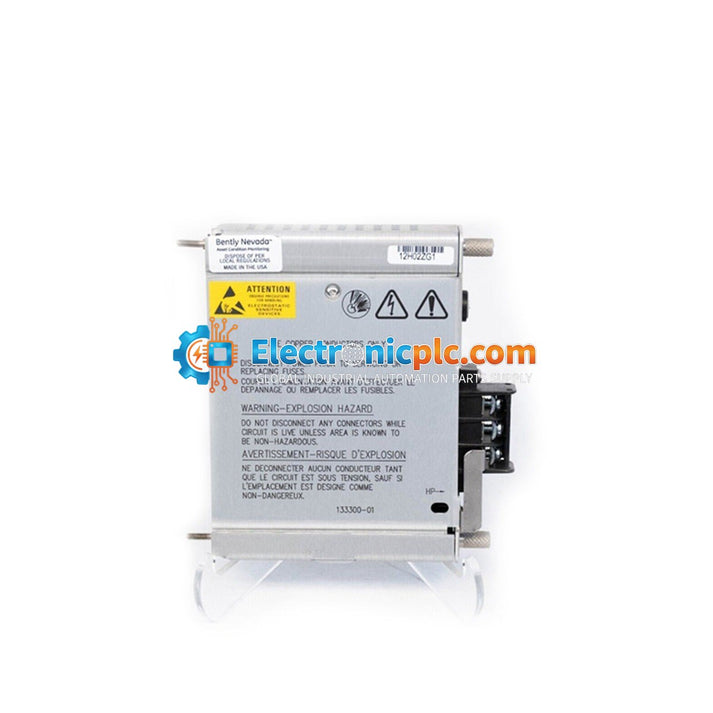

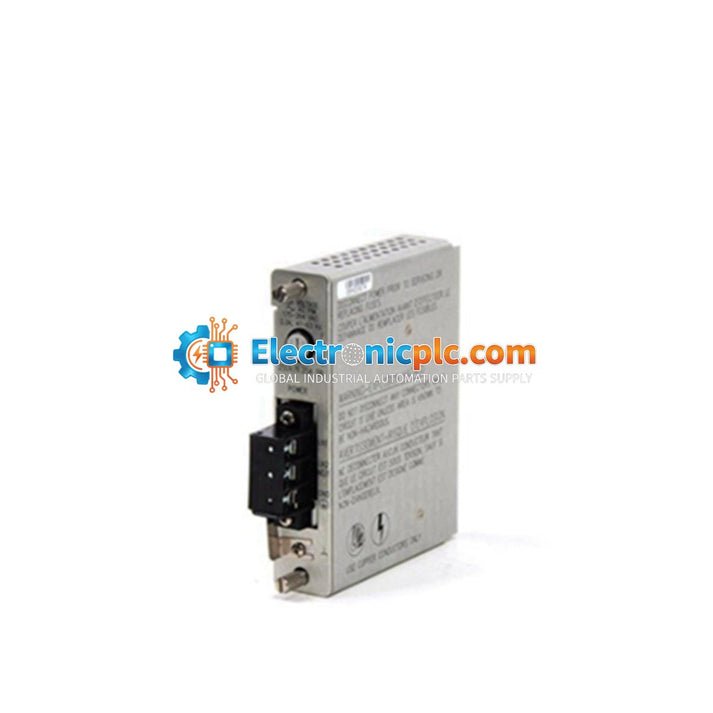

Bently Nevada 133300-01 Low Voltage DC Power Input Module

Bently Nevada 133300-01 Low Voltage DC Power Input Module

Description

The Bently Nevada 133300-01 is a Low Voltage DC Power Input Module (PIM) designed specifically for the 3500/15 Power Supply series within the Bently Nevada 3500 Machinery Protection System. This...

26 people are viewing this right now

Availability: Low stock: 9 left

SKU: 133300-01
Vendor: Bently Nevada
Category: Power Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Bently Nevada 133300-01 is a Low Voltage DC Power Input Module (PIM) designed specifically for the 3500/15 Power Supply series within the Bently Nevada 3500 Machinery Protection System. This half-height module is engineered to accept a 20 to 30 Vdc input and convert it into the necessary voltages required to power various modules within the 3500 rack, including Rack Interface Modules (RIM), transducer modules, and relay modules.

Features

  • Designed as a half-height module for the 3500/15 Power Supply series.
  • Supports redundant power configurations when two power supplies are installed in a single rack.
  • Enables hot-swapping capabilities, allowing for module removal or insertion without disrupting rack operation, provided a secondary power supply is active.
  • Compatible with the standard 3500 series rack architecture, occupying the dedicated power supply slots on the left side of the chassis.

Applications

  • Machinery protection and condition monitoring systems in power generation facilities.
  • Industrial automation in steel mills, cement plants, and pulp/paper processing.
  • Critical infrastructure requiring redundant power supply configurations for continuous monitoring.

Technical Specifications

Product Model 133300-01
Input Voltage Range 20 to 30 Vdc
Operating Temperature -30 degC to +65 degC (-22 degF to +150 degF)
Storage Temperature -40 degC to +85 degC (-40 degF to +185 degF)
Relative Humidity 95%, non-condensing
Manufacturer Bently Nevada

Installation Guidelines

  • Mounting: The module must be installed in the designated power supply slots on the left side of the 3500 rack.
  • Safety: Always disconnect the primary power source before installing or removing the module to prevent electrical hazards.
  • Terminal Access: Access the power terminals by opening the hinged protector located on the rear of the rack.
  • Redundancy: When using two power supplies, the lower slot functions as the primary supply, and the upper slot functions as the backup.
  • Handling: Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.

FAQ

What is the primary function of the 133300-01?

The 133300-01 serves as a DC Power Input Module (PIM) for the 3500/15 series, converting low-voltage DC input into regulated power for the machinery protection system components.

Can this module be hot-swapped?

Yes, if a redundant (second) power supply is installed and active in the rack, the 133300-01 can be removed or inserted without interrupting the operation of the rack.

What is the input voltage requirement?

This specific module is designed for an input voltage range of 20 to 30 Vdc.
