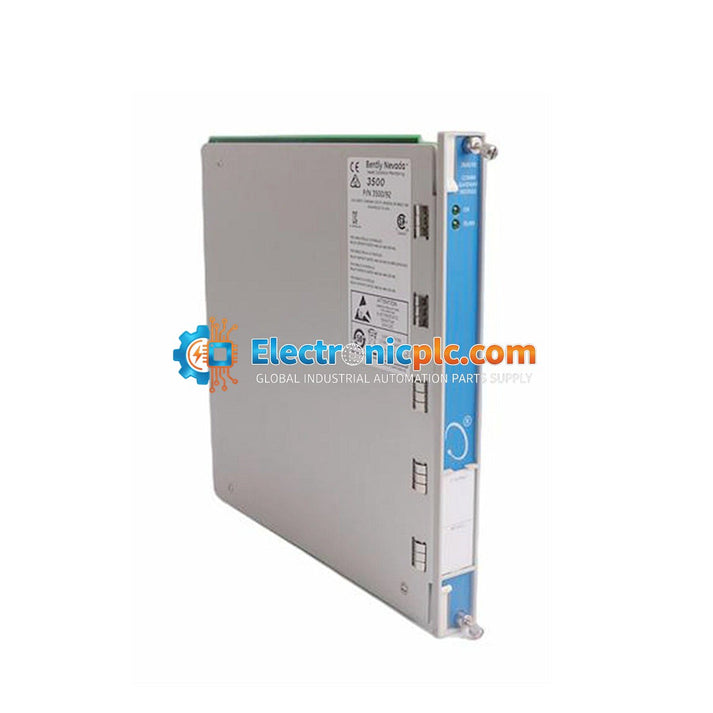

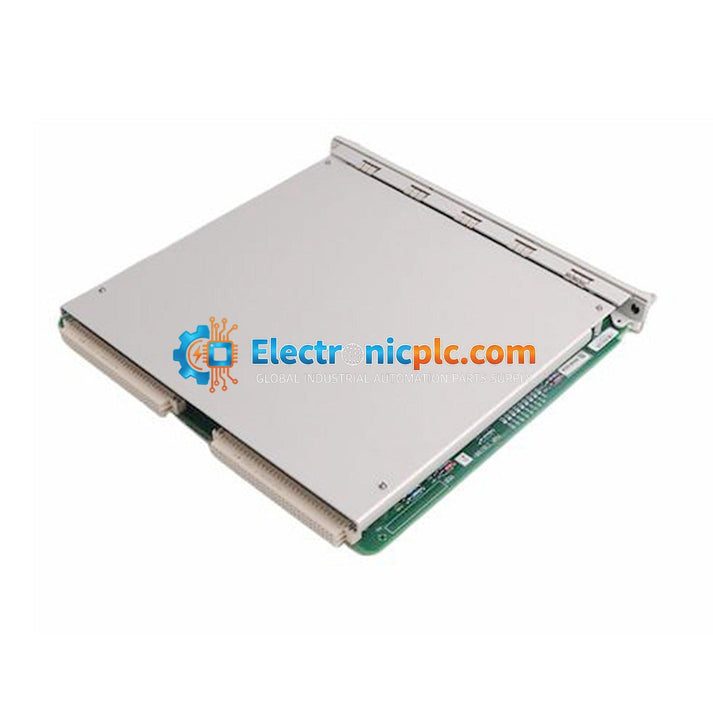

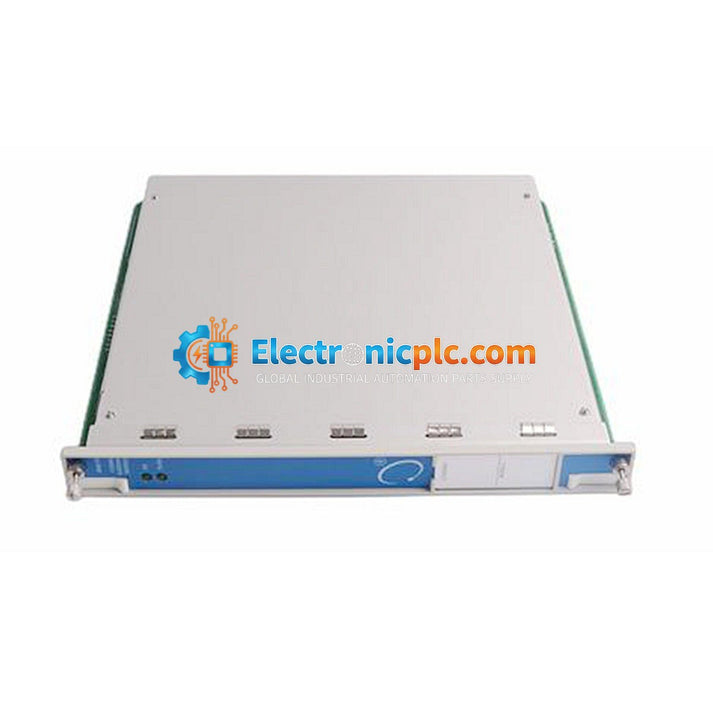

Bently Nevada 3500/94 Display Router Module

Bently Nevada 3500/94 Display Router Module

Description

The Bently Nevada 3500/94 Display Router is a specialized interface module designed for the 3500 Machinery Protection System. It acts as a critical communication link between the 3500 rack and...

22 people are viewing this right now

Availability: Low stock: 7 left

SKU: 3500/94
Vendor: Bently Nevada
Category: Display Router Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Bently Nevada 3500/94 Display Router is a specialized interface module designed for the 3500 Machinery Protection System. It acts as a critical communication link between the 3500 rack and the 3500 VGA Display unit. By routing data from the rack to the display, this module enables operators to view real-time machinery monitoring data, alarm statuses, and system configurations directly on a connected monitor.

Features

  • Facilitates high-speed communication between the 3500 rack and external VGA display units.
  • Supports remote mounting capabilities up to 8 meters (25 feet) from the rack.
  • Low power consumption profile with a maximum rating of 4.6 Watts.
  • Designed for integration into standard 3500 series rack configurations.
  • Robust environmental operating range suitable for industrial control room conditions.

Technical Specifications

Product Model 3500/94
Spare Part Number 145988-01
Power Consumption 4.6 Watts (Max)
Operating Temperature -30 degC to +65 degC (-22 degF to +150 degF)
Storage Temperature -40 degC to +85 degC (-40 degF to +185 degF)
Relative Humidity 95%, non-condensing

Installation Guidelines

  • Ensure the 3500 rack is powered down before inserting or removing the 3500/94 module to prevent damage to the backplane connectors.
  • The module should be installed in a designated slot within the 3500 rack; ensure it is fully seated and the front panel screws are tightened to maintain proper grounding.
  • Use appropriate shielded cabling for the VGA interface to minimize electromagnetic interference (EMI) in industrial environments.
  • Maintain proper ventilation within the cabinet to ensure the module stays within its specified operating temperature range.
  • Handle with care using ESD-safe practices to prevent damage to sensitive electronic components.

FAQ

Is the 3500/94 module still in production?

No, the Bently Nevada 3500/94 Display Router has been discontinued by the manufacturer. We provide high-quality surplus or refurbished units to support legacy system maintenance.

What is the maximum distance for the display connection?

The 3500/94 module supports a cable distance of up to 8 meters (25 feet) between the rack and the display unit.
