Description

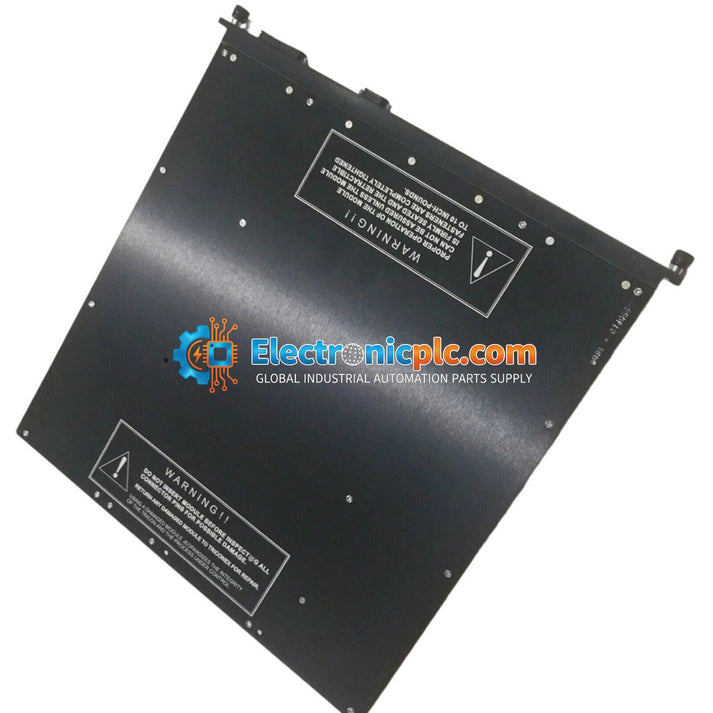

The Triconex 3664 digital output module is a high-performance, fault-tolerant interface designed for safety-instrumented systems (SIS). Utilizing a Dual Digital Output (DDO) architecture combined with a 2-out-of-3 (2oo3) voting process, the module effectively eliminates single-point failures to ensure reliable safety loop execution. It is engineered for demanding industrial environments, including oil refining, power generation, and chemical processing, where it provides secure management of high field currents and helps prevent false trips.

Features

• 2oo3 Voting Logic: Hardware-based voting mechanism ensures signal validity and system integrity.
• Fault Tolerance: Designed to prevent single-point failures in critical safety applications.
• High Isolation: Features 1500 VDC minimum point-to-point isolation to protect internal logic from field transients.
• Hot-Swappable: Supports replacement under live system conditions to minimize downtime.
• High Capacity: 32 commoned output lines with a maximum current capacity of 2 A per point.

Applications

This module is primarily utilized in emergency shutdown (ESD) systems, burner management systems (BMS), and fire and gas detection systems. Its robust design makes it suitable for hazardous locations requiring high-reliability control and safety-critical signal output.

Technical Specifications

Installation Guidelines

• Ensure the Triconex chassis is properly grounded before module insertion.
• The module is hot-swappable; however, ensure the surrounding environment is free of conductive debris before installation.
• Use appropriate shielded cabling for field connections to maintain EMI/RFI immunity.
• Verify that the field power supply is within the 16-30 VDC operating range to prevent module damage.
• Handle with standard ESD precautions to protect sensitive internal circuitry.

FAQ

Is this module compatible with all Triconex systems?

The 3664 is designed for specific Triconex safety controller architectures. Please verify your system's hardware revision and compatibility requirements before installation.

Does the module require external cooling?

The module is designed for standard convection cooling within a Triconex rack. Ensure that the cabinet ventilation is clear and that the ambient temperature remains within the 0 to +60 deg C range.
