Description

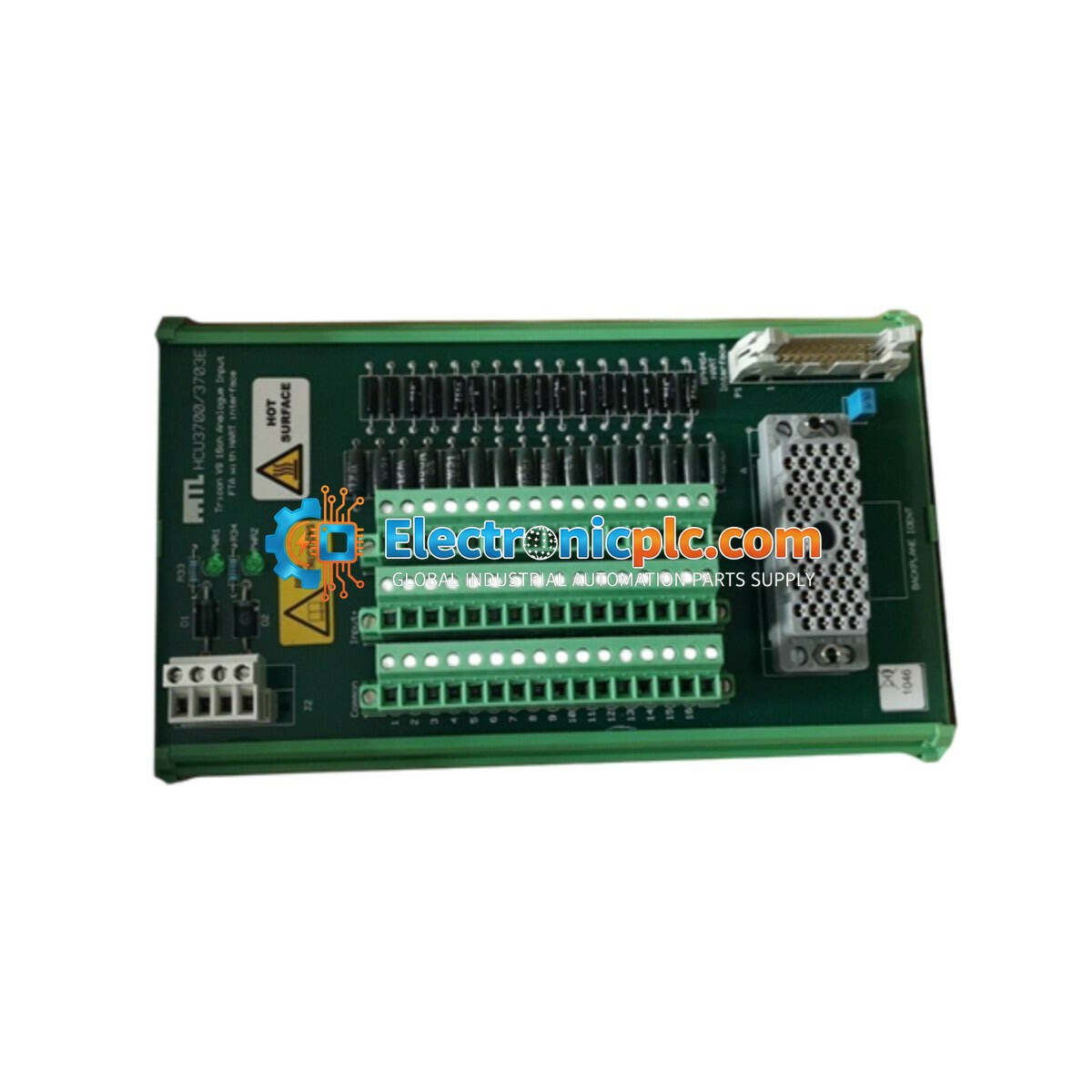

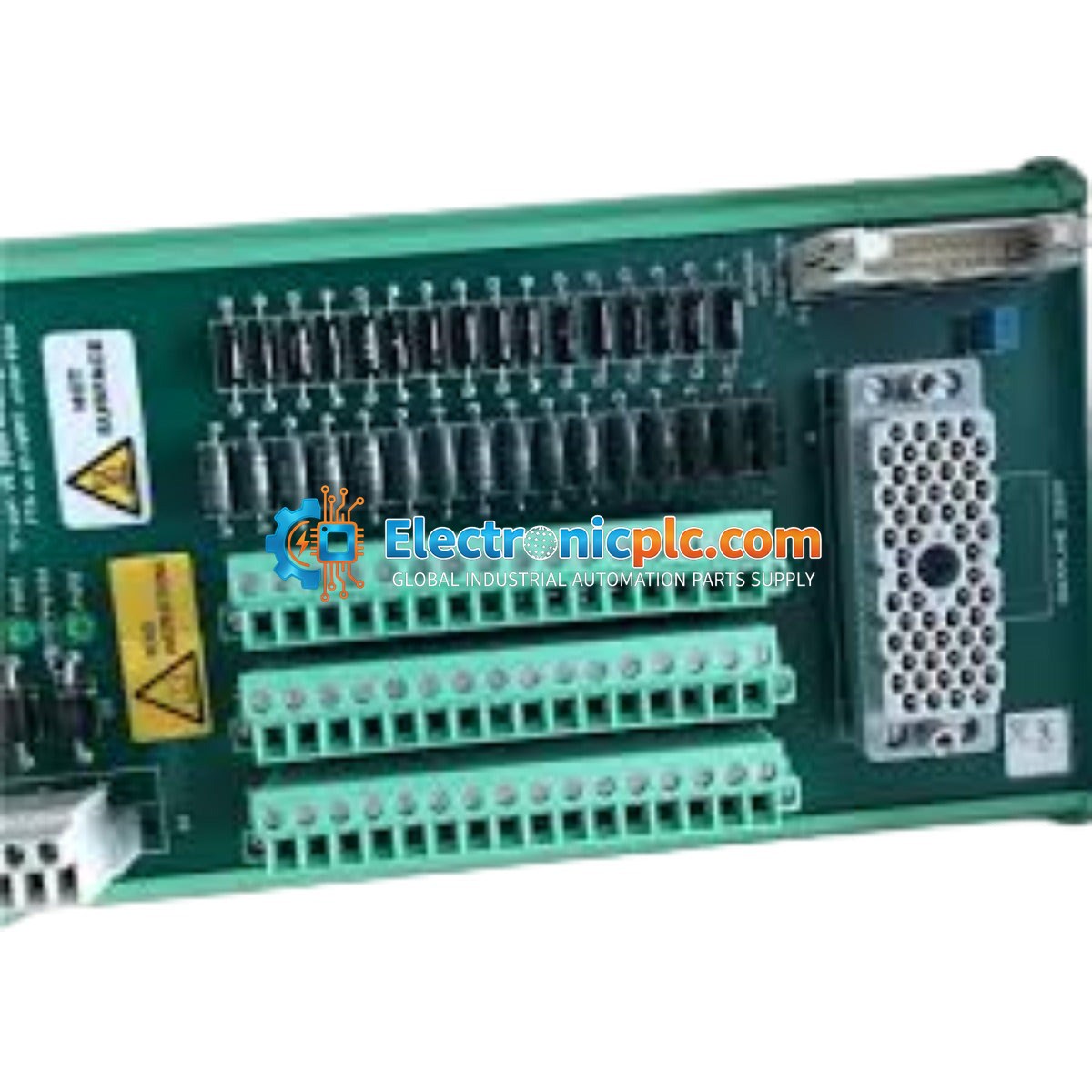

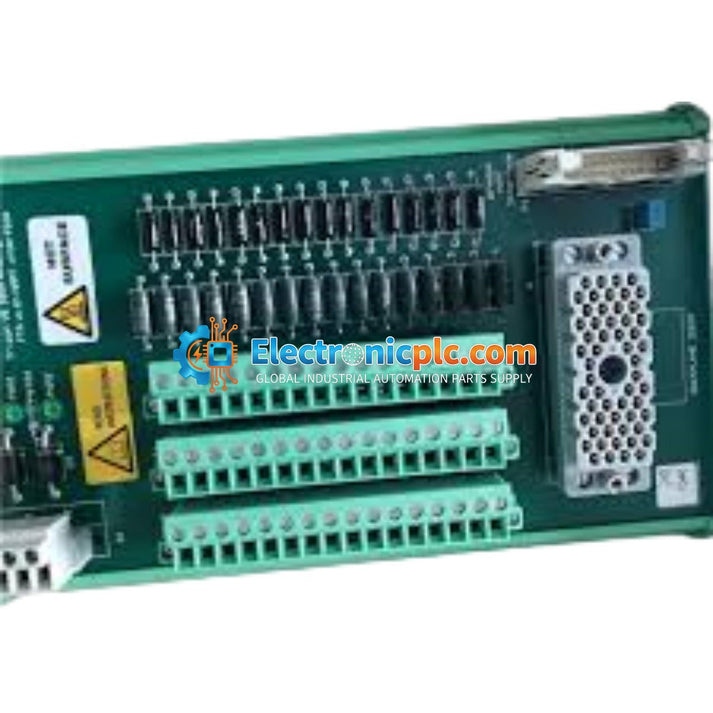

The 3703E HCU3700 is a high-performance Isolated Analog Input Module engineered for the Tricon Triple Modular Redundancy (TMR) safety system. This module provides 16 isolated differential input channels designed for mission-critical monitoring in oil refineries, nuclear power plants, and large-scale mining operations. By utilizing individual point-to-point galvanic isolation, the 3703E protects the safety system from ground loops and external electrical interference. Its high-availability architecture ensures that field data remains accurate and accessible even during transient faults, effectively eliminating false trips and reducing costly unscheduled downtime in SIL 3 environments.

Features

• 16 isolated differential input channels for high-density monitoring.
• TMR (Triple Modular Redundancy) architecture for fault-tolerant operation.
• Individual point-to-point galvanic isolation to mitigate ground loops.
• Enhanced diagnostic coverage for open and short circuit detection.
• Integrated microprocessor-based self-testing for continuous system health monitoring.
• Compatible with 0 to 5 VDC or 4 to 20 mA input ranges.

Applications

This module is designed for use in safety-critical industrial environments, including:

• Emergency Shutdown Systems (ESD).
• Fire and Gas (F&G) detection systems.
• Burner Management Systems (BMS).
• High-availability process control in chemical and petrochemical plants.

Technical Specifications

Installation Guidelines

• Ensure the Tricon chassis is powered down before inserting or removing the module to prevent electrical damage.
• Verify that the module is fully seated in the designated slot and that the retaining screws are tightened to ensure proper backplane connection.
• Use shielded twisted-pair cabling for all field inputs to minimize EMI/RFI interference.
• Maintain proper grounding practices for the cable shields at the field termination assembly (FTA) to prevent ground loops.
• Ensure adequate ventilation in the cabinet to maintain the operating temperature within the 0 to 60 deg C range.
• Handle with ESD-safe precautions to protect sensitive internal circuitry.

FAQ

What is the primary function of the 3703E module?

The 3703E is an analog input module designed to interface field sensors with the Tricon TMR safety system, providing isolated, high-accuracy monitoring of process variables.

Is this module hot-swappable?

Yes, the Triconex system supports hot-swapping of modules, allowing for replacement without shutting down the entire system, provided it is performed according to the specific safety procedures outlined in your system documentation.

What does the 'E' suffix signify?

The 'E' suffix denotes an enhanced version of the module, featuring improved diagnostic capabilities and hardware reliability compared to earlier iterations.
