ABB 3BSE008514R1 DO820 Digital Output Relay Module

ABB 3BSE008514R1 DO820 Digital Output Relay Module

The ABB DO820 (3BSE008514R1) is a high-performance digital output module designed for the S800 I/O system. This module features 8 individually galvanically isolated relay output channels, providing flexible control for...

24 people are viewing this right now

Availability: In stock

SKU: 3BSE008514R1
Vendor: ABB
Category: Digital Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

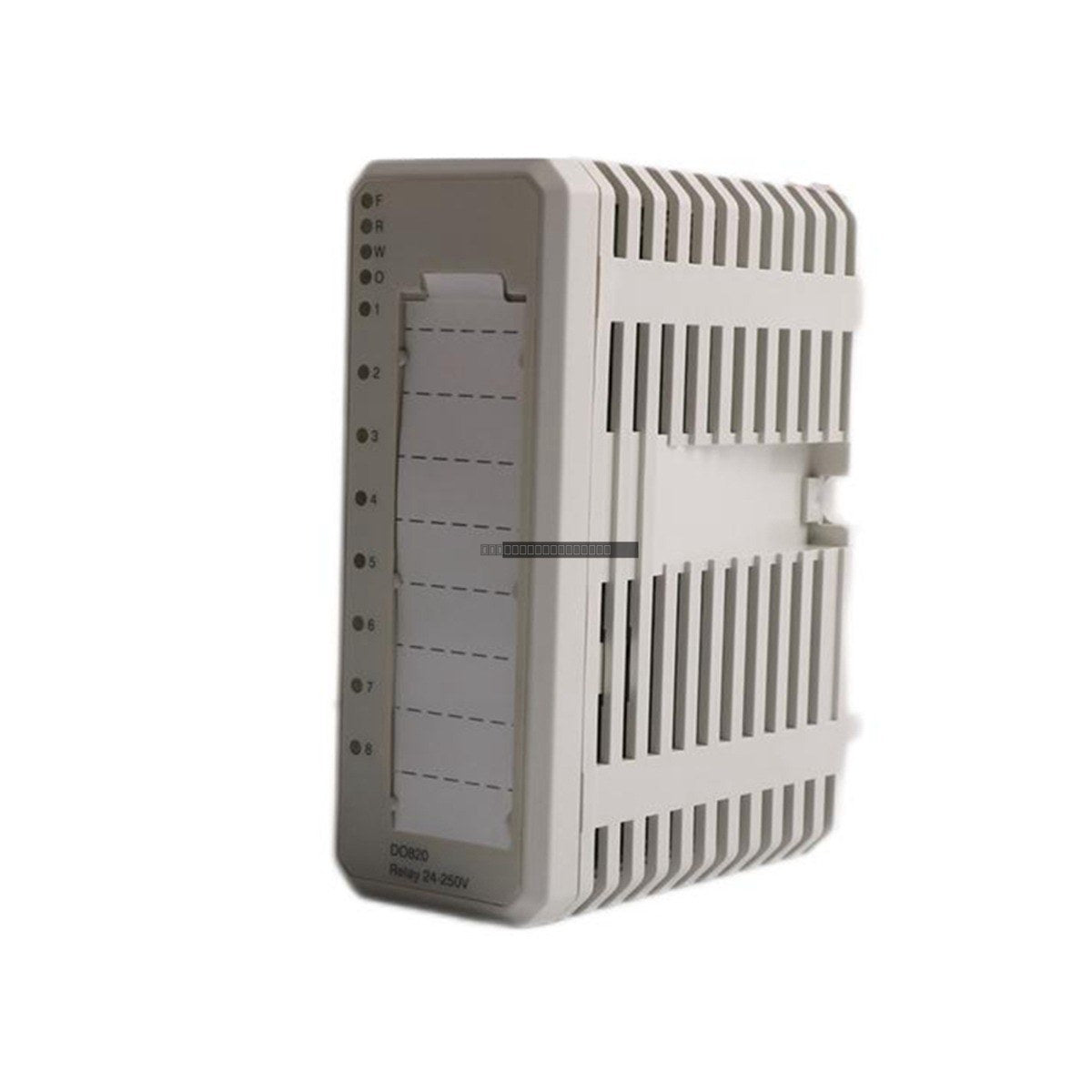

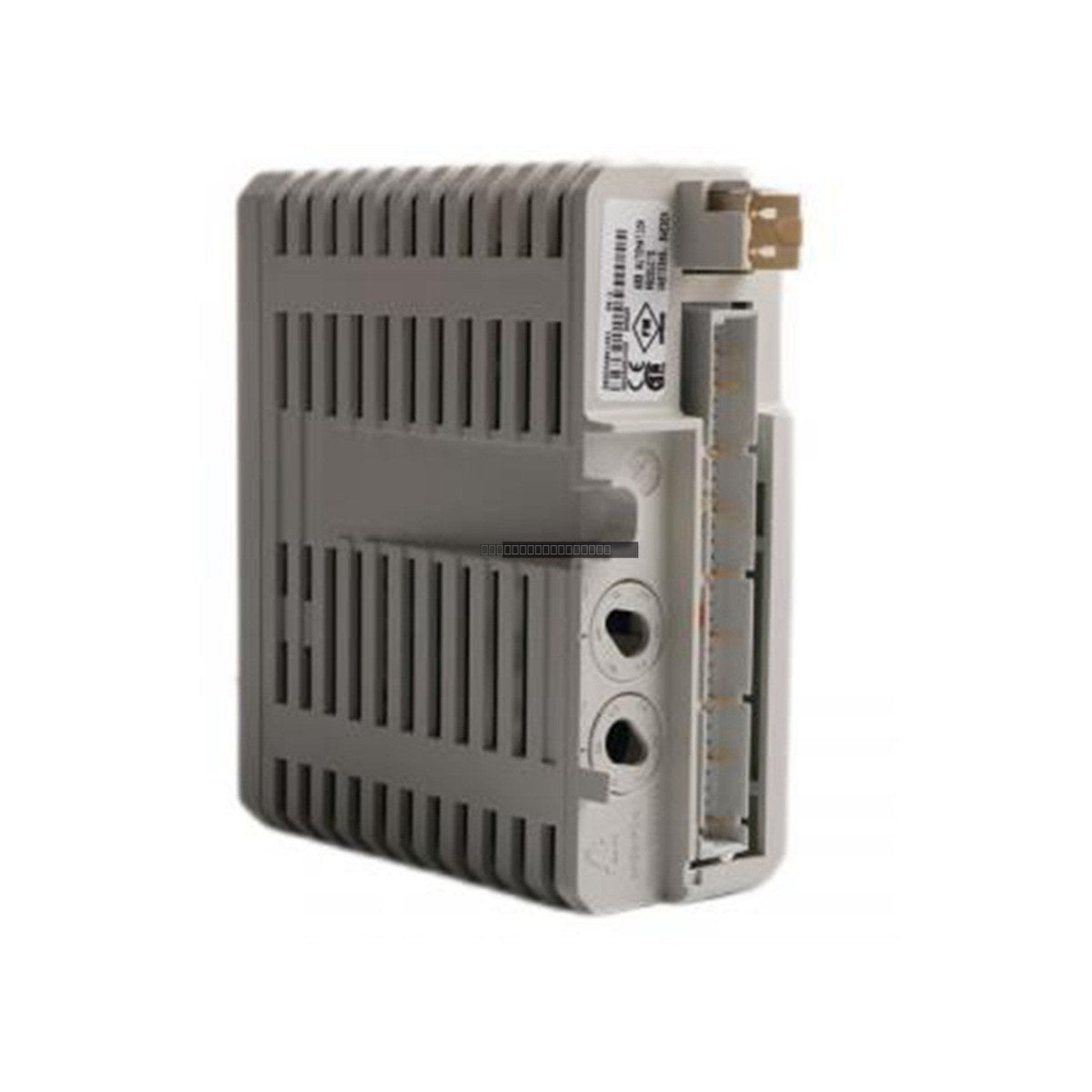

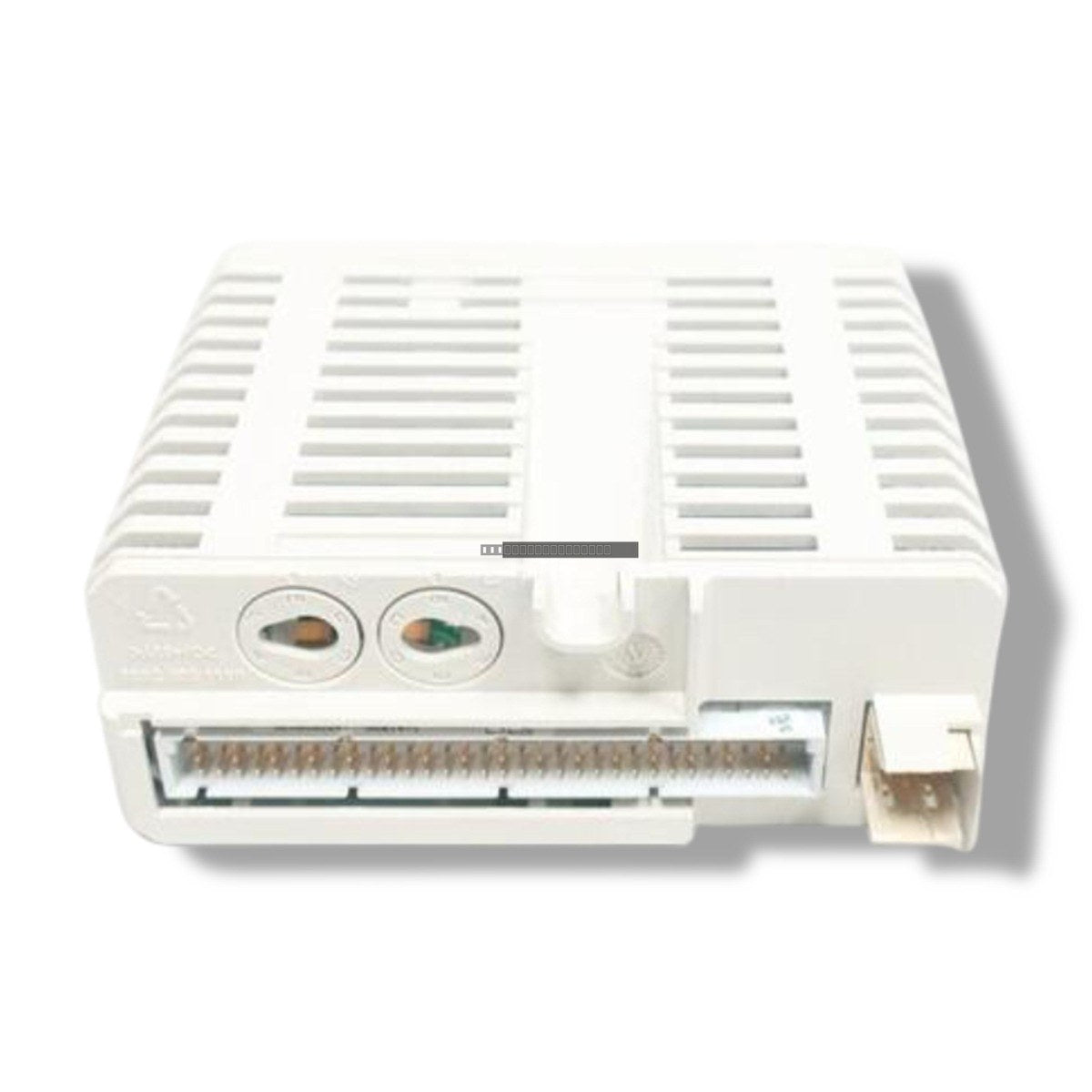

The ABB DO820 (3BSE008514R1) is a high-performance digital output module designed for the S800 I/O system. This module features 8 individually galvanically isolated relay output channels, providing flexible control for a wide range of industrial applications requiring signal switching up to 230 V AC/DC.

Features

  • 8 individually galvanically isolated relay channels
  • Supports switching voltages from 24 V to 230 V AC/DC
  • Rated for 3 A output current per channel
  • Compact S800 I/O form factor for high-density rack mounting
  • Low power dissipation (typical 2.9 W)

Technical Specifications

Product Model DO820 (3BSE008514R1)
Number of Channels 8
Output Type Relay (N.O.)
Voltage Range 24-230 V AC/DC
Output Current 3 A
Modulebus Consumption (+5V) 60 mA
Modulebus Consumption (+24V) 140 mA
Rated Insulation Voltage 250 V
Dielectric Test Voltage 2000 V AC
Max Field Cable Length 600 meters

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the module from the S800 I/O base unit.
  • The module is designed for mounting on an S800 I/O DIN rail-based cluster. Ensure proper mechanical seating to engage the Modulebus connection.
  • Verify that field wiring is routed according to site standards, keeping high-voltage relay circuits separate from sensitive low-voltage signal cabling to prevent EMI.
  • Maintain adequate spacing within the cabinet to allow for proper airflow and cooling, as the module dissipates heat during operation.
  • Observe the 600-meter maximum field cable length limit to maintain signal integrity.

FAQ

What is the primary function of the ABB DO820?
The DO820 is a digital output module used to interface the control system with field devices using relay-based switching, providing electrical isolation between the control logic and the field load.

Are the channels on the DO820 isolated?
Yes, the DO820 features 8 individually galvanically isolated relay output channels, which helps prevent ground loops and protects the control system from field-side electrical faults.
