ABB 3BSE020510R1 DO801 S800L Digital Output Module, 16-Channel 24VDC

ABB 3BSE020510R1 DO801 S800L Digital Output Module, 16-Channel 24VDC

The ABB 3BSE020510R1, identified as the DO801, is a high-density digital output module designed for the S800L I/O series. This module provides 16 channels of digital output, specifically engineered to...

27 people are viewing this right now

Availability: Low stock: 6 left

SKU: 3BSE020510R1
Vendor: ABB
Category: Digital Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

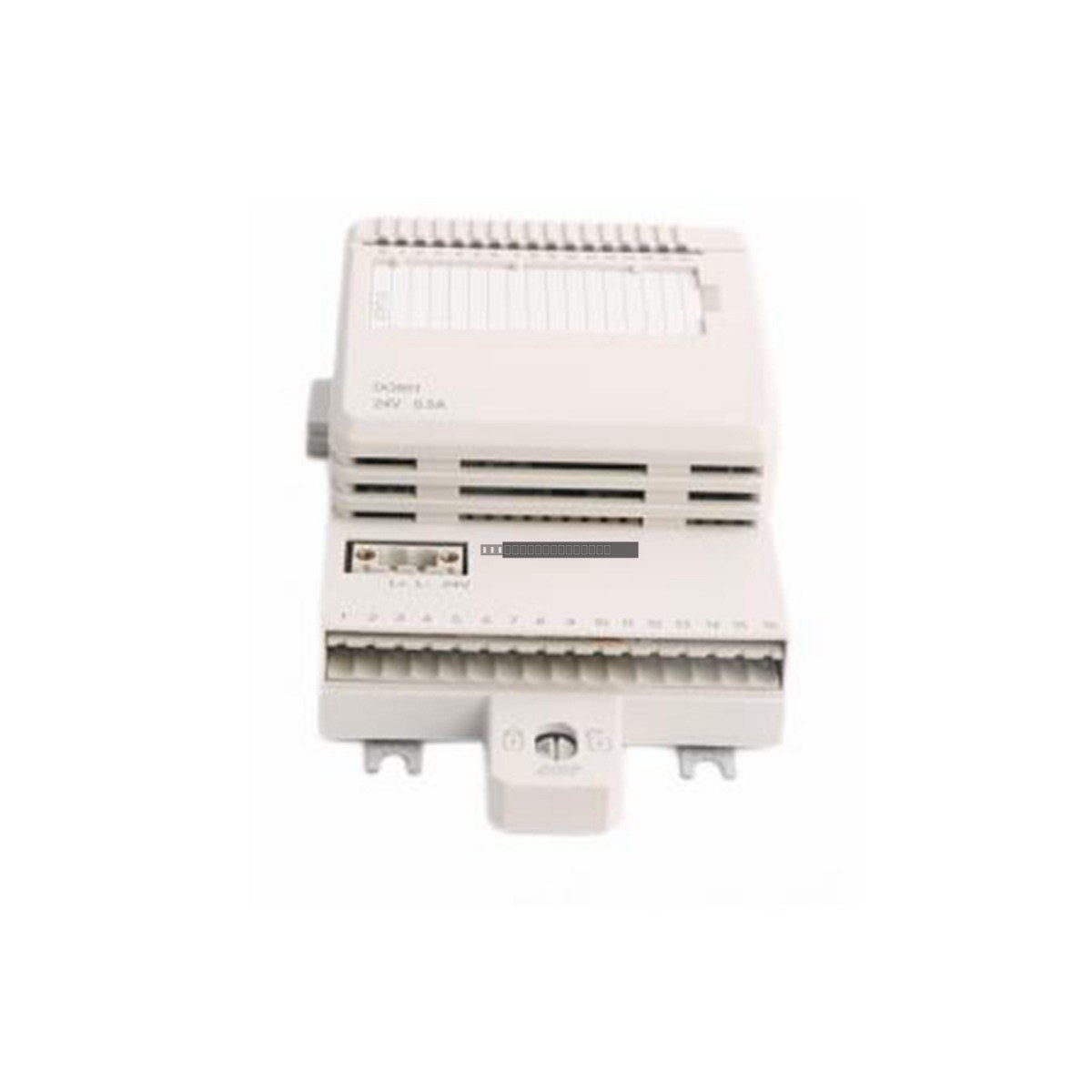

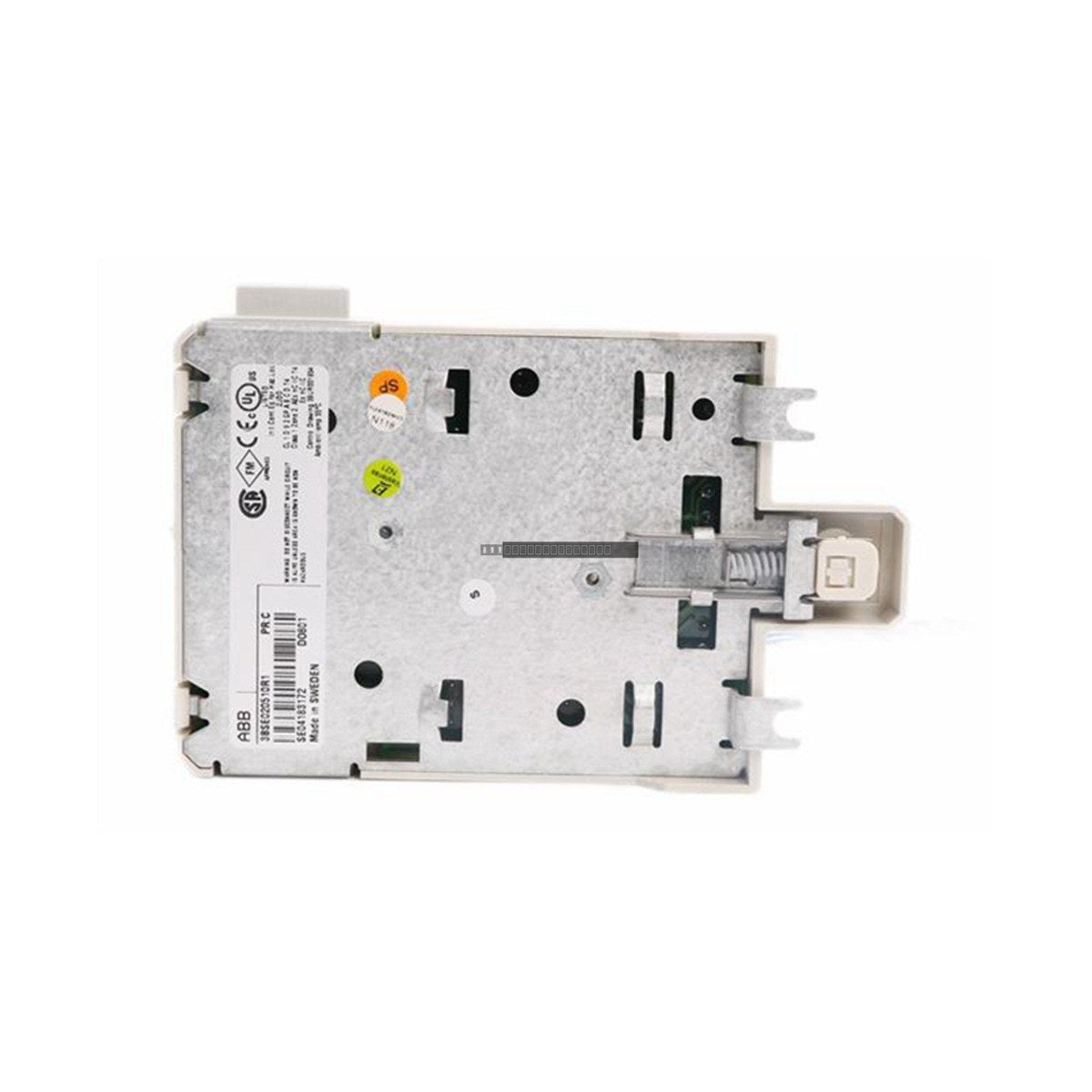

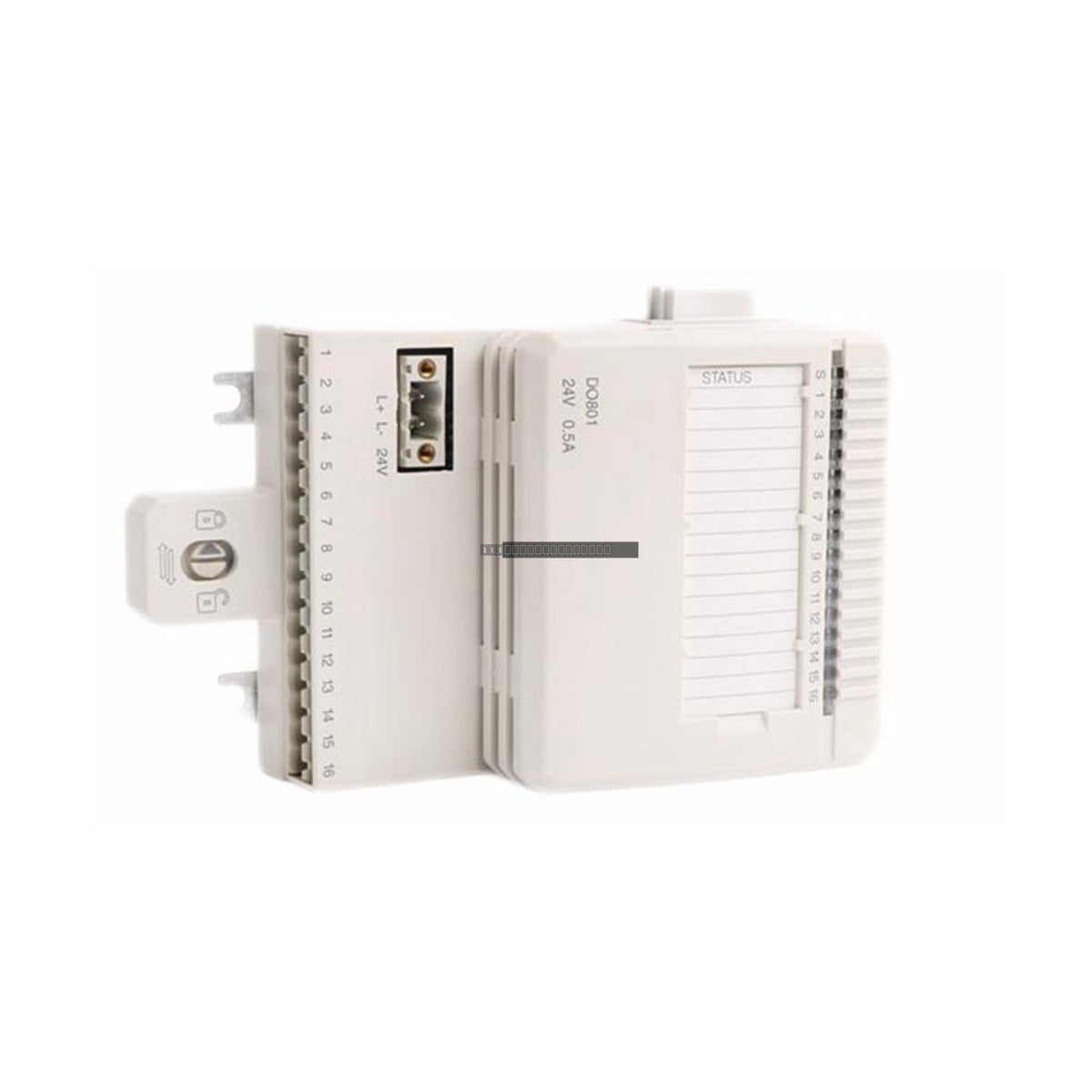

The ABB 3BSE020510R1, identified as the DO801, is a high-density digital output module designed for the S800L I/O series. This module provides 16 channels of digital output, specifically engineered to operate within 24 VDC control environments. It serves as a reliable interface for switching field devices in industrial automation systems, ensuring robust performance and seamless integration with the Advant and S800 I/O architectures.

Features

  • 16 digital output channels for high-density signal distribution.
  • Optimized for 24 VDC industrial power supplies.
  • Output current rating of 0.5 A per channel.
  • Designed for the compact and modular S800L I/O system.
  • Integrated status monitoring for simplified diagnostics.

Applications

This module is widely utilized in distributed control systems (DCS) and PLC-based automation setups. It is ideal for controlling actuators, solenoid valves, contactors, and indicating lamps in process industries such as power generation, oil and gas, and manufacturing automation.

Technical Specifications

Model DO801
Order Code 3BSE020510R1
Manufacturer ABB
Series S800L I/O
Channels 16 Digital Outputs
Voltage Rating 24 VDC
Current Rating 0.5 A per channel

Installation Guidelines

  • Ensure the system power is completely disconnected before installing or removing the module from the I/O base.
  • Mount the module onto the designated S800L I/O rail, ensuring it is securely seated and locked to prevent intermittent connections.
  • Use appropriate shielded cabling to minimize electromagnetic interference (EMI) in high-noise industrial environments.
  • Verify that the field wiring polarity matches the terminal assignments to avoid damage to the output circuitry.
  • Maintain proper ventilation in the control cabinet to keep the module within its specified operating temperature range.

FAQ

What is the primary function of the ABB DO801 module?
The DO801 is a digital output module used to interface control signals from an ABB controller to field-level devices like valves or relays.

Is this module compatible with the standard S800 I/O series?
The DO801 is part of the S800L series; please verify your specific system configuration and baseplate compatibility before installation.

What is the maximum current per channel?
This module supports a maximum of 0.5 A per output channel.
