Description

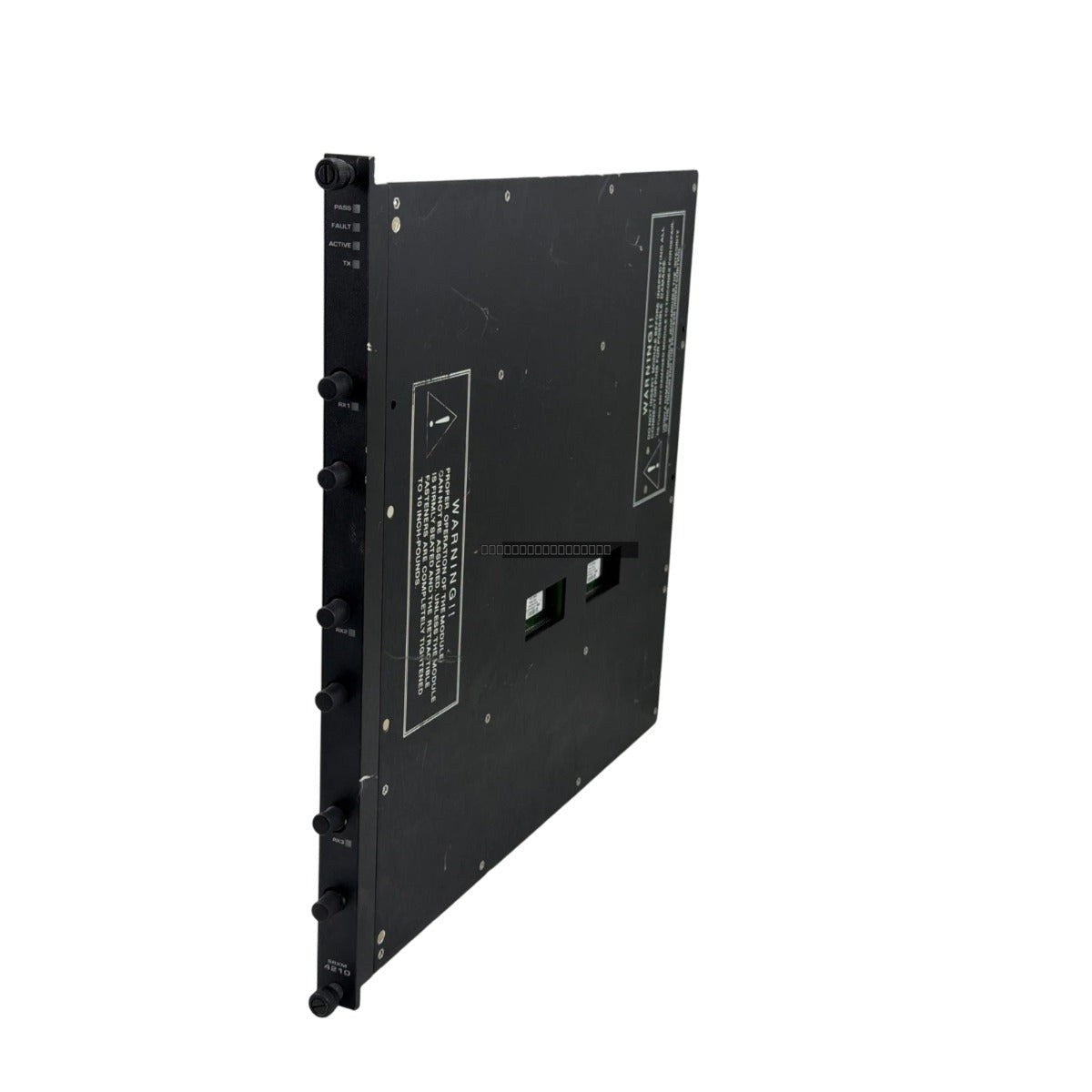

The Triconex 4210 Remote Extender Module is a critical component designed to facilitate robust, high-speed communication between primary Tricon safety controllers and remote I/O chassis. By extending the backplane bus, this module allows for the physical separation of processing units from field instrumentation, supporting distributed control architectures in high-availability safety systems. The 4210 is engineered to maintain signal integrity and deterministic performance across extended distances, ensuring that safety-critical data remains synchronized within the Triple Modular Redundant (TMR) environment.

Features

• Supports high-speed, deterministic communication for TMR safety systems.
• Enables long-distance expansion of the Triconex backplane bus.
• Reduces field wiring requirements by allowing closer proximity to field devices.
• Features optical isolation to mitigate ground loops and electromagnetic interference.
• Designed for hot-swappable installation to minimize maintenance-related downtime.
• Integrated diagnostic monitoring for link status and signal quality.

Applications

This module is frequently utilized in large-scale industrial environments where safety-critical I/O must be distributed across a facility. Typical installations include oil and gas refineries, petrochemical processing plants, power generation facilities, and mining operations where fault-tolerant, high-integrity communication is mandatory for regulatory compliance and operational safety.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before inserting or removing the module from the chassis.
• Handle the module using electrostatic discharge (ESD) protective practices to prevent damage to internal circuitry.
• Verify that the fiber optic or copper cabling meets the manufacturer's specifications for distance and signal attenuation.
• Ensure proper seating within the chassis backplane to maintain electrical contact and bus continuity.
• Route communication cables away from high-voltage power lines and heavy machinery to minimize potential EMI/RFI impact.

FAQ

Is the 4210 module hot-swappable?
Yes, the 4210 is designed for hot-swapping within the Triconex system, allowing for replacement without requiring a full system shutdown, provided the installation is performed according to safety procedures.

What is the primary function of the 4210?
The 4210 acts as a remote extender, allowing the Triconex system to communicate with I/O racks located at a distance from the main controller, effectively extending the reach of the backplane bus.
