Description

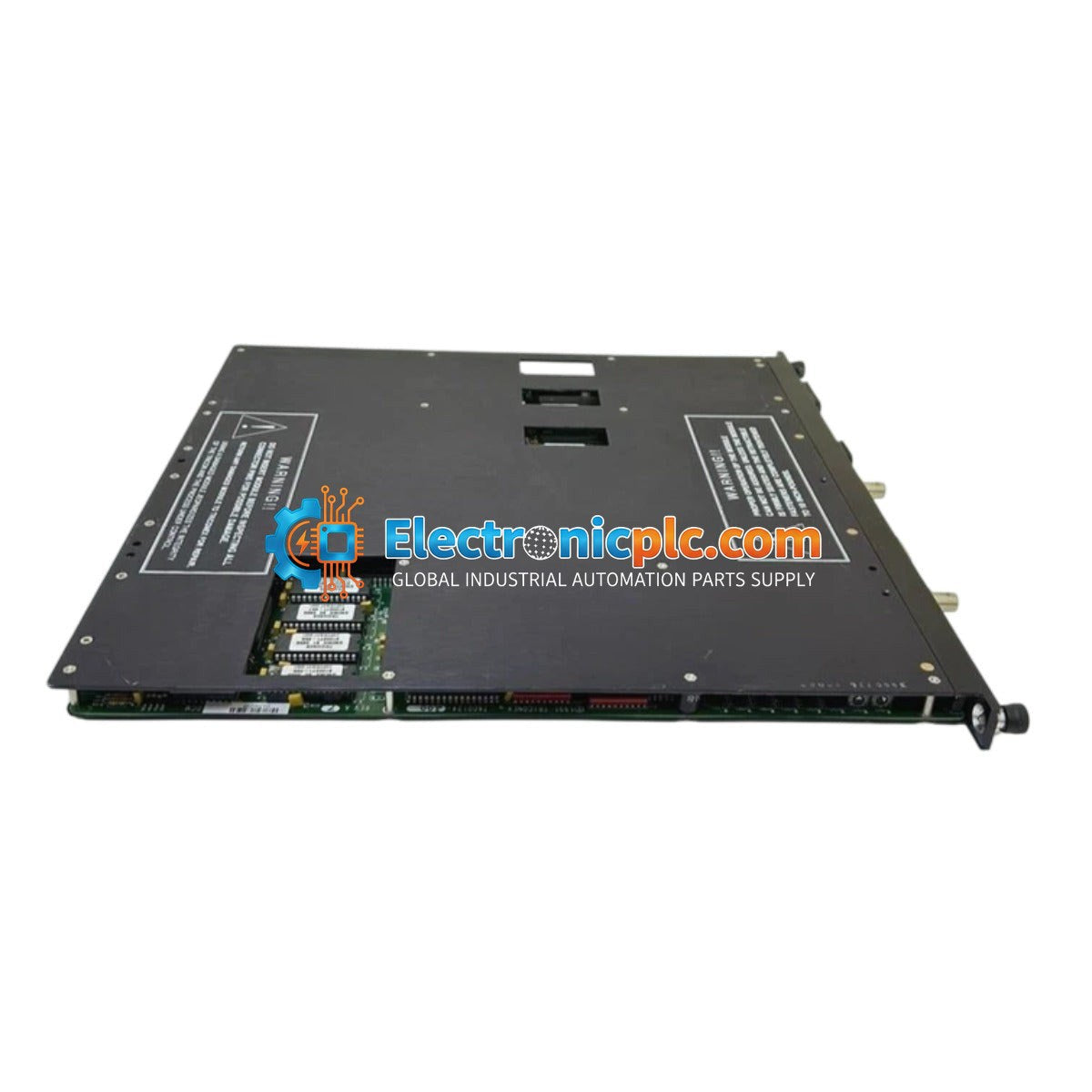

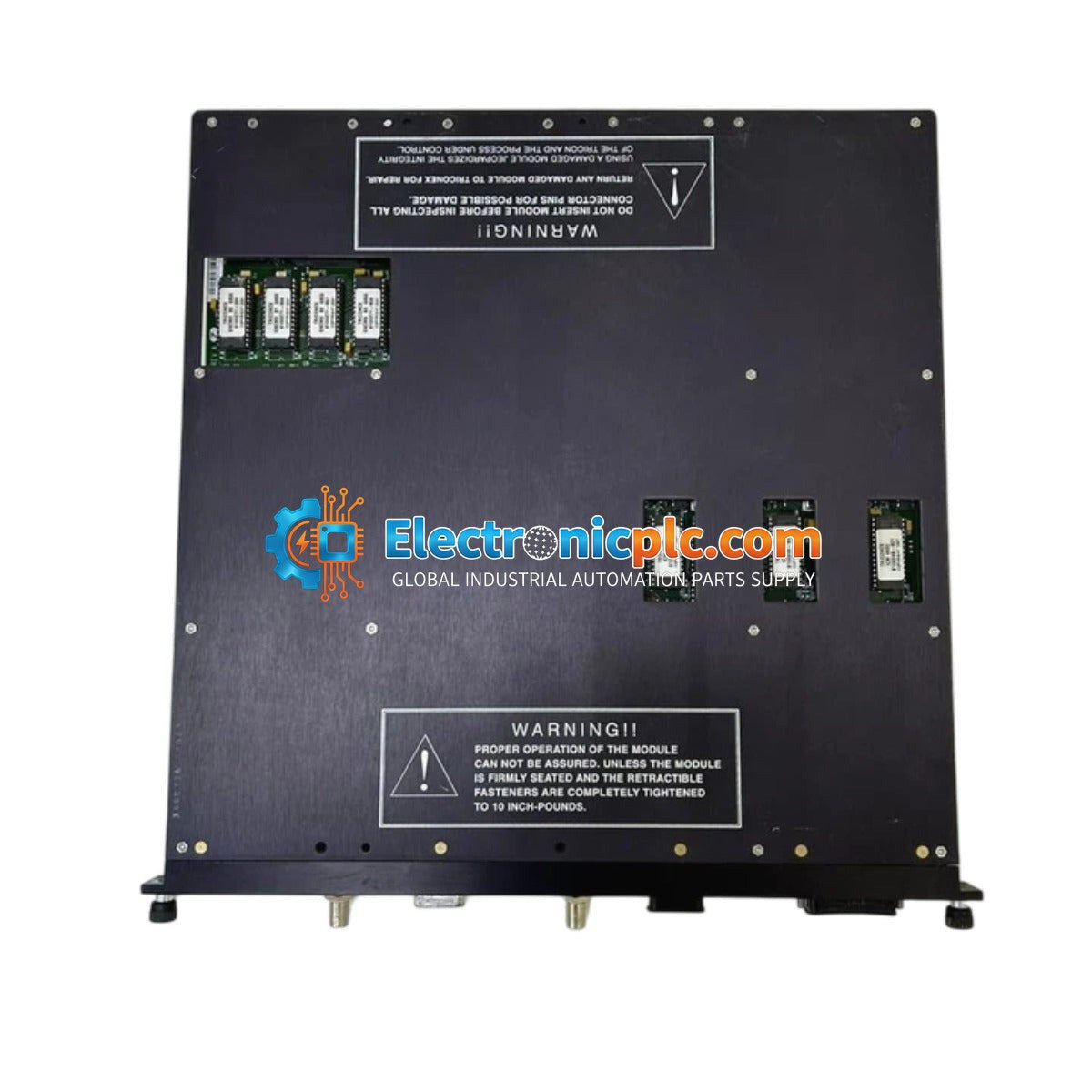

The Triconex 4329 is a high-performance communication module engineered for the Triconex TMR (Triple Modular Redundant) safety platform. This module serves as a critical interface, facilitating secure and deterministic data exchange between safety controllers and external DCS or HMI systems. By offloading communication tasks from the main control processors, the 4329 ensures that network traffic does not interfere with the execution of safety logic, maintaining system integrity in SIL 3 environments.

Features

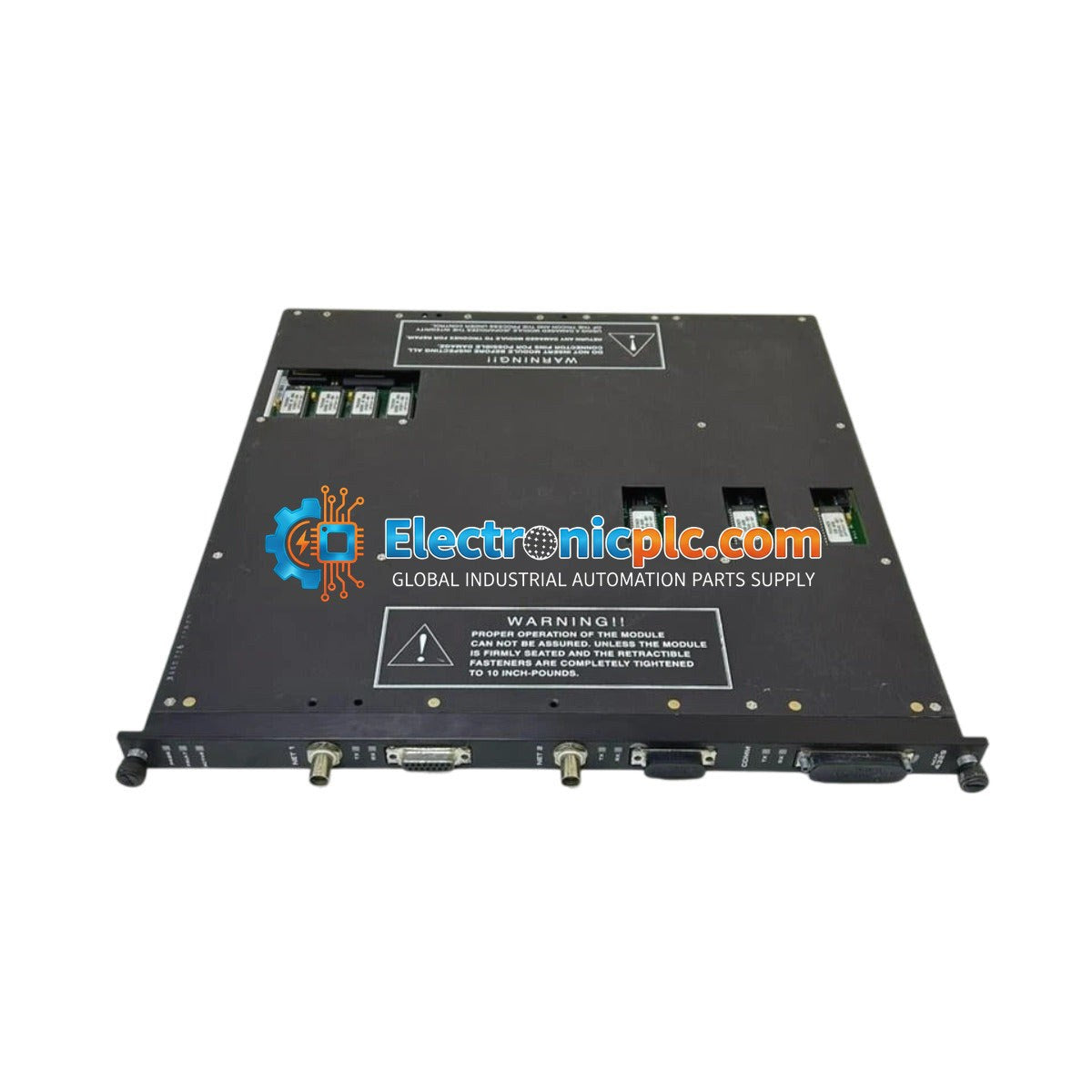

• Dual-port architecture (NET 1 and NET 2) supporting redundant network topologies.
• Dedicated hardware processing to prevent communication load on the main safety processor.
• Integrated front-panel LED indicators for real-time monitoring of Active, Link, and Fault states.
• Designed for high-availability applications in critical industrial sectors.
• Deterministic performance isolation between safety loops and external communication buses.

Applications

The 4329 module is widely utilized in mission-critical industrial environments where safety and availability are paramount, including:

• Oil and gas refining and processing facilities.
• Power generation and distribution control systems.
• Offshore mining and extraction platforms.
• Large-scale chemical and petrochemical safety instrumented systems (SIS).

Technical Specifications

Installation Guidelines

• Ensure the Triconex chassis is powered down before inserting or removing the 4329 module to prevent electrical damage.
• Verify that the module is fully seated in the designated slot to ensure proper backplane connection.
• Use shielded communication cables to minimize EMI/RFI interference in industrial environments.
• Maintain proper ventilation within the cabinet to ensure the module operates within its specified 0 to 60 deg C temperature range.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.

FAQ

What is the primary function of the 4329 module?

The 4329 acts as a network interface module for Triconex TMR safety systems, allowing the safety controller to communicate with external devices like DCS or HMI platforms without compromising the deterministic nature of the safety logic.

Does the 4329 support network redundancy?

Yes, the module is equipped with dual ports (NET 1 and NET 2), which support redundant network topologies to ensure continuous communication in the event of a single link failure.
