Description

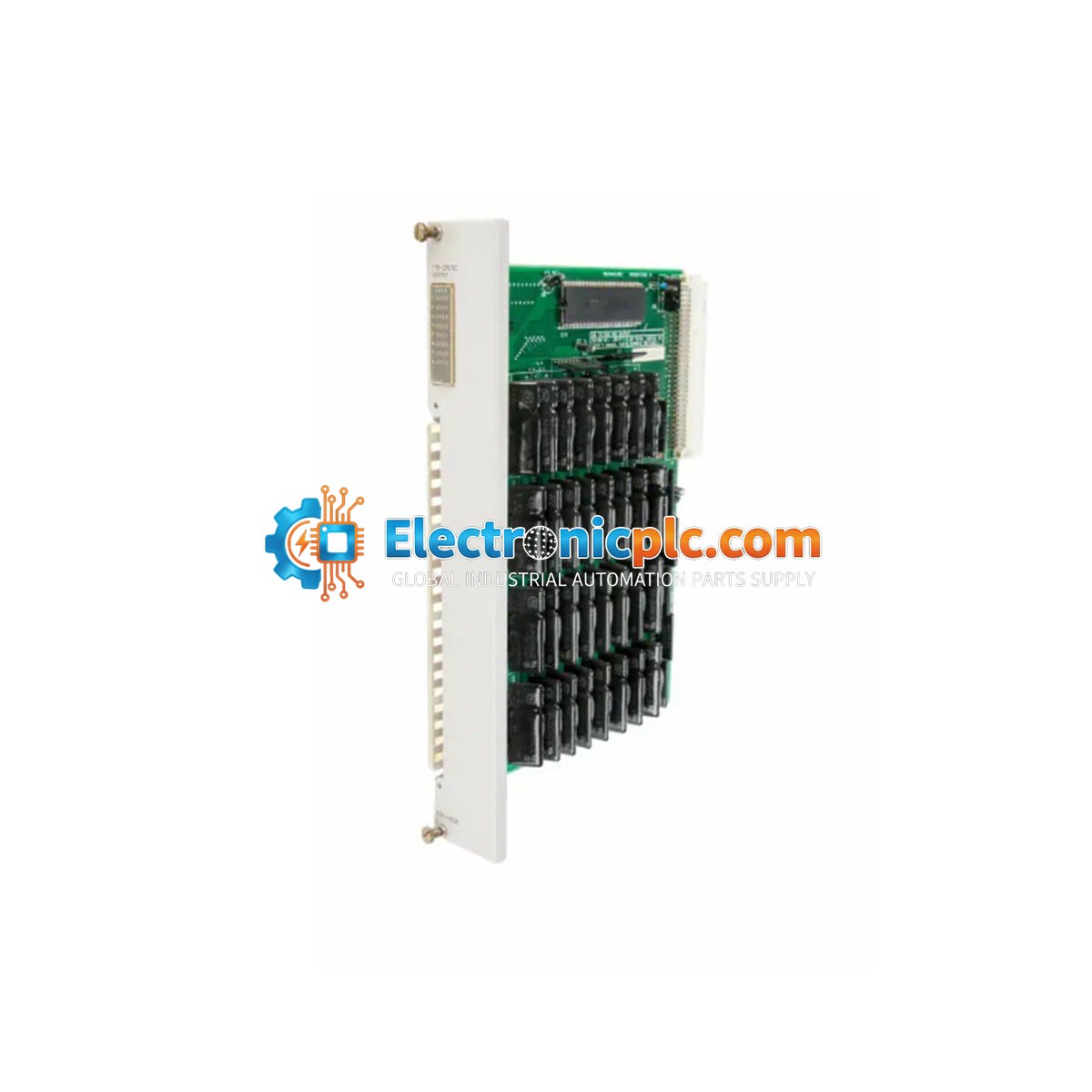

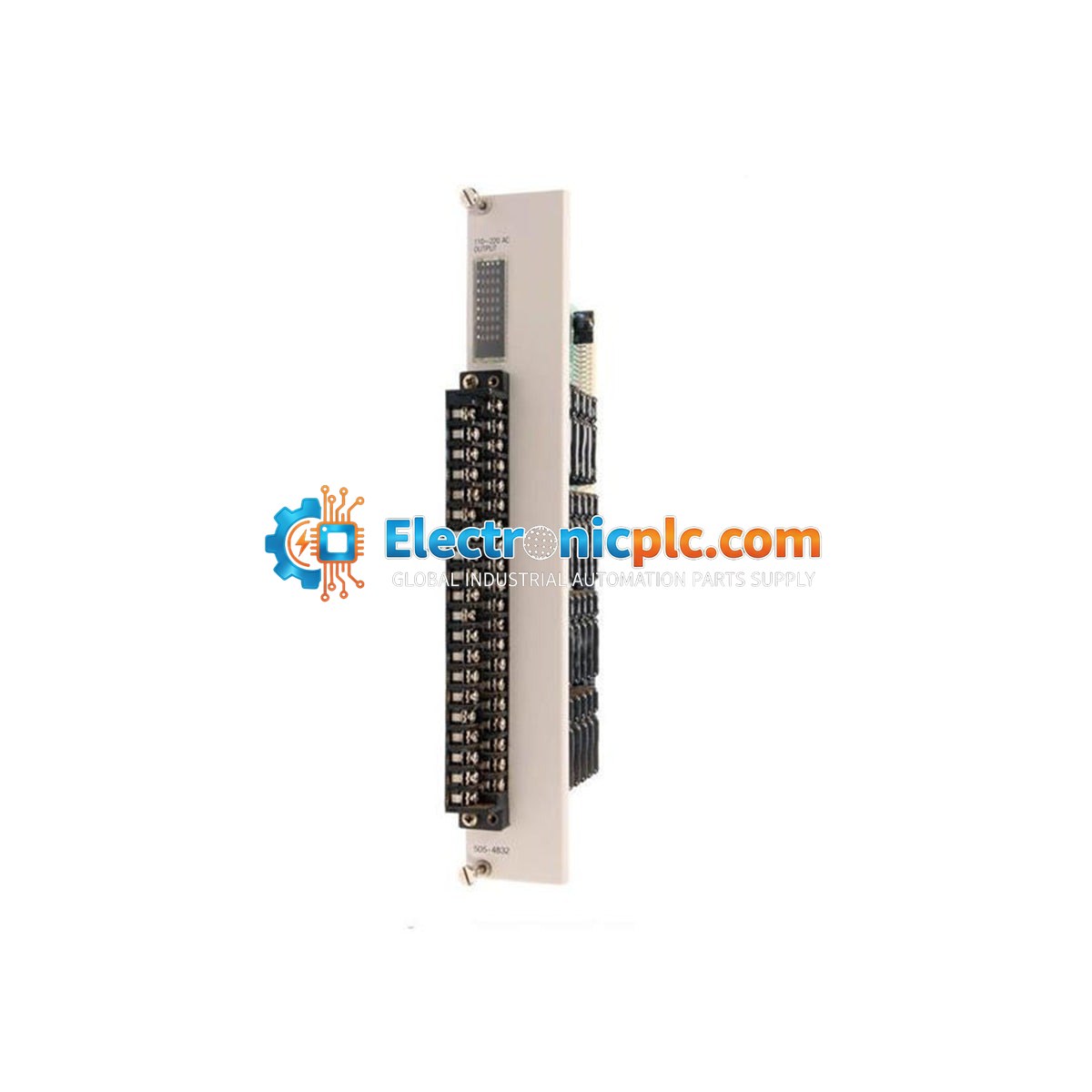

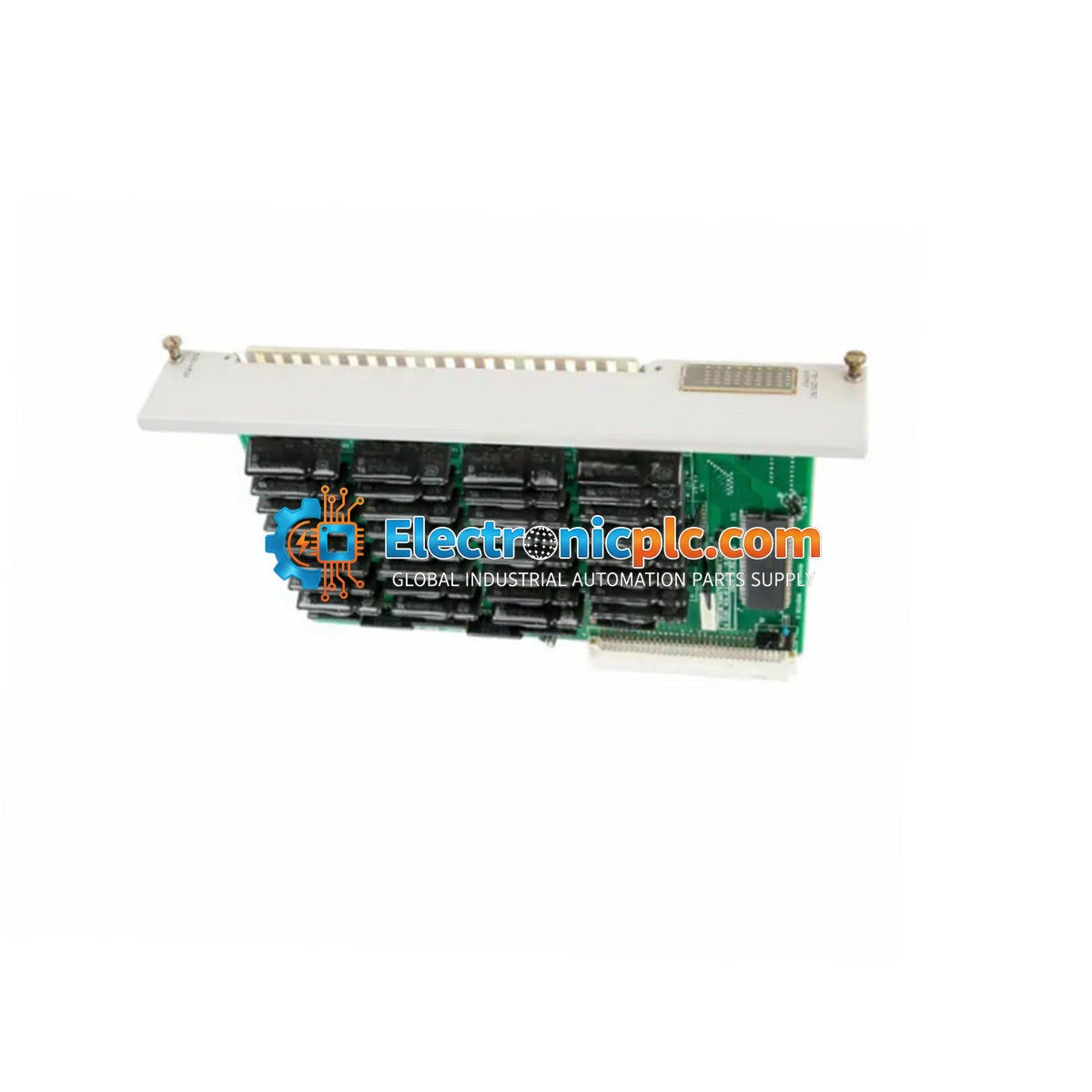

The Siemens 505-4832 is a high-density AC digital output module engineered for the SIMATIC 505 PLC series. This module provides 32 discrete output points, operating within a voltage range of 85-256 VAC. It is designed to manage high-voltage industrial loads, including motor starters, solenoids, and large-scale lighting arrays, making it a reliable solution for heavy industrial environments such as oil refineries, municipal water treatment, and mining operations. By providing high point density in a single rack slot, the 505-4832 optimizes cabinet space while maintaining the robust performance required for legacy TI 505 and SIMATIC 505 control systems.

Features

• High-Density I/O: Provides 32 discrete output points in a single module slot.
• Wide Voltage Range: Compatible with 85-256 VAC (47-63 Hz) field power.
• Diagnostic Indicators: Integrated front-panel LED status indicators for real-time channel monitoring.
• Inductive Load Protection: Internal circuitry designed to handle switching transients common in industrial environments.
• Robust Isolation: High-voltage isolation between field-side power and internal PLC control logic.

Applications

The 505-4832 is primarily used in legacy SIMATIC 505 and Texas Instruments TI 505 control systems. Typical applications include:

• Control of AC motor starters and contactors
• Solenoid valve actuation
• Industrial lighting and signaling control
• General-purpose discrete switching for high-voltage field devices

Technical Specifications

Installation Guidelines

• Power Down: Always disconnect power to the rack and field devices before inserting or removing the module.
• ESD Handling: Use an anti-static wrist strap and handle the module by the edges to prevent damage to internal components.
• Seating: Ensure the module is fully seated in the 505 rack slot and the locking tabs are engaged to maintain a secure electrical connection.
• Wiring: Route field wiring through appropriate cable ducts to minimize EMI. Ensure that common-line management is strictly followed according to the module grouping.
• Environment: Ensure the cabinet provides adequate ventilation to maintain ambient temperatures within the specified 0 to 60 deg C range.

FAQ

Is the 505-4832 compatible with all SIMATIC 505 racks?

Yes, this module is designed for standard SIMATIC 505 / TI 505 I/O racks. Please verify your specific rack power supply capacity to ensure it can support the current draw of the module.

Does this module require external power for the outputs?

Yes, the 505-4832 requires an external AC power source (85-256 VAC) to drive the field devices connected to the output points.
