GE Fanuc 531X111PSHAPG3 Terminal Board Relay Card

GE Fanuc 531X111PSHAPG3 Terminal Board Relay Card

Description

The 531X111PSHAPG3 is a specialized terminal board and relay card designed for integration within General Electric drive systems. This module functions as a primary power distribution node, delivering regulated 5...

28 people are viewing this right now

Availability: Low stock: 2 left

SKU: 531X111PSHAPG3
Vendor: GE FANUC
Category: Terminal Board Relay Card
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

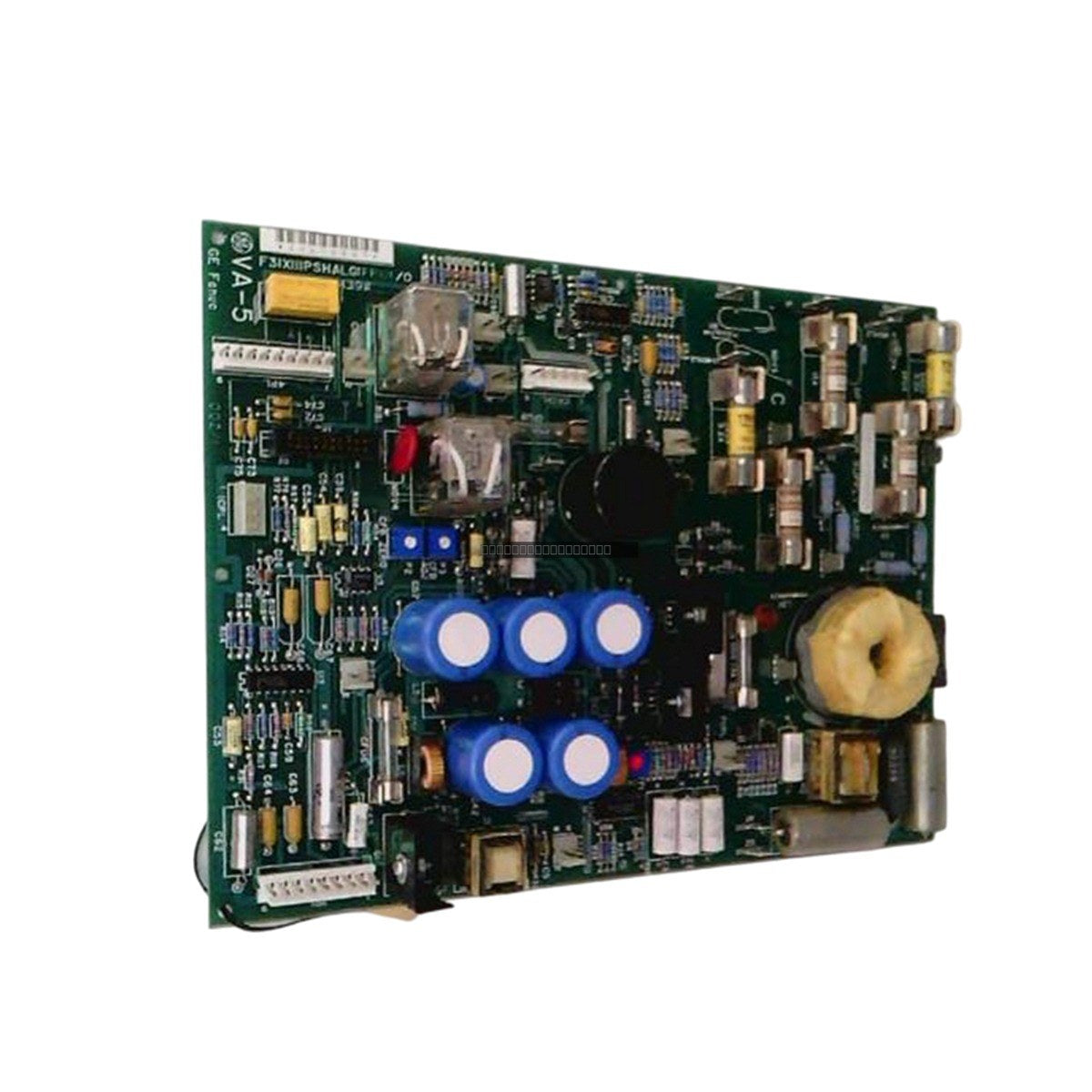

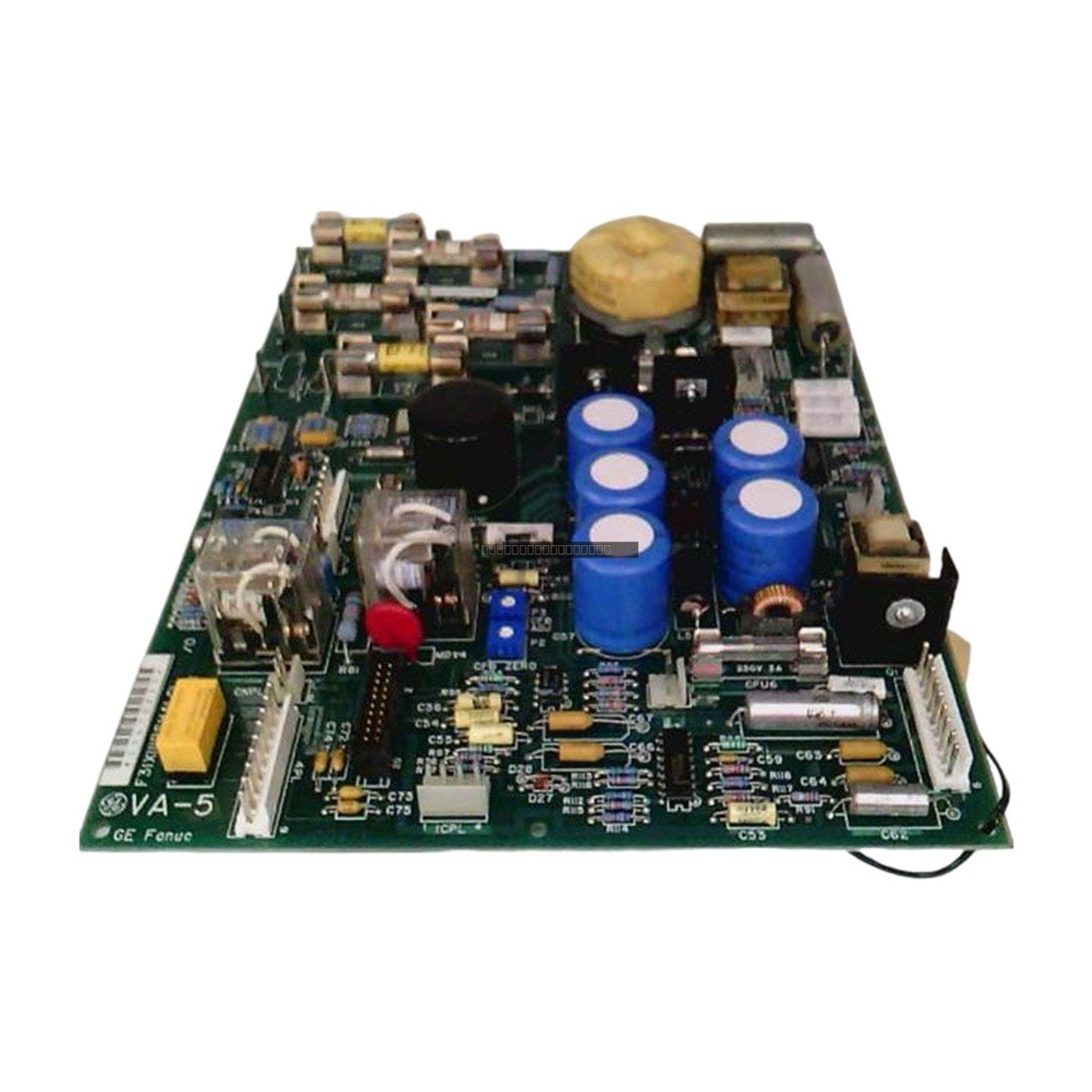

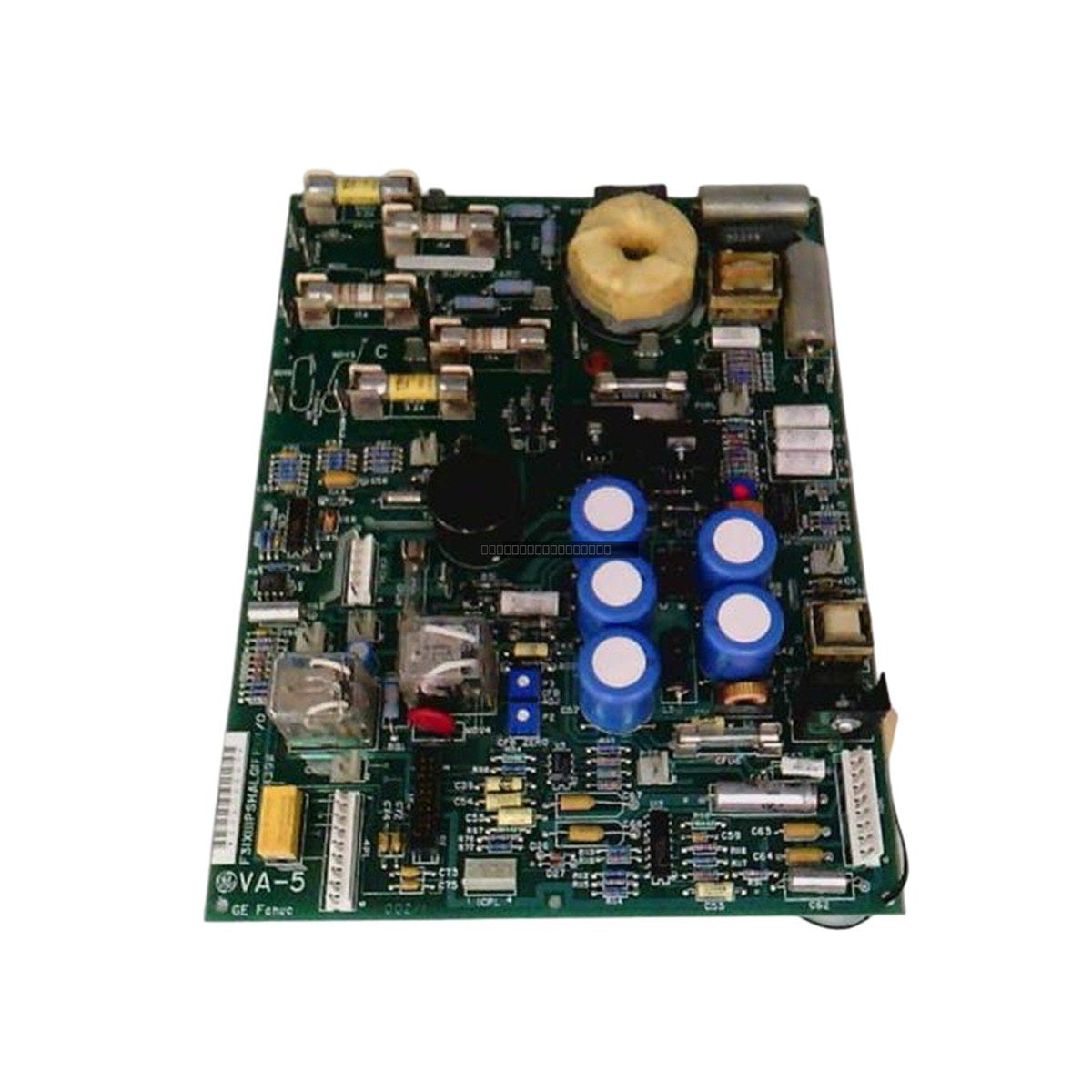

The 531X111PSHAPG3 is a specialized terminal board and relay card designed for integration within General Electric drive systems. This module functions as a primary power distribution node, delivering regulated 5 VDC, 15 VDC, and 24 VDC outputs required for drive control logic. In addition to power regulation, the board features integrated pulse transformers to support motor field circuitry management, ensuring signal isolation and operational stability in demanding industrial environments.

Features

  • Provides regulated DC outputs (5V, 15V, 24V) for control logic stability.
  • Integrated pulse transformers for motor field circuit management.
  • On-board capacitors act as energy reservoirs to mitigate voltage transients.
  • Designed for secure mounting within the 3TB assembly.
  • Engineered for robust performance in heavy industrial applications.

Applications

This terminal board is utilized in GE drive systems, particularly in heavy-duty industrial sectors such as metal processing, material handling, and large-scale manufacturing where consistent motor control and power distribution are critical for operational uptime.

Technical Specifications

Model 531X111PSHAPG3
Manufacturer General Electric (GE Fanuc)
Series 531x Boards
Component Type Terminal Board / Relay Card
Output Voltages 5 VDC, 15 VDC, 24 VDC
Key Components Pulse Transformers, Power Distribution Capacitors
Mounting Interface 3TB Assembly

Installation Guidelines

  • Safety First: The board contains capacitors that may retain electrical charge. Always verify complete energy dissipation using calibrated testing equipment before handling.
  • Tooling: Use only certified, fully insulated hand tools for all terminal adjustments to prevent short-circuits or electrical hazards.
  • Mounting: Ensure the board is securely seated within the 3TB assembly to maintain proper electrical contact and mechanical stability.
  • Sequence: Follow the manufacturer's recommended sequence for removal and installation to preserve the integrity of the 3TB assembly connections.
  • Environment: Ensure the drive cabinet is free of conductive debris and moisture prior to installation.

FAQ

Does this board require specific maintenance?

Yes. Due to the presence of energy-storing capacitors, technicians must confirm that all stored energy has been discharged before performing any maintenance or removal. Always use insulated tools to avoid accidental damage to the board or electrical shock.

What is the primary function of the 531X111PSHAPG3?

This module acts as a power distribution and relay interface for GE drive systems, providing the necessary regulated voltage levels for control logic and managing motor field circuitry via integrated pulse transformers.
