Siemens 6AV1142-0BA10 SIMATIC TD1-220/5 Text Display

Siemens 6AV1142-0BA10 SIMATIC TD1-220/5 Text Display

Description

The Siemens SIMATIC TD1-220/5 (6AV1142-0BA10) is a robust industrial text display unit engineered for machine-level operator interface tasks. Designed for panel mounting, this unit provides a clear, high-readability interface for...

16 people are viewing this right now

Availability: Low stock: 3 left

SKU: 6AV1142-0BA10
Vendor: Siemens
Category: Operator Interface
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

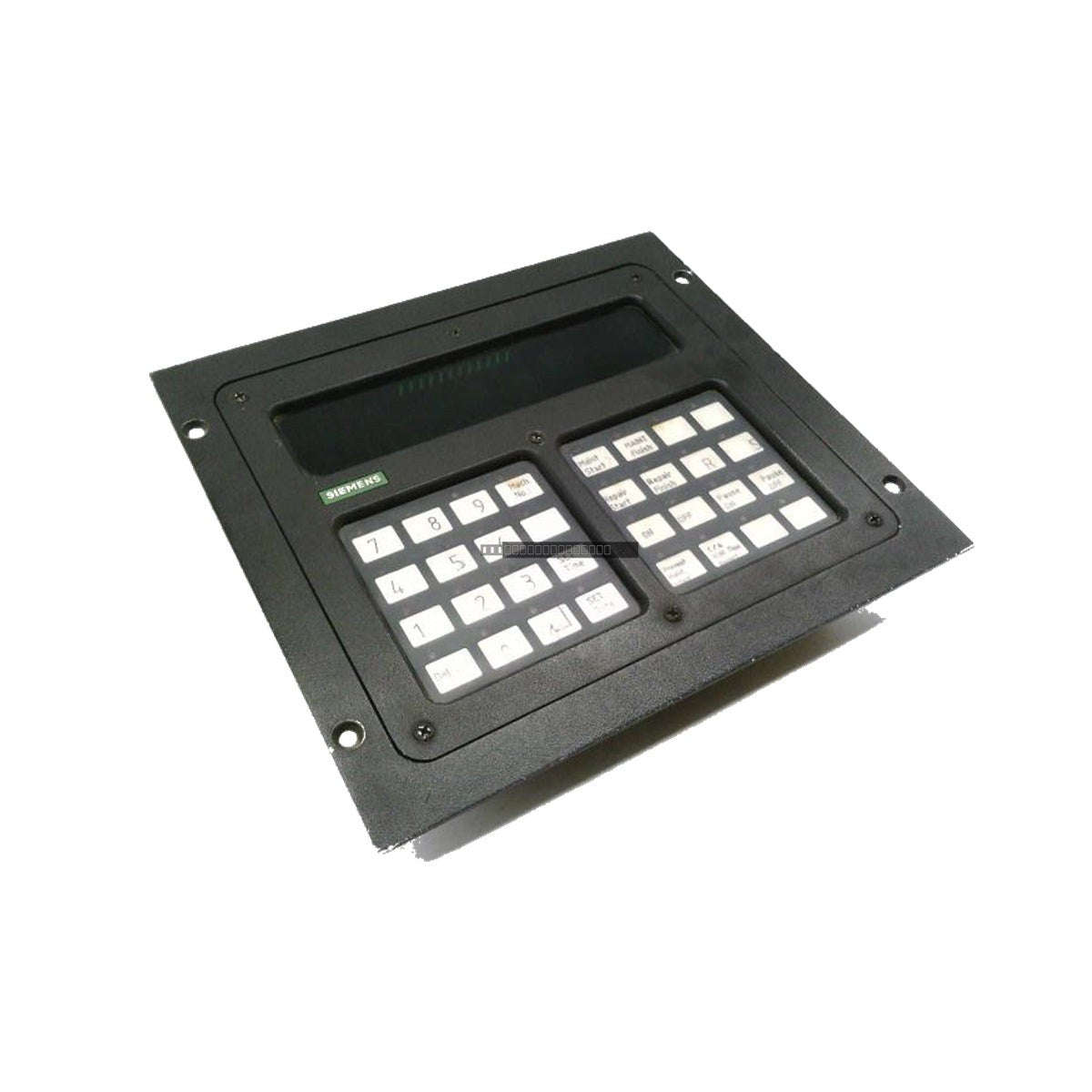

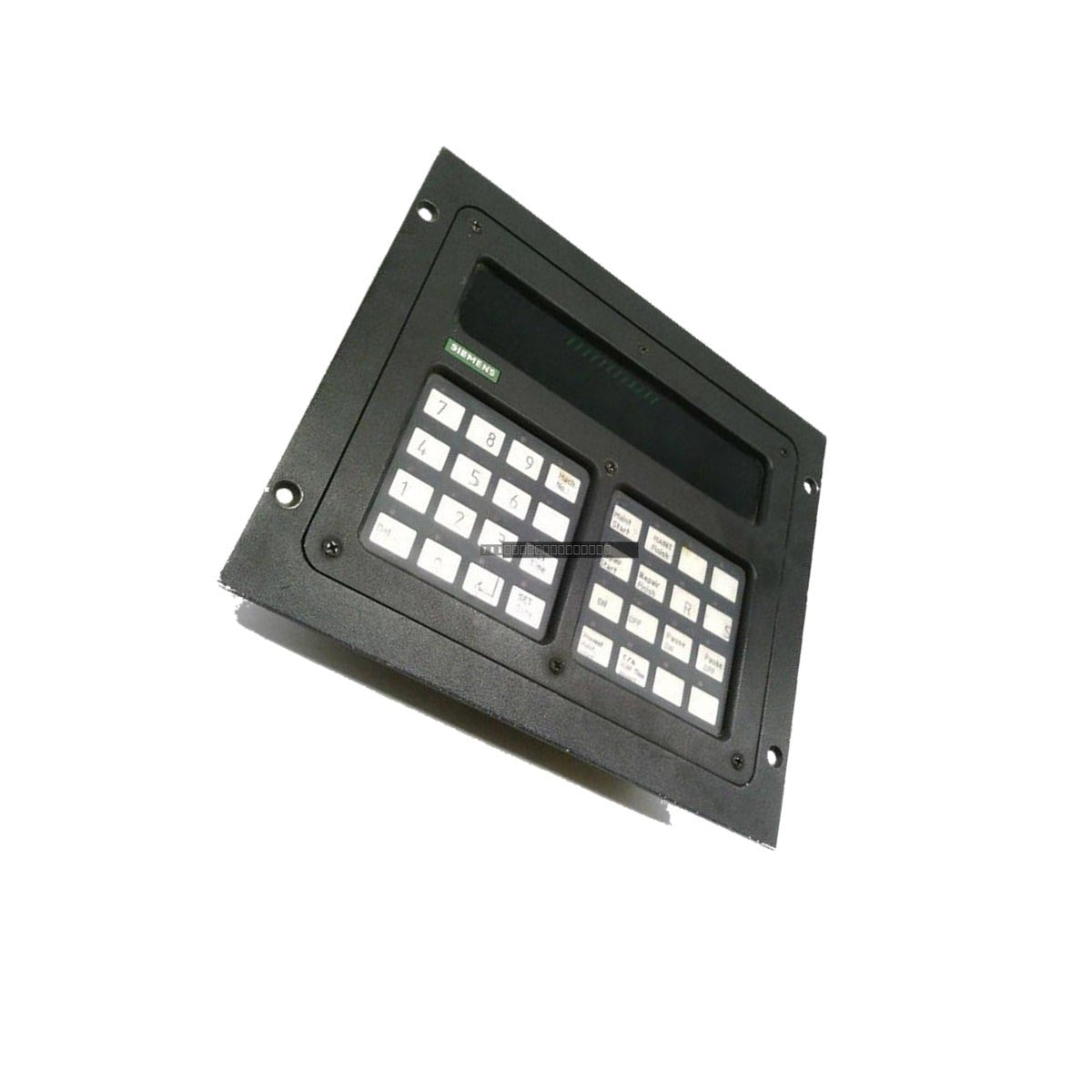

The Siemens SIMATIC TD1-220/5 (6AV1142-0BA10) is a robust industrial text display unit engineered for machine-level operator interface tasks. Designed for panel mounting, this unit provides a clear, high-readability interface for monitoring system status and diagnostic information directly at the machine location. As a slave-type device, the module operates without internal text memory, relying on the host SIMATIC PLC to manage message libraries and data formatting. This architecture ensures real-time synchronization between the controller's logic and the displayed information, facilitating rapid fault detection and reduced downtime in automated environments.

Features

  • 2-line by 20-character liquid crystal display (LCD) for clear status reporting.
  • 5 mm character height optimized for readability in industrial settings.
  • Rugged front panel design with membrane-style input for protection against dust and moisture.
  • Direct serial communication interface for seamless integration with legacy SIMATIC PLC systems.
  • Compact panel-mount form factor suitable for space-constrained control enclosures.

Applications

This operator interface is well-suited for various industrial automation tasks, including:

  • Automated warehousing and logistics systems.
  • Plastics extrusion and processing machinery.
  • Mining and material handling conveyor networks.
  • General machine-level diagnostic and alarm annunciation.

Technical Specifications

Model 6AV1142-0BA10 (TD1-220/5)
Brand Siemens SIMATIC
Display Format 2 lines x 20 characters
Character Height 5 mm
Memory External (No internal text memory)
Operating Voltage 24 VDC
Operating Temperature 0 to 50 deg C
Storage Temperature -20 to 70 deg C
Relative Humidity 85% non-condensing

Installation Guidelines

  • Ensure the panel cutout is prepared according to the manufacturer's specified dimensions to maintain the integrity of the front-panel seal.
  • Verify that the 24 VDC power supply is stable and within the rated operating range before connecting.
  • Use shielded communication cables to minimize electromagnetic interference (EMI) in high-noise industrial environments.
  • Ensure the unit is mounted in a location that provides adequate ventilation to maintain operating temperatures within the 0-50 deg C range.
  • Always power down the system before performing wiring connections or maintenance to prevent electrical damage.

FAQ

Does this unit store messages internally?
No, the 6AV1142-0BA10 is a slave display unit that does not contain internal text memory. All message libraries and formatting are handled by the host PLC.

What is the primary communication method?
The unit utilizes a point-to-point serial interface to receive data strings directly from the connected Siemens SIMATIC controller.
