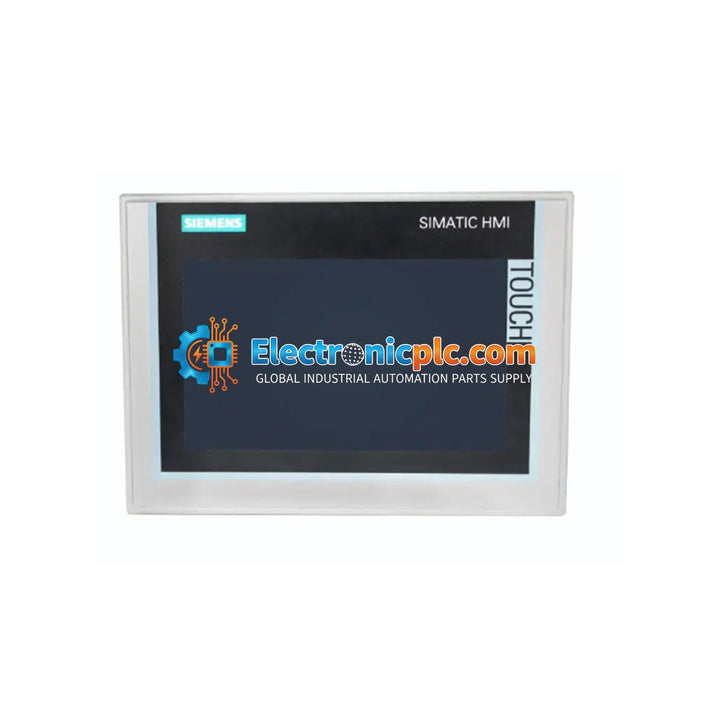

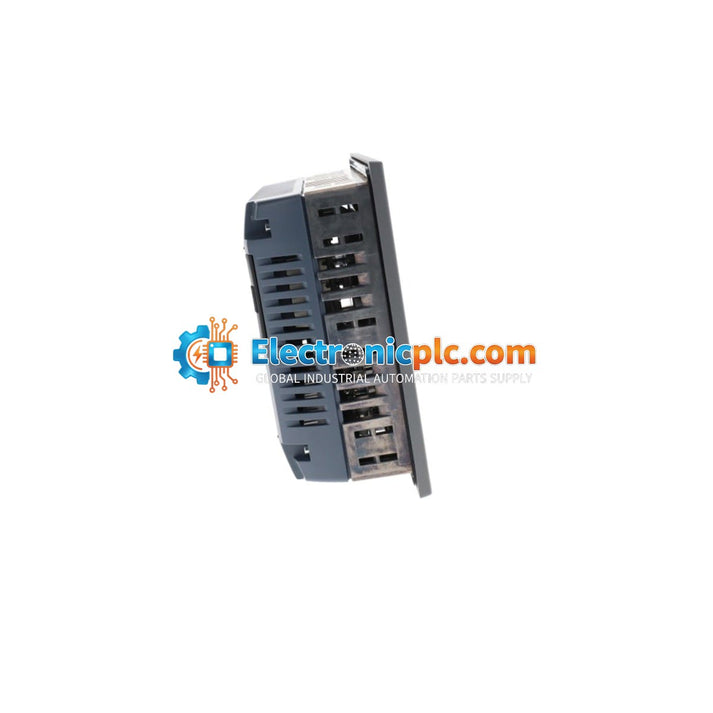

Siemens 6AV2124-0GC01-0AX0 SIMATIC HMI TP700 Comfort Panel

Siemens 6AV2124-0GC01-0AX0 SIMATIC HMI TP700 Comfort Panel

Description

The Siemens 6AV2124-0GC01-0AX0 is a high-performance SIMATIC HMI TP700 Comfort Panel designed for demanding visualization tasks in industrial automation environments. This unit features a 7-inch widescreen TFT display capable of...

29 people are viewing this right now

Availability: Low stock: 2 left

SKU: 6AV2124-0GC01-0AX0
Vendor: Siemens
Category: HMI Panel
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6AV2124-0GC01-0AX0 is a high-performance SIMATIC HMI TP700 Comfort Panel designed for demanding visualization tasks in industrial automation environments. This unit features a 7-inch widescreen TFT display capable of rendering 16 million colors, providing clear and detailed process monitoring. It is engineered for machine-level control and monitoring, offering robust connectivity and efficient data handling.

Features

  • 7-inch widescreen TFT display with 800 x 480 pixel resolution.
  • 16 million color depth for high-quality graphical representation.
  • Integrated PROFINET, MPI, and PROFIBUS DP interfaces for versatile communication.
  • 12 MB of configuration memory for complex HMI projects.
  • Windows CE 6.0 operating system.
  • Maintenance-free design with energy buffering for data logging termination during power loss.
  • IP65 rated front panel for protection against dust and water jets.

Technical Specifications

Model 6AV2124-0GC01-0AX0
Display Type 7" Widescreen TFT
Resolution 800 x 480 pixels
Rated Voltage 24 V DC
Permissible Range 19.2 V to 28.8 V DC

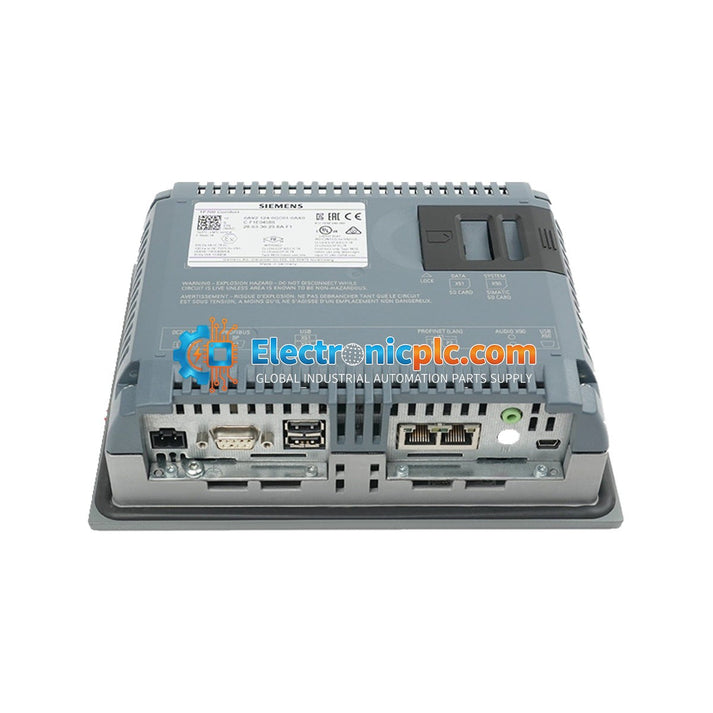

Interfaces PROFINET, MPI, PROFIBUS DP, USB
Configuration Memory 12 MB
Operating System Windows CE 6.0
Front Protection IP65
Rear Protection IP20

Applications

  • Transportation: Monitoring platforms for urban rail transit and logistics hubs.
  • New Energy: On-site control and visualization for wind and solar power generation equipment.
  • Power Distribution: Real-time monitoring of substation parameters and equipment status.
  • Automotive Manufacturing: Production line monitoring and assembly station instruction management.

Installation Guidelines

  • Ensure the control cabinet cutout is prepared to the manufacturer's specified dimensions for a secure IP65 seal.
  • The device must be powered by a 24 V DC supply within the 19.2 V to 28.8 V range; ensure proper polarity before connection.
  • Use shielded communication cables for PROFINET and PROFIBUS DP to minimize EMI interference in industrial environments.
  • Maintain adequate ventilation around the rear of the unit to prevent overheating.
  • Always power down the system before inserting or removing communication cables or power connectors.
  • Handle with care to avoid damage to the touch-sensitive screen surface.

FAQs

What is the 6AV2124-0GC01-0AX0?

The Siemens 6AV2124-0GC01-0AX0 is a SIMATIC HMI TP700 Comfort Panel designed for high-performance visualization tasks in industrial environments.

What are the power requirements?

The panel requires 24 V DC, with an allowable operating range of 19.2 V to 28.8 V.

Which communication protocols are supported?

The device supports PROFINET, MPI, PROFIBUS DP, and USB connectivity.

What should I do if the screen is blank?

Verify the 24V power supply connection and voltage levels first. If the device appears to be powered but the display remains dark, the backlight or display assembly may require service.
