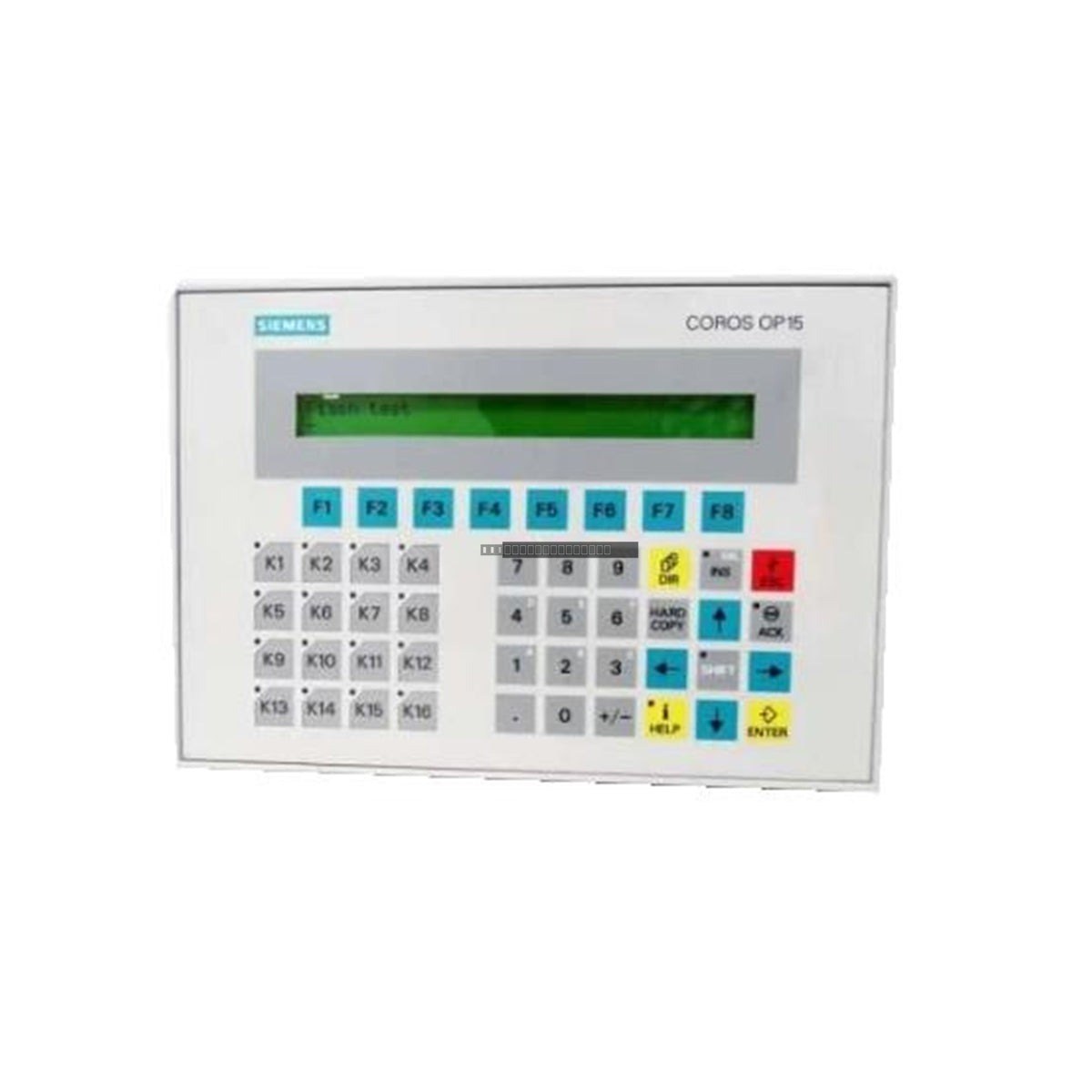

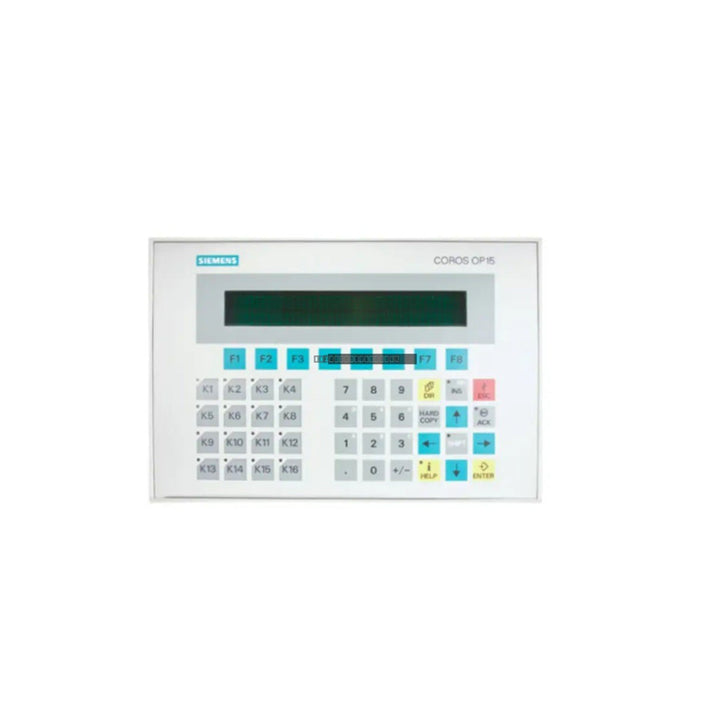

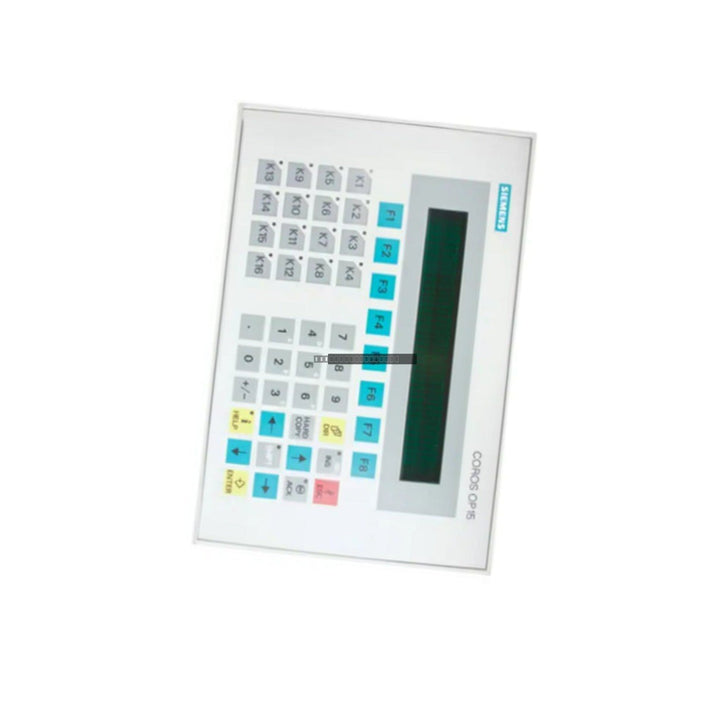

Siemens 6AV3515-1EB30-1AA0 Simatic HMI OP15/A1 Operator Panel

Siemens 6AV3515-1EB30-1AA0 Simatic HMI OP15/A1 Operator Panel

Product Overview

The Siemens 6AV3515-1EB30-1AA0 is a reliable operator interface terminal from the Simatic HMI OP15/A1 series, engineered for direct machine-level interaction and monitoring in industrial automation systems. This unit provides...

28 people are viewing this right now

Availability: Low stock: 7 left

SKU: 6AV3515-1EB30-1AA0
Vendor: Siemens
Category: Operator Interface Terminal
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Siemens 6AV3515-1EB30-1AA0 is a reliable operator interface terminal from the Simatic HMI OP15/A1 series, engineered for direct machine-level interaction and monitoring in industrial automation systems. This unit provides essential diagnostic feedback and control capabilities, making it a standard choice for legacy S5 and S7 PLC environments that require robust, text-based process management.

Key Features

  • High-contrast 2-line by 40-character LCD for clear diagnostic messaging.
  • Integrated 256 KB memory for local storage of screens, alarms, and system messages.
  • Rugged membrane keypad designed for tactile feedback and durability in harsh plant environments.
  • Flexible communication via dual TTY/V.24 (RS232) ports and a dedicated RS422/RS485 interface.
  • Compact design suitable for panel-mount integration in control cabinets.

Applications

This operator panel is widely utilized in industrial facilities such as chemical processing plants, power generation stations, and heavy manufacturing sectors. It serves as a primary interface for operators to monitor process variables, acknowledge alarms, and adjust setpoints without requiring a full-scale SCADA workstation.

Technical Specifications

Model Number 6AV3515-1EB30-1AA0
Display 2 lines x 40 characters
Memory 256 KB
Communication 2 x TTY/V.24, 1 x RS422/485
Input Voltage 24 VDC
Power Consumption 9.5 W
Operating Temperature 0 to 50 deg C
Storage Temperature -20 to 60 deg C

Installation Guidelines

  • Ensure the panel is mounted in a clean, dry location within the control cabinet, protected from excessive vibration and direct heat sources.
  • Use shielded communication cables to minimize electromagnetic interference (EMI) when connecting to the PLC.
  • Verify that the 24 VDC power supply is stable and correctly polarized before connecting the unit.
  • Power down the system before performing any wiring or maintenance to prevent electrical damage to the communication ports.
  • Maintain adequate ventilation around the unit to ensure the ambient temperature remains within the specified operating range.

FAQ

What PLC systems are compatible with this OP15/A1 unit?
The 6AV3515-1EB30-1AA0 is designed to communicate with Siemens Simatic S5 and S7 programmable logic controllers using its integrated serial interfaces.

Does this unit require external software for programming?
Yes, this HMI requires appropriate legacy Siemens configuration software to design and upload the screen layouts and message registers.
