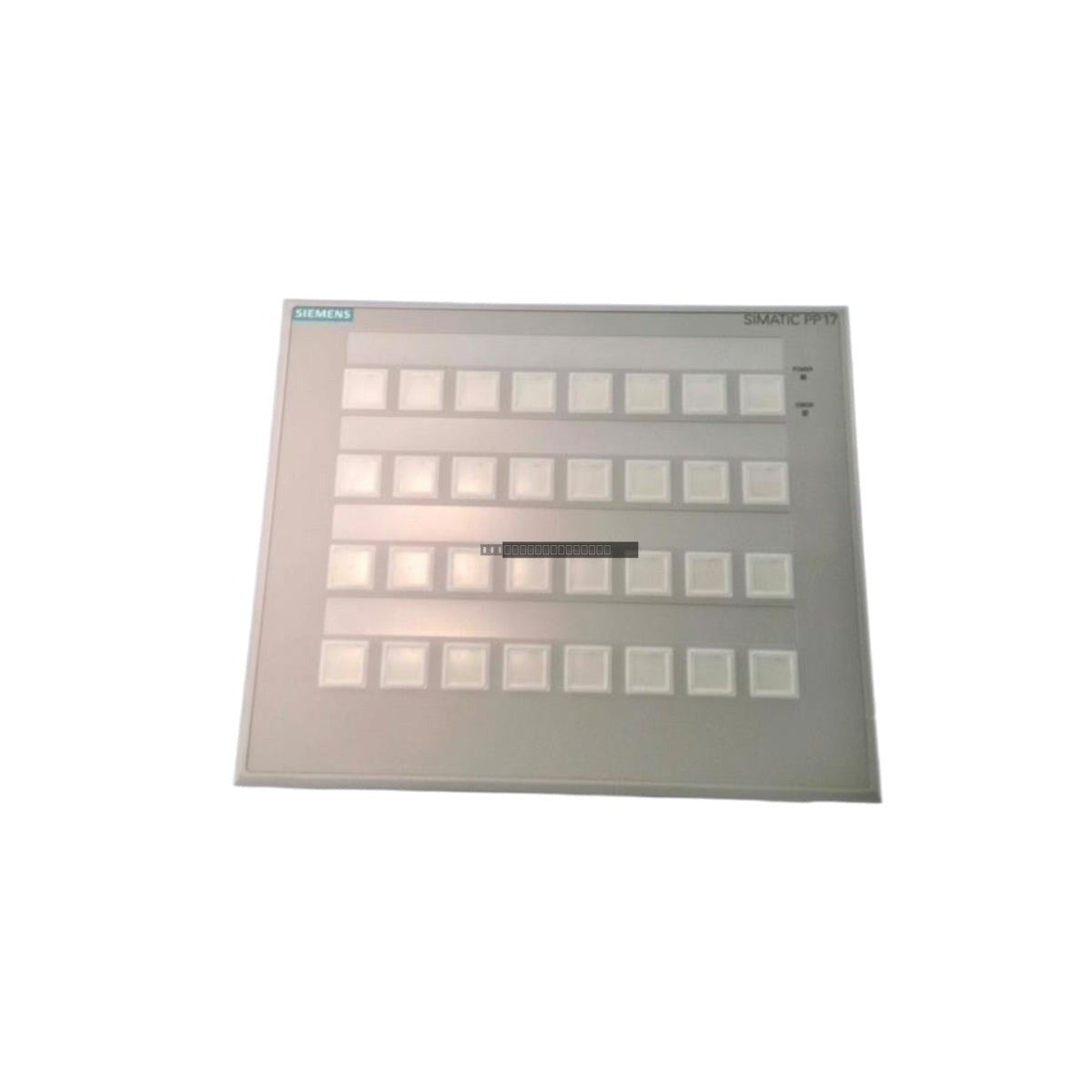

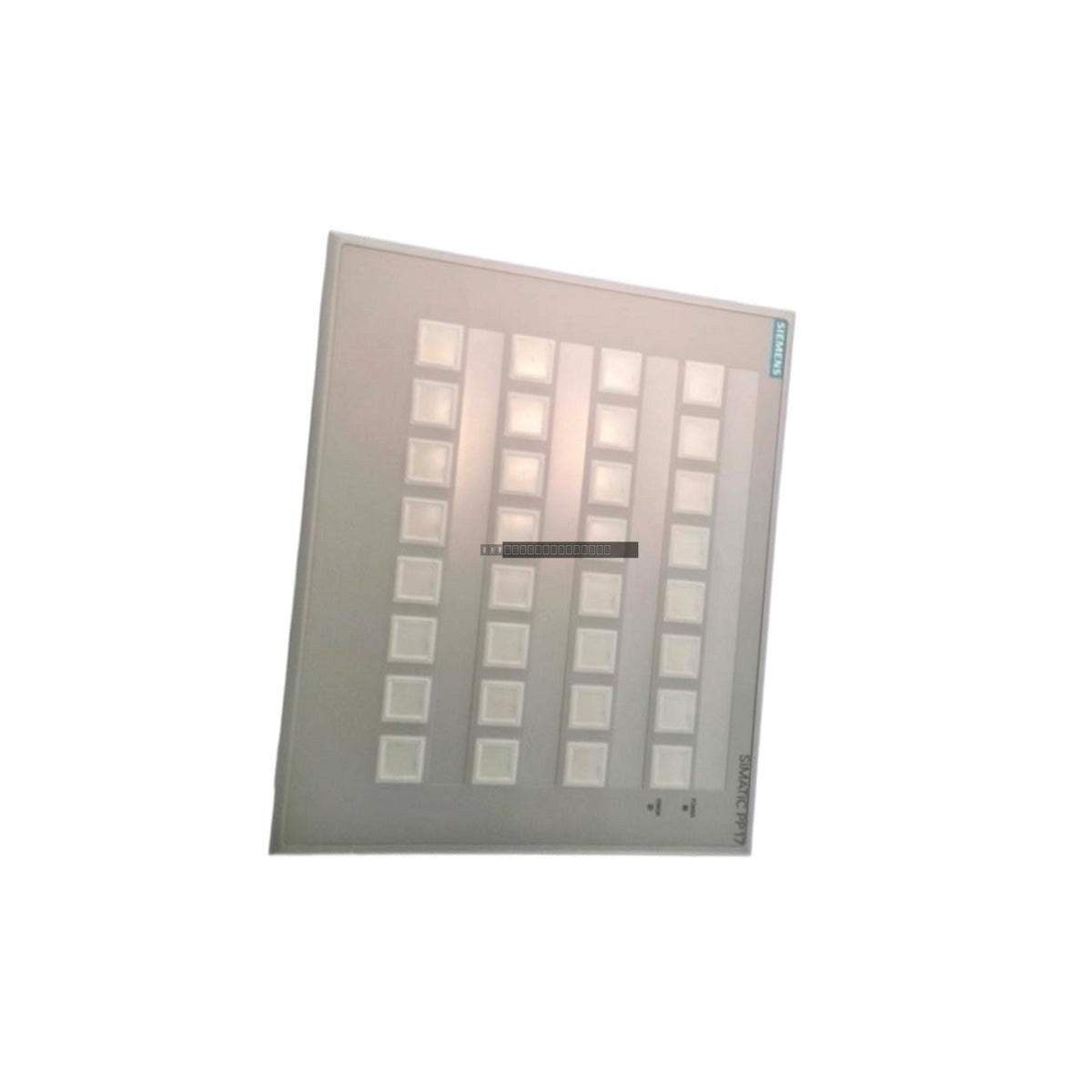

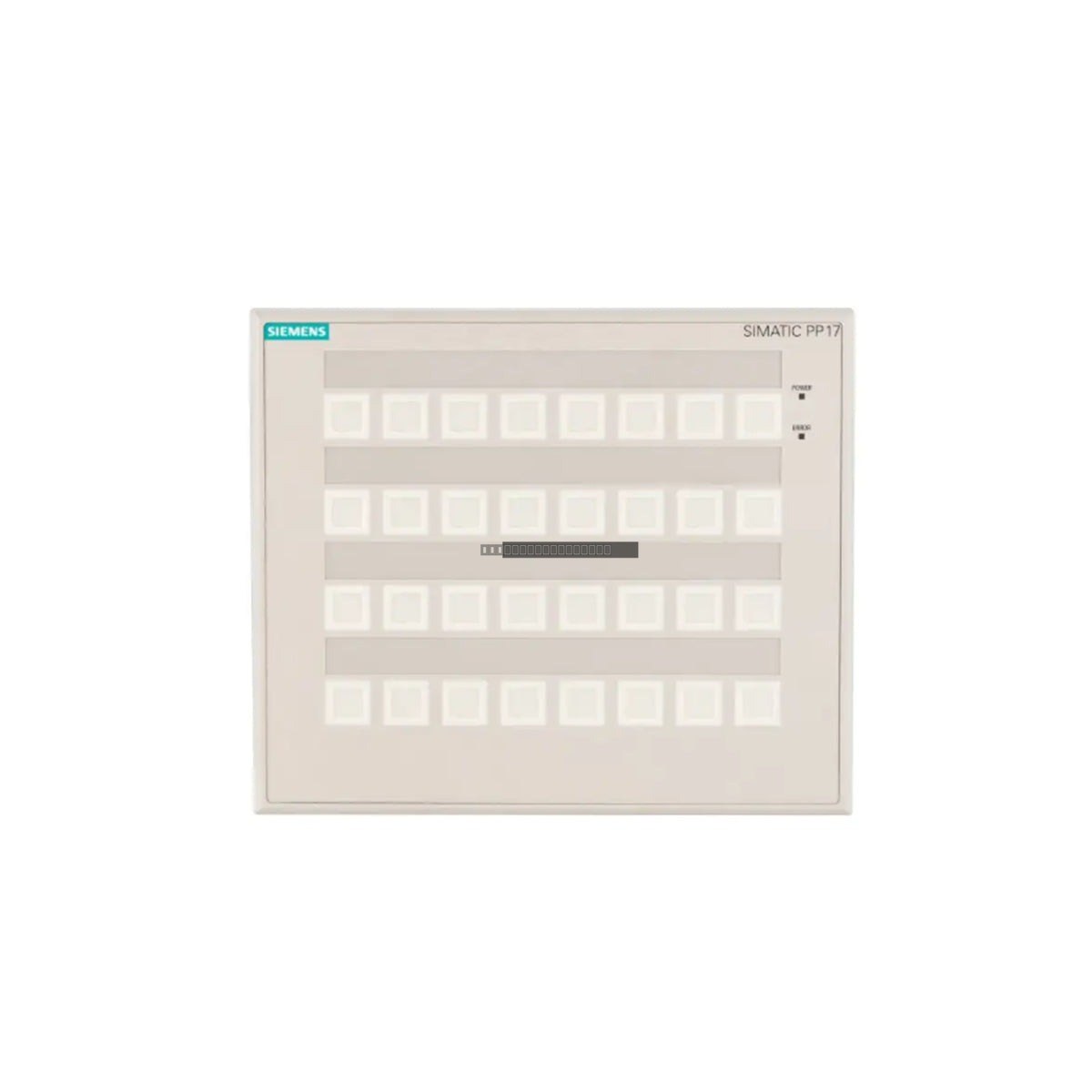

Siemens 6AV3688-4EY06-0AA0 Simatic PP17-II PN Pushbutton Panel

Siemens 6AV3688-4EY06-0AA0 Simatic PP17-II PN Pushbutton Panel

Description

The Siemens 6AV3688-4EY06-0AA0, part of the Simatic PP17-II PN series, is a robust pushbutton panel engineered for streamlined operator control in industrial automation environments. This unit replaces complex, traditional discrete...

21 people are viewing this right now

Availability: Low stock: 1 left

SKU: 6AV3688-4EY06-0AA0
Vendor: Siemens
Category: Pushbutton Panel
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6AV3688-4EY06-0AA0, part of the Simatic PP17-II PN series, is a robust pushbutton panel engineered for streamlined operator control in industrial automation environments. This unit replaces complex, traditional discrete wiring by integrating 32 tactile short-stroke keys and 32 surface-mounted LED indicators into a single, cohesive terminal. By utilizing a high-speed PROFINET network interface, the panel facilitates efficient communication between the operator and the host controller, significantly reducing installation time and cabinet wiring complexity.

Features

  • Integrated PROFINET interface for deterministic data exchange with host systems.
  • 32 tactile short-stroke keys for reliable manual machine control.
  • 32 integrated LEDs providing real-time status feedback for diagnostic and operational monitoring.
  • Onboard I/O capability featuring 16 digital inputs and 16 digital outputs.
  • IP65-rated front faceplate, ensuring protection against dust, oil mist, and moisture in harsh industrial settings.
  • Compact design optimized for space-constrained control panels and operator consoles.

Applications

The PP17-II PN is widely utilized in automotive manufacturing, material handling systems, and general machine automation. It is particularly effective in applications requiring frequent manual operator intervention, such as line troubleshooting, diagnostic status reporting, and localized machine state control.

Technical Specifications

Model 6AV3688-4EY06-0AA0 (PP17-II PN)
Brand Siemens
Product Family Simatic
Operator Interface 32 Short-Stroke Keys
Indicators 32 Surface LEDs
Digital I/O 16 Inputs / 16 Outputs
Communication PROFINET
Supply Voltage 24 VDC
Power Consumption 11 W
Operating Temperature 0 to 55 deg C
Storage Temperature -20 to 60 deg C
Front Enclosure Rating IP65

Installation Guidelines

  • Ensure the panel is mounted in a clean, dry environment within the specified temperature range.
  • Verify that the 24 VDC power supply is stable and properly grounded to prevent electrical noise interference.
  • Use shielded Ethernet cabling for the PROFINET connection to maintain signal integrity in high-EMI environments.
  • Always disconnect power before performing any wiring adjustments or module replacement.
  • Ensure the front gasket is properly seated during panel mounting to maintain the IP65 ingress protection rating.

FAQ

Does this panel require additional I/O modules? No, this unit features 16 integrated digital inputs and 16 digital outputs, which are communicated directly over the PROFINET network.

What is the primary communication protocol for this device? The 6AV3688-4EY06-0AA0 utilizes the PROFINET industrial Ethernet protocol for high-speed, cyclic data exchange.

Is the front panel resistant to industrial contaminants? Yes, the front faceplate is rated IP65, providing protection against dust, oil, and moisture common in factory floor environments.
