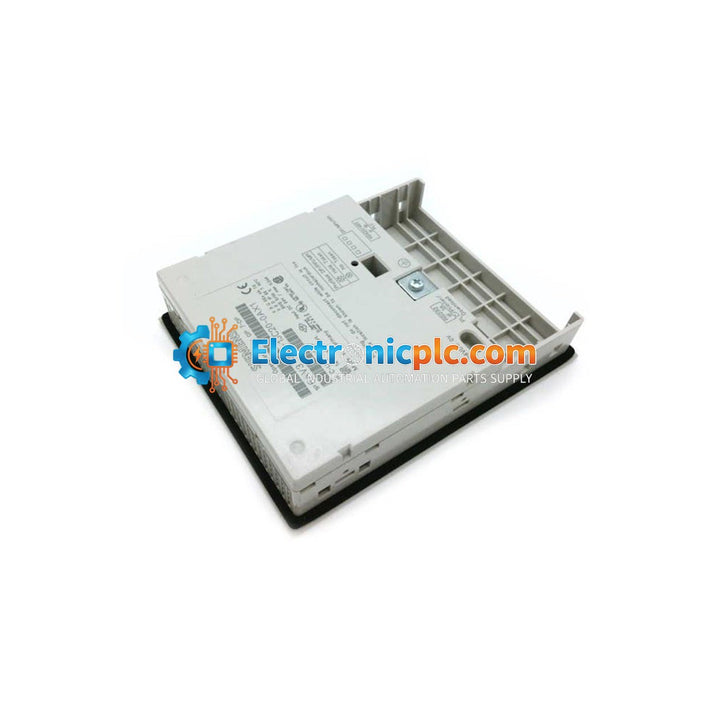

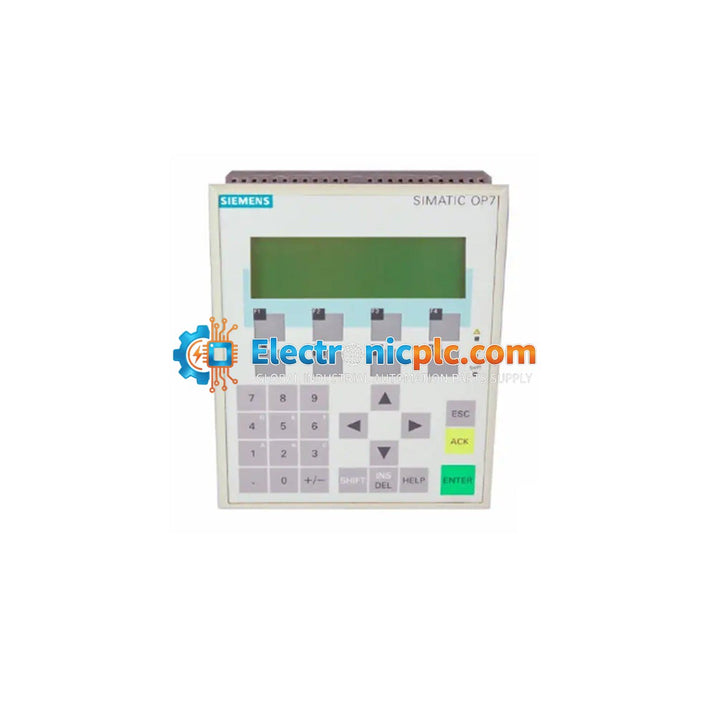

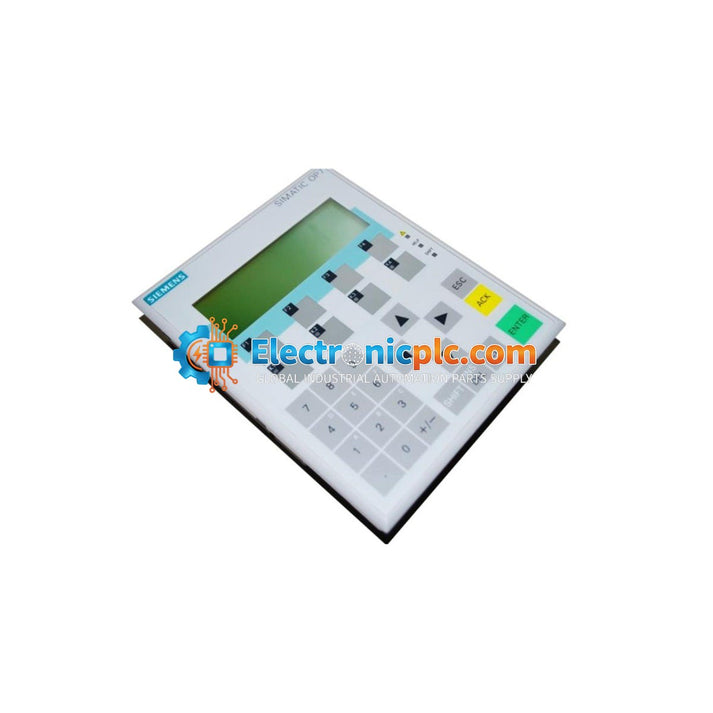

Siemens 6AV3607-1JC20-0AX1 SIMATIC OP7/DP Operator Panel

Siemens 6AV3607-1JC20-0AX1 SIMATIC OP7/DP Operator Panel

Description

The Siemens 6AV3607-1JC20-0AX1 is a SIMATIC OP7/DP Operator Panel designed for human-machine interface (HMI) tasks within industrial automation environments. As part of the legacy SIMATIC S7 operator interface series, this...

28 people are viewing this right now

Availability: Low stock: 7 left

SKU: 6AV3607-1JC20-0AX1
Vendor: Siemens
Category: Operator Panel
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6AV3607-1JC20-0AX1 is a SIMATIC OP7/DP Operator Panel designed for human-machine interface (HMI) tasks within industrial automation environments. As part of the legacy SIMATIC S7 operator interface series, this unit provides reliable control and monitoring capabilities for PLC-based systems. Please note that this product was officially discontinued by the manufacturer on October 1, 2018.

Features

  • High-contrast LC display with integrated LED back-lighting for clear visibility in various lighting conditions.
  • Display configuration: 4 lines with 20 characters per line, featuring 8 mm character height.
  • Integrated PROFIBUS-DP communication interface for seamless integration into Siemens S7 automation networks.
  • Compact operator interface design suitable for panel-mount applications.
  • Operating voltage: 24 VDC with a current consumption of 0.24 Amp.

Applications

The OP7/DP is typically utilized in manufacturing and process automation sectors for monitoring machine status, adjusting setpoints, and managing diagnostic data in conjunction with SIMATIC S7 controllers.

Technical Specifications

Product Model 6AV3607-1JC20-0AX1
Manufacturer Siemens
Product Type Operator Panel (OP7/DP)
Display Type LC Display with LED Back-lighting
Display Capacity 4 Lines, 20 Characters per line
Character Height 8 mm
Communication PROFIBUS-DP
Supply Voltage 24 VDC
Current Consumption 0.24 A
Status Discontinued (01.10.2018)

Installation Guidelines

  • Ensure the control cabinet provides adequate ventilation to maintain operating temperatures within specified limits.
  • The unit is designed for panel mounting; ensure the gasket is properly seated to maintain the required ingress protection rating.
  • Use shielded cables for PROFIBUS-DP communication to minimize electromagnetic interference (EMI).
  • Verify that the 24 VDC power supply is stable and properly grounded before connecting the device.
  • Always disconnect power before performing any wiring changes or maintenance to prevent electrical damage.

FAQ

Is the 6AV3607-1JC20-0AX1 still available from the manufacturer?

No, this model was discontinued by Siemens on October 1, 2018. It is currently available only through secondary market channels or as refurbished stock.

What communication protocol does this OP7 support?

This specific model (OP7/DP) supports the PROFIBUS-DP communication protocol for connecting to Siemens SIMATIC S7 controllers.
