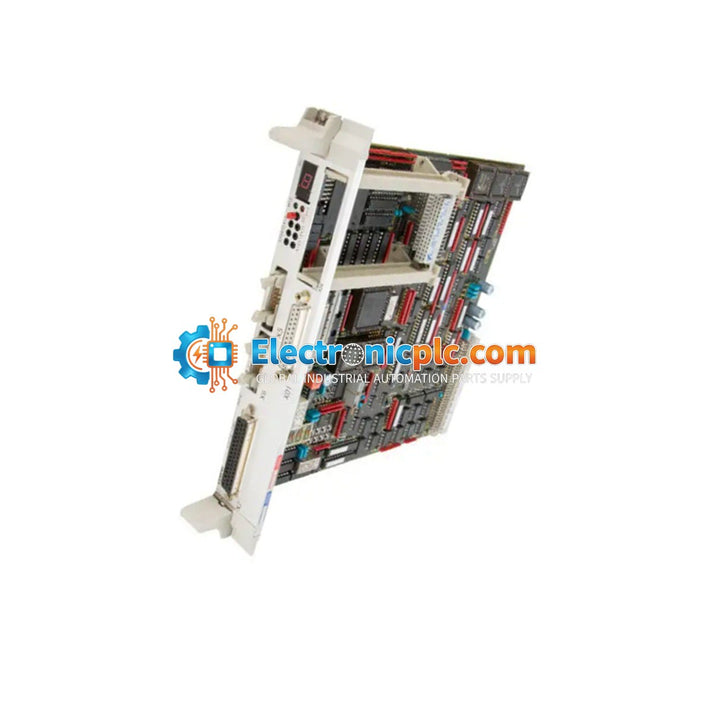

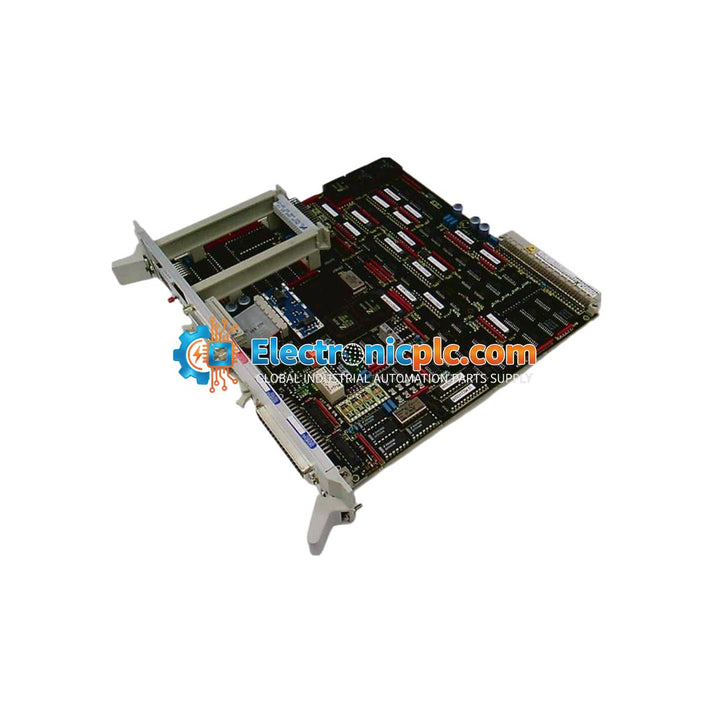

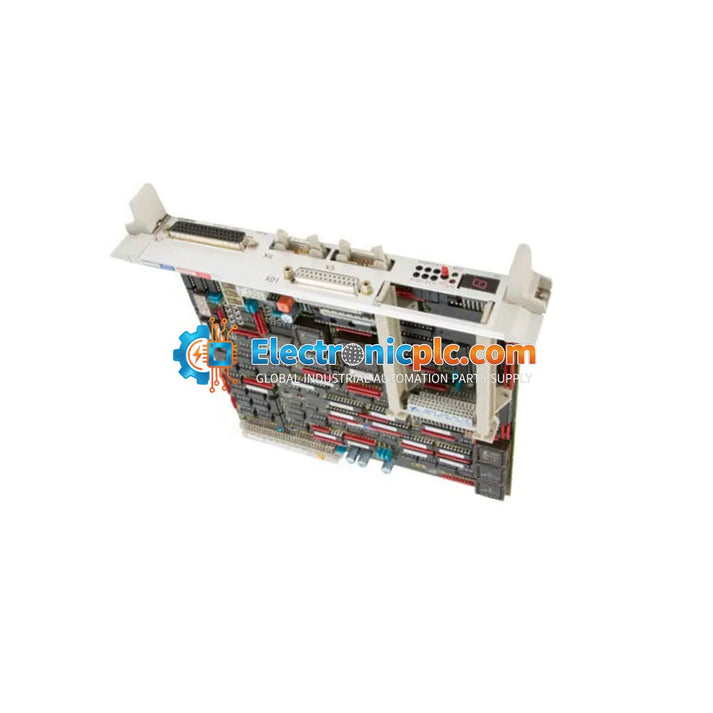

Siemens 6DD1601-0AE0 SIMADYN D PG16 Processor Module

Siemens 6DD1601-0AE0 SIMADYN D PG16 Processor Module

Description

The Siemens 6DD1601-0AE0 (PG16) is a high-performance processor module engineered for the SIMADYN D automation system. Serving as a central computational unit, this module is designed for high-speed, closed-loop control...

21 people are viewing this right now

Availability: In stock

SKU: 6DD1601-0AE0
Vendor: Siemens
Category: Processor Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6DD1601-0AE0 (PG16) is a high-performance processor module engineered for the SIMADYN D automation system. Serving as a central computational unit, this module is designed for high-speed, closed-loop control tasks in demanding industrial applications. It is capable of executing complex mathematical algorithms and real-time data processing with deterministic cycles, making it essential for high-dynamic drive control and synchronization in environments such as metal rolling mills, power plants, and mining facilities.

Features

  • High-performance multiprocessor architecture for concurrent task execution.
  • Deterministic processing cycles for mission-critical control loops.
  • Integrated front-panel diagnostic display and LED status indicators for real-time monitoring.
  • Hardened hardware design to withstand electromagnetic interference (EMI) in industrial environments.
  • Seamless integration with SIMADYN D backplane bus for high-speed communication with I/O and memory modules.

Applications

The PG16 module is primarily utilized in large-scale industrial automation where high-speed logic and precise motion control are required. Common applications include:

  • Metal rolling mill drive control systems.
  • Power plant generation and distribution control.
  • Large-scale mining equipment automation.
  • High-dynamic synchronization processes.

Technical Specifications

Model 6DD1601-0AE0 (PG16)
Brand Siemens
Series SIMADYN D
Product Type Processor Module
Operating Temperature 0 to 55 deg C
Storage Temperature -40 to 70 deg C
Power Supply Internal via rack backplane
Cooling Natural convection or forced air

Installation Guidelines

  • Ensure the SIMADYN D rack is powered down before inserting or removing the processor module to prevent electrical damage.
  • Handle the module using proper ESD (Electrostatic Discharge) protection practices.
  • Ensure the module is fully seated in the designated rack slot and that the locking mechanism is engaged.
  • Verify that the rack ventilation is unobstructed to maintain operating temperatures within the specified 0-55 deg C range.
  • Route communication cables away from high-voltage power lines to minimize potential EMI impact.

FAQ

What is the primary function of the 6DD1601-0AE0?

This module acts as the central processor for the SIMADYN D system, handling real-time, high-speed control tasks and complex mathematical logic for industrial automation.

Can I diagnose errors without an external programming tool?

Yes, the module features an integrated diagnostic display and LED indicators on the front panel that provide real-time status updates on CPU load and system errors.

How is the module powered?

The module receives its operating voltage directly from the SIMADYN D rack backplane.
