Description

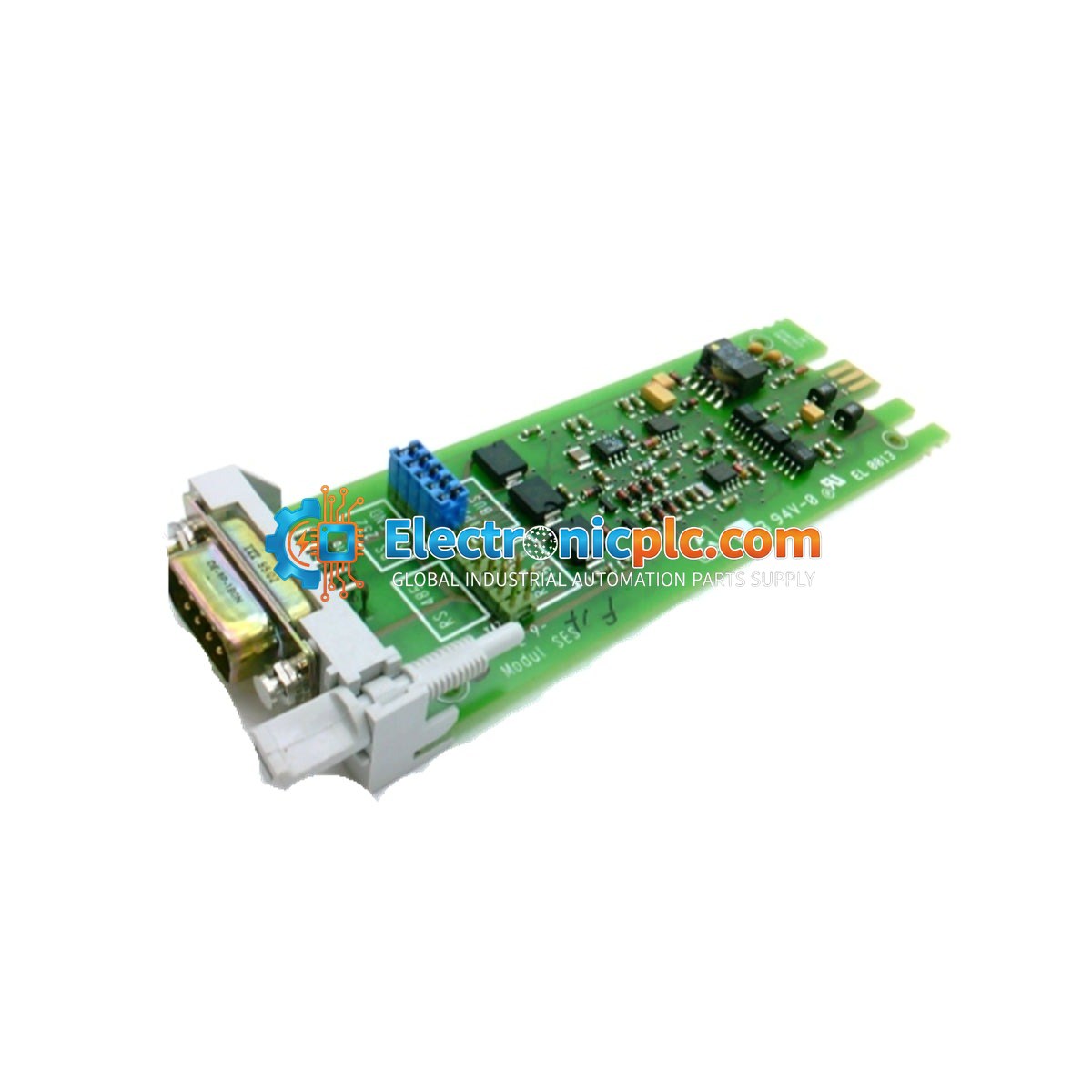

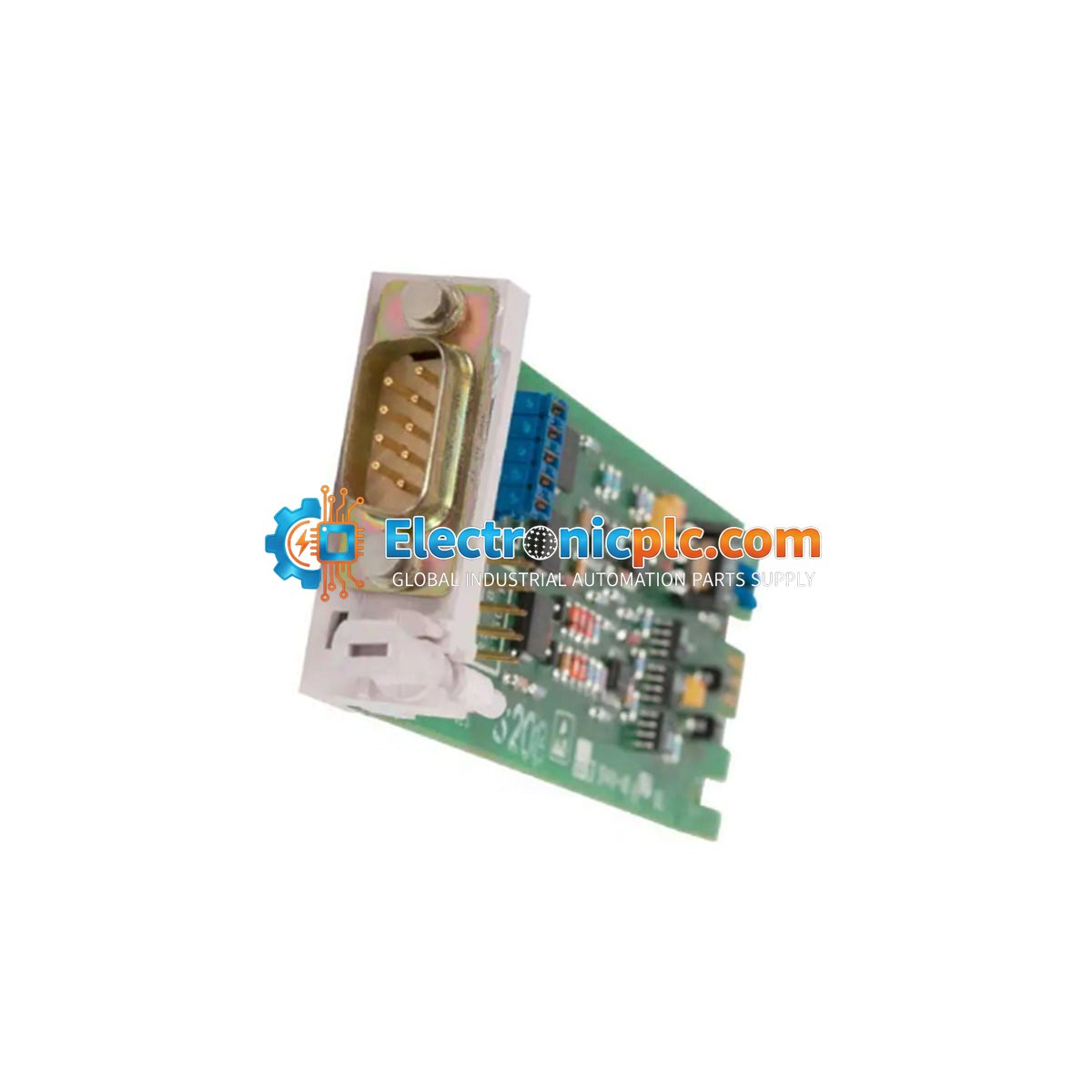

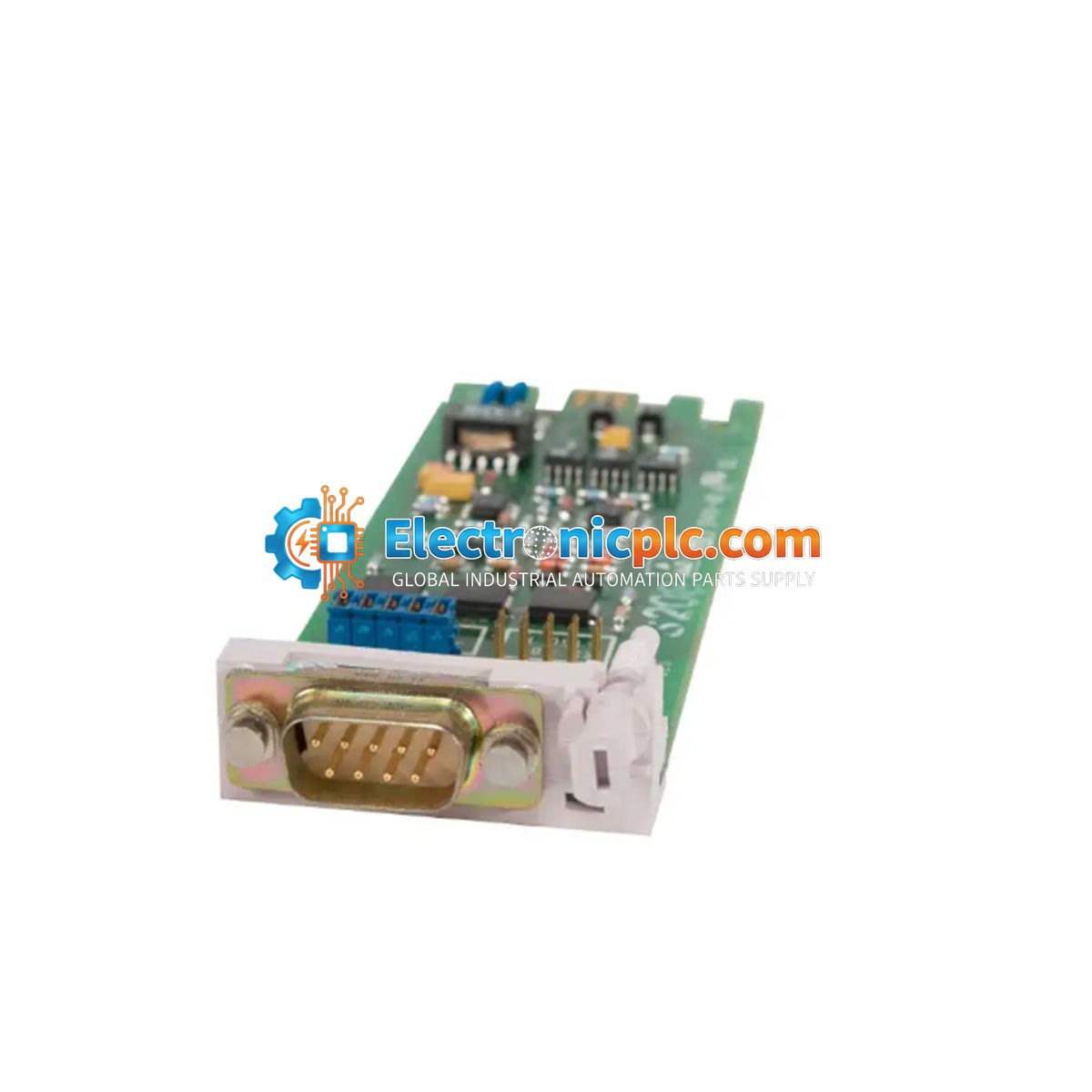

The Siemens 6DR2803-8C is a specialized serial interface module designed for the SIPART controller series. This module serves as a critical communication bridge, providing both RS232 and RS485 ports to facilitate data exchange between field-level controllers and supervisory systems such as SCADA or local HMI interfaces. It is engineered to support remote parameterization, real-time process monitoring, and telemetry, which are essential for maintaining operational efficiency and predictive maintenance in industrial automation.

Features

• Dual-standard serial connectivity supporting both RS232 and RS485 protocols.
• Robust signal isolation handling up to 50 VAC/DC to protect internal circuitry from ground loops and voltage transients.
• Designed for seamless integration with Siemens SIPART controller hardware.
• Enables versatile network topologies, from point-to-point diagnostics to multi-point bus communication.

Applications

The 6DR2803-8C is widely utilized in process-regulated environments, including chemical processing plants, power generation facilities, and water treatment infrastructure, where reliable serial communication is required for controller management and data logging.

Technical Specifications

Installation Guidelines

• Ensure the controller power is disconnected before installing or removing the interface module.
• Handle the module using ESD-safe practices to prevent damage to sensitive electronic components.
• Ensure the module is securely seated in the designated controller slot to maintain proper physical and electrical connection.
• Route communication cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to ensure signal integrity.
• Verify that the communication protocol settings (RS232 vs RS485) match the requirements of the connected network topology.

FAQ

What is the primary function of the 6DR2803-8C module?

This module acts as a communication interface for SIPART controllers, allowing them to communicate via RS232 or RS485 serial protocols for remote monitoring and configuration.

Can this module be used for both point-to-point and network communication?

Yes, the module supports RS232 for point-to-point connections (typically for local diagnostics) and RS485 for multi-point bus-based network integration.
