Description

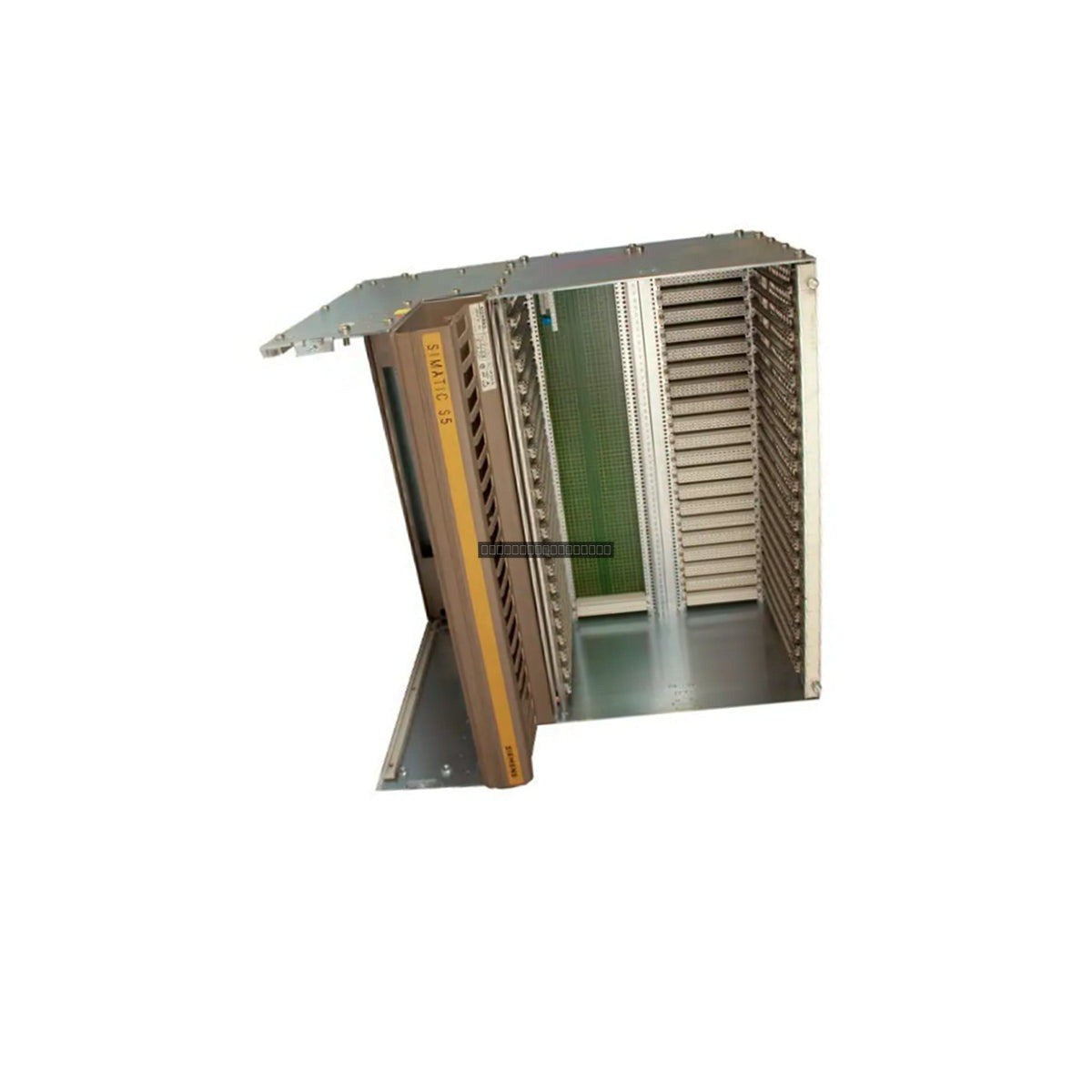

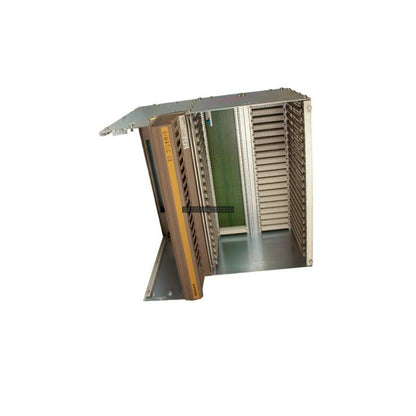

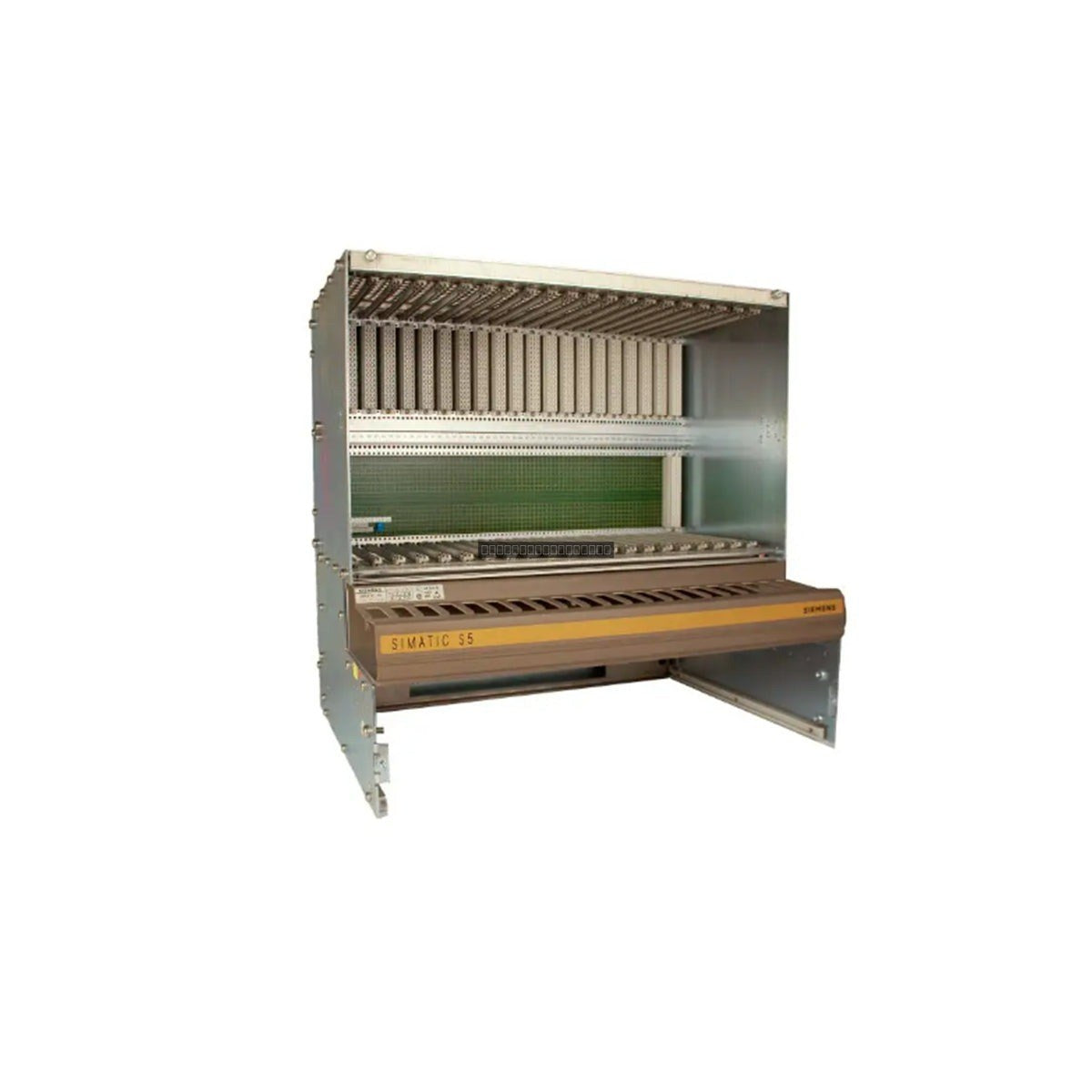

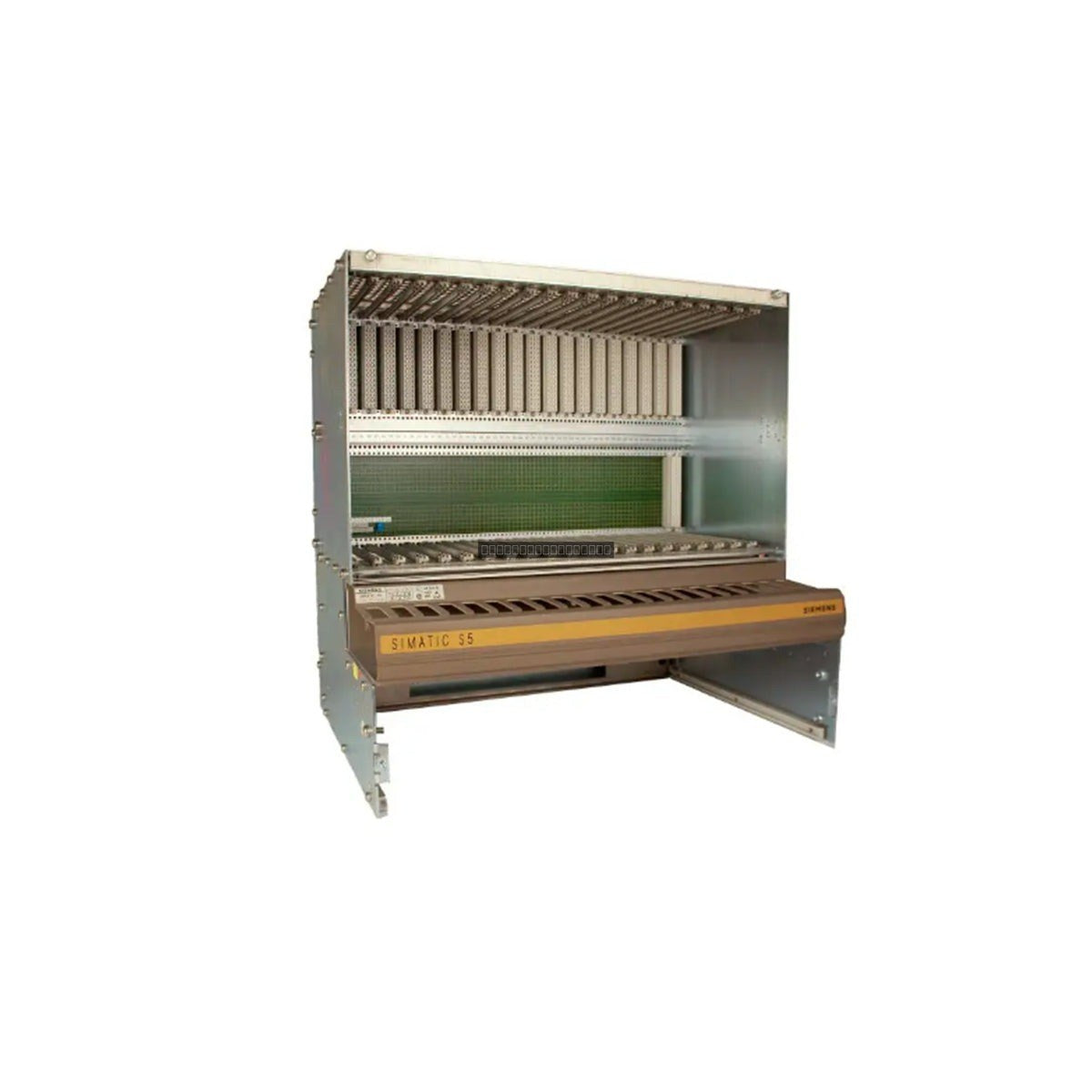

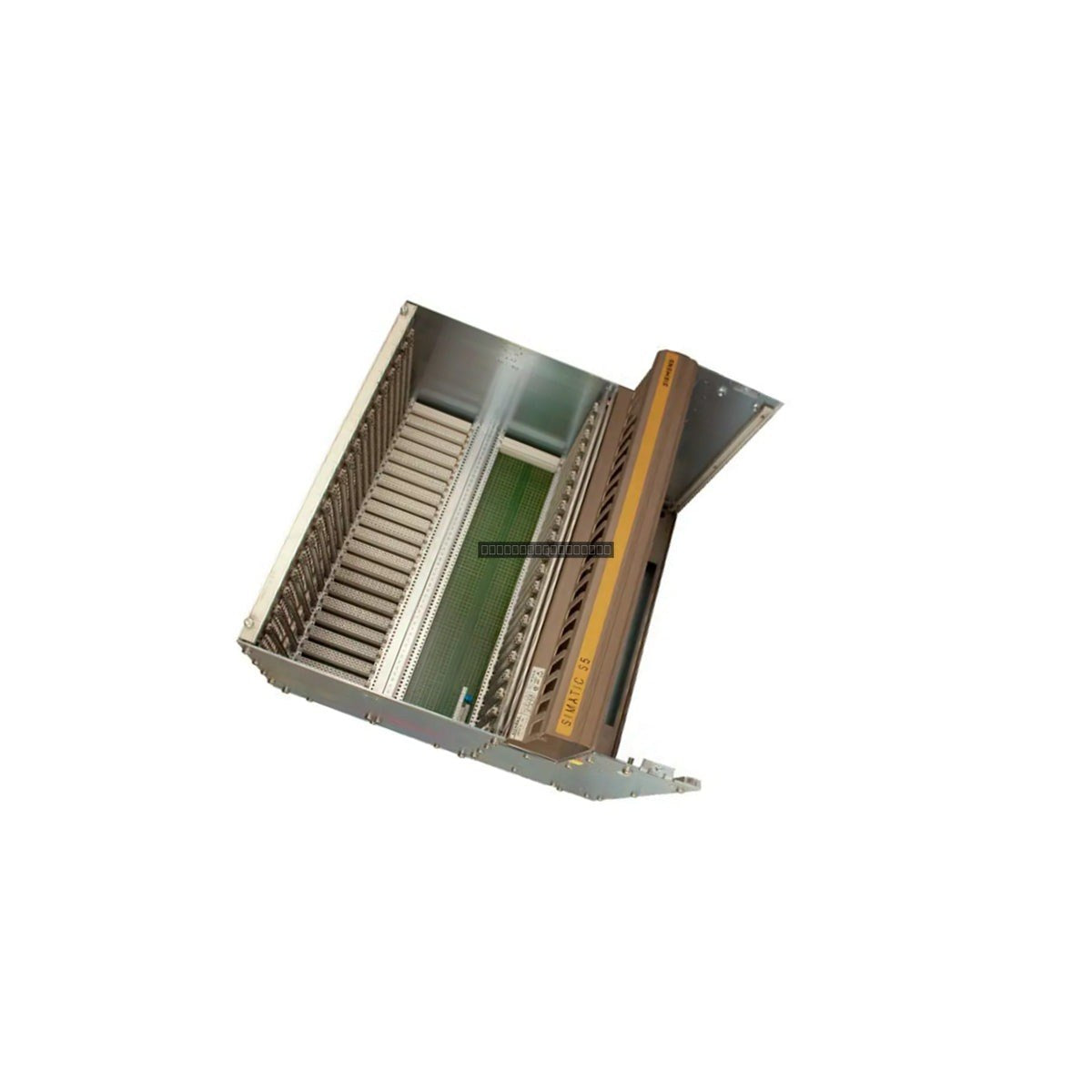

The Siemens Simatic S5 6ES5183-3UA21 is a high-capacity expansion unit designed for the Simatic S5-135 and S5-155 controller platforms. This robust rack provides 21 expansion slots, enabling the integration of extensive I/O configurations and communication coprocessors in large-scale automation environments. Engineered for reliability in demanding industrial settings, this unit ensures stable power distribution and signal integrity across the backplane bus, supporting continuous operation in critical infrastructure.

Features

• 21-slot capacity for flexible Simatic S5 module configuration.
• Integrated 18 A power supply unit for stable 24 VDC voltage distribution.
• Active thermal management system featuring a built-in cooling fan assembly.
• Rugged metal chassis construction designed to resist structural vibration.
• Shielded backplane bus architecture for reliable logic signal transmission.

Applications

This expansion unit is primarily utilized in large-scale control systems, including thermal power plants, petrochemical processing facilities, and heavy mining operations where high-density I/O and modular scalability are required for complex data-acquisition loops.

Technical Specifications

Installation Guidelines

• Ensure the rack is mounted in a clean, dry environment with adequate clearance for airflow to the integrated fans.
• Verify that the power supply input is correctly wired to a stable 24 VDC source before energizing.
• Always power down the system before inserting or removing any I/O modules to prevent electrical damage to the backplane.
• Ensure the chassis is properly grounded to the control cabinet frame to mitigate electromagnetic interference.
• Regularly inspect the cooling fan assembly for dust accumulation to maintain optimal thermal dissipation.

FAQ

Is this unit compatible with all Simatic S5 modules?

The 6ES5183-3UA21 is designed for the S5-135 and S5-155 series. Please verify that your specific module types are compatible with the EG183 backplane bus architecture before installation.

Does this unit require external cooling?

No, this unit includes an integrated active fan assembly at the base of the rack to manage thermal dissipation. Ensure the air intake and exhaust paths remain unobstructed during operation.
