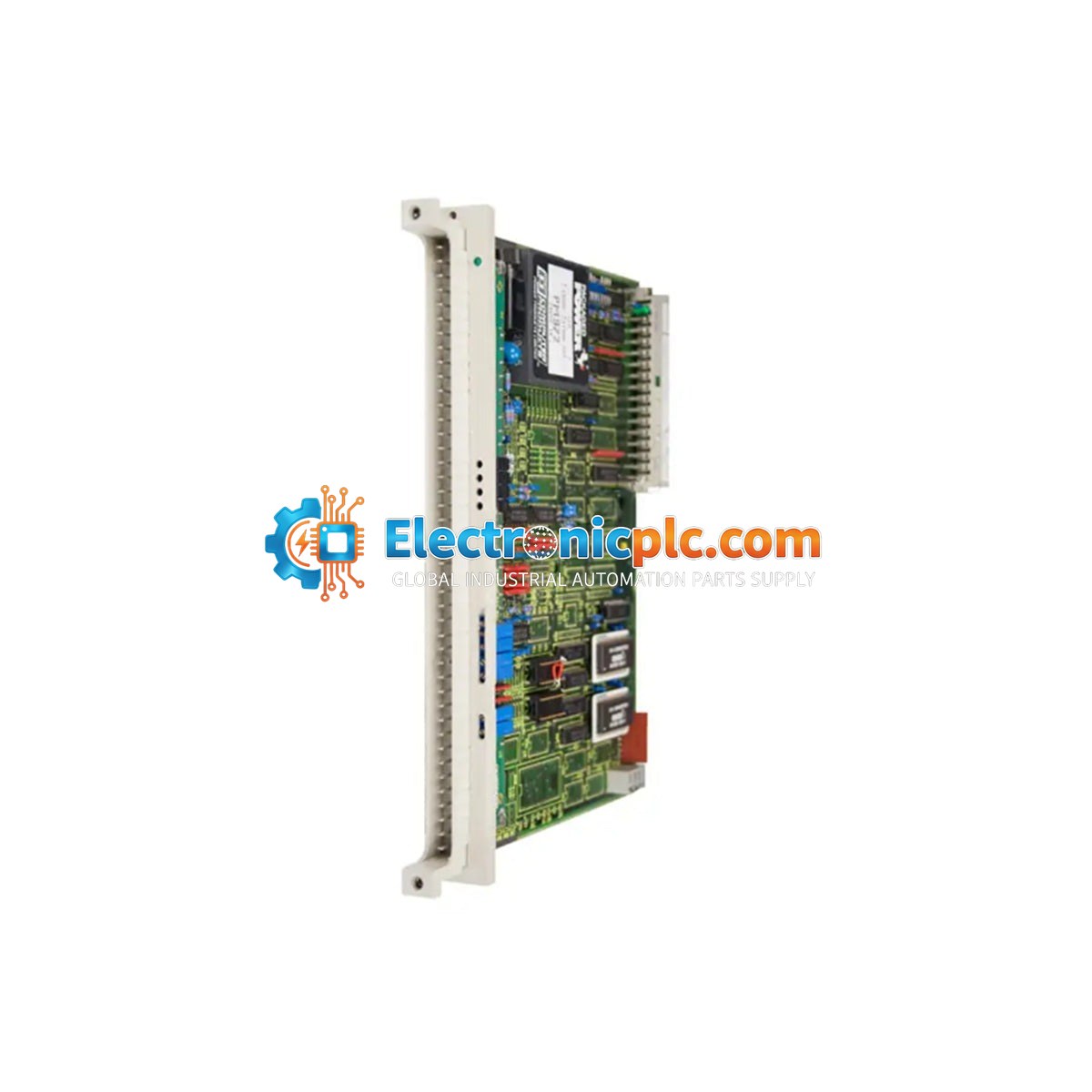

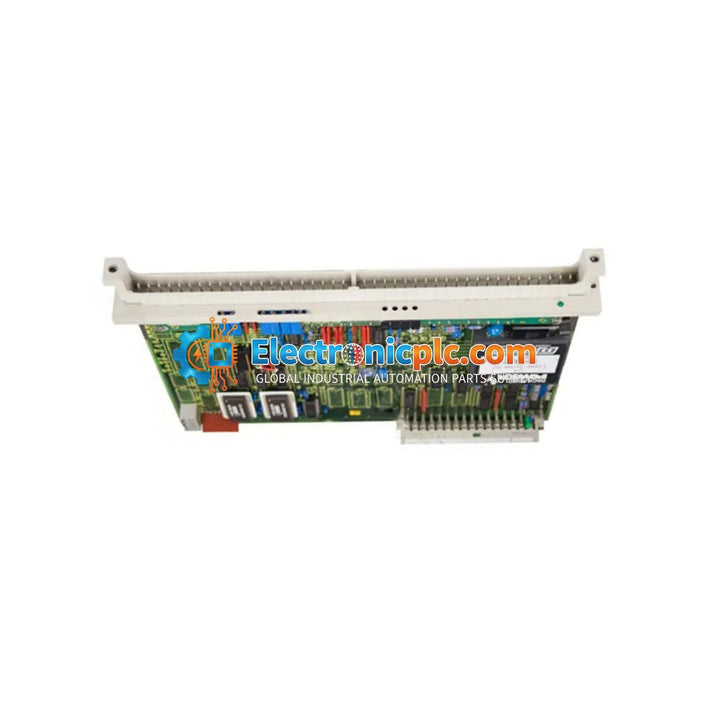

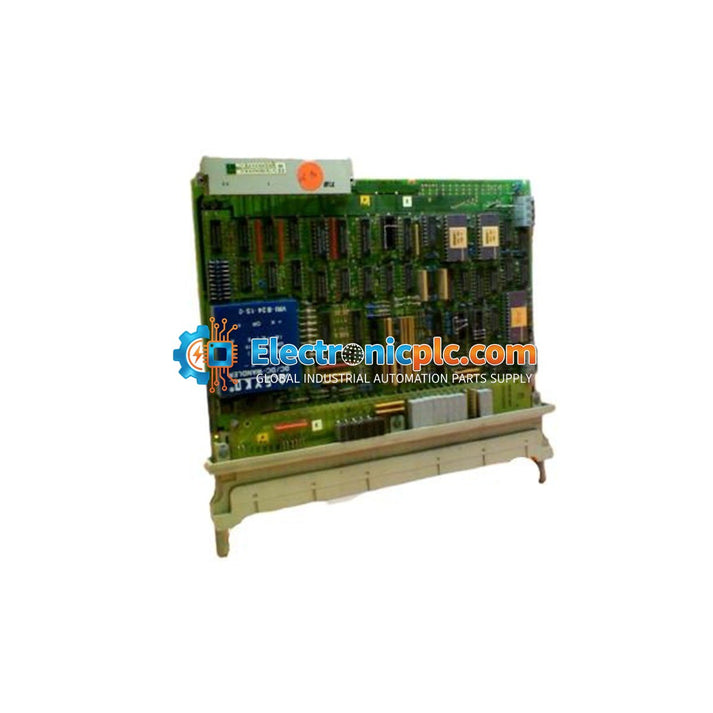

Siemens 6ES5 243-1AC11 Simatic S5 IP243 Intelligent Positioning Module

Siemens 6ES5 243-1AC11 Simatic S5 IP243 Intelligent Positioning Module

Description

The Siemens Simatic S5 6ES5 243-1AC11 (IP243) is a specialized Intelligent Processor module engineered for high-speed positioning and motion control within the Simatic S5 automation ecosystem. This module is designed...

28 people are viewing this right now

Availability: Low stock: 8 left

SKU: 6ES5900-7AA21
Vendor: Siemens
Category: Intelligent Positioning Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens Simatic S5 6ES5 243-1AC11 (IP243) is a specialized Intelligent Processor module engineered for high-speed positioning and motion control within the Simatic S5 automation ecosystem. This module is designed to offload time-critical motion tasks from the main PLC CPU, providing deterministic control for complex applications such as automated assembly lines, high-speed packaging, and precision machining. By handling closed-loop feedback locally, the IP243 minimizes communication latency between sensors and actuators, ensuring high production accuracy and system reliability.

Features

  • Dedicated motion control processing independent of the host PLC scan cycle.
  • Onboard microcontroller for interpolation and velocity profile generation.
  • Supports smooth acceleration and deceleration curves to reduce mechanical wear.
  • Seamless integration into the S5 backplane via shared memory interface.
  • High-speed closed-loop feedback management for precision positioning.

Applications

The IP243 is widely utilized in industrial environments requiring precise motion control, including:

  • Automated assembly and material handling systems.
  • High-speed packaging and labeling machinery.
  • Precision CNC and machining tool positioning.
  • Synchronized multi-axis motion control applications.

Technical Specifications

Model 6ES5 243-1AC11
Brand Siemens Simatic S5
Functionality Intelligent closed-loop positioning control
Power Consumption 15 W nominal at 24 VDC
Operating Temperature 0 to 55 deg C
Interface S5 backplane bus

Installation Guidelines

  • Ensure the PLC rack is powered down before inserting or removing the IP243 module to prevent electrical damage.
  • Verify that the module is correctly seated in the S5 backplane slot and secured with the locking mechanisms.
  • Use shielded cables for encoder and actuator connections to minimize electromagnetic interference (EMI).
  • Maintain proper ventilation in the control cabinet to ensure the module operates within the specified 0 to 55 deg C range.
  • Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.

FAQ

What is the primary role of the IP243 module?

The IP243 acts as an intelligent processor that offloads motion control algorithms from the main S5 CPU, allowing for faster, more deterministic positioning control than the PLC could achieve alone.

Is this module compatible with all S5 systems?

The IP243 is designed for the Simatic S5 intelligent process rack architecture. Please ensure your specific S5 rack configuration supports the IP243 module before installation.
