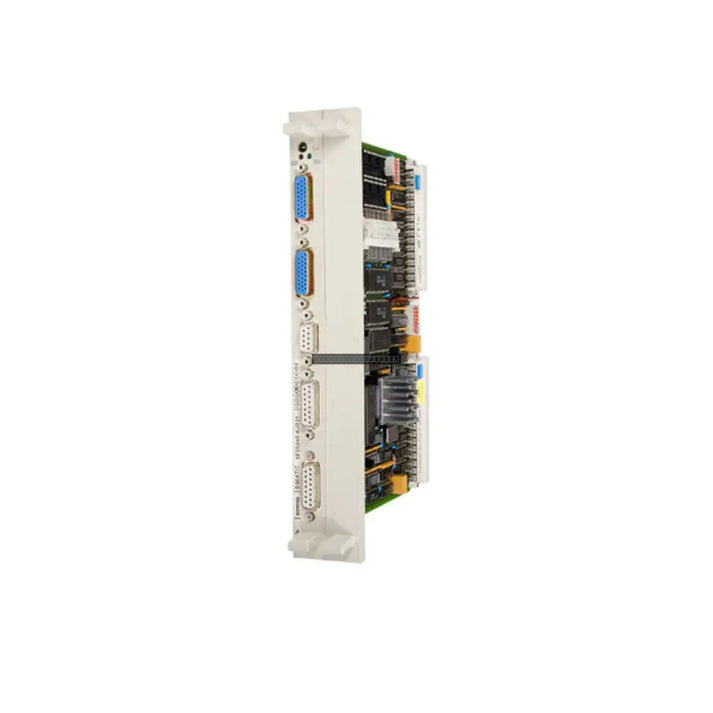

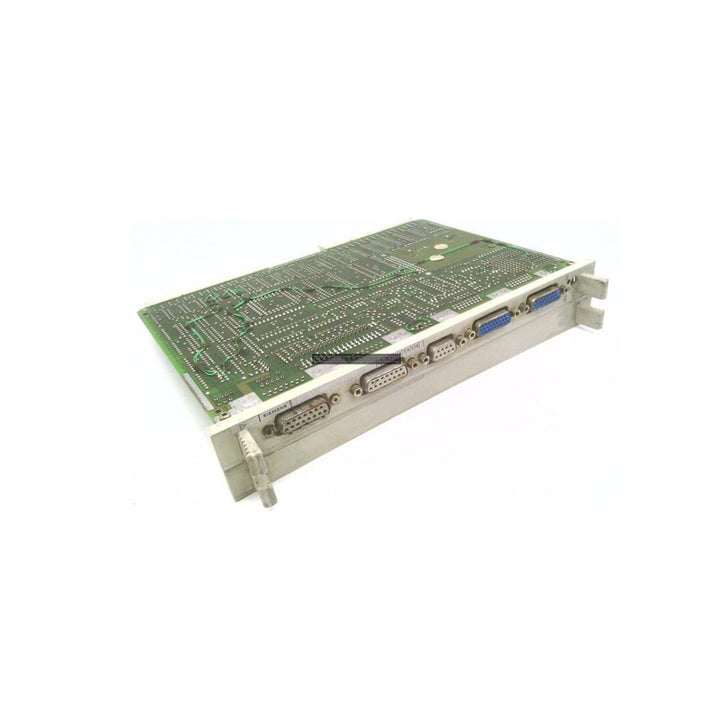

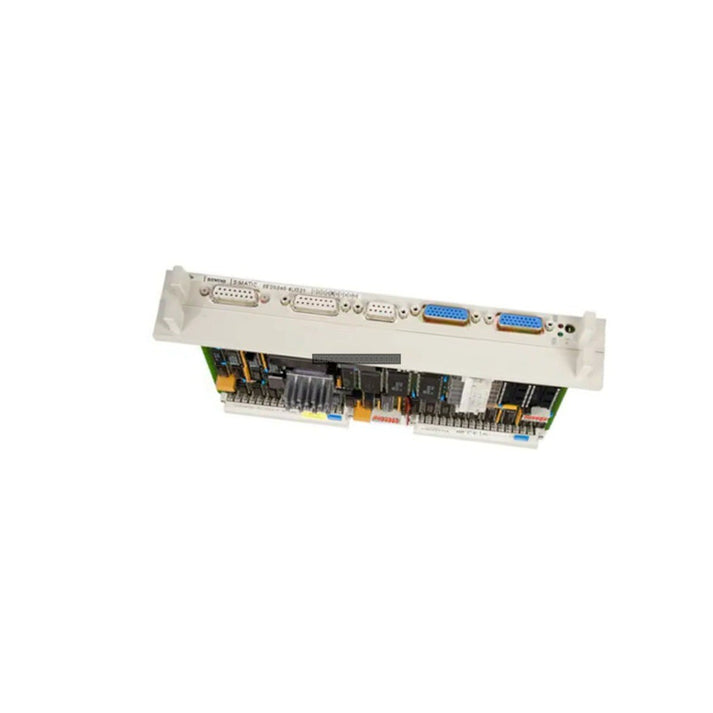

Siemens 6ES5246-4UB21 SIMATIC S5 IP 246 Positioning Module

Siemens 6ES5246-4UB21 SIMATIC S5 IP 246 Positioning Module

Description

The Siemens 6ES5246-4UB21, also identified as the IP 246, is a specialized intelligent positioning module designed for integration within the SIMATIC S5 automation platform. This module is engineered to manage...

25 people are viewing this right now

Availability: Low stock: 2 left

SKU: 6ES5246-4UB21
Vendor: Siemens
Category: Positioning Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5246-4UB21, also identified as the IP 246, is a specialized intelligent positioning module designed for integration within the SIMATIC S5 automation platform. This module is engineered to manage high-precision motion control loops by interfacing directly with DC motor drive systems. By utilizing digital absolute encoder feedback, it delivers real-time positional data to the control system, ensuring high accuracy in demanding industrial motion applications such as material handling, heavy-duty presses, and mining equipment.

Features

  • Dedicated motion control processing independent of the primary CPU scan cycle.
  • Designed for seamless integration into the legacy SIMATIC S5 backplane architecture.
  • Supports high-speed digital absolute encoder feedback loops.
  • Passive cooling design eliminates the need for external fans or active maintenance.
  • Robust construction resistant to high-vibration and electromagnetic interference environments.

Applications

This positioning module is primarily deployed in industrial settings requiring precise motion control and mechanical synchronization. Common use cases include:

  • Sub-surface mining hoist systems.
  • Industrial stamping and metal forming presses.
  • Automated material handling and conveyor positioning.
  • Legacy fossil-fuel plant automation systems.

Technical Specifications

Model 6ES5 246-4UB21
Brand Siemens
Series SIMATIC S5 IP 246
Module Type Positioning Module
Drive Compatibility DC Drives
Feedback Interface Absolute Digital Encoder
Power Consumption 6.5 W
Operating Temperature 0 to 55 deg C

Installation Guidelines

  • Ensure the S5 rack power is fully disconnected before inserting or removing the module.
  • Verify that the backplane connector pins are clean and free of debris prior to installation.
  • The module uses passive ventilation; ensure adequate airflow around the S5 rack enclosure to maintain ambient operating temperatures.
  • Route encoder signal cables separately from high-voltage power lines to minimize electromagnetic interference (EMI).
  • Ensure proper grounding of the cabinet and rack to comply with standard industrial safety practices.

FAQ

Is this module compatible with modern S7 systems?

No, the 6ES5246-4UB21 is specifically designed for the SIMATIC S5 architecture and is not natively compatible with S7 series controllers.

Does this module require a cooling fan?

No, the IP 246 utilizes a passive, self-ventilated design and does not require active mechanical cooling.

What type of encoders does this module support?

This module is engineered to interface with digital absolute encoders for precise position feedback.
