Description

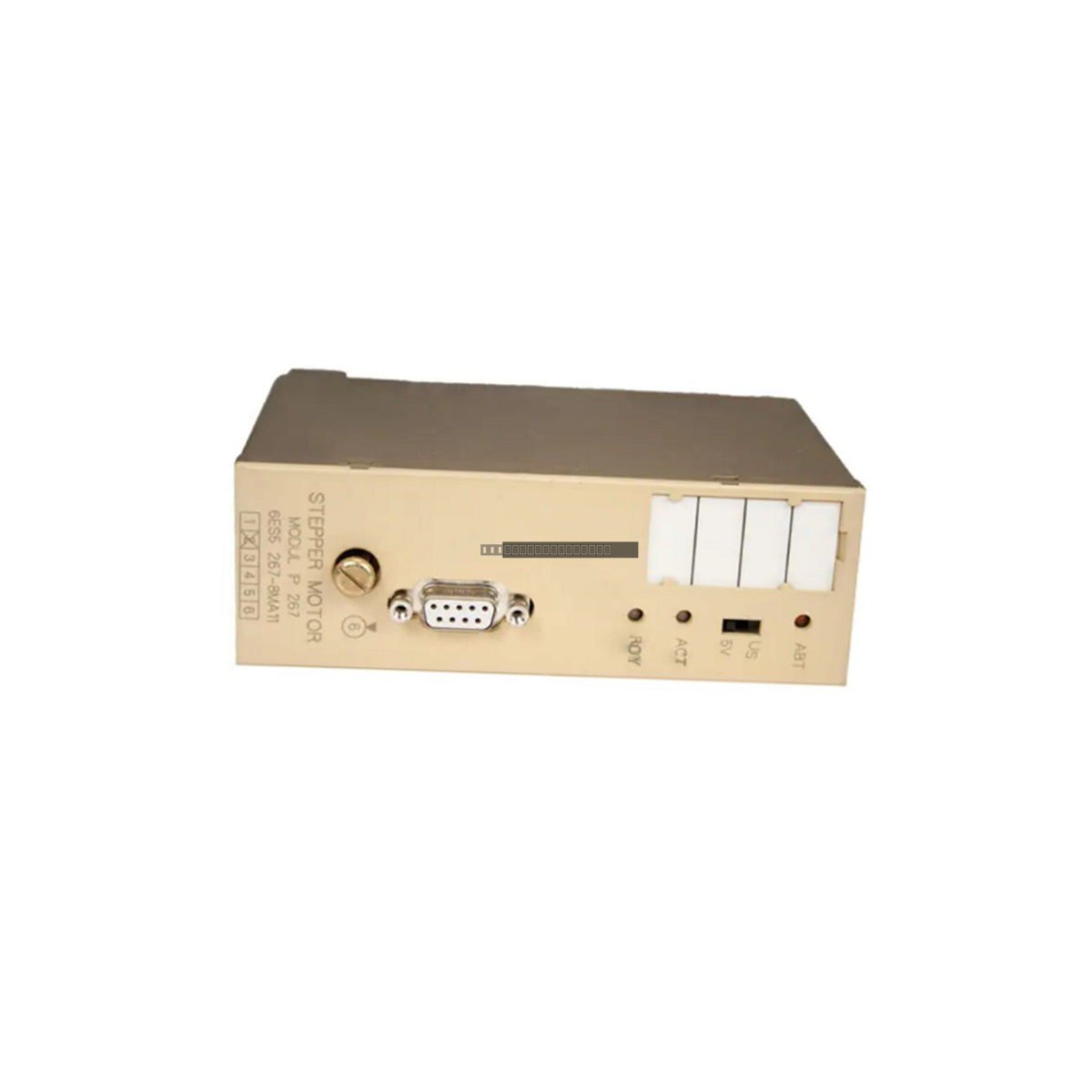

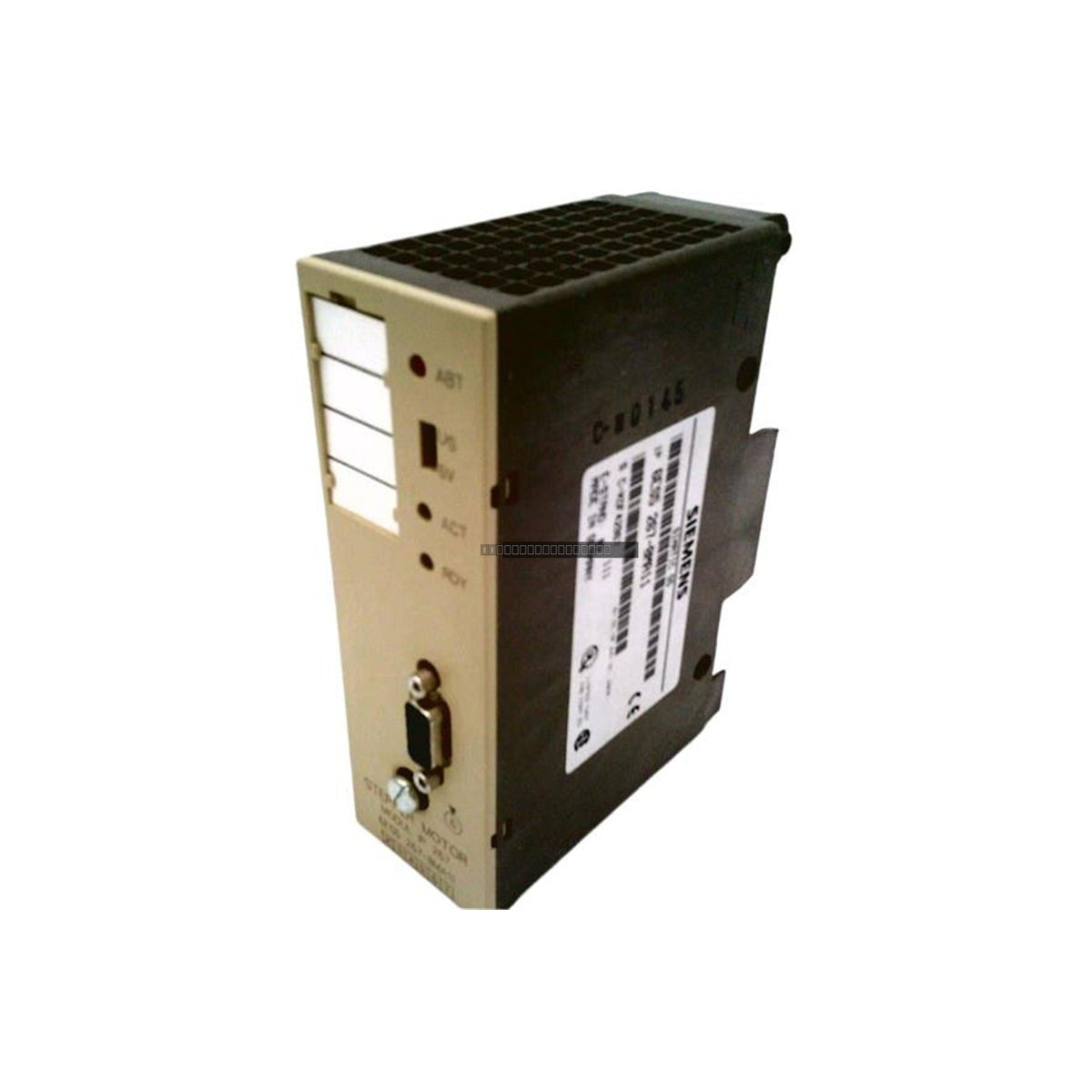

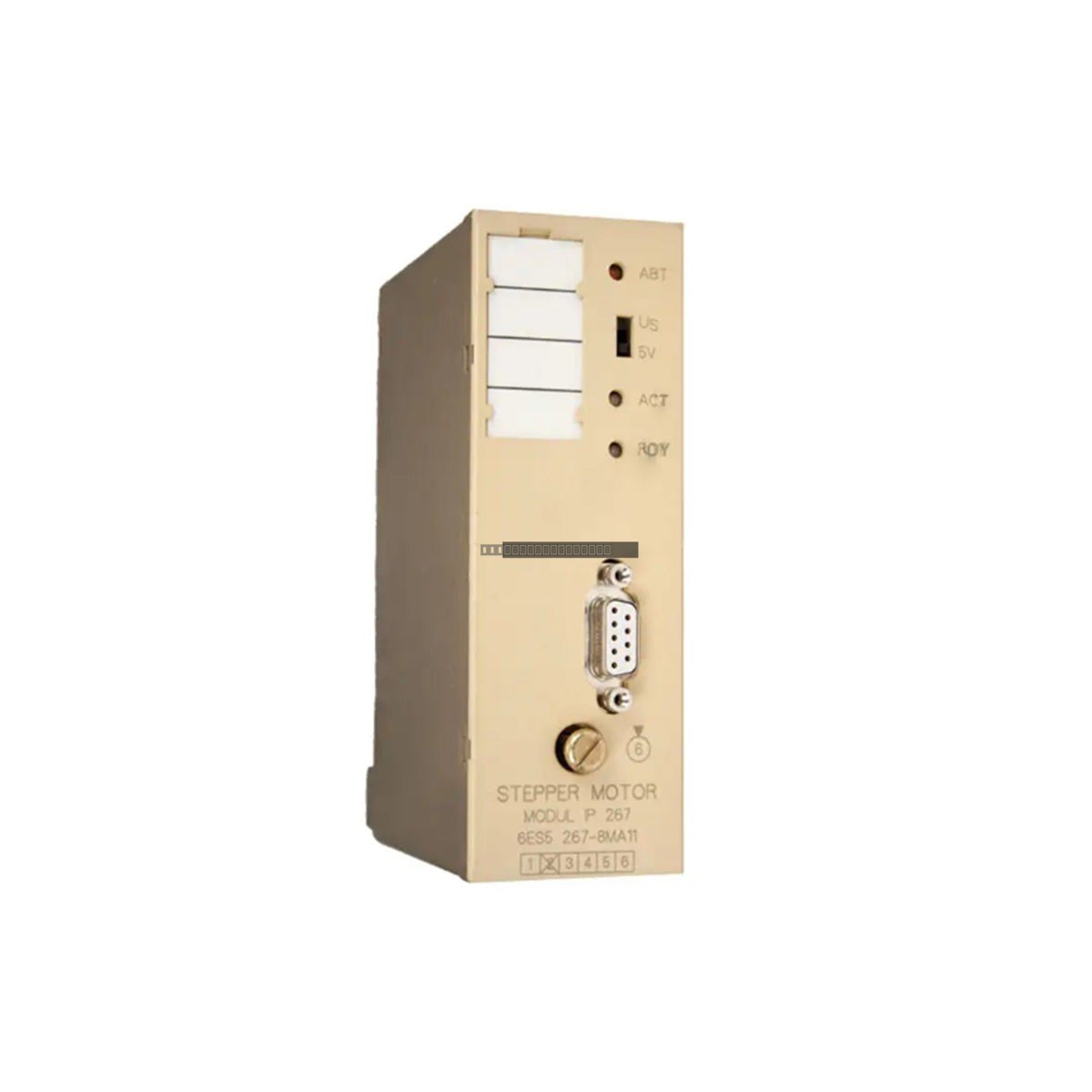

The Siemens Simatic S5 6ES5267-8MA11 is an intelligent IP 267 positioning module engineered for precise stepper motor control within Simatic S5-90U, 95U, and 100U automation architectures, as well as ET 200U distributed I/O systems. By offloading time-critical pulse generation and motion profile execution from the central processing unit, this module ensures high-accuracy point-to-point positioning. It is designed to maintain operational integrity in demanding industrial environments, including manufacturing assembly lines and automated processing facilities.

Features

• Dedicated pulse and direction interfaces for standard stepper motor power stages.
• Integrated high-frequency pulse generation for independent motion control.
• Hardware-level response loops for limit switches, reference point switches, and start/stop signals.
• Galvanic isolation on digital control lines to mitigate EMI and electrical noise.
• Seamless integration with S5 bus systems for parameter exchange of acceleration, deceleration, and target position data.

Applications

This module is optimized for motion control tasks in industrial automation, specifically where precise stepper motor positioning is required. Typical applications include automated assembly, material handling, and process control systems where minimizing PLC scan-time impact on motion profiles is critical.

Technical Specifications

Installation Guidelines

• Ensure the PLC system is powered down before inserting or removing the module from the rack.
• Verify that the module is securely seated in the S5 bus backplane to ensure proper communication.
• Use shielded cabling for pulse and direction signals to prevent interference from high-power motor drives.
• Maintain adequate ventilation within the control cabinet to ensure ambient temperatures remain within the 0 to 60 deg C range.
• Follow standard ESD handling procedures when touching the module circuitry.

FAQ

Is this module compatible with S5-115U systems?

The 6ES5267-8MA11 is specifically designed for the S5-90U, 95U, 100U, and ET 200U series. Please consult your specific system documentation before attempting integration with other S5 series processors.

Does this module require external power for the pulse outputs?

The module provides the logic and control signals; however, it is intended to drive external stepper motor power stages. Ensure your power stage requirements align with the module's output signal specifications.
