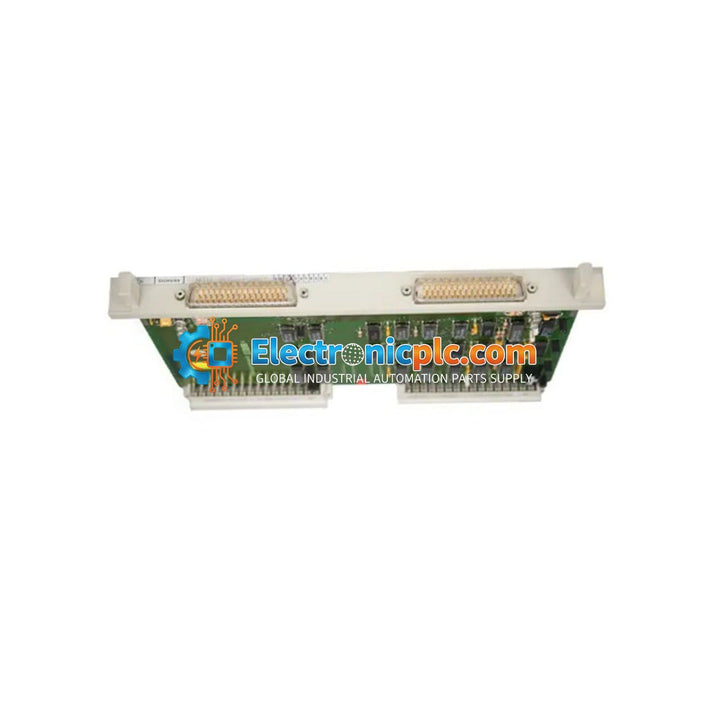

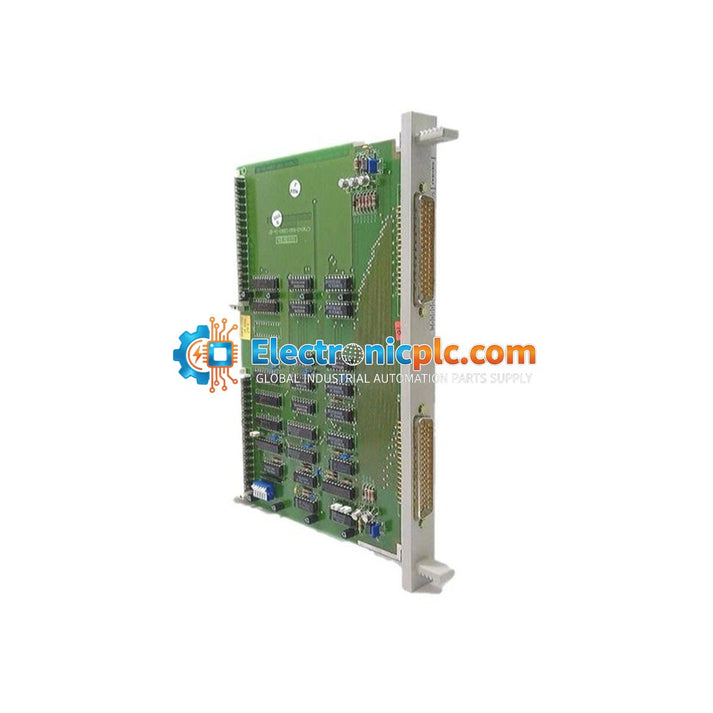

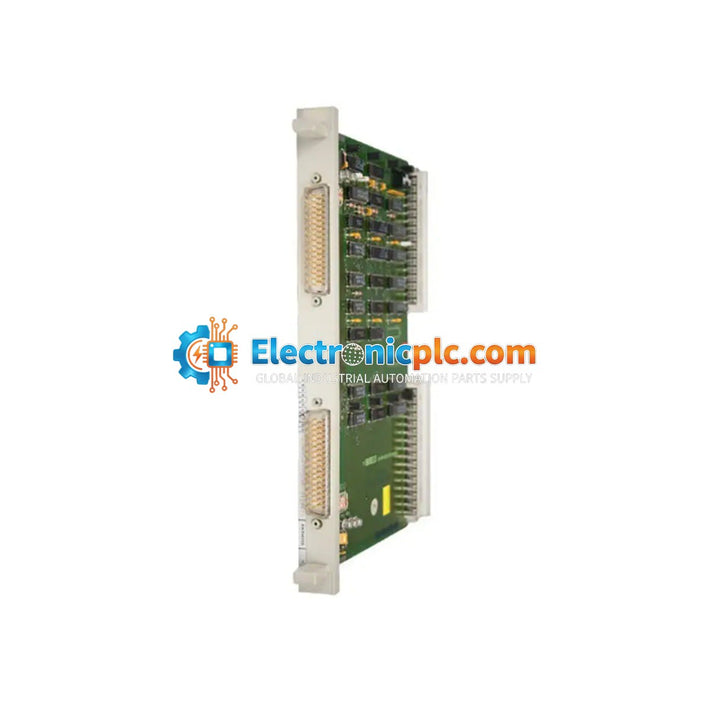

Siemens 6ES5314-3UA11 IM314 Interface Module

Siemens 6ES5314-3UA11 IM314 Interface Module

Description

The Siemens 6ES5314-3UA11 is an IM 314 Interface Module designed for the SIMATIC S5-135/155 automation systems. This module serves as a critical component for establishing decentralized connections between expansion units...

20 people are viewing this right now

Availability: Low stock: 2 left

SKU: 6ES5314-3UA11
Vendor: Siemens
Category: Interface Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5314-3UA11 is an IM 314 Interface Module designed for the SIMATIC S5-135/155 automation systems. This module serves as a critical component for establishing decentralized connections between expansion units and the central controller. It enables reliable communication over distances of up to 600 meters, facilitating distributed I/O configurations in large-scale industrial environments. Please note that this product was discontinued by the manufacturer as of January 10, 2006.

Features

  • Designed specifically for SIMATIC S5-135 and S5-155 series PLC systems.
  • Supports decentralized connection architecture for remote expansion units.
  • Enables data transmission distances up to 600 meters.
  • Robust industrial design for integration into standard S5 rack systems.

Applications

This interface module is utilized in legacy Siemens S5 control systems where physical separation between the central processing unit and remote I/O expansion racks is required. It is commonly found in manufacturing plants, power generation facilities, and process automation systems that rely on the S5 architecture.

Technical Specifications

Product Model 6ES5314-3UA11
Module Type IM 314 Interface Module
System Compatibility SIMATIC S5-135/155
Max Transmission Distance 600 meters
Weight 0.3 kg
Status Discontinued (Effective 2006-01-10)

Installation Guidelines

  • Ensure the PLC system is powered down before installing or removing the IM 314 module to prevent electrical damage or bus errors.
  • Verify that the module is properly seated in the designated slot of the S5 expansion rack.
  • Use appropriate shielded cabling for decentralized connections to minimize EMI interference over long distances.
  • Maintain proper grounding of the rack assembly to ensure signal integrity.
  • Handle the module using ESD-safe practices to protect sensitive internal circuitry.

FAQ

Is the 6ES5314-3UA11 still available from Siemens?

No, this module was officially discontinued by Siemens on January 10, 2006. It is typically sourced through surplus or refurbished industrial inventory channels.

What is the primary function of the IM 314?

The IM 314 acts as an interface for decentralized connection, allowing the S5 CPU to communicate with remote expansion units located up to 600 meters away.
