Description

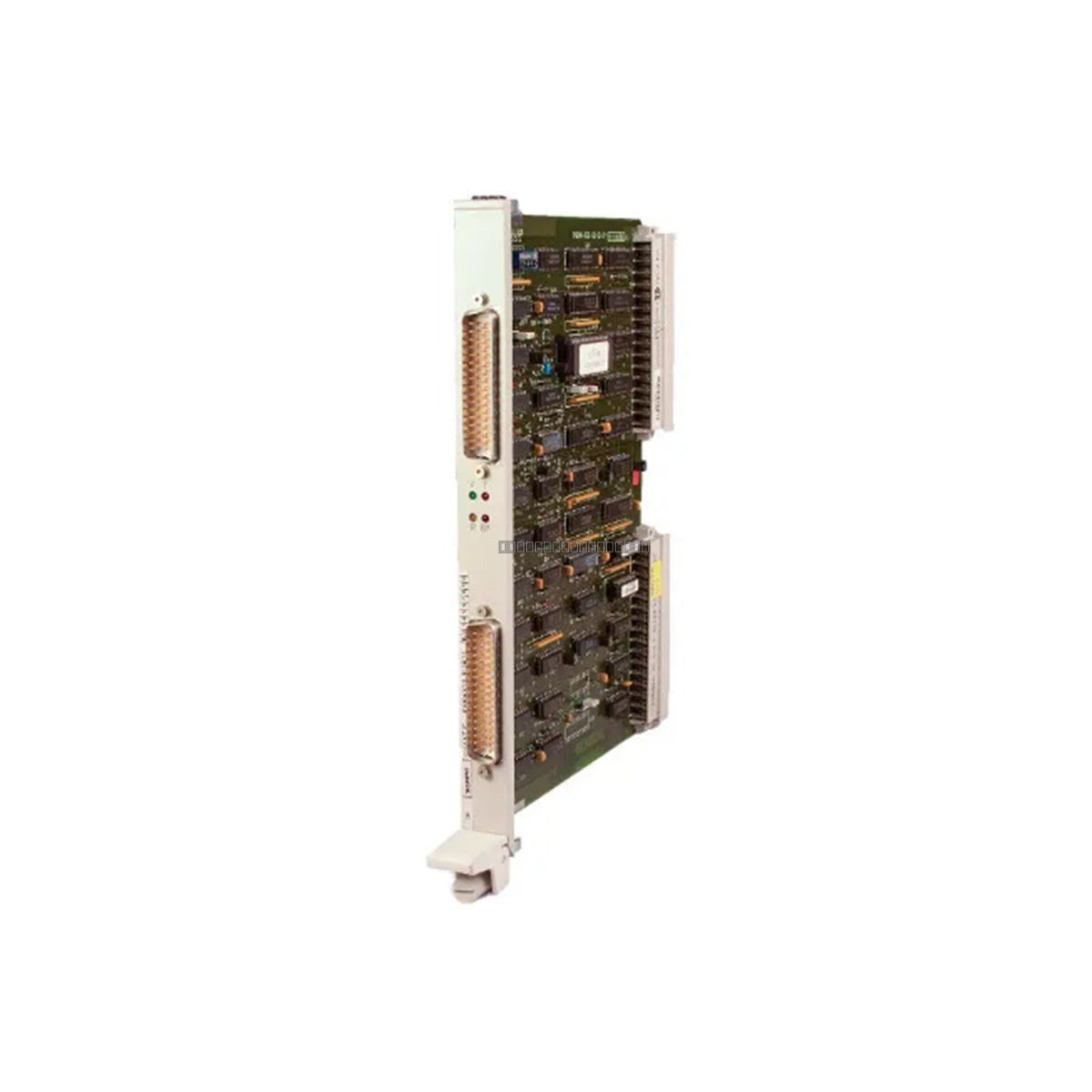

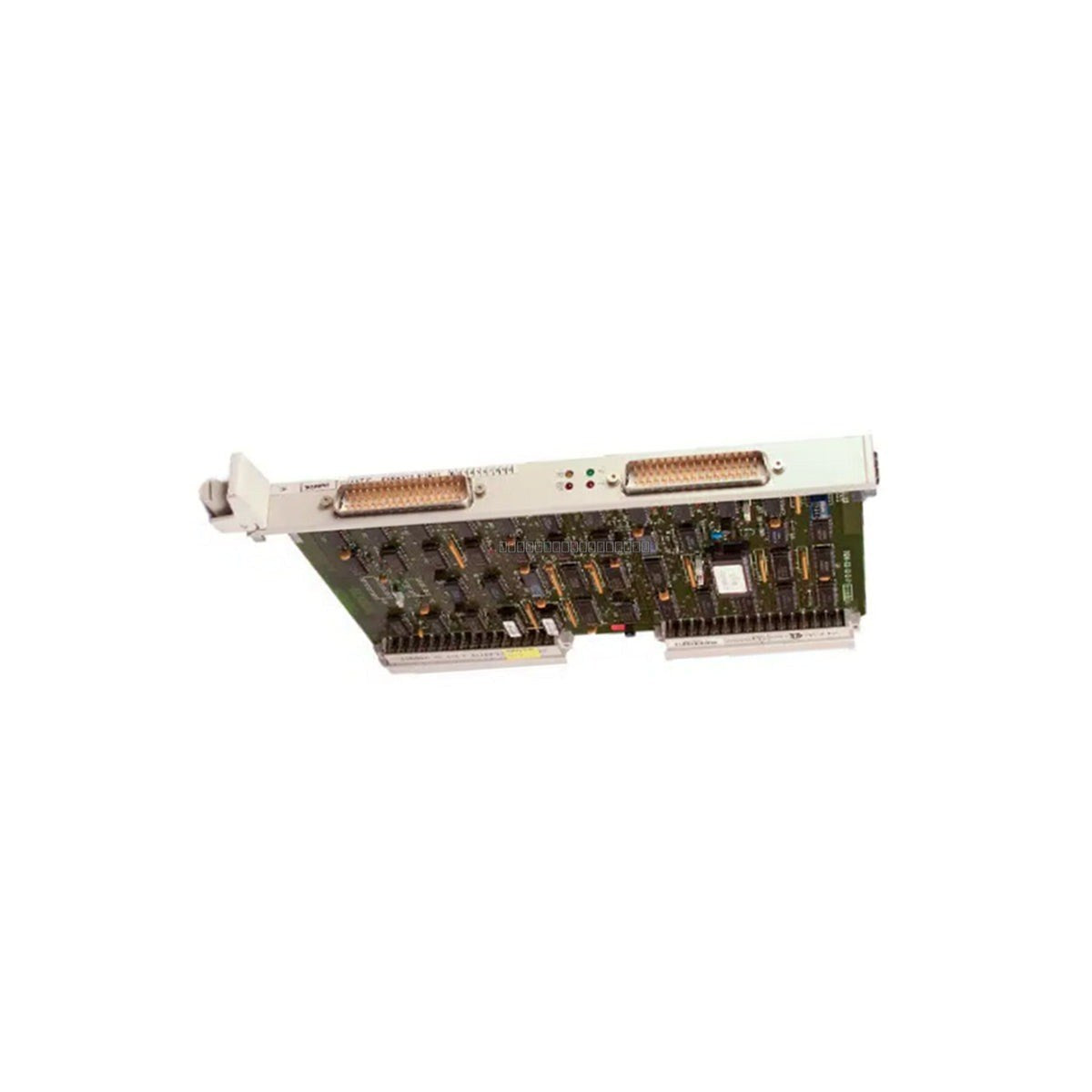

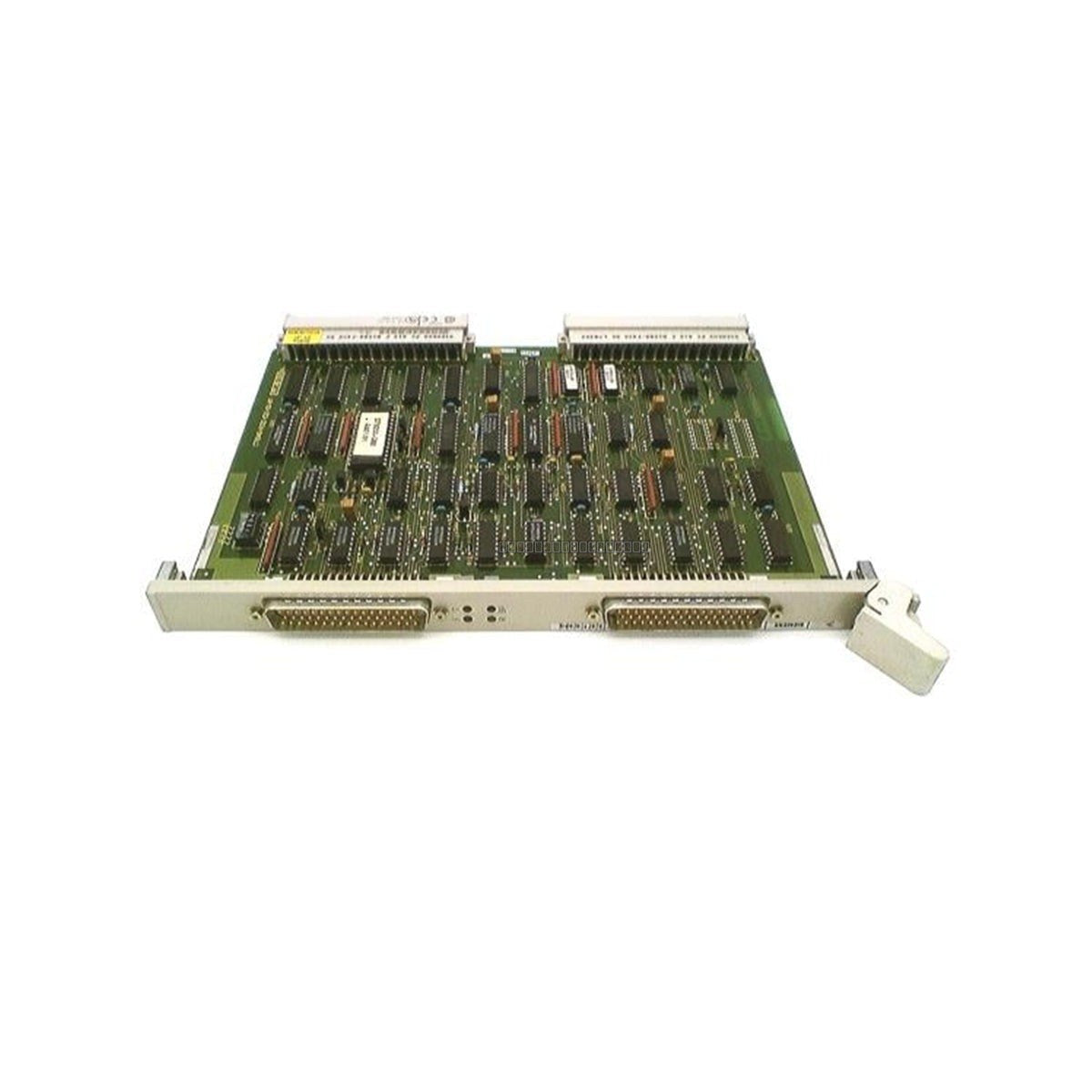

The Siemens Simatic S5 6ES5314-3UR11 (IM 314R) is a specialized interface module designed for distributed I/O expansion within Simatic S5-135 and S5-155 controller systems. This module is engineered specifically for high-availability H-series configurations, such as the S5-155H and S5-115H, facilitating reliable, decentralized connectivity between central controllers and remote expansion units over distances reaching up to 600 meters. By supporting robust synchronization between primary and backup controllers, the IM 314R is essential for maintaining system uptime in mission-critical industrial environments, including power distribution, oil and gas, and automated mining.

Features

• Supports high-availability H-system synchronization for S5-155H and S5-115H controllers.
• Enables distributed I/O expansion up to 600 meters.
• Provides electrical isolation for data lines to mitigate electromagnetic interference (EMI).
• Ensures deterministic data transfer for redundant processing architectures.
• Designed for integration into standard S5-135/155 rack-mount systems.

Applications

The IM 314R interface module is primarily deployed in fault-tolerant control systems where redundancy is critical. It is commonly used in large-scale industrial automation setups requiring remote I/O racks to communicate with a central processor while maintaining strict synchronization timings to prevent system failure during hardware transitions.

Technical Specifications

Installation Guidelines

• Ensure the power supply to the rack is disconnected before installing or removing the module to prevent electrical damage.
• The module is designed for standard S5-135/155 rack-mount installation; ensure it is fully seated in the backplane connector.
• Use appropriate shielded cabling for long-range communication to maintain signal integrity and meet the 600 m distance specification.
• Maintain proper ventilation within the cabinet to ensure the module operates within the specified 0 to 60 deg C range.
• Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.

FAQ

What is the primary function of the 6ES5314-3UR11?
The IM 314R serves as an interface module for distributed I/O expansion, specifically enabling communication between central controllers and remote expansion units in redundant S5 H-series systems.

Can this module be used in non-redundant systems?
While designed for H-series redundancy, it is intended for use in S5-135 and S5-155 controller architectures. Please consult your specific system configuration documentation to ensure compatibility with your CPU setup.

What is the maximum distance for the expansion link?
The module supports communication distances of up to 600 meters when using properly shielded cabling.
