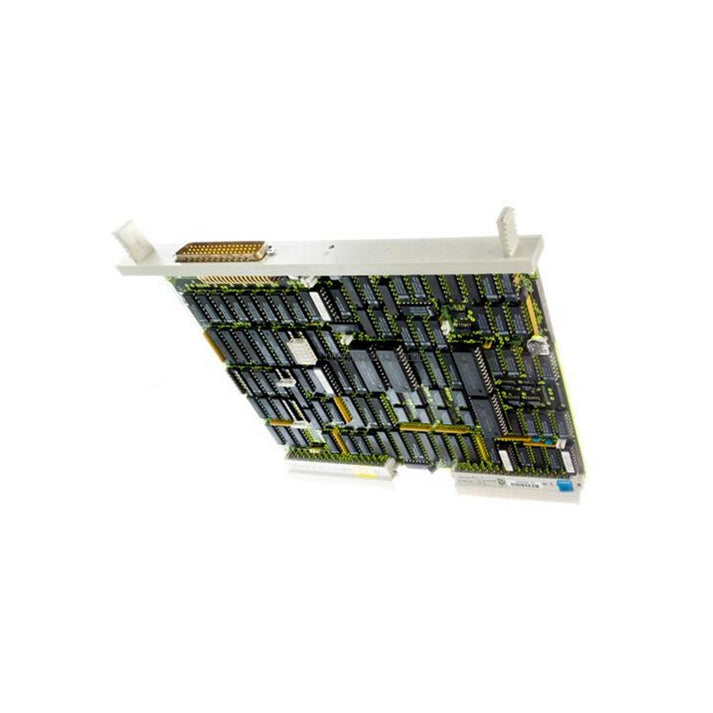

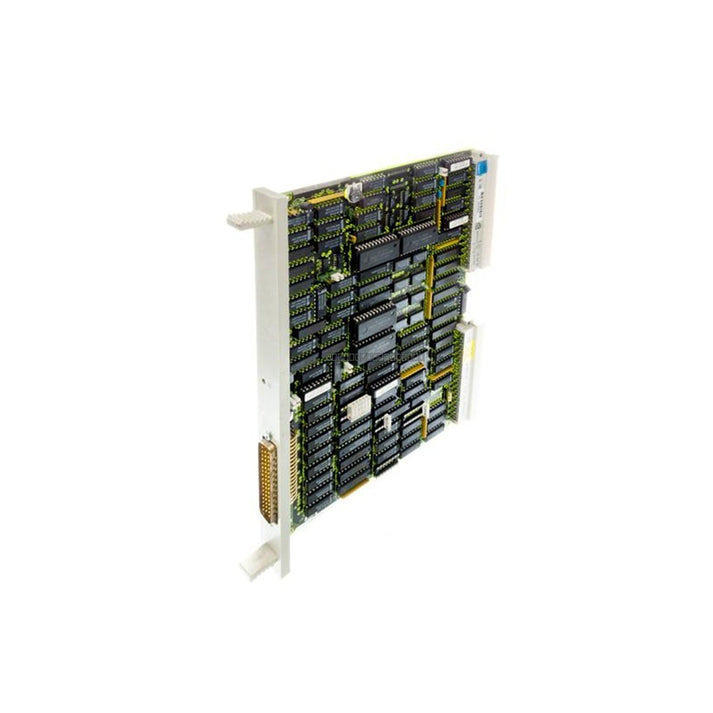

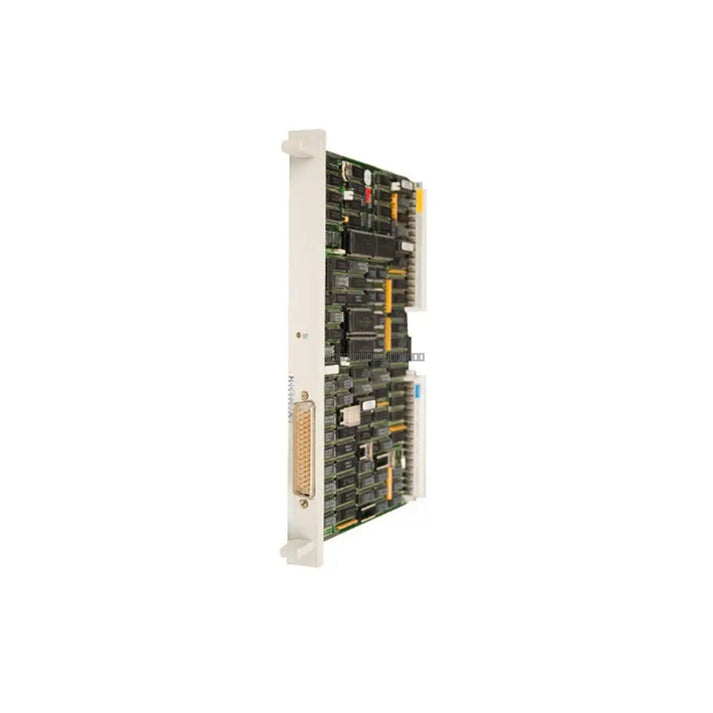

Siemens 6ES5324-3UA12 IM 324 Interface Module

Siemens 6ES5324-3UA12 IM 324 Interface Module

Description

The 6ES5 324-3UA12 (6ES53243UA12) is an IM 324 connection interface module engineered to establish direct coupling between central controllers in fault-tolerant and safety-critical configurations, specifically for Siemens Simatic S5-150H and...

16 people are viewing this right now

Availability: Low stock: 5 left

SKU: 6ES5324-3UA12
Vendor: Siemens
Category: Interface Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The 6ES5 324-3UA12 (6ES53243UA12) is an IM 324 connection interface module engineered to establish direct coupling between central controllers in fault-tolerant and safety-critical configurations, specifically for Siemens Simatic S5-150H and S5-115F platforms. By executing high-speed, deterministic backplane signal transmission, this unit synchronizes master and standby central processing units in high-availability environments. It performs continuous data mirroring across mission-critical systems, such as nuclear power generation, offshore oil platforms, and chemical batching facilities. By maintaining dual-redundant communication links and immediate failover capabilities, the module prevents system lockups, eliminates single points of failure, and significantly reduces costly operational downtime.

Features

  • High-speed, deterministic backplane signal transmission for master/standby CPU synchronization.
  • Specialized bus driver logic and high-speed optocouplers for robust signal isolation.
  • Integrated error-checking circuits for continuous monitoring of signal integrity and frame errors.
  • High-noise-immunity differential signaling for reliable communication across interconnected racks.
  • Front-panel diagnostic indicators for real-time status monitoring of link health and bus errors.
  • Galvanic optical isolation to protect against electrical interference between racks.

Applications

This module is designed for use in high-availability Simatic S5 automation environments, including:

  • Nuclear power generation control systems.
  • Offshore oil and gas platform automation.
  • Chemical batching and processing facilities.
  • Safety-critical fault-tolerant controller configurations.

Technical Specifications

Model 6ES5 324-3UA12
Product Family Simatic S5-135 / S5-155
Module Type IM 324 Interface Module
Compatibility Siemens Simatic S5-150H and S5-115F
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 70 deg C
Power Consumption 5 VDC (via backplane), 2.8 W max
Bus Coupling Speed Up to 1.5 Mbps
Isolation Galvanic optical isolation

Installation Guidelines

  • Ensure the system power is completely disconnected before inserting or removing the IM 324 module from the rack.
  • Handle the module using proper ESD (Electrostatic Discharge) protection protocols to prevent component damage.
  • Ensure the module is fully seated in the designated backplane slot and secured with the front-panel locking mechanisms.
  • Use shielded interface cables for all rack-to-rack connections to maintain signal integrity and noise immunity.
  • Route communication cables away from high-voltage power lines and sources of electromagnetic interference (EMI).
  • Verify that the front-panel diagnostic LEDs indicate a successful link synchronization after power-up.

FAQ

What is the primary function of the 6ES5 324-3UA12?

The module acts as a synchronization interface for redundant Simatic S5 CPU configurations, ensuring that master and standby controllers remain in sync for seamless failover in high-availability applications.

Does this module require external power?

No, the module is powered directly via the Simatic S5 backplane at 5 VDC with a maximum power consumption of 2.8 W.
