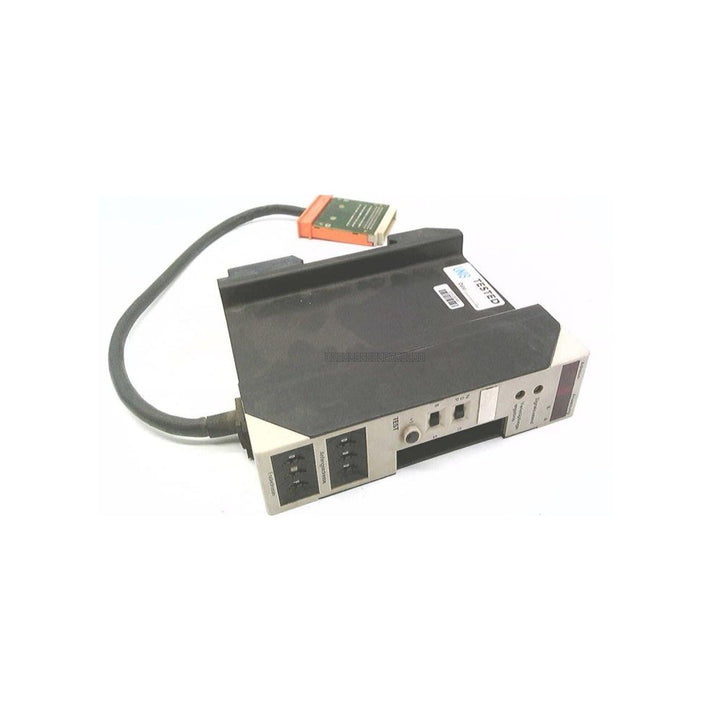

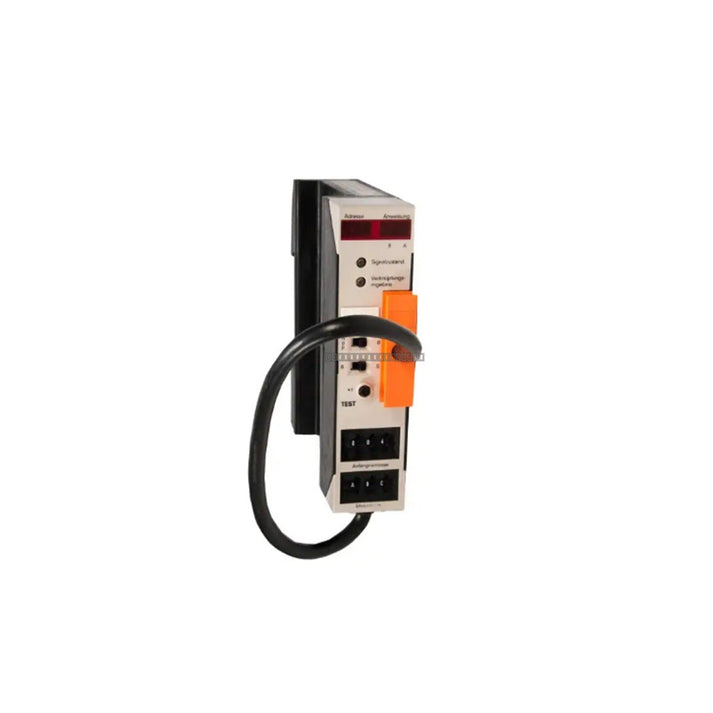

Siemens 6ES5330-7AB11 Simatic S5 Diagnostics Module

Siemens 6ES5330-7AB11 Simatic S5 Diagnostics Module

Description

The Siemens 6ES5 330-7AB11 is a hardware-based diagnostic test module designed for the legacy Simatic S5-110 series programmable logic controller systems. This unit provides real-time visual status monitoring of rack...

19 people are viewing this right now

Availability: Low stock: 3 left

SKU: 6ES5330-7AB11
Vendor: Siemens
Category: Diagnostics Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5 330-7AB11 is a hardware-based diagnostic test module designed for the legacy Simatic S5-110 series programmable logic controller systems. This unit provides real-time visual status monitoring of rack internal buses, signal conditioning lines, and central processing unit states. By capturing logic transitions and fault conditions directly from the backplane, it enables field technicians to isolate timing anomalies, power fluctuations, and communication breaks efficiently.

Features

  • Direct backplane monitoring for Simatic S5-110 series racks.
  • Integrated multi-segment LED indicators for immediate visual fault mapping.
  • Passive data listening architecture prevents capacitive loading on system buses.
  • High-speed optocoupler isolation protects internal diagnostic circuits from electrical surges.
  • Plug-and-play operation; requires no software configuration or specialized drivers.
  • Ruggedized faceplate design resistant to industrial vibrations.

Applications

This module is typically deployed in legacy industrial environments where continuous operation is critical, such as petrochemical refining, thermal power generation, and deep-shaft mining infrastructure. It is an essential tool for reducing mean time to repair (MTTR) and preventing unnecessary component replacement during system troubleshooting.

Technical Specifications

Model 6ES5 330-7AB11
System Compatibility Simatic S5-110 Series
Display Interface Multi-Segment LED Status Indicators
Power Consumption 1.5 W typical (sourced via backplane)
Operating Temperature 0 to 55 deg C
Storage Temperature -40 to 70 deg C
Relative Humidity 95 percent non-condensing

Installation Guidelines

  • Ensure the PLC rack power is disconnected before inserting or removing the module.
  • Verify the module is correctly seated in the designated S5 chassis slot to ensure proper backplane contact.
  • Handle the module using standard ESD (Electrostatic Discharge) precautions to protect internal circuitry.
  • Ensure the installation environment remains within the specified temperature and humidity ranges to prevent premature component failure.
  • Keep the module clear of high-EMI (Electromagnetic Interference) sources to ensure accurate LED status reporting.

FAQ

Does this module require software configuration?

No, the 6ES5 330-7AB11 operates as a passive listener and does not require software setup, programming, or diagnostic drivers.

Is this module compatible with other S5 series racks?

This module is specifically engineered for the Simatic S5-110 series bus architecture. Please verify your specific rack model before installation.

How is the module powered?

The module draws its operating power directly from the S5 backplane, requiring no external power supply wiring.
