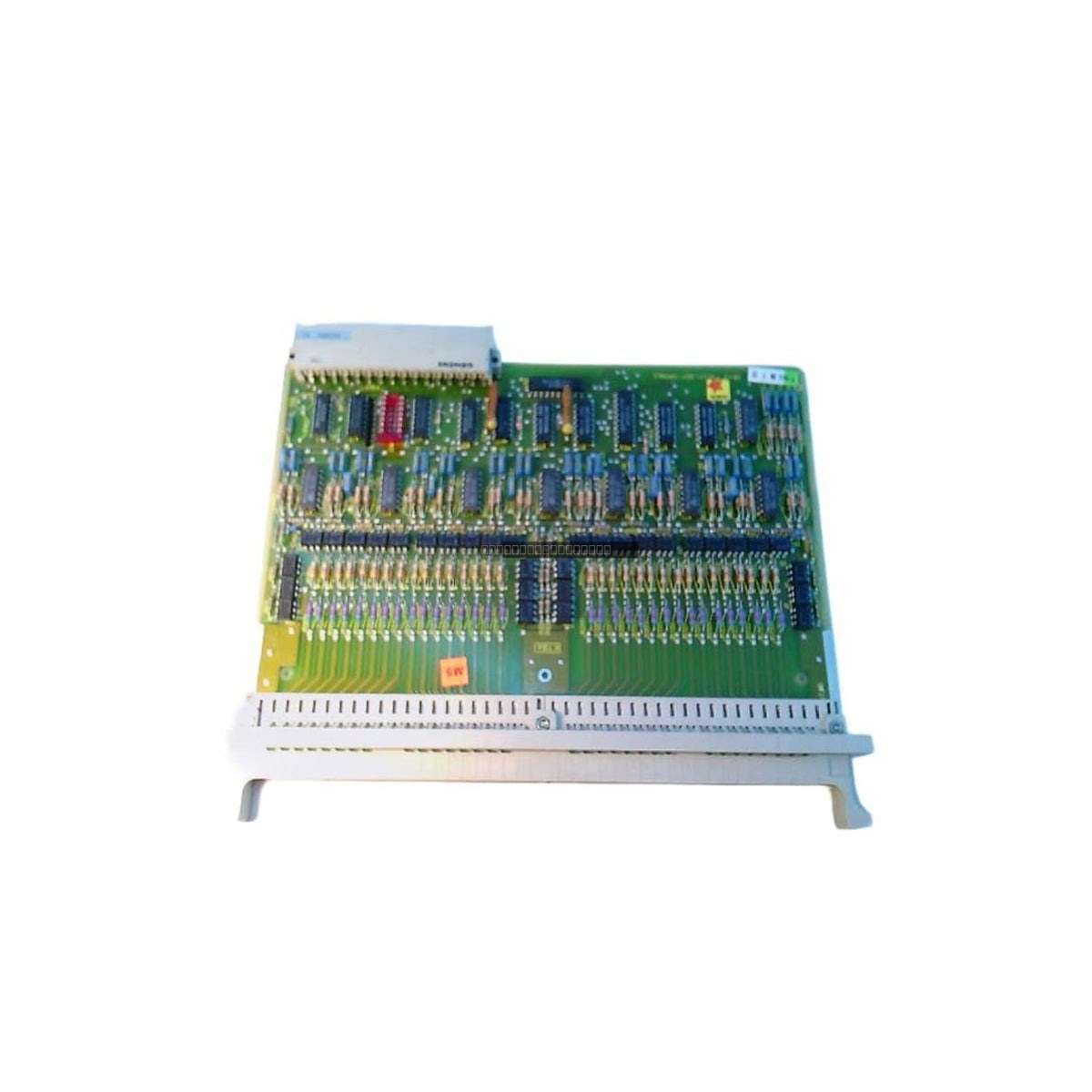

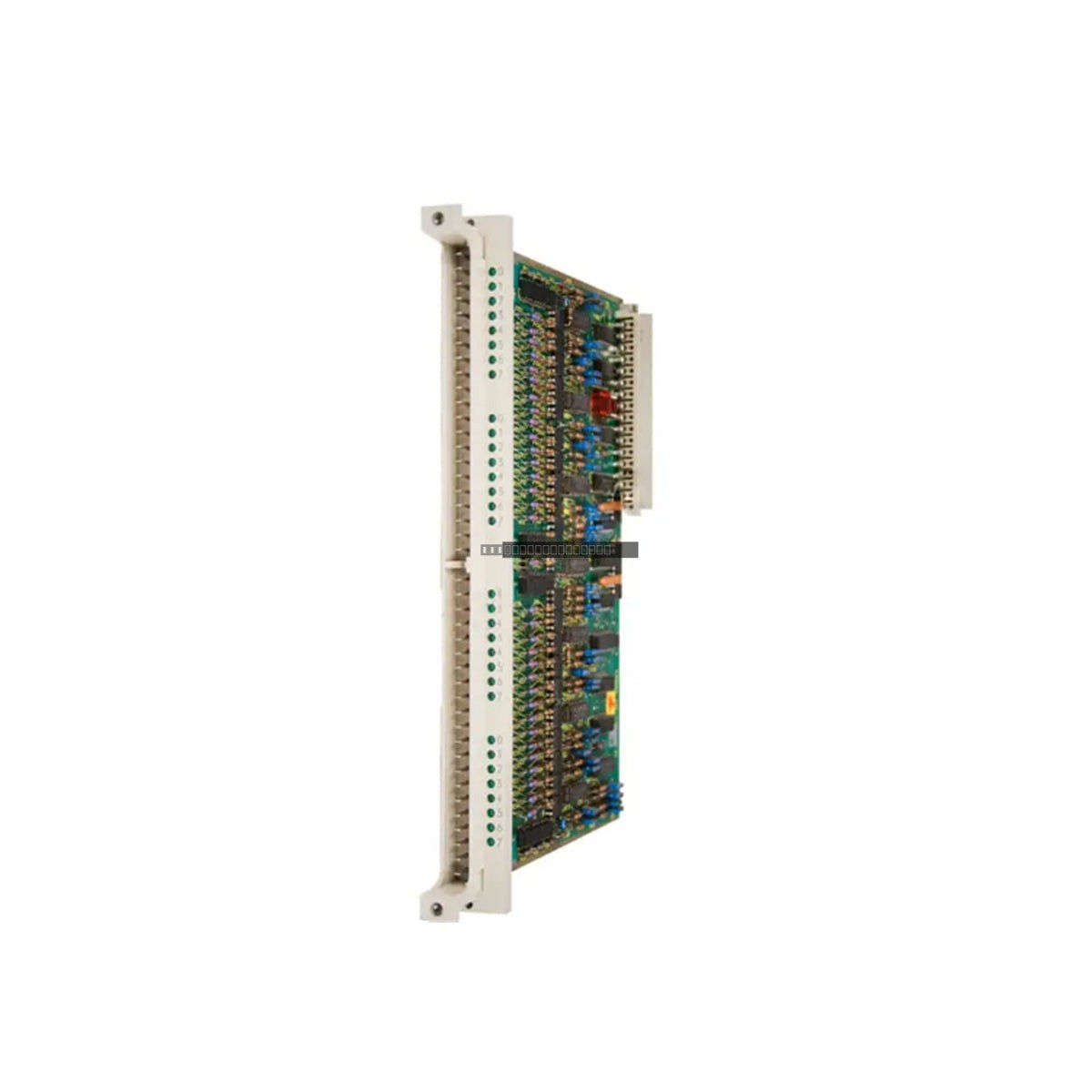

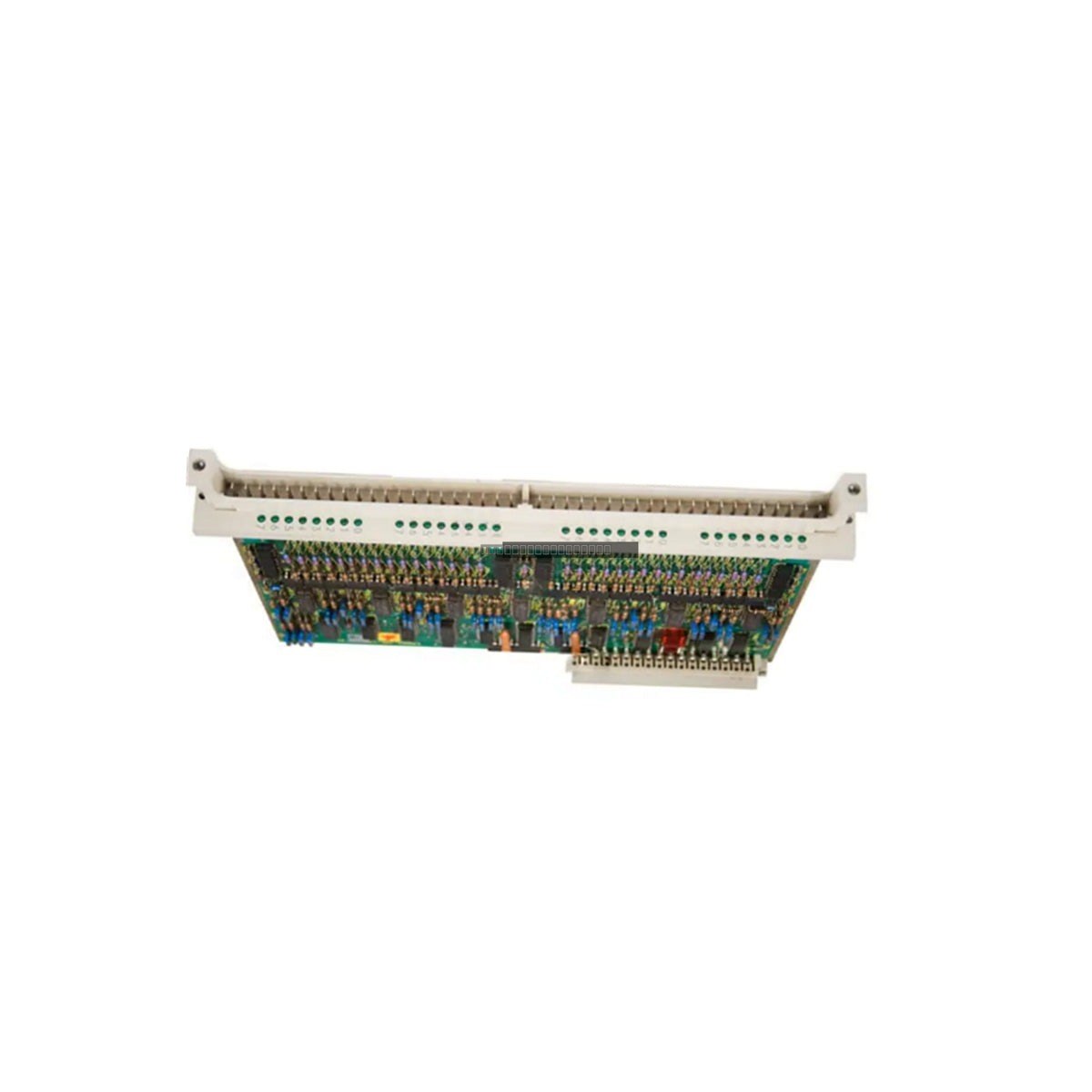

The Siemens 6ES5430-3BA11 is a high-density digital input module designed for integration within the Simatic S5-130 and S5-150 automation systems. This module provides 32 isolated input channels, facilitating the reliable acquisition of binary signals from field devices such as sensors, limit switches, and relays. It is engineered to maintain system integrity in demanding industrial environments by providing robust galvanic isolation and signal filtering, ensuring that field-side electrical transients do not impact the central processing unit.

Features

• 32 discrete digital input channels for high-density signal monitoring.
• Nominal input voltage of 24 VDC, compatible with standard industrial control signals.
• Integrated optocoupler isolation to protect internal backplane electronics from ground loops and voltage spikes.
• Front-panel LED indicators for real-time channel status monitoring and simplified diagnostics.
• Compact design for direct mounting into standard Simatic S5 expansion subracks.
• Optimized for high-EMI environments, featuring effective signal debounce filtering.

Applications

This module is suitable for a wide range of industrial automation tasks, including:

• Continuous manufacturing and production line monitoring.
• Metal processing and heavy machinery control.
• Chemical and refining process automation.
• Mining operations requiring reliable field feedback collection.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before installing or removing the module from the S5 rack.
• Verify that the module is correctly seated in the backplane connector to ensure proper bus communication.
• Use shielded cabling for field inputs to minimize electromagnetic interference (EMI) in high-noise environments.
• Maintain proper ventilation within the control cabinet to ensure the module operates within its specified temperature range.
• Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.

FAQ

What is the primary function of the 6ES5430-3BA11?

This module acts as a digital input interface for the Siemens Simatic S5-130/150 series, converting 32 external 24 VDC signals into logic-level data for the PLC processor.

Does this module require external power for the inputs?

Yes, the module is designed for 24 VDC field input signals. Please ensure your field power supply is correctly wired to the terminal blocks according to the system documentation.

How are the channels isolated?

The module utilizes internal optocouplers to provide galvanic isolation between the field-side wiring and the internal backplane bus, protecting the CPU from electrical faults.
