Description

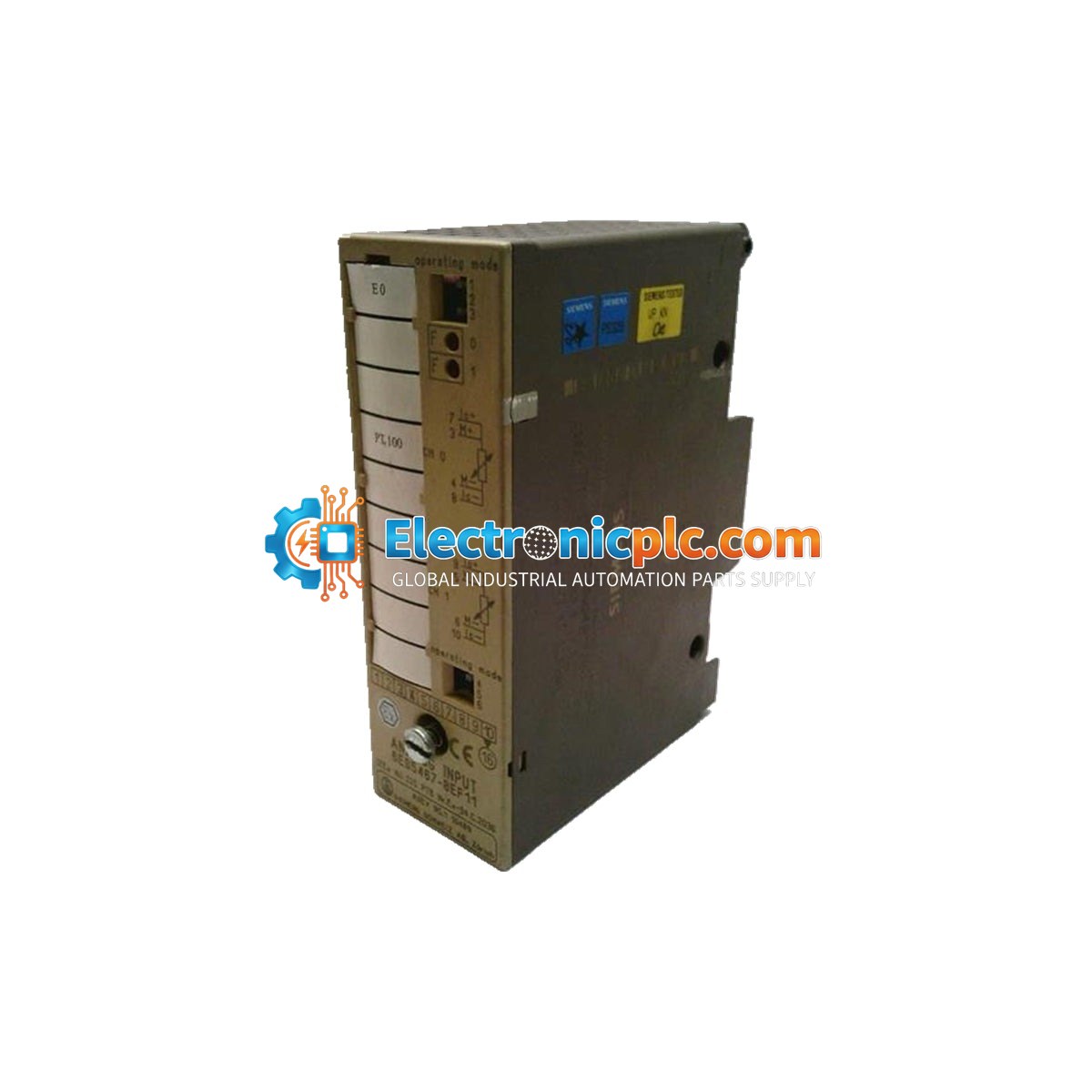

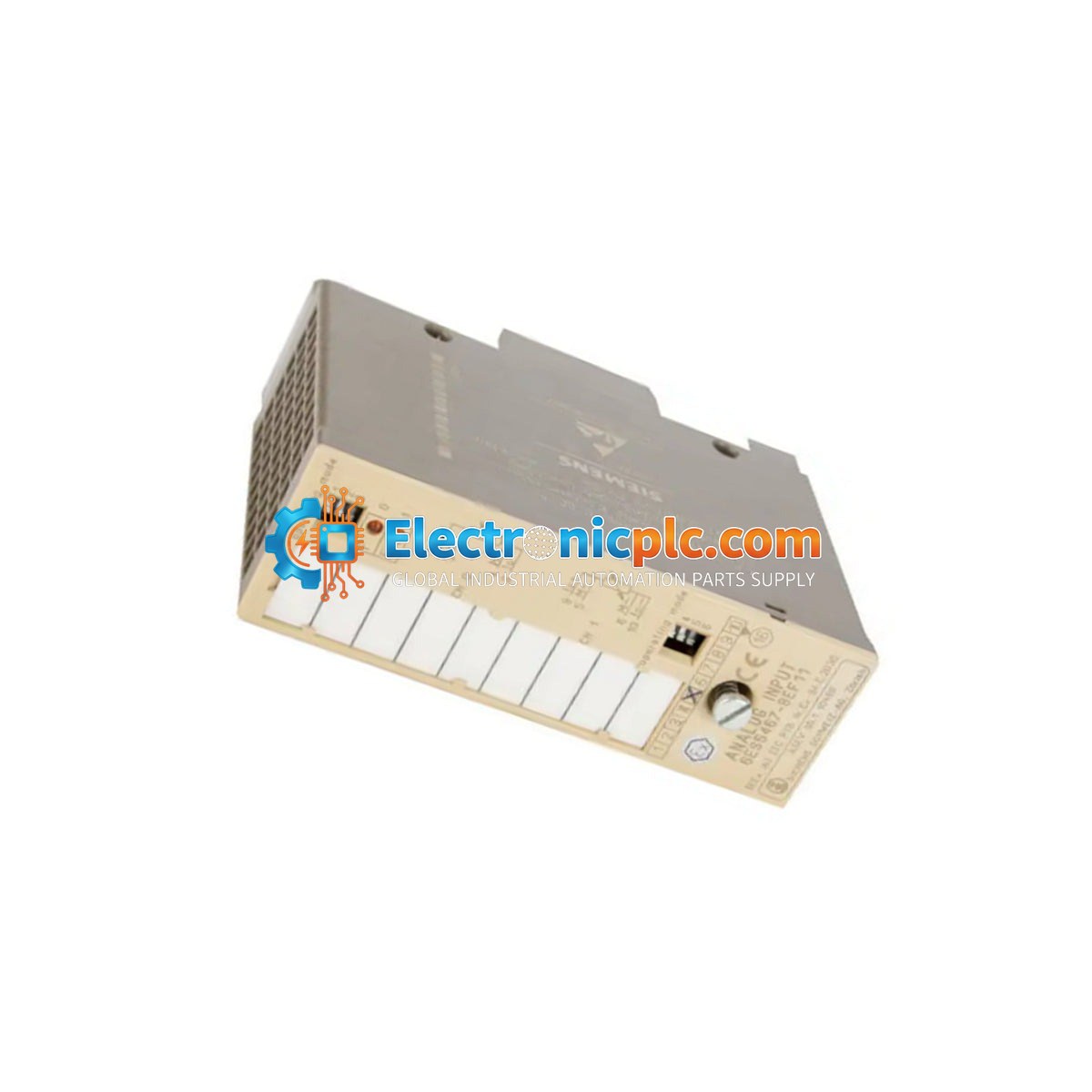

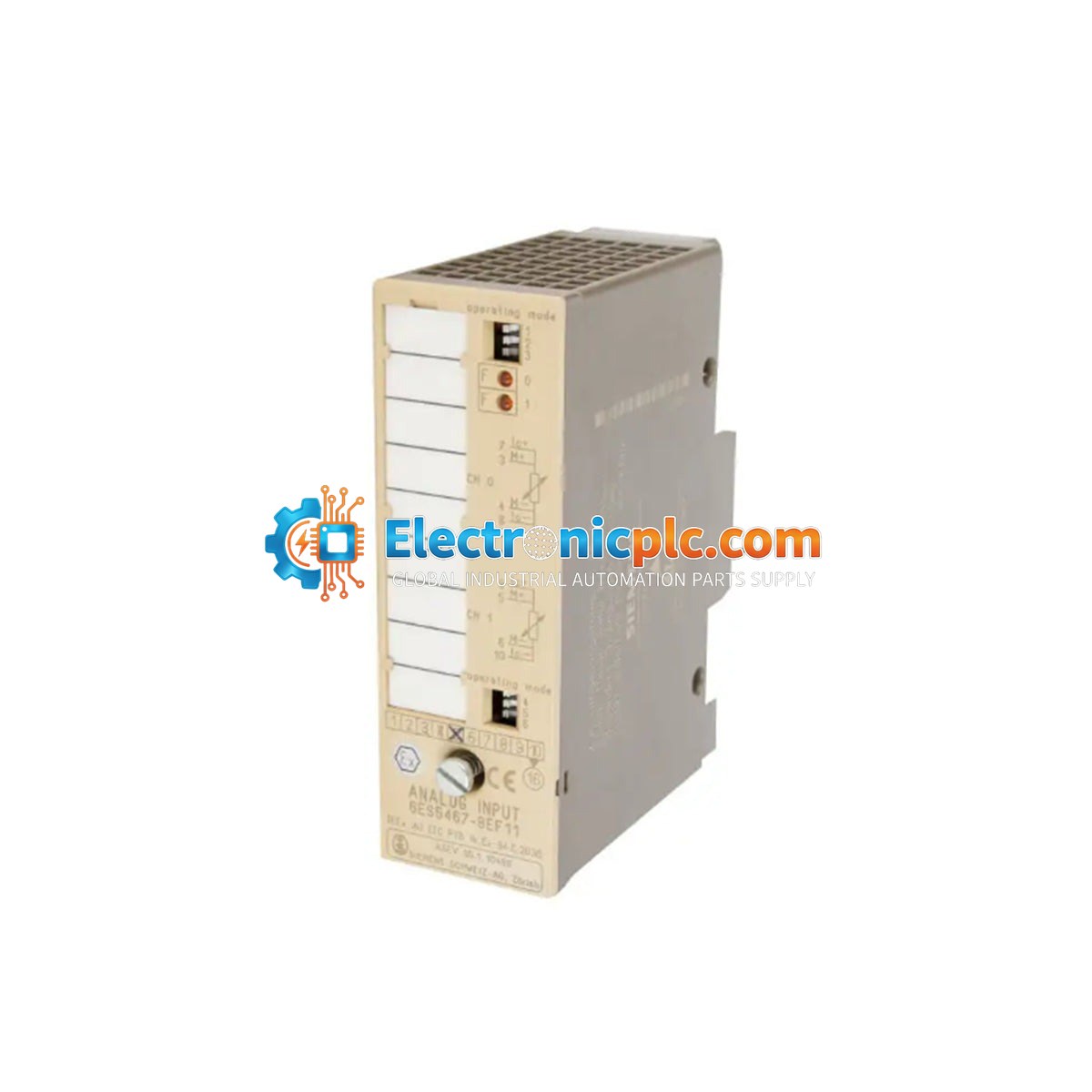

The Siemens Simatic S5 6ES5467-8EF11 is a high-precision analog input module engineered for the Simatic S5-100U programmable logic controller (PLC) system. This module serves as the critical interface between field instrumentation and the controller, converting real-world analog signals into digital values for processing. It is designed for demanding industrial applications, including petrochemical refining, power generation, and mining, where accurate, low-latency data acquisition is essential for maintaining closed-loop process control and minimizing downtime.

Features

• Dual-Channel Input: Features 2 isolated analog inputs compatible with standard industrial voltage and current signals.
• Signal Conditioning: Integrated filtering to reject 50/60 Hz line frequency noise and high-frequency ripples, ensuring signal integrity in high-EMI environments.
• High-Resolution Conversion: Internal high-resolution A/D converters provide precise digital representations of process variables such as temperature, pressure, flow, and level.
• Bus Integration: Direct interface with S5-100U bus units for efficient data transfer to the CPU image table.
• Compact Design: Optimized for standard DIN rail mounting, allowing for space-saving deployment in control cabinets.

Applications

This module is widely utilized in S5-100U automation systems for monitoring critical process parameters. Typical applications include:

• Process variable monitoring in chemical and petrochemical plants.
• Data acquisition for flow, pressure, and level sensors in water and wastewater management.
• Temperature monitoring and control in industrial heating and cooling systems.
• General-purpose analog signal processing in legacy automation infrastructure.

Technical Specifications

Installation Guidelines

• Power Off: Always disconnect power from the S5-100U rack before inserting or removing the module to prevent electrical damage or bus errors.
• Mounting: Ensure the module is securely seated on the DIN rail and properly aligned with the backplane bus connector.
• Grounding: Follow standard industrial grounding practices for the S5-100U chassis to mitigate electromagnetic interference.
• Wiring: Use shielded twisted-pair cabling for analog signals to minimize noise pickup. Route signal cables away from high-voltage power lines.
• ESD Handling: Observe electrostatic discharge (ESD) precautions when handling the module to protect internal electronic components.

FAQ

What is the primary function of the 6ES5467-8EF11?

This module converts analog signals from field sensors into digital data that the Siemens S5-100U PLC can use for monitoring and control logic.

Is this module compatible with other S5 series?

The 6ES5467-8EF11 is specifically designed for the Simatic S5-100U system. Compatibility with other S5 series should be verified against the specific backplane and CPU requirements.

How should I route the analog signal cables?

To ensure measurement accuracy, route analog input cables separately from power cables and high-current switching lines to prevent induced noise.
