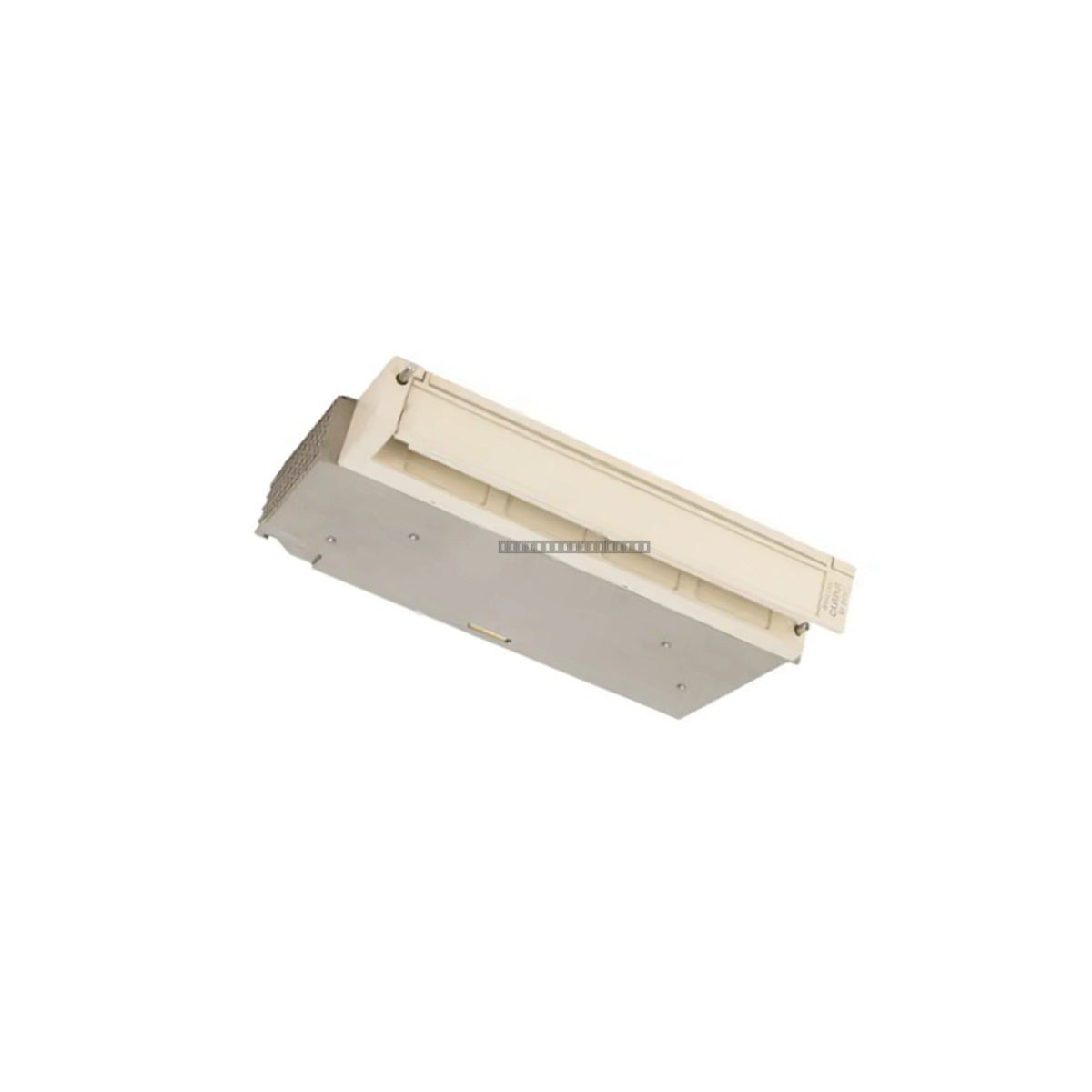

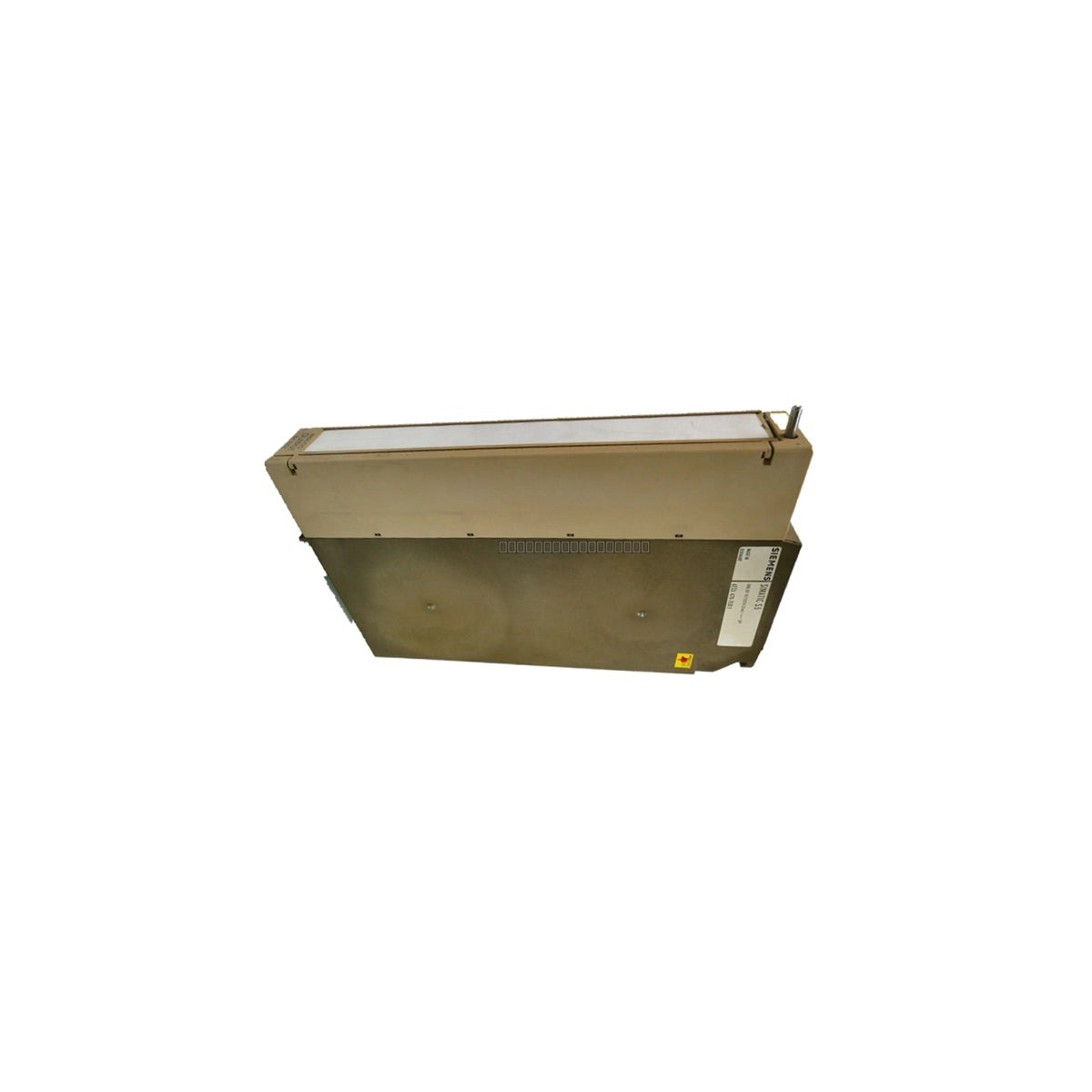

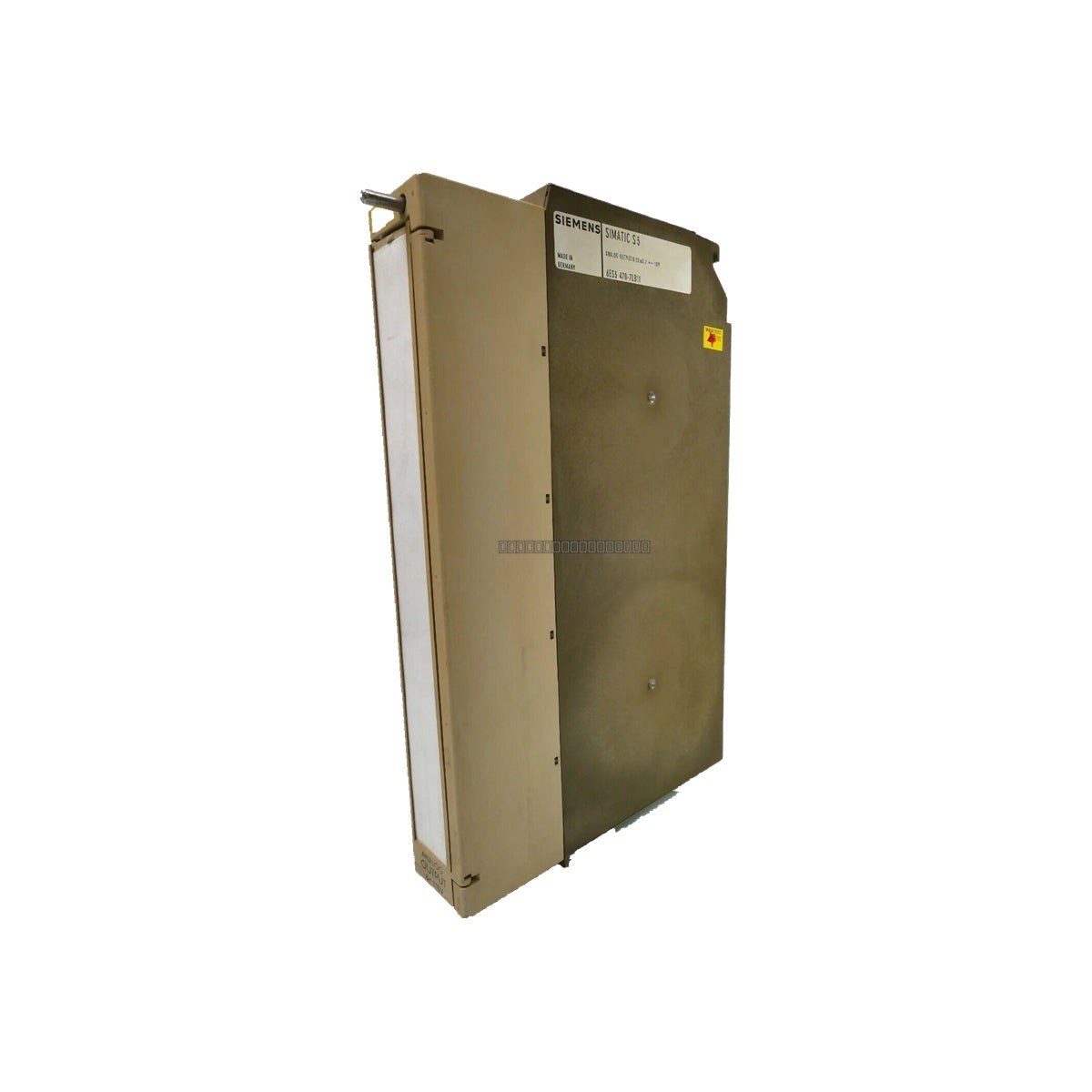

The Siemens 6ES5470-7LB11 is an 8-channel analog output module engineered for the Simatic S5-115 automation system. This module provides reliable conversion of digital controller signals into precise analog voltage or current outputs, facilitating the control of industrial actuators, variable speed drives, and instrumentation. It is designed for high-availability environments, including power generation, water treatment, and petrochemical processing, where signal integrity and system isolation are critical.

Features

• 8 independent analog output channels for flexible control configurations.
• High-resolution 12-bit digital-to-analog conversion for accurate process regulation.
• Galvanic isolation between internal logic and field instrumentation to enhance system stability.
• Integrated hardware filtering to mitigate common-mode noise and EMI.
• Built-in short-circuit protection for each output channel.
• Diagnostic circuitry for real-time health monitoring and fault detection.

Applications

This module is primarily utilized in S5-115 rack-based configurations to interface with field devices requiring linear control signals. Common applications include modulating control valves, positioning actuators, and driving industrial recorders or telemetry equipment.

Technical Specifications

Installation Guidelines

• Ensure the S5-115 rack is powered down before inserting or removing the module to prevent electrical damage.
• Verify that the module is securely seated in the designated backplane slot and that the front connector is properly locked.
• Use shielded twisted-pair cabling for all analog signal runs to minimize external interference.
• Ensure proper grounding of the cable shields at the control cabinet entry point.
• Maintain adequate ventilation within the cabinet to keep ambient temperatures within the specified 0-60 deg C operating range.
• Check jumper settings and terminal wiring configurations to match the desired voltage or current output range before applying power.

FAQ

Is this module compatible with other S5 series racks?

The 6ES5470-7LB11 is specifically designed for the Simatic S5-115 series. Compatibility with other S5 series (such as S5-135 or S5-155) depends on the specific backplane and CPU support; please consult your system hardware manual.

Does this module require external power?

Yes, the module requires a 24 VDC supply for internal operation and signal generation, as specified in the technical parameters.

What should I do if a channel reports a fault?

Verify that the field wiring is not shorted or open-circuited. Check the diagnostic status via the S5 programming software to determine if the fault is internal to the module or caused by an external loop error.
