Description

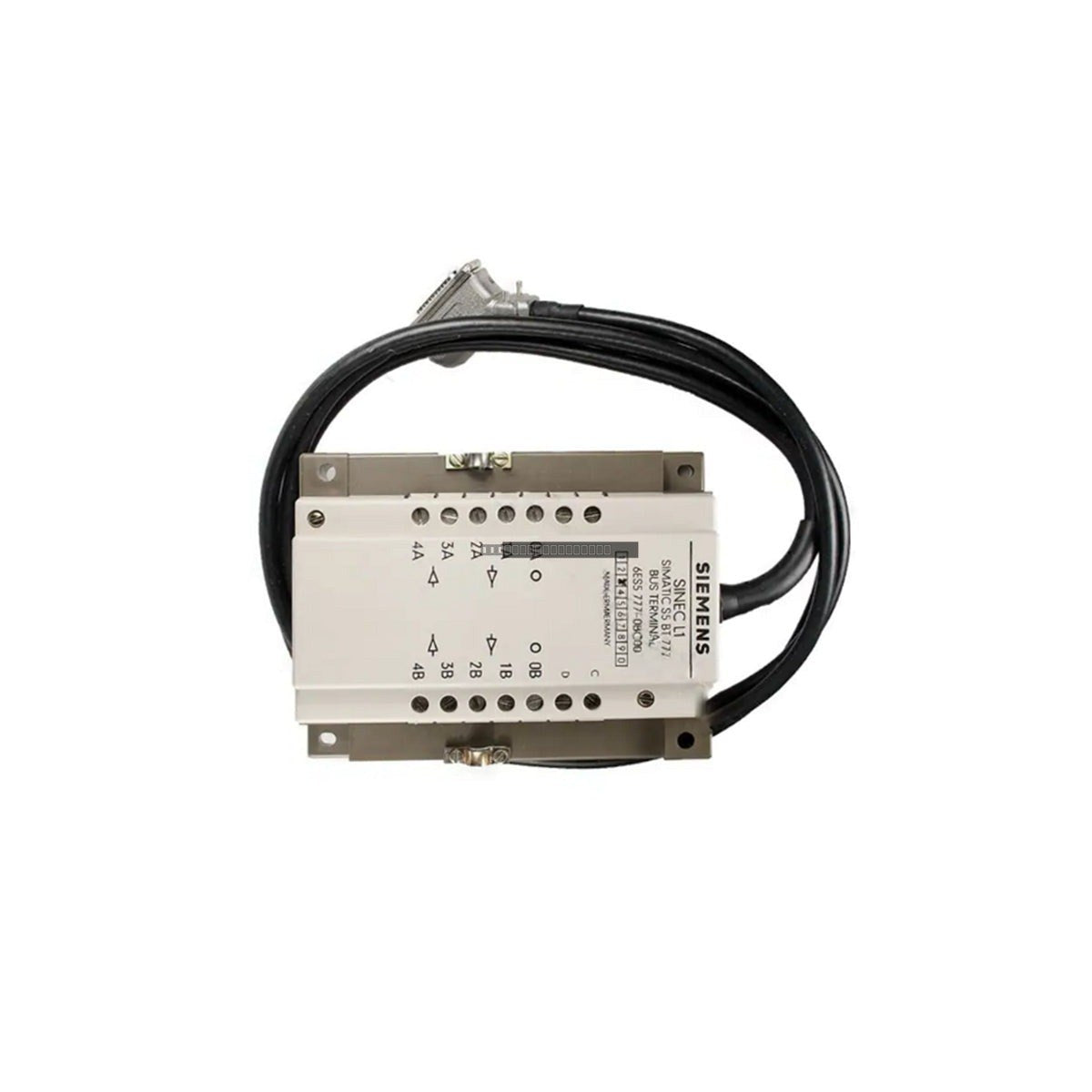

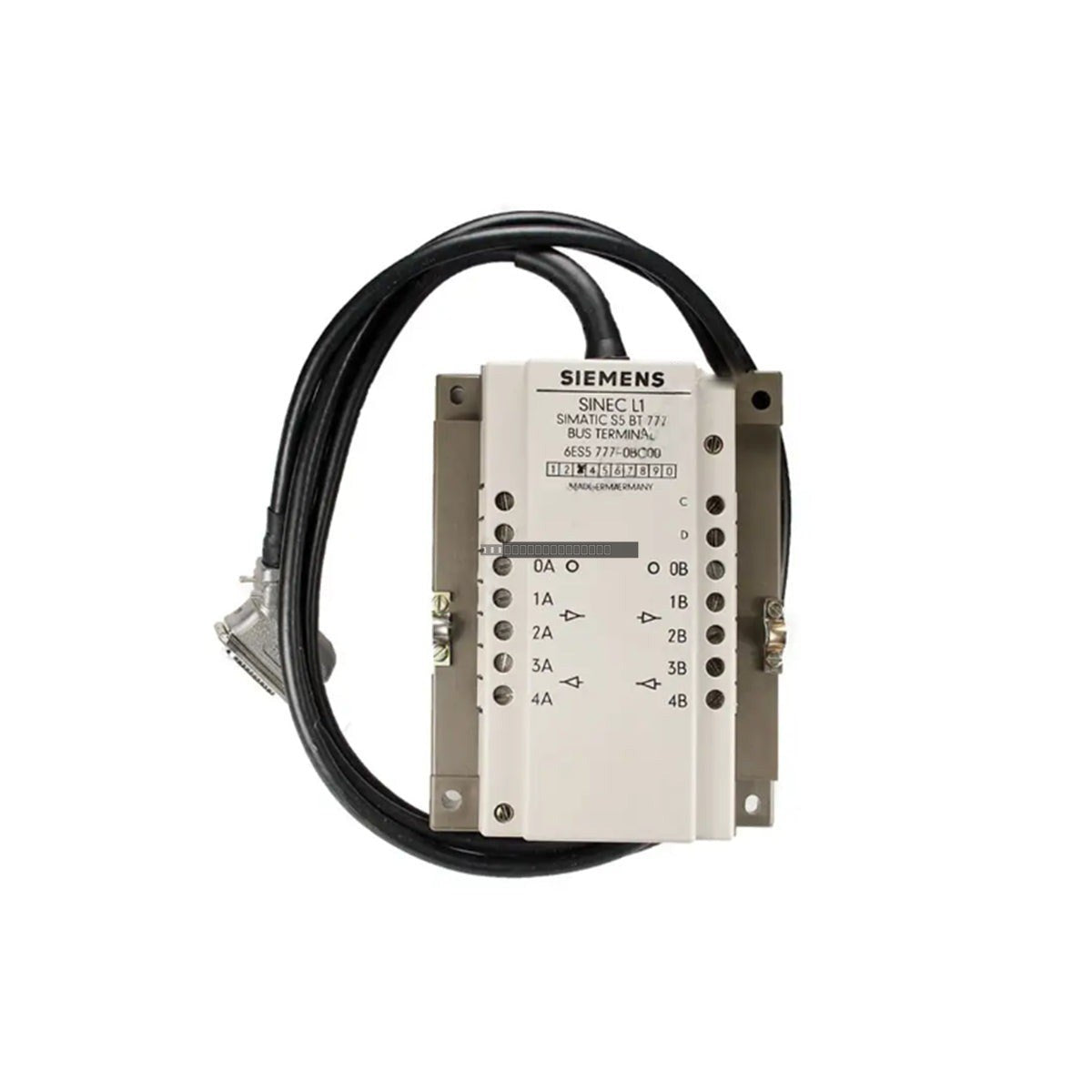

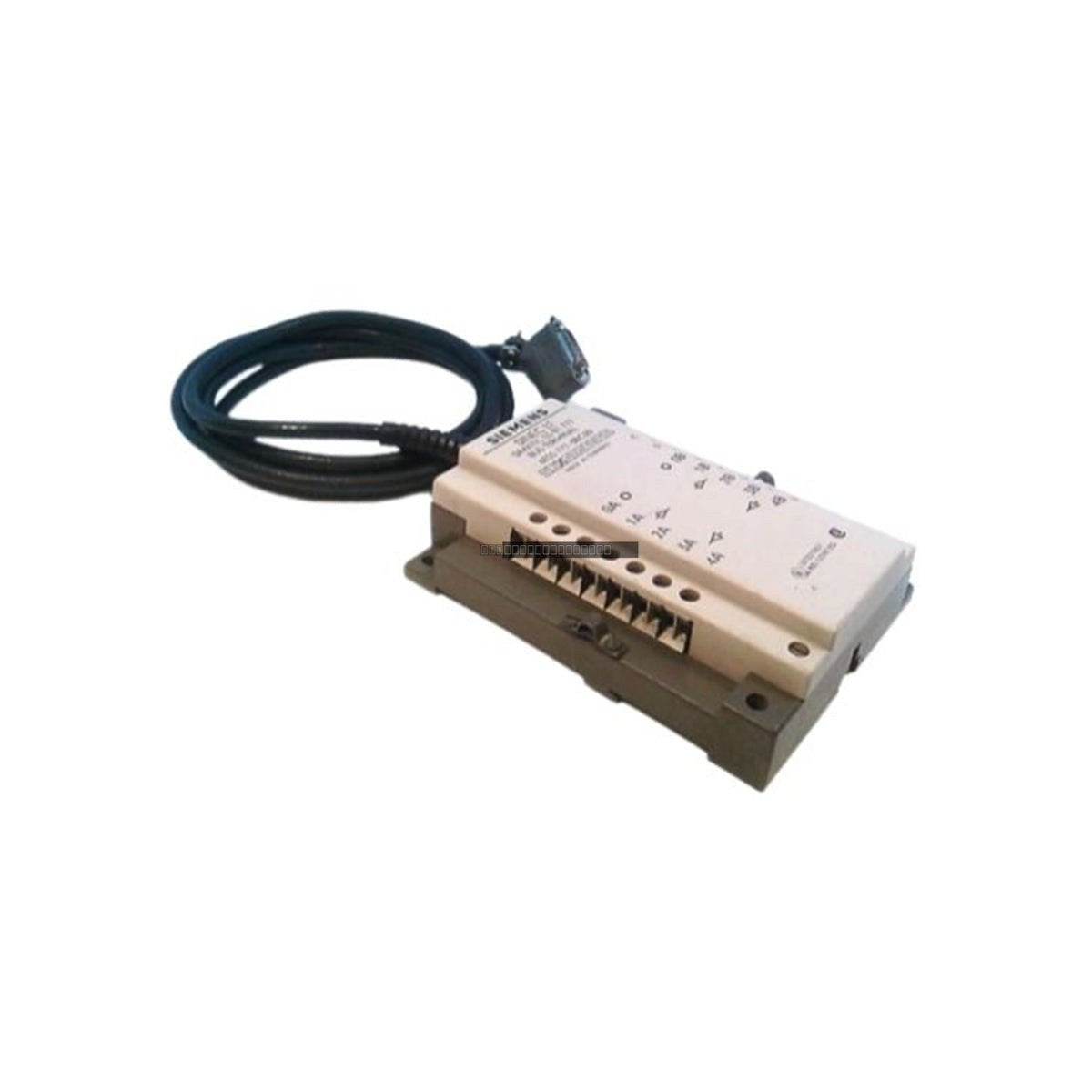

The Siemens 6ES5777-0BC00 is a dedicated bus terminal module designed for the Simatic S5 automation system. This module acts as a robust network node within the SINEC L1 communication framework, enabling reliable data exchange across extended distances. It is specifically engineered to support network segments reaching up to 2.5 km, making it suitable for large-scale industrial applications where decentralized automation stations require consistent, deterministic communication. The unit is built to maintain signal integrity in environments prone to electromagnetic interference, ensuring stable process control and minimizing network-related downtime.

Features

• Supports SINEC L1 protocol for deterministic master-slave communication.
• Extended range capability up to 2.5 km for expansive plant layouts.
• Integrated 2-meter interface cable for simplified connection to S5 sub-racks.
• Built-in isolation circuitry to protect backplane electronics from surges and electrical noise.
• Ruggedized housing designed for high mechanical stability and vibration resistance.
• Optimized thermal management for reliable operation in demanding industrial conditions.

Applications

This bus terminal module is primarily utilized in large-scale industrial facilities requiring long-distance fieldbus connectivity. Common deployment scenarios include power generation plants, water treatment facilities, and mining operations where automation controllers must communicate reliably across wide geographic areas.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before installing or removing the module.
• Mount the unit securely to the designated rack position to ensure proper grounding and mechanical stability.
• Route the integrated 2-meter cable away from high-voltage power lines and heavy machinery to prevent EMI coupling.
• Verify that the SINEC L1 bus termination is correctly configured at the end of the network segment.
• Maintain adequate clearance around the module housing to allow for proper heat dissipation during operation.

FAQ

What is the primary function of the 6ES5777-0BC00?

This module serves as a bus terminal for the SINEC L1 network, allowing for long-distance, noise-immune communication between Simatic S5 automation components.

Can this module be used in high-vibration environments?

Yes, the module is constructed with a rigid housing designed to withstand standard industrial vibrations while maintaining secure signal connections.

What is the maximum cable length supported by this module?

The module supports network topologies up to 2.5 km in total length, with an integrated 2-meter cable provided for local rack connectivity.
