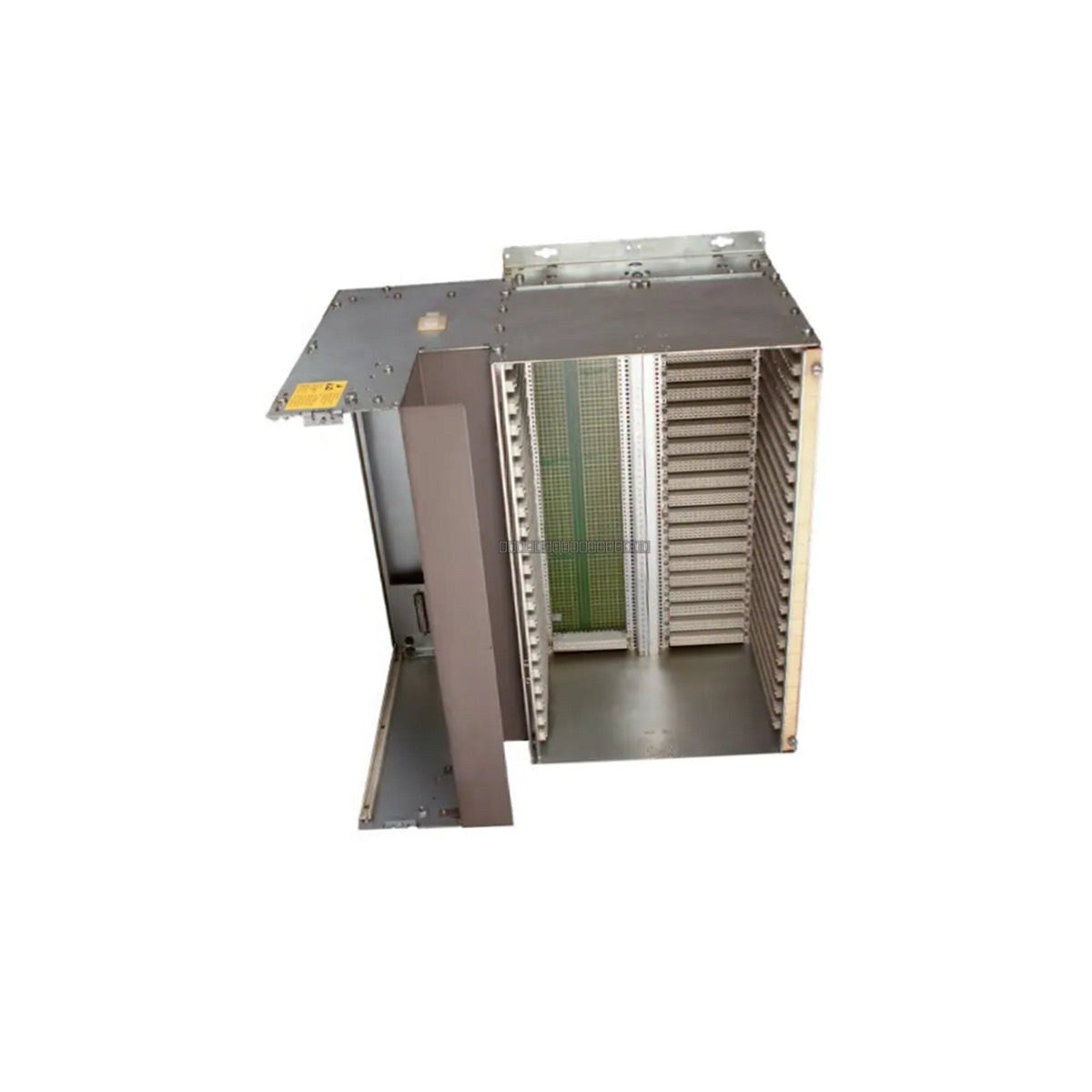

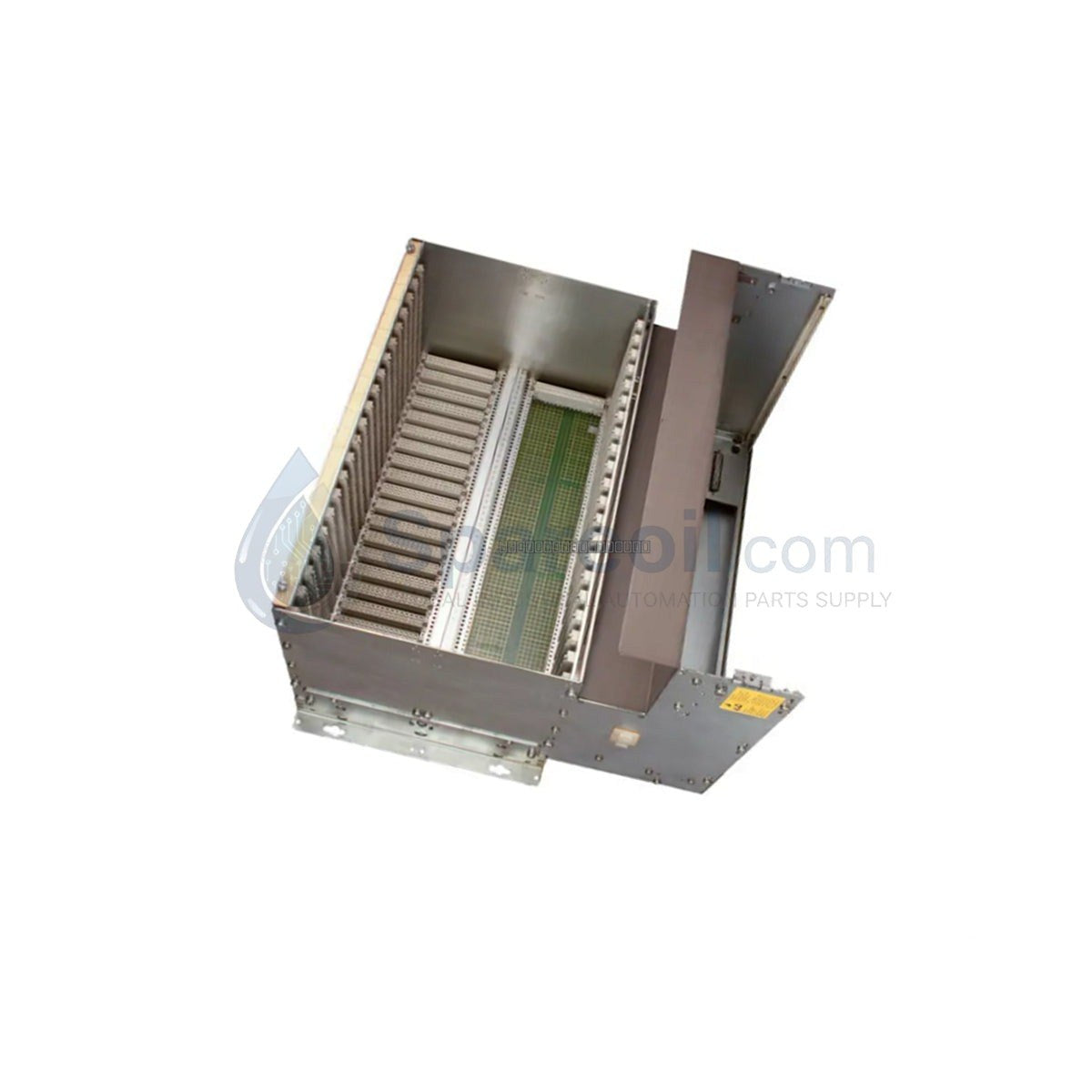

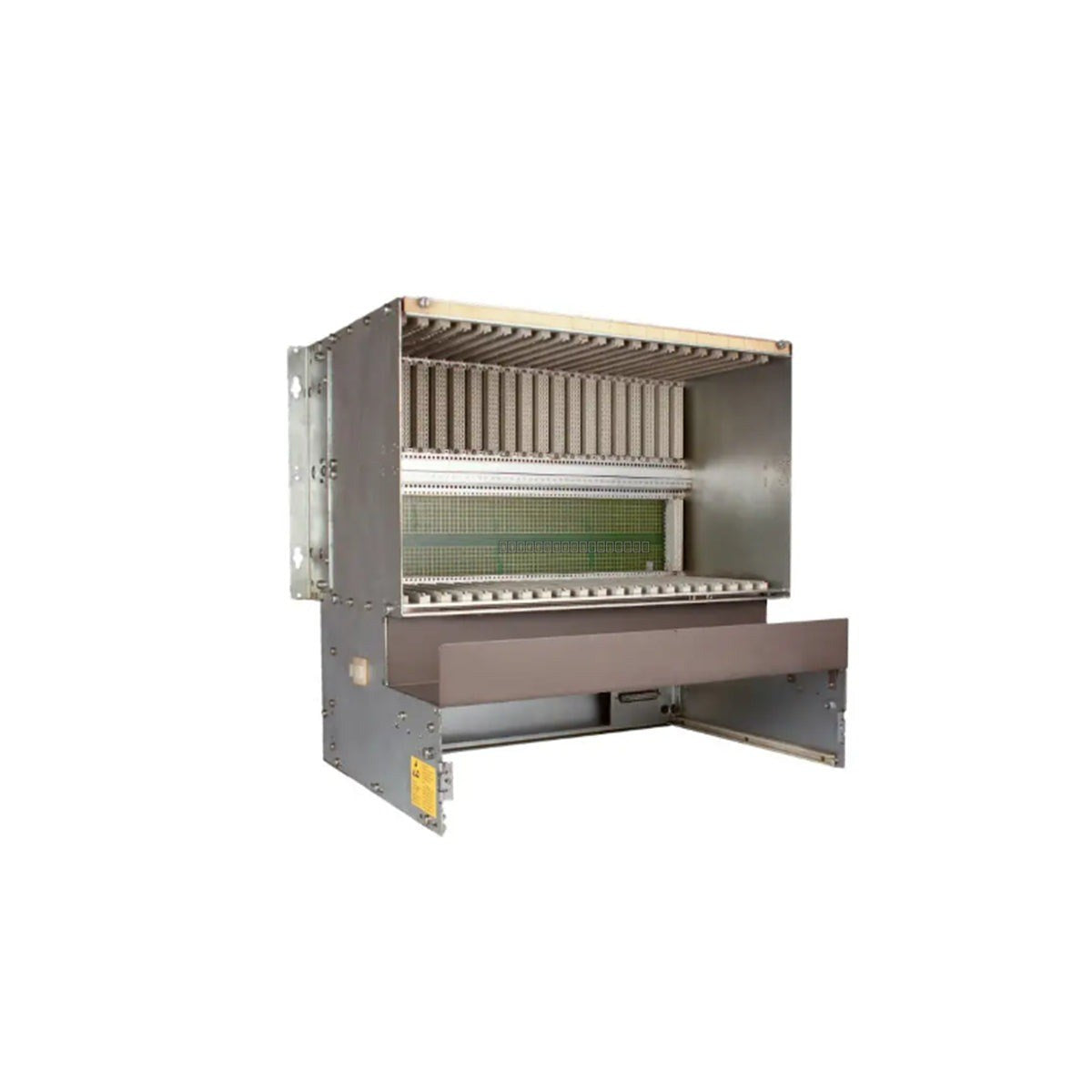

Siemens 6ES5183-3UA11 SIMATIC S5 Expansion Unit

Siemens 6ES5183-3UA11 SIMATIC S5 Expansion Unit

Description

The Siemens SIMATIC S5 6ES5183-3UA11 is a robust, high-density hardware expansion subrack designed for large-scale industrial automation architectures. This 21-slot modular chassis provides the necessary mechanical framework and backplane communication...

20 people are viewing this right now

Availability: Low stock: 8 left

SKU: 6FM1496-4KB00
Vendor: Siemens
Category: PLC Expansion Unit
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens SIMATIC S5 6ES5183-3UA11 is a robust, high-density hardware expansion subrack designed for large-scale industrial automation architectures. This 21-slot modular chassis provides the necessary mechanical framework and backplane communication bus to scale input, output, and intelligent peripheral modules. Engineered for reliability in demanding environments, this expansion frame facilitates deterministic data exchange across expansive automation networks, helping to minimize diagnostic overhead and system downtime.

Features

  • 21-slot modular configuration for high-density I/O expansion.
  • Rugged chassis design built to withstand continuous physical and electrical stress.
  • Optimized backplane topology for low-latency signal routing and communication.
  • Designed for integration into complex S5 control systems.
  • Passive backplane design requiring external power distribution.

Applications

This expansion unit is suitable for heavy industrial applications, including chemical processing plants, rolling mills, and municipal wastewater treatment facilities where reliable, scalable I/O capacity is required.

Technical Specifications

Model 6ES5183-3UA11
Brand Siemens SIMATIC S5
Product Type PLC Expansion Unit / Rack
Slot Configuration 21 Slots
Power Supply None (Requires external supply)
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 70 deg C
Relative Humidity 95% non-condensing

Installation Guidelines

  • Ensure the rack is mounted in a clean, dry environment with adequate ventilation to prevent overheating.
  • Always power down the system before inserting or removing any modules from the backplane to prevent electrical damage.
  • Ensure the chassis is properly grounded to the cabinet frame to mitigate electromagnetic interference (EMI).
  • Verify that the external power supply rails are correctly wired to the backplane before energizing the system.
  • Handle modules with care to avoid electrostatic discharge (ESD) damage to sensitive backplane pins.

FAQ

Does this unit include a power supply?

No, the 6ES5183-3UA11 is a passive expansion rack and does not include an internal power supply unit. It requires an external power distribution system to energize the backplane and the installed modules.

Is this unit compatible with all SIMATIC S5 modules?

This unit is designed for the SIMATIC S5 system architecture. Please verify the specific module compatibility with your existing S5 processor and backplane requirements before installation.
