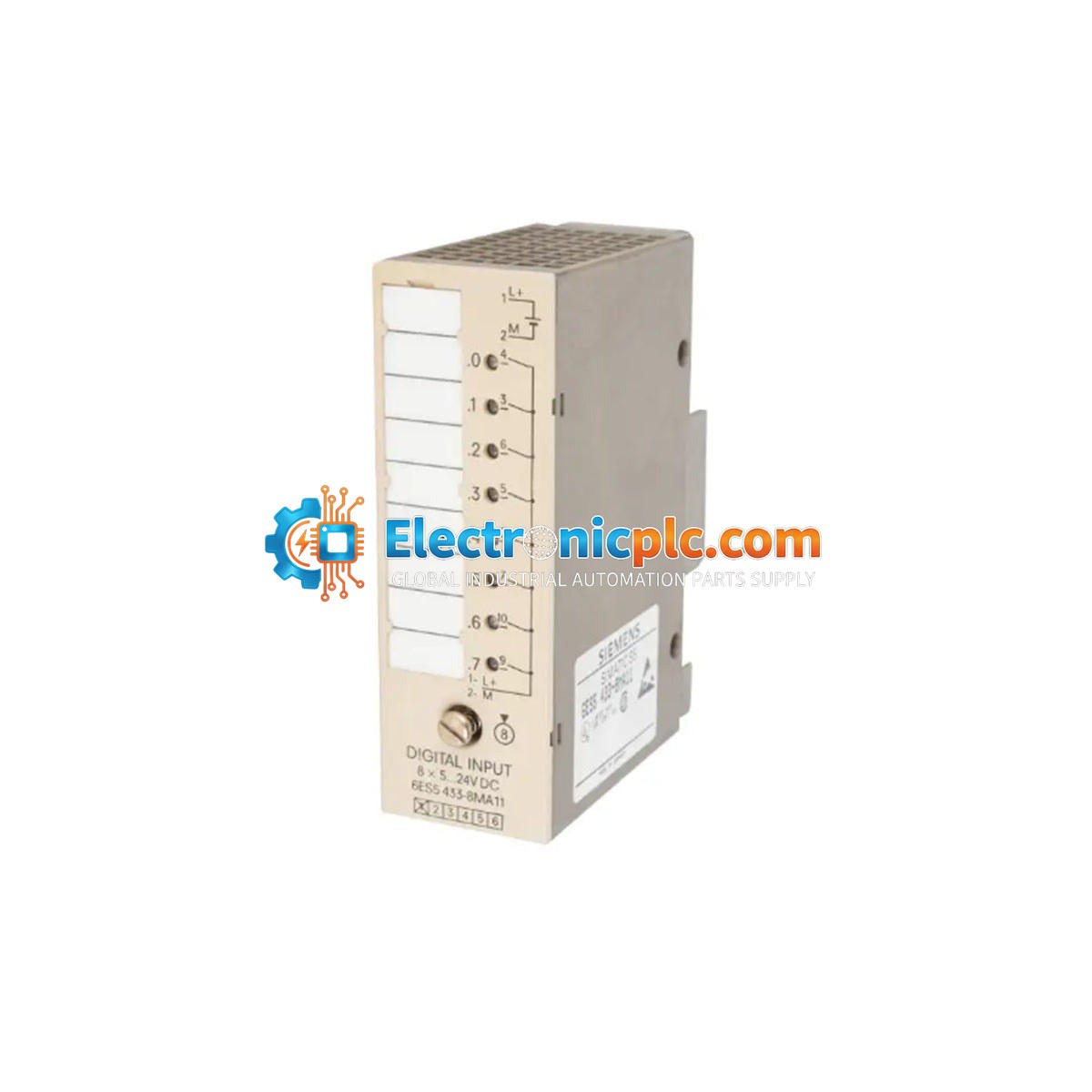

Siemens 6ES5433-8MA11 Digital Input Module Simatic S5

Siemens 6ES5433-8MA11 Digital Input Module Simatic S5

Description

The Siemens 6ES5433-8MA11 is a digital input module designed for the Simatic S5-090, S5-095, and S5-100 series, as well as the ET 100U and ET 200U remote I/O systems. This...

26 people are viewing this right now

Availability: Low stock: 2 left

SKU: 6ES5433-8MA11
Vendor: Siemens
Category: Digital Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5433-8MA11 is a digital input module designed for the Simatic S5-090, S5-095, and S5-100 series, as well as the ET 100U and ET 200U remote I/O systems. This module provides 8 galvanically isolated input channels capable of processing signal levels ranging from 5 VDC to 24 VDC. By providing robust electrical isolation between field instrumentation and the controller backplane, this module protects the CPU from voltage spikes and ground noise, ensuring reliable process data acquisition in industrial environments.

Features

  • 8 galvanically isolated digital input channels.
  • Supports a wide signal voltage range of 5 VDC to 24 VDC.
  • Designed for high noise immunity in environments with inductive loads.
  • Direct interface with S5 bus for deterministic signal processing.
  • Protects internal logic from field-side electrical faults.

Applications

This module is widely utilized in legacy Simatic S5 control systems to maintain high availability. Typical applications include packaging machinery, water treatment facilities, and light assembly lines where consistent real-time monitoring and signal integrity are required.

Technical Specifications

Model 6ES5433-8MA11
Product Family Simatic S5-090/095/100
Input Channels 8 Digital Inputs
Signal Voltage 5 VDC to 24 VDC
Isolation Galvanically isolated
Power Consumption 5 VDC nominal via backplane bus
Operating Temperature 0 to 60 degC

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the module from the rack.
  • Verify that the module is securely seated in the designated S5 or ET 100U/200U slot to ensure proper backplane connection.
  • Use shielded cabling for field inputs to minimize electromagnetic interference (EMI).
  • Maintain proper grounding practices for the control cabinet to ensure the effectiveness of the galvanic isolation.
  • Avoid routing signal cables near high-voltage power lines or high-EMI sources.
  • Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.

FAQ

What systems is the 6ES5433-8MA11 compatible with?

This module is compatible with the Siemens Simatic S5-090, S5-095, and S5-100 series, as well as the ET 100U and ET 200U remote I/O systems.

Does this module require external power for the inputs?

The module is powered via the 5 VDC backplane bus, while the input channels accept field signals ranging from 5 VDC to 24 VDC.
