Description

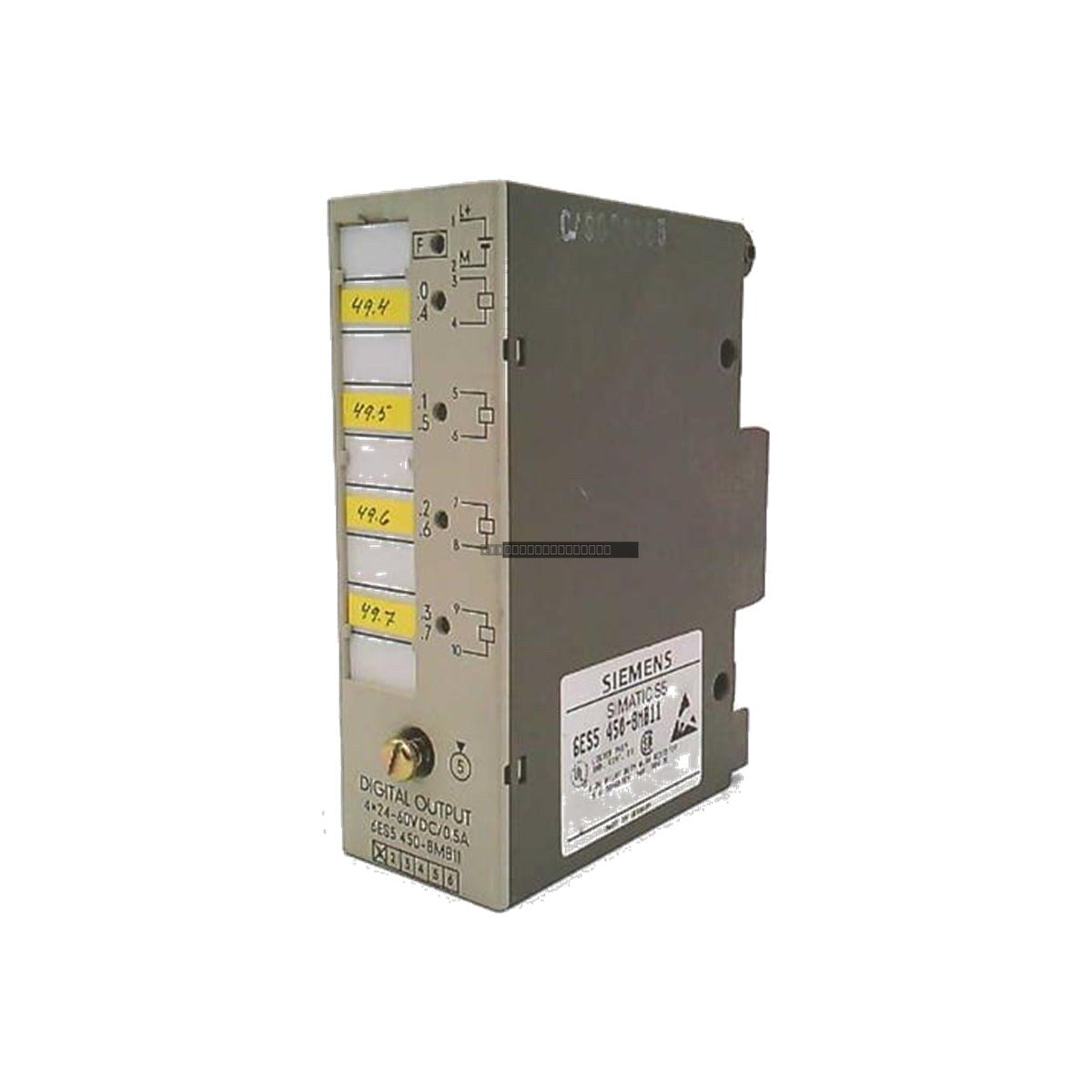

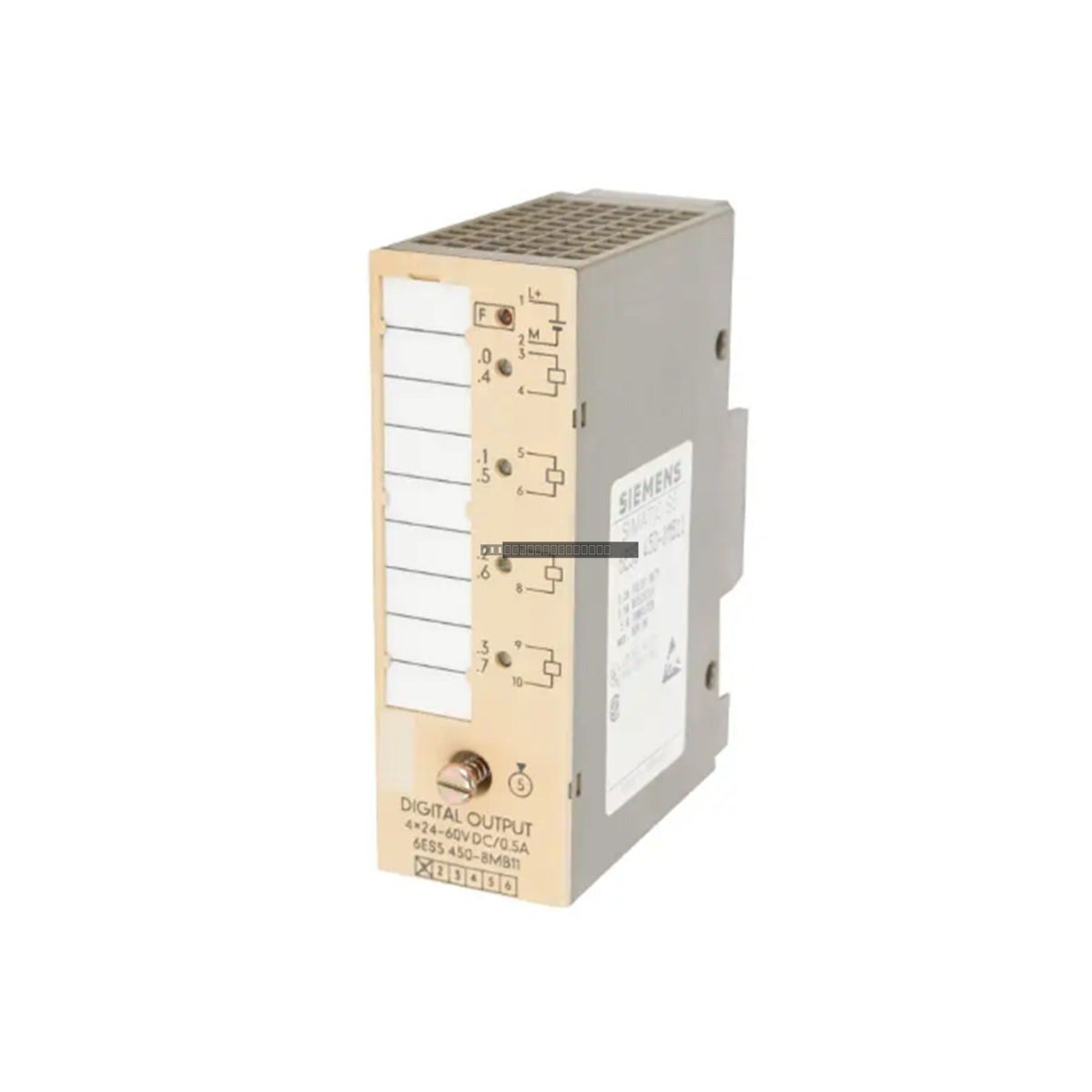

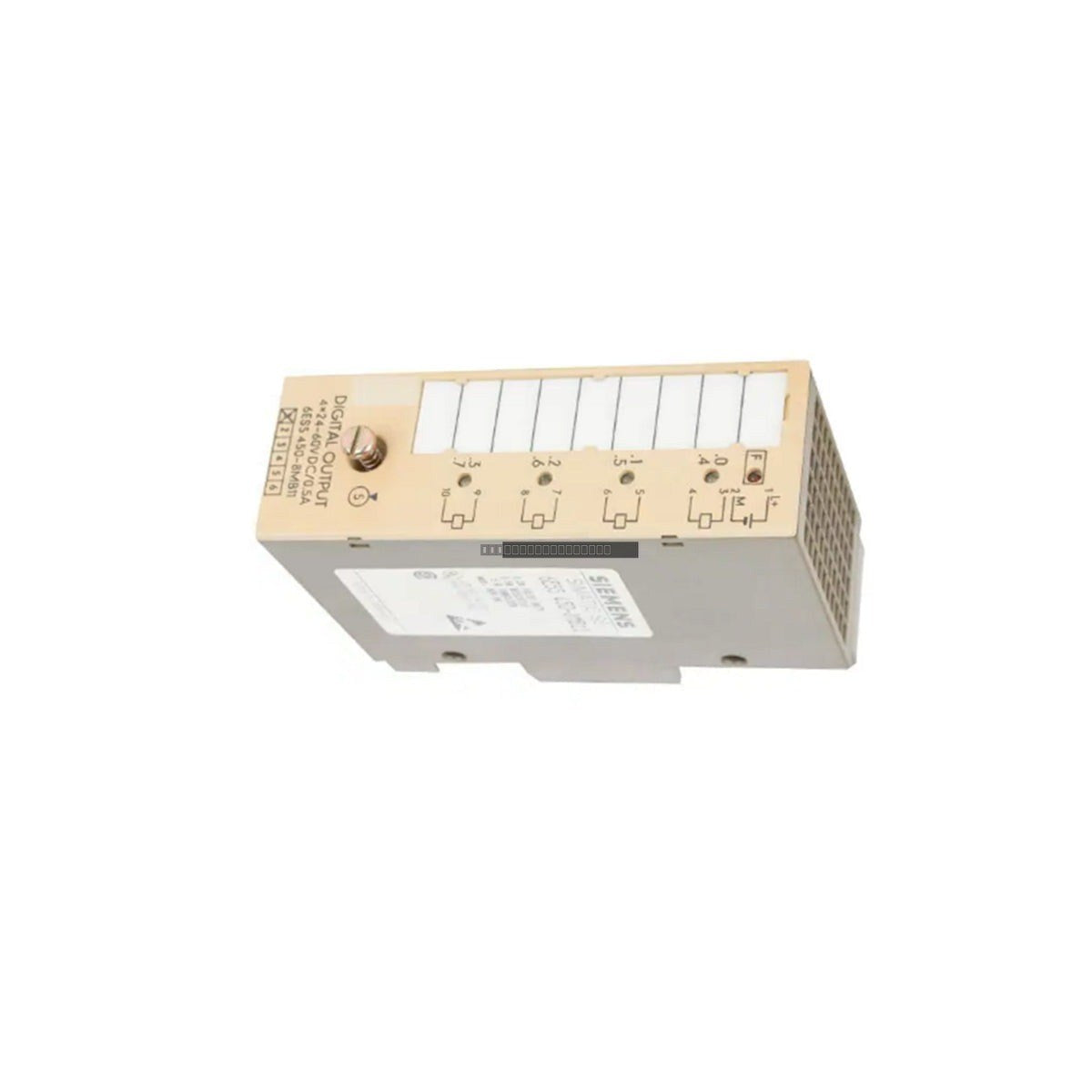

The Siemens 6ES5450-8MB11 is a specialized digital output module engineered for integration with the SIMATIC S5-090U, S5-095U, and S5-100U programmable controller series, as well as ET 100U and ET 200U distributed I/O systems. This module provides four isolated output channels rated for 24-60 VDC, facilitating reliable switching for medium-load industrial applications. By incorporating high-integrity signal isolation, the module safeguards sensitive controller logic against electrical noise and transient surges, ensuring stable operation in demanding environments such as material handling and automated assembly.

Features

• Four isolated discrete output channels for versatile load control.
• Galvanic isolation to protect backplane logic from field-side electrical faults.
• Designed for seamless integration with S5 backplane and ET peripheral racks.
• Optimized for inductive load switching, including solenoids and contactors.
• Compact chassis design for efficient heat dissipation in dense control panels.

Applications

This module is primarily utilized in legacy SIMATIC S5 control frameworks. It is suitable for industrial automation tasks requiring discrete signal control, including chemical processing, manufacturing assembly lines, and distributed I/O management where electrical isolation is critical for system longevity.

Technical Specifications

Installation Guidelines

• Ensure the PLC power is fully disconnected before inserting or removing the module from the backplane or rack.
• Verify that the module is correctly seated in the assigned slot to ensure proper backplane bus connection.
• Use shielded cabling for field wiring to minimize EMI/RFI interference, especially when driving inductive loads.
• Ensure adequate ventilation in the control cabinet to maintain operating temperatures within the 0 to 60 deg C range.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.

FAQ

Is the 6ES5450-8MB11 still in production?

No, this model was officially discontinued by Siemens as of January 10, 2020. It is now typically sourced as a refurbished or surplus component for legacy system maintenance.

What is the primary function of the isolation on this module?

The galvanic isolation acts as a barrier, preventing electrical transients or back-EMF generated by field devices (like solenoids) from propagating back into the S5 controller's central processing unit, thereby preventing hardware damage.
