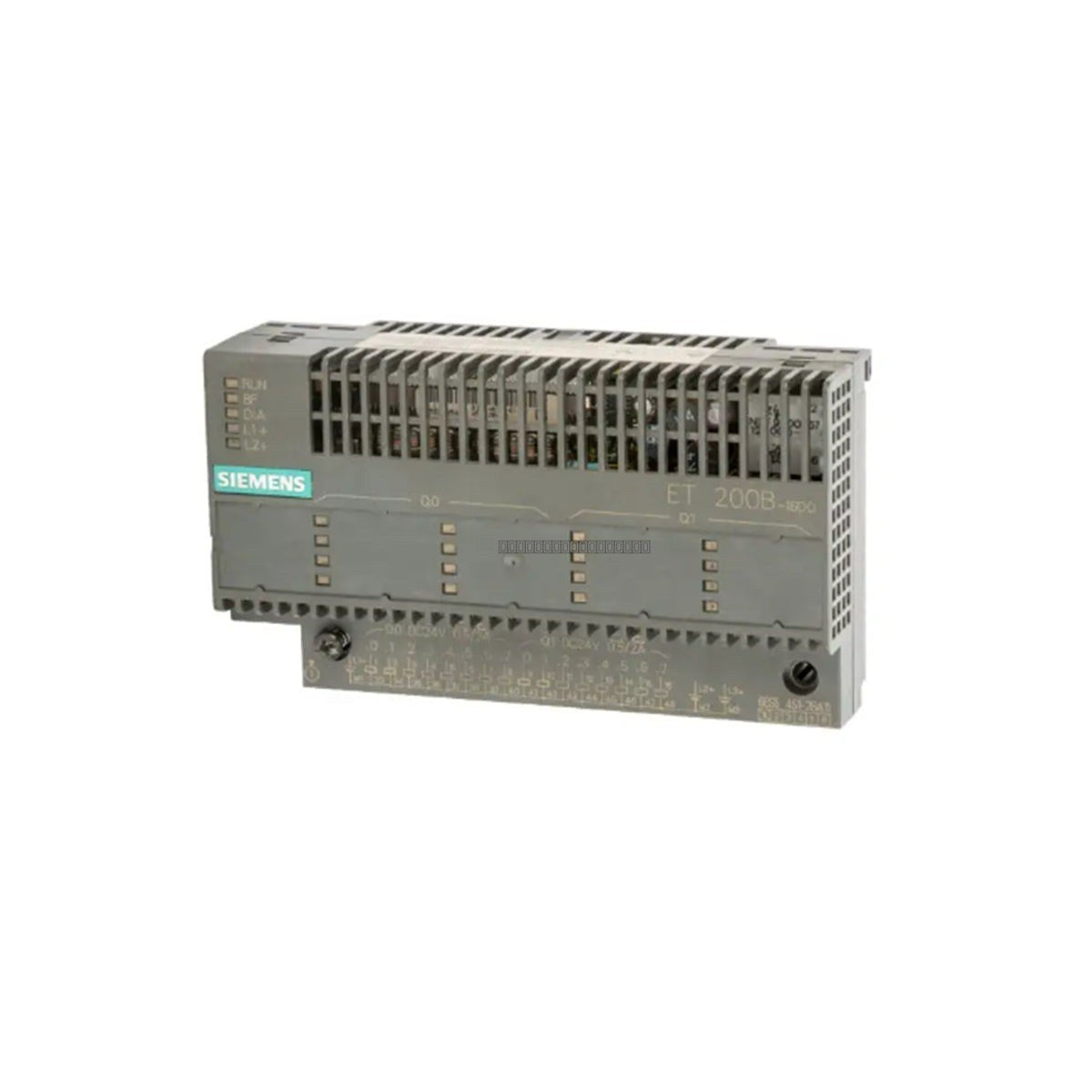

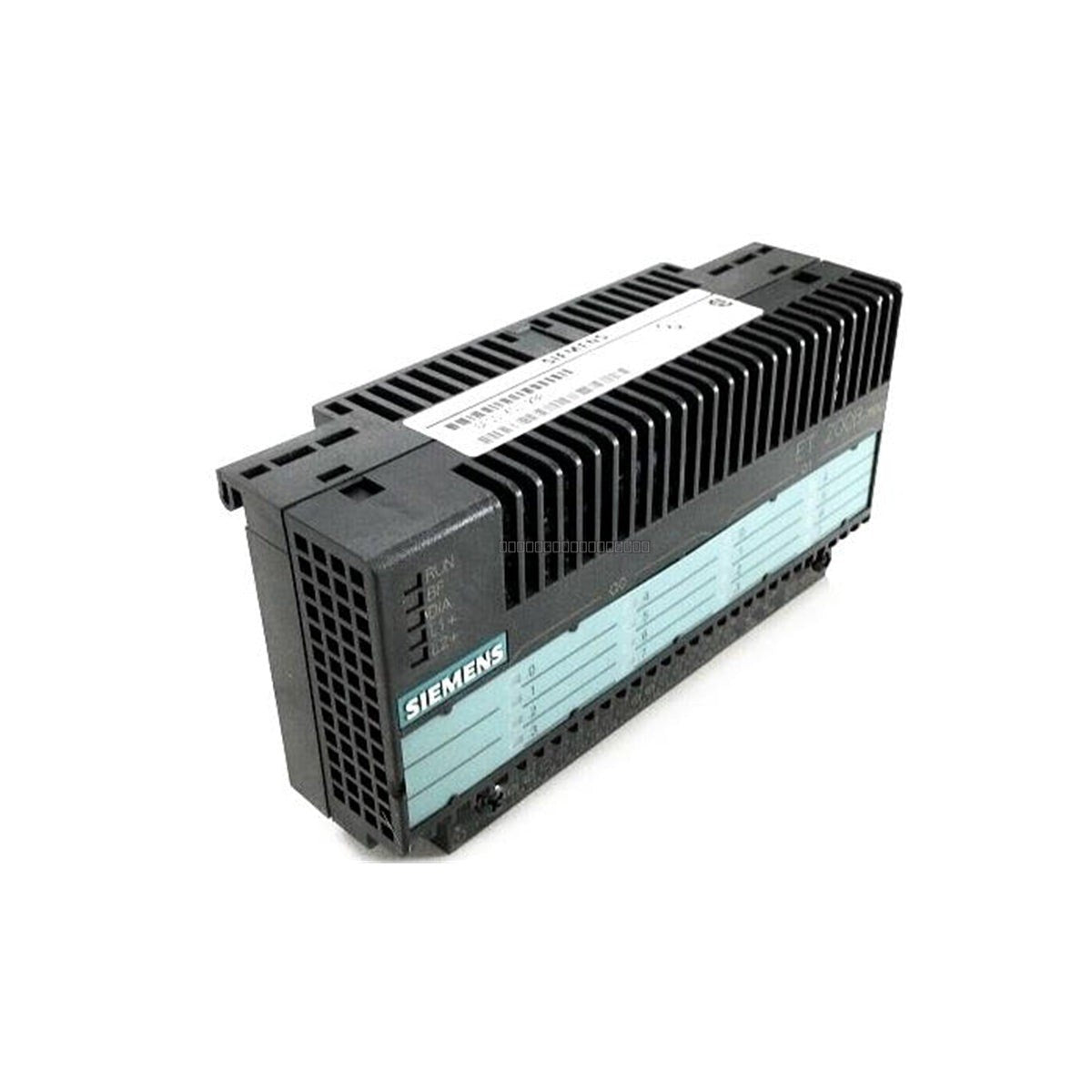

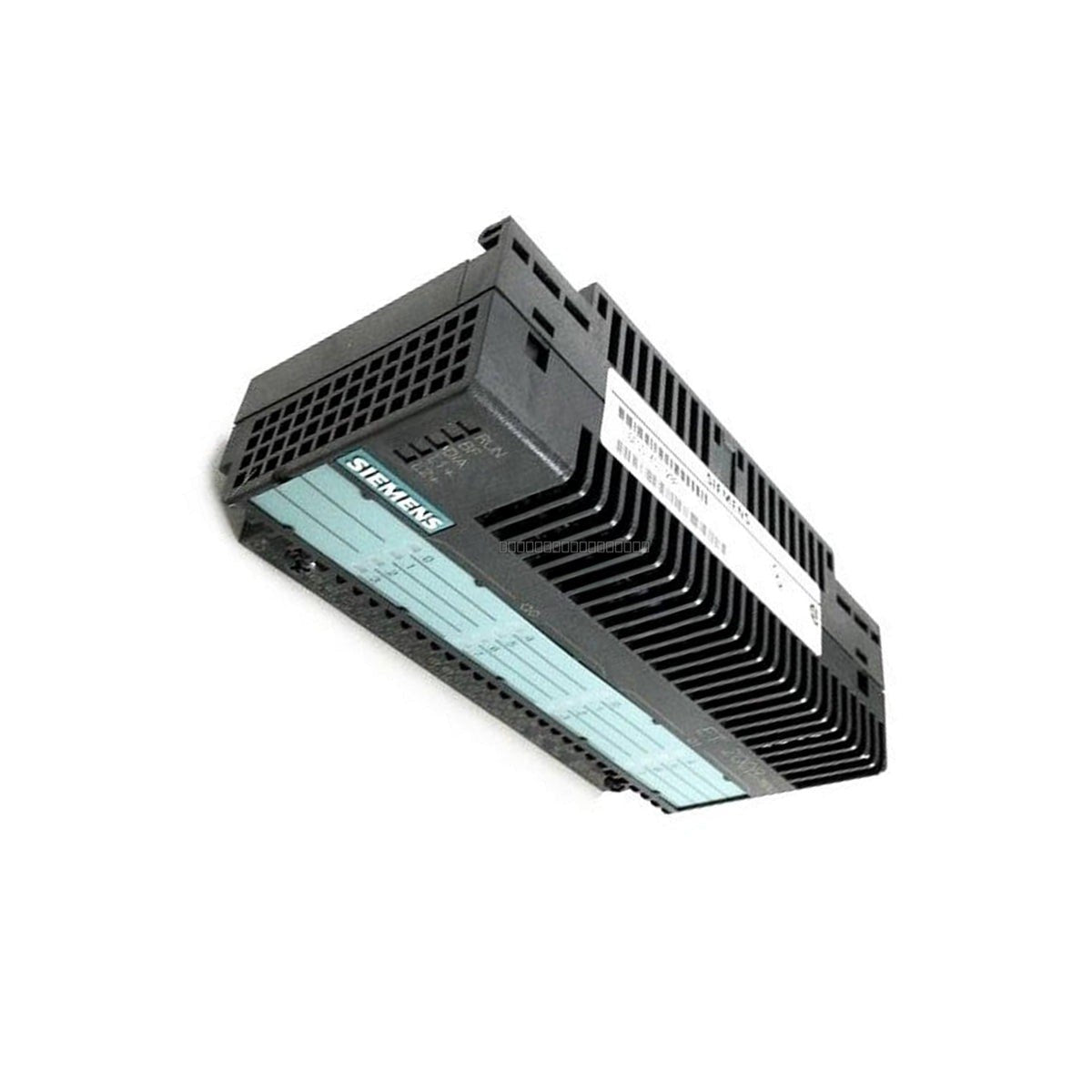

Siemens 6ES5451-2BA11 Simatic S5 Digital Output Module

Siemens 6ES5451-2BA11 Simatic S5 Digital Output Module

Description

The Siemens Simatic S5 6ES5451-2BA11 is a digital output module engineered for the ET 200B distributed I/O system. This module provides 16 electronic outputs designed for 24 VDC signal levels,...

24 people are viewing this right now

Availability: Low stock: 2 left

SKU: 6ES5451-2BA11
Vendor: Siemens
Category: Digital Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens Simatic S5 6ES5451-2BA11 is a digital output module engineered for the ET 200B distributed I/O system. This module provides 16 electronic outputs designed for 24 VDC signal levels, serving as a critical interface between a centralized PLC and remote field actuators. It is widely utilized in legacy industrial environments, including automated warehousing, wastewater treatment, and automotive manufacturing, where maintaining the integrity of existing fieldbus nodes is essential for operational continuity.

Features

  • 16-channel digital output configuration.
  • Designed for integration with the ET 200B distributed I/O system.
  • Integrated short-circuit and thermal overload protection per channel.
  • High-speed optocoupler isolation between logic and field circuits to prevent ground loops and inductive interference.
  • Plug-and-play design for rapid replacement on existing terminal block bases.

Applications

This module is intended for use in distributed control architectures requiring reliable 24 VDC switching. It is suitable for driving solenoids, relays, and indicators within legacy Simatic S5 PROFIBUS DP network segments.

Technical Specifications

Model 6ES5451-2BA11
Brand Siemens
Series Simatic S5 / ET 200B
Output Channels 16
Nominal Voltage 24 VDC
Output Current 0.5 A per channel (Max 8 A total)
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 70 deg C
Power Dissipation 4.5 W (nominal)

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the module from the ET 200B base.
  • The module is designed for mounting on an ET 200B terminal block base; ensure the pin matrix is aligned correctly to prevent damage to the connectors.
  • Maintain adequate ventilation in the control cabinet to ensure the operating temperature remains within the 0 to 60 deg C range.
  • Use shielded cabling for field connections to minimize EMI, especially in high-noise industrial environments.
  • Handle with standard ESD precautions to protect internal semiconductor components.

FAQ

Is this module compatible with modern S7 systems?

The 6ES5451-2BA11 is specifically designed for the Simatic S5 / ET 200B architecture. Compatibility with modern S7 systems is generally limited to specific legacy gateways or PROFIBUS DP configurations that support the S5 protocol mapping.

Does this module require external power?

Yes, the module requires a 24 VDC supply for the output load circuits, which is typically provided through the ET 200B terminal block base.
