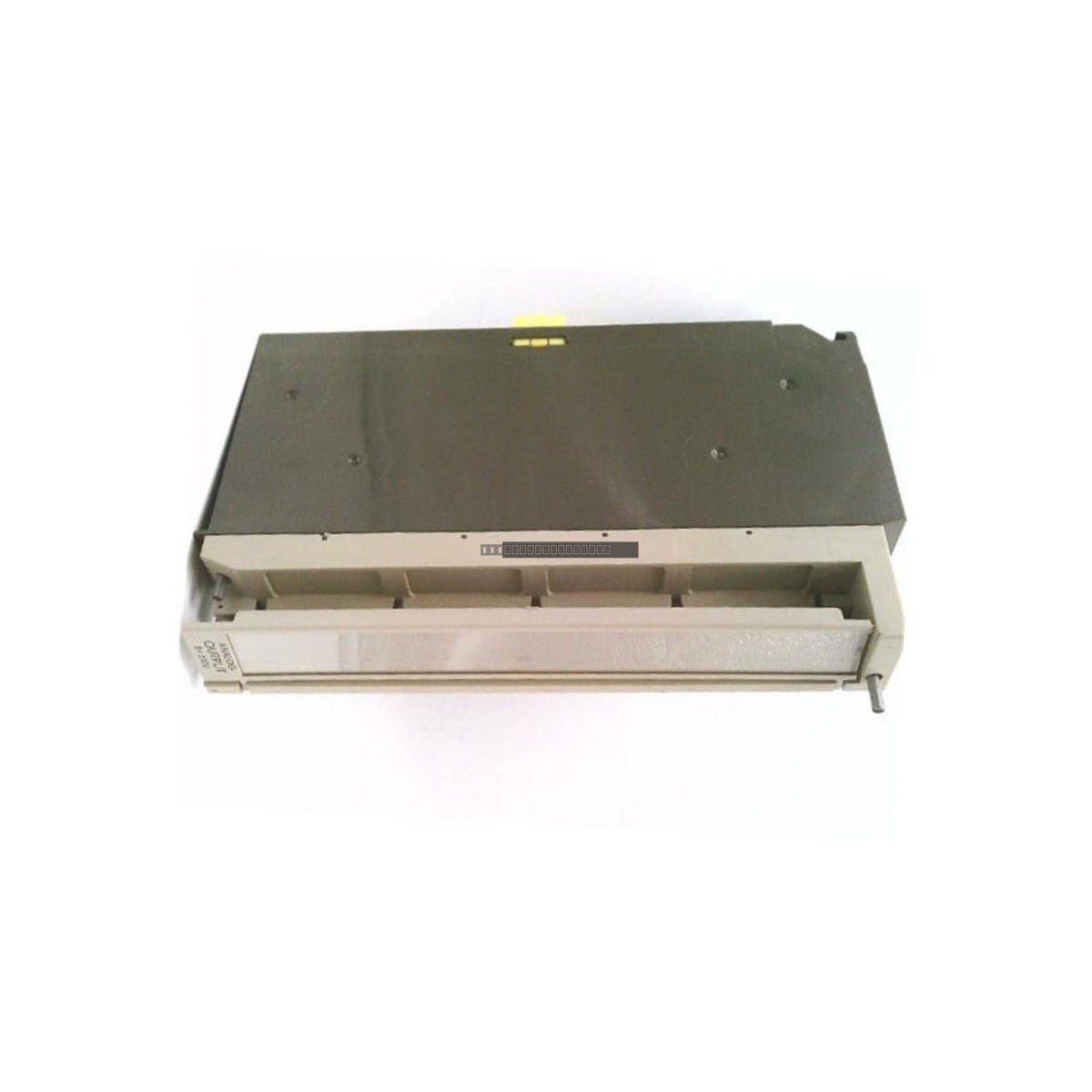

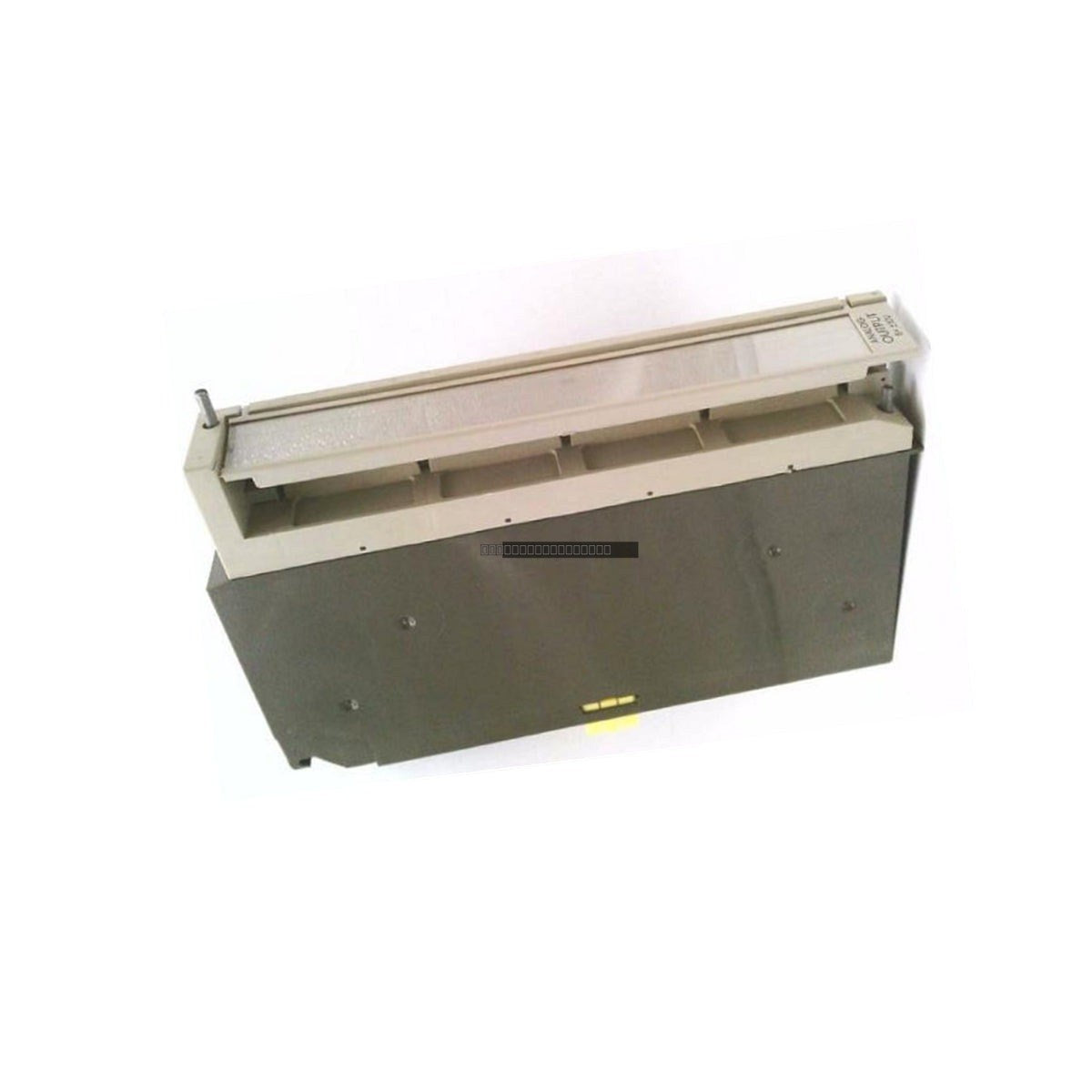

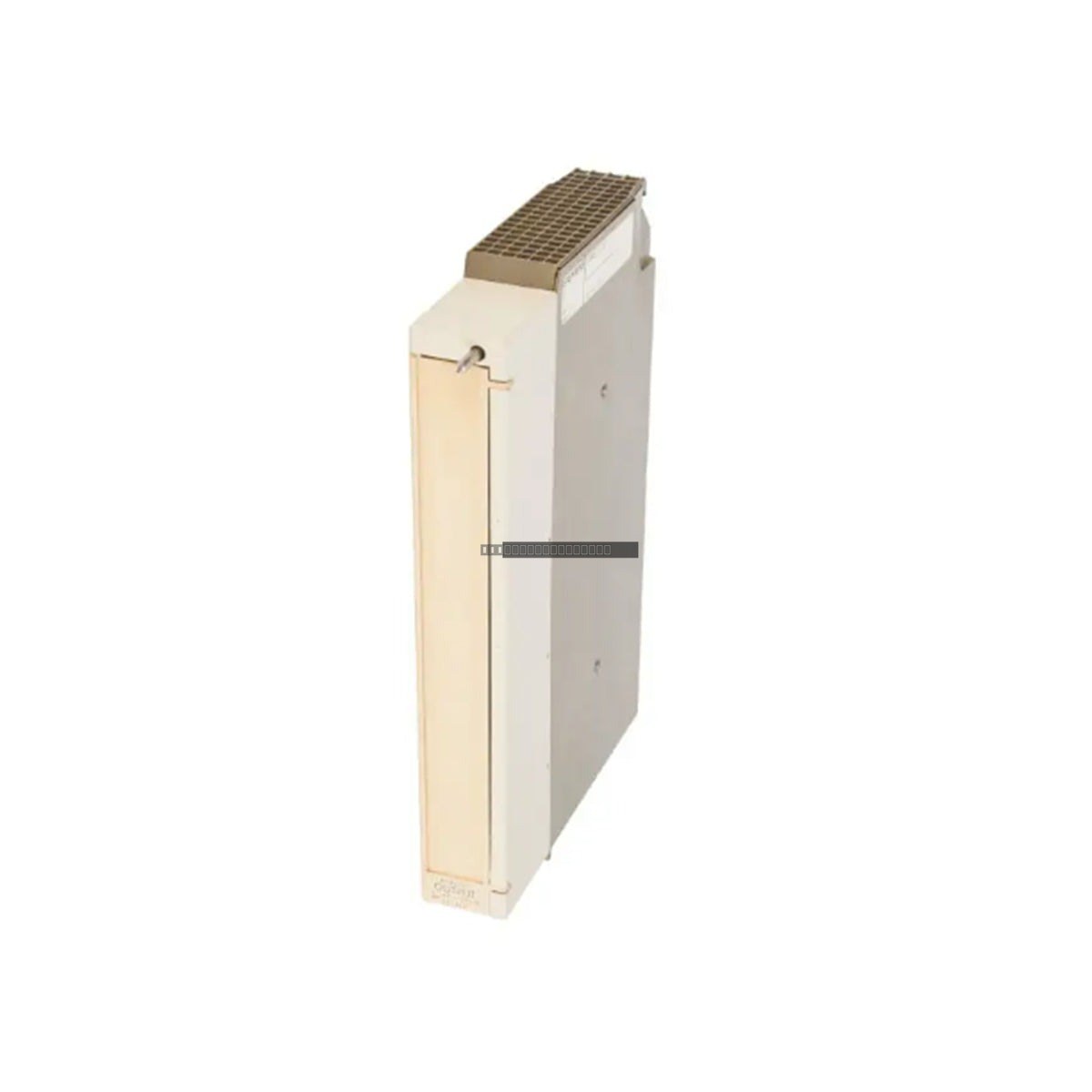

The Siemens 6ES5470-7LC11 is a specialized analog output module designed for integration within the legacy Simatic S5 programmable logic controller (PLC) environment. This unit provides 8 independent output channels, facilitating the conversion of digital control data into precise voltage signals required for field-level process regulation. By maintaining legacy control loops in sectors such as chemical processing and heavy manufacturing, this module ensures the continued reliability of automated systems that rely on the S5 architecture.

Features

• Provides 8 independent channels for analog signal output.
• Configured for a 1 to 5 V output signal range.
• Galvanic isolation between the controller bus and field-side circuitry.
• Integrated diagnostic LEDs to monitor channel status and bus communication.
• Short-circuit protection on individual output loops.

Applications

This module is primarily utilized in industrial control environments to manage field instrumentation. Typical applications include the modulation of control valves, the positioning of actuators, and the adjustment of speed governors in legacy automation setups where S5 controllers remain in active service.

Technical Specifications

Installation Guidelines

• Ensure the S5 rack is powered down before inserting or removing the module to prevent electrical damage.
• Verify that the module is properly seated in the designated chassis slot to ensure reliable backplane communication.
• Maintain adequate ventilation around the S5 rack to ensure the ambient temperature remains within the 0 to 60 deg C operating range.
• Use shielded cabling for field connections to minimize electromagnetic interference (EMI) and maintain signal integrity.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.

FAQ

What signal range does this module provide?

The 6ES5470-7LC11 is specifically designed for a 1 to 5 V analog output range.

Is this module compatible with modern S7 controllers?

No, this module is engineered specifically for the legacy Siemens Simatic S5 controller platform and is not directly compatible with S7 or later generation systems.

What is the primary function of the diagnostic LEDs?

The front panel LEDs provide visual feedback on the health of the communication bus and the operational status of individual output channels, aiding in rapid troubleshooting.
