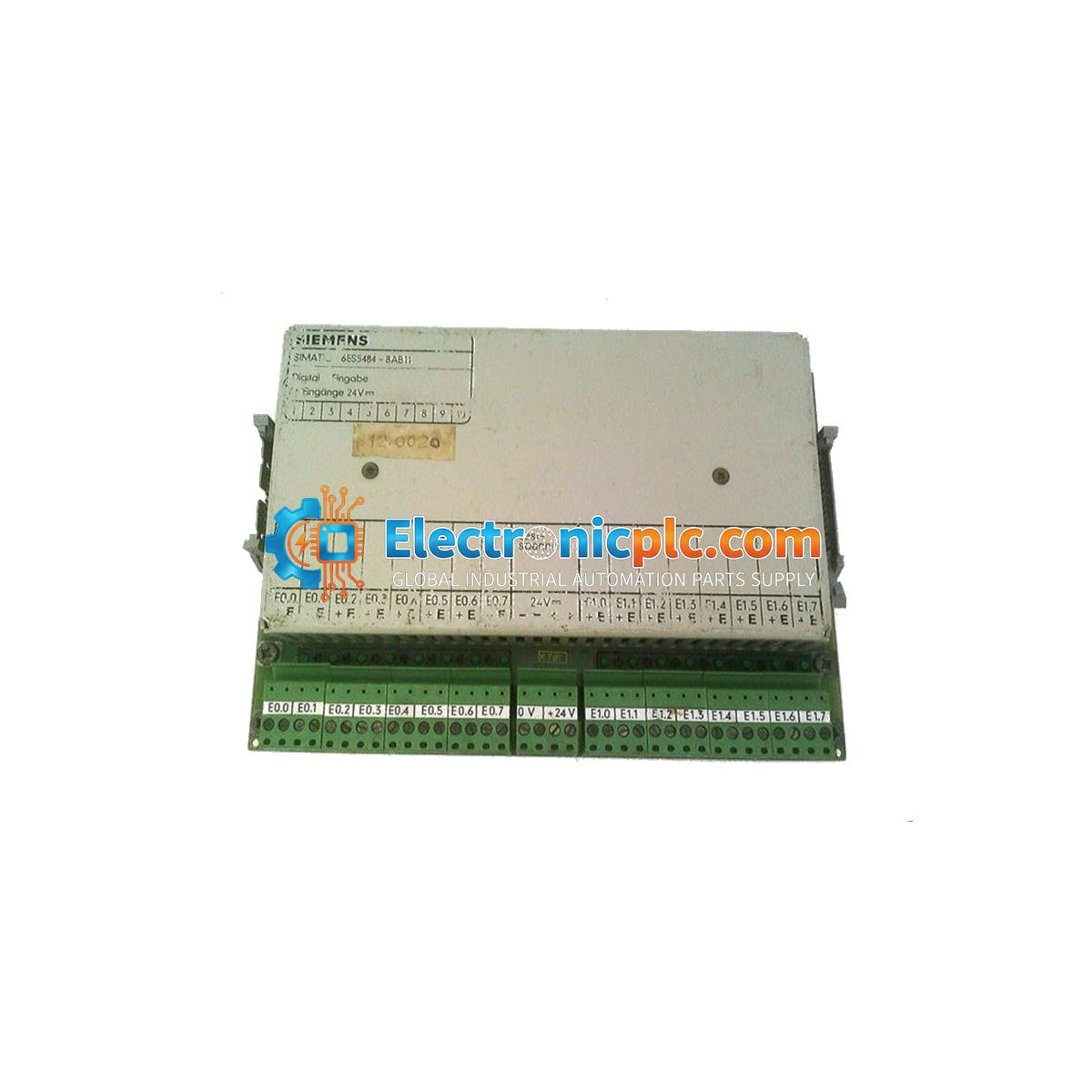

Siemens 6ES5484-8AB11 Simatic S5 Digital Input Module

Siemens 6ES5484-8AB11 Simatic S5 Digital Input Module

Description

The Siemens 6ES5484-8AB11 is a high-density digital input module designed for integration within the Simatic S5-090, S5-095, and S5-100 automation systems. This module serves as a critical interface for signal...

25 people are viewing this right now

Availability: Low stock: 10 left

SKU: 6ES5484-8AB11
Vendor: Siemens
Category: Digital Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5484-8AB11 is a high-density digital input module designed for integration within the Simatic S5-090, S5-095, and S5-100 automation systems. This module serves as a critical interface for signal acquisition, converting discrete field telemetry from sensors, limit switches, and proximity indicators into logic-level data for the central processing unit. By facilitating reliable signal processing, the module supports efficient control loop execution and reduces diagnostic latency in legacy industrial automation environments.

Features

  • 16 isolated input channels for high-density signal monitoring.
  • Standard 24 VDC input voltage compatibility.
  • Galvanic isolation via internal optocouplers to protect the backplane from field-side transients and ground loops.
  • Integrated RC filtering networks to suppress mechanical contact bounce and ensure stable binary state detection.
  • Direct backplane mounting for seamless integration into the Simatic S5 rack architecture.

Applications

This module is engineered for use in discrete manufacturing, assembly line control, and various legacy industrial processing applications where reliable 24 VDC signal acquisition is required for the Simatic S5 platform.

Technical Specifications

Model 6ES5484-8AB11
Brand Siemens
Product Family Simatic S5-090/095/100
Module Type Digital Input Module
Number of Inputs 16
Nominal Input Voltage 24 VDC
Galvanic Isolation Yes (Optocouplers)
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 70 deg C

Installation Guidelines

  • Ensure the CPU is powered down before inserting or removing the module from the S5 rack to prevent electrical damage.
  • Verify that the module is securely seated in the designated rack slot and that the backplane connector is properly aligned.
  • Use shielded cabling for field inputs to minimize electromagnetic interference (EMI) in high-noise industrial environments.
  • Ensure that external power supplies for field sensors are correctly fused and grounded according to local safety standards.
  • Maintain proper ventilation within the control cabinet to ensure the module operates within its specified temperature range of 0 to 60 deg C.
  • Handle the module using ESD-safe practices to prevent damage to sensitive internal circuitry.

FAQ

Is this module compatible with S5-115U systems?

No, the 6ES5484-8AB11 is specifically designed for the S5-090, S5-095, and S5-100 series. Please verify your specific rack and CPU model before installation.

Does this module provide power to the field sensors?

No, the module requires an external 24 VDC power supply to be connected to the field-side distribution blocks for sensor excitation.
