Description

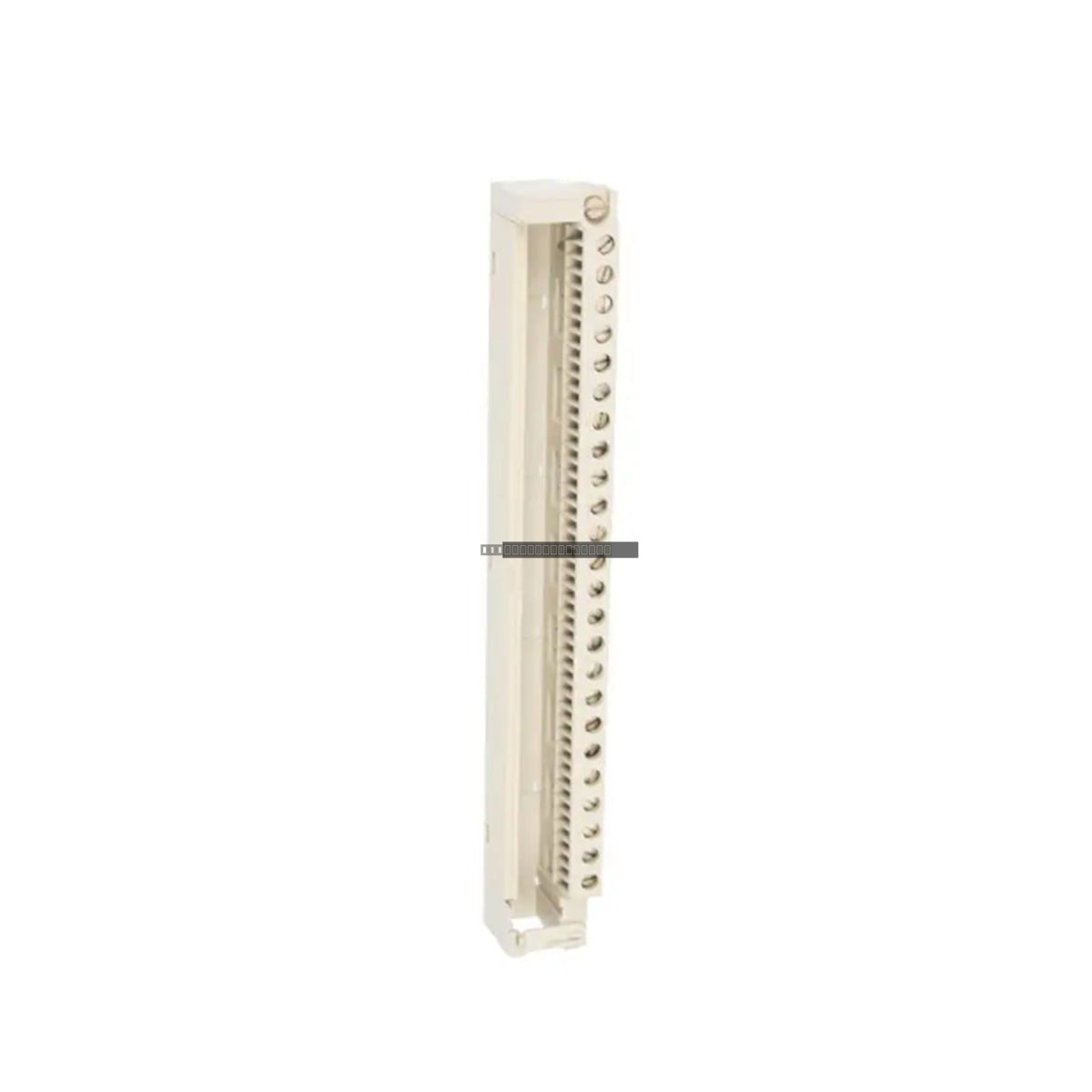

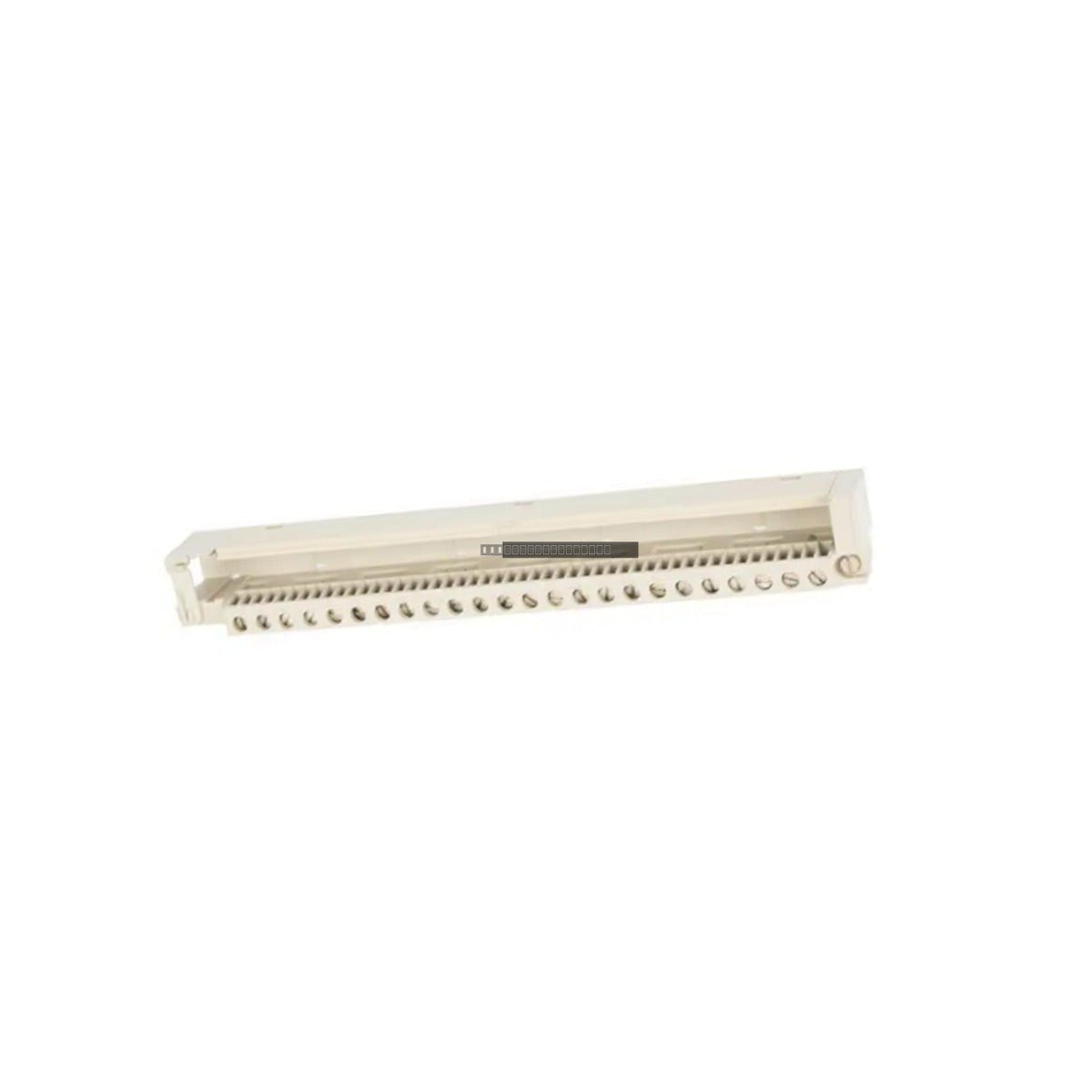

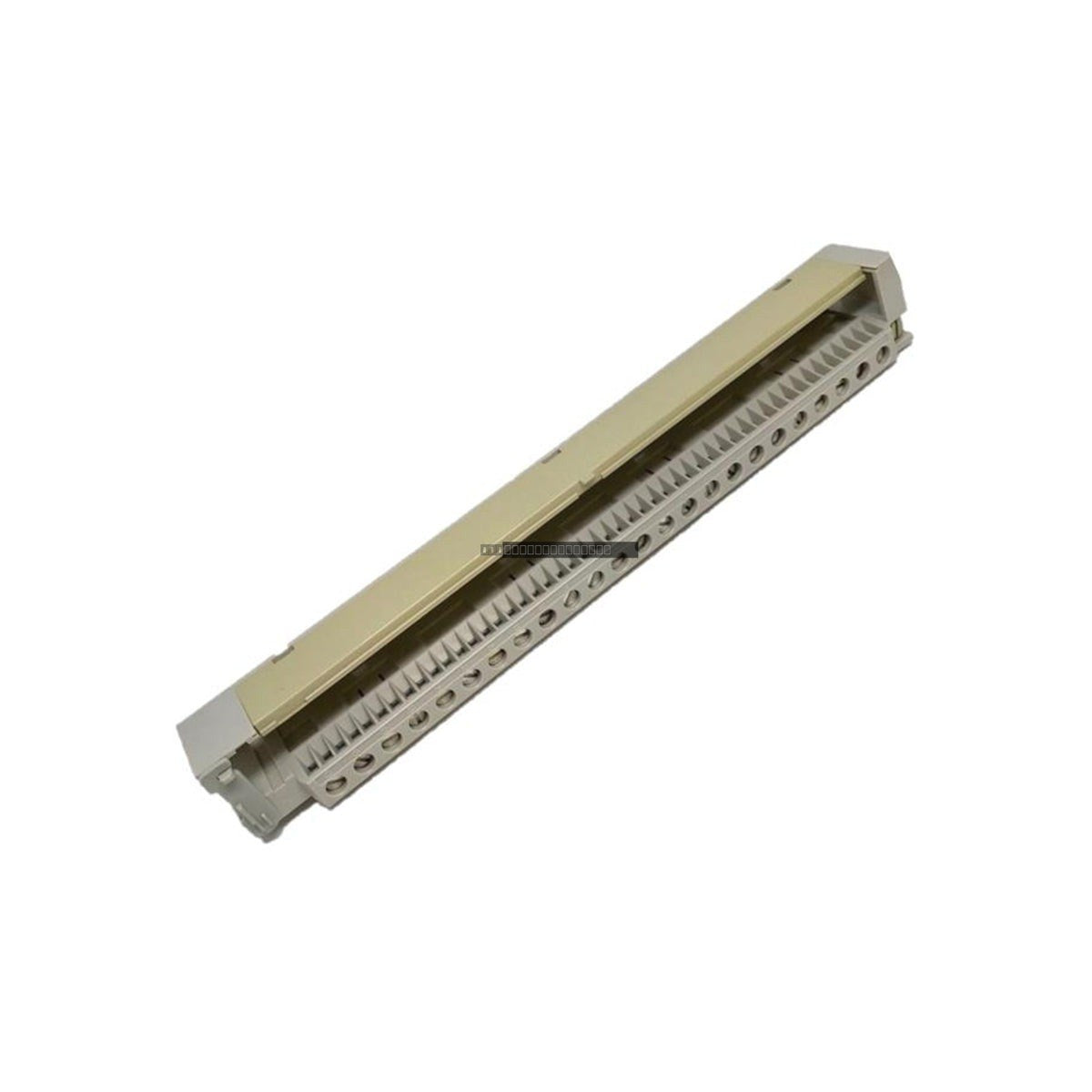

The Siemens 6ES5490-7LB11 is a 24-pin front connector block designed for the SIMATIC S5-115U programmable logic controller series. This passive interface component serves as the primary connection point between field-side instrumentation and the S5 I/O module circuitry. By utilizing a detachable design, the connector facilitates rapid maintenance and module replacement, allowing technicians to swap hardware without disturbing individual field wiring, which significantly reduces system downtime.

Features

• 24-Pin Interface: Provides high-density connectivity for discrete and analog signal management.
• Screw-Clamp Terminals: Designed for reliable termination of solid or stranded conductors up to 1.5 mm2.
• Secure Mechanical Retention: Includes integrated locking mechanisms to ensure the connector remains firmly seated on the module face despite industrial vibration.
• High-Dielectric Housing: Robust plastic construction provides necessary electrical isolation between terminals to prevent short circuits.
• Maintenance Efficiency: Enables hot-swapping or rapid replacement of I/O modules by maintaining field wiring integrity during service.

Applications

This connector is specifically engineered for use within the Siemens SIMATIC S5-115U automation ecosystem. It is commonly deployed in industrial control cabinets across sectors such as manufacturing, water treatment, material handling, and process automation where reliable, modular I/O connectivity is required.

Technical Specifications

Installation Guidelines

• Ensure the PLC system power is disconnected before installing or removing the front connector from any I/O module.
• Verify that all field wires are properly stripped and secured within the screw terminals to prevent loose connections or intermittent signal loss.
• Align the connector guide rails carefully with the module face to avoid bending or damaging the contact pins.
• Tighten the integrated retention screws to ensure the connector is fully seated and locked against the module housing.
• Maintain proper cable management and strain relief for field wiring to prevent mechanical stress on the connector terminals.

FAQ

Is this connector compatible with other S5 series modules?
This 24-pin connector is specifically designed for the S5-115U series. Please verify your specific module's pin count and physical layout requirements before installation.

Does this connector require external power?
No, this is a passive mechanical component and does not consume electrical power; it serves only as a pass-through interface for signals.

Can I use this with stranded wire?
Yes, the screw-clamp terminals are designed to accommodate both solid and stranded conductors up to 1.5 mm2.
