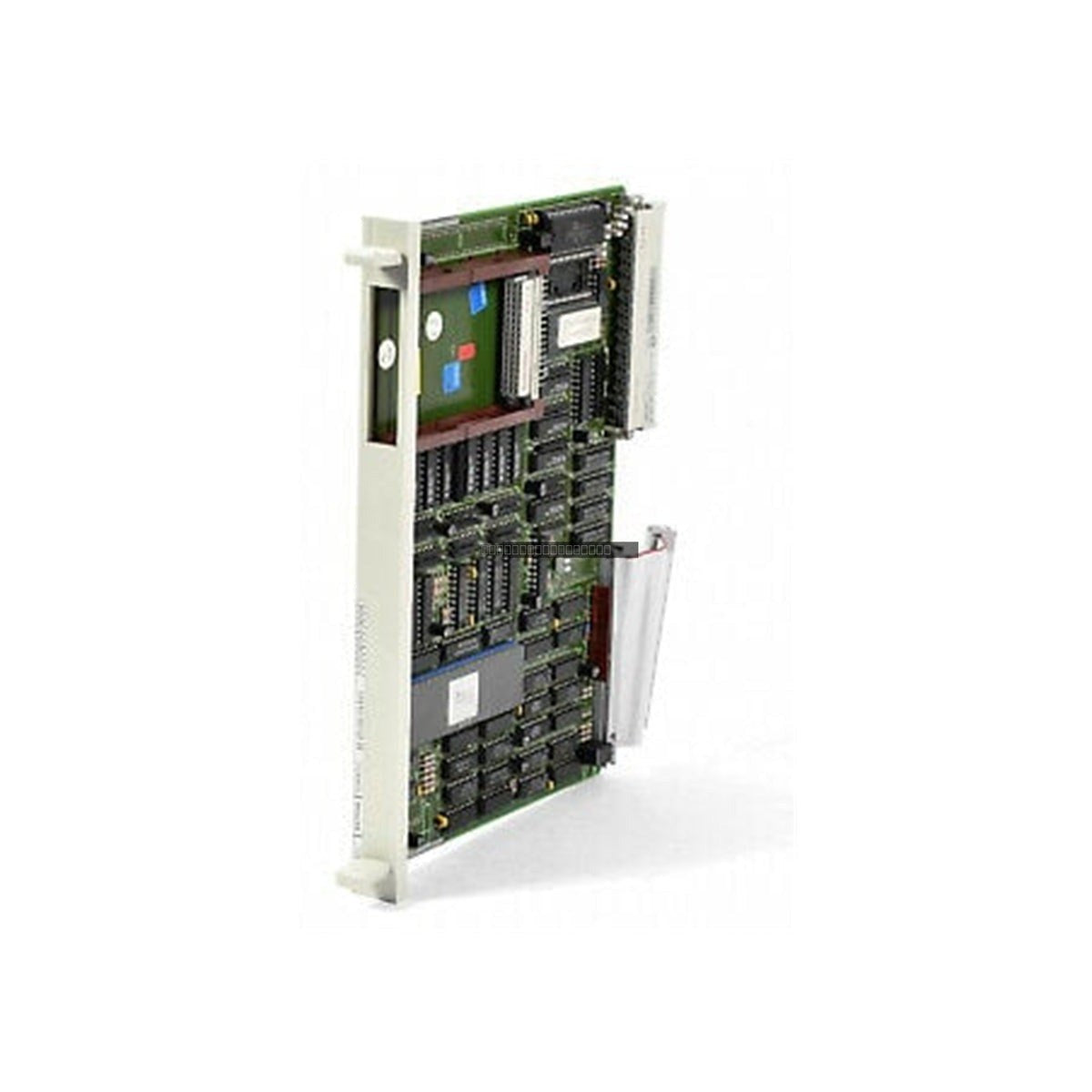

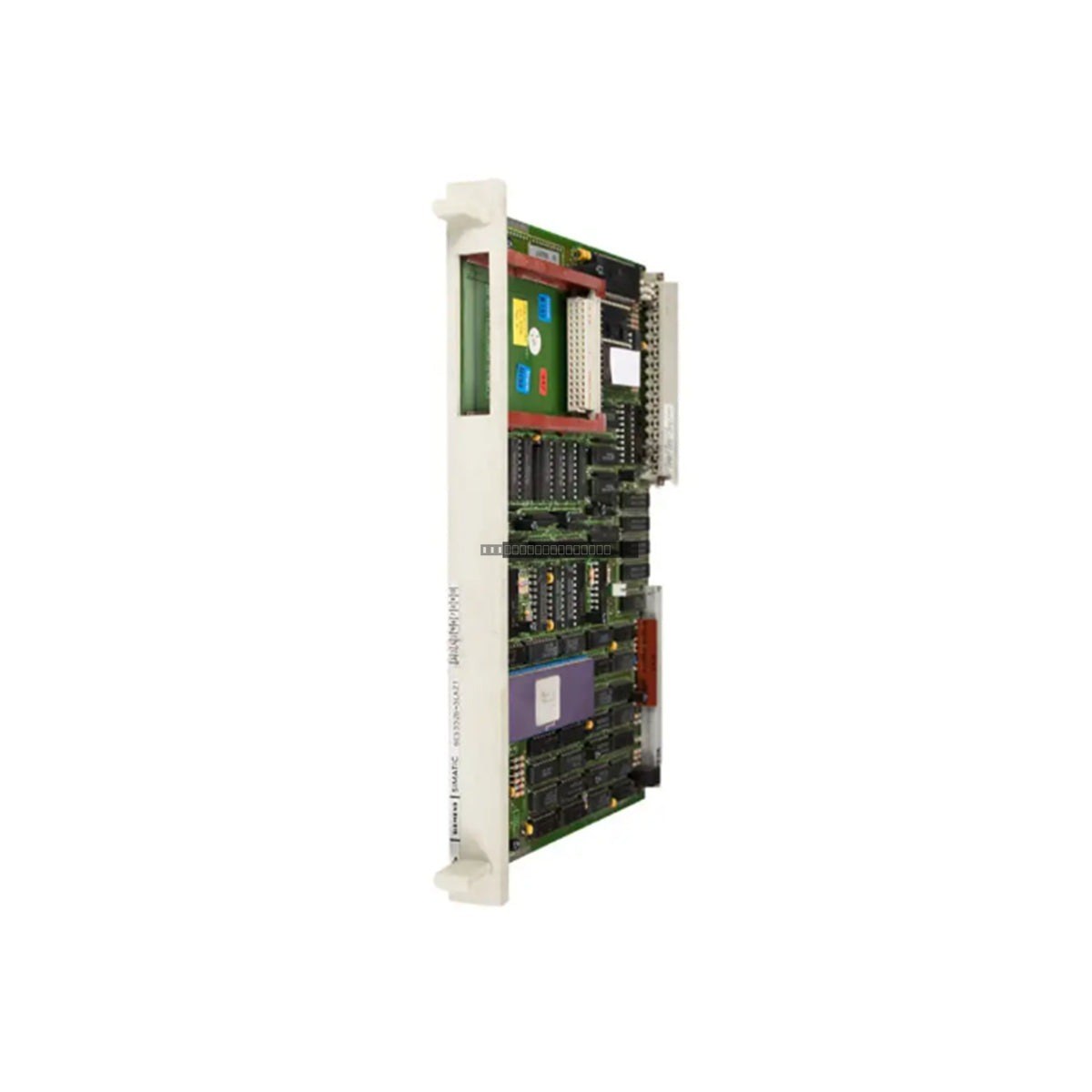

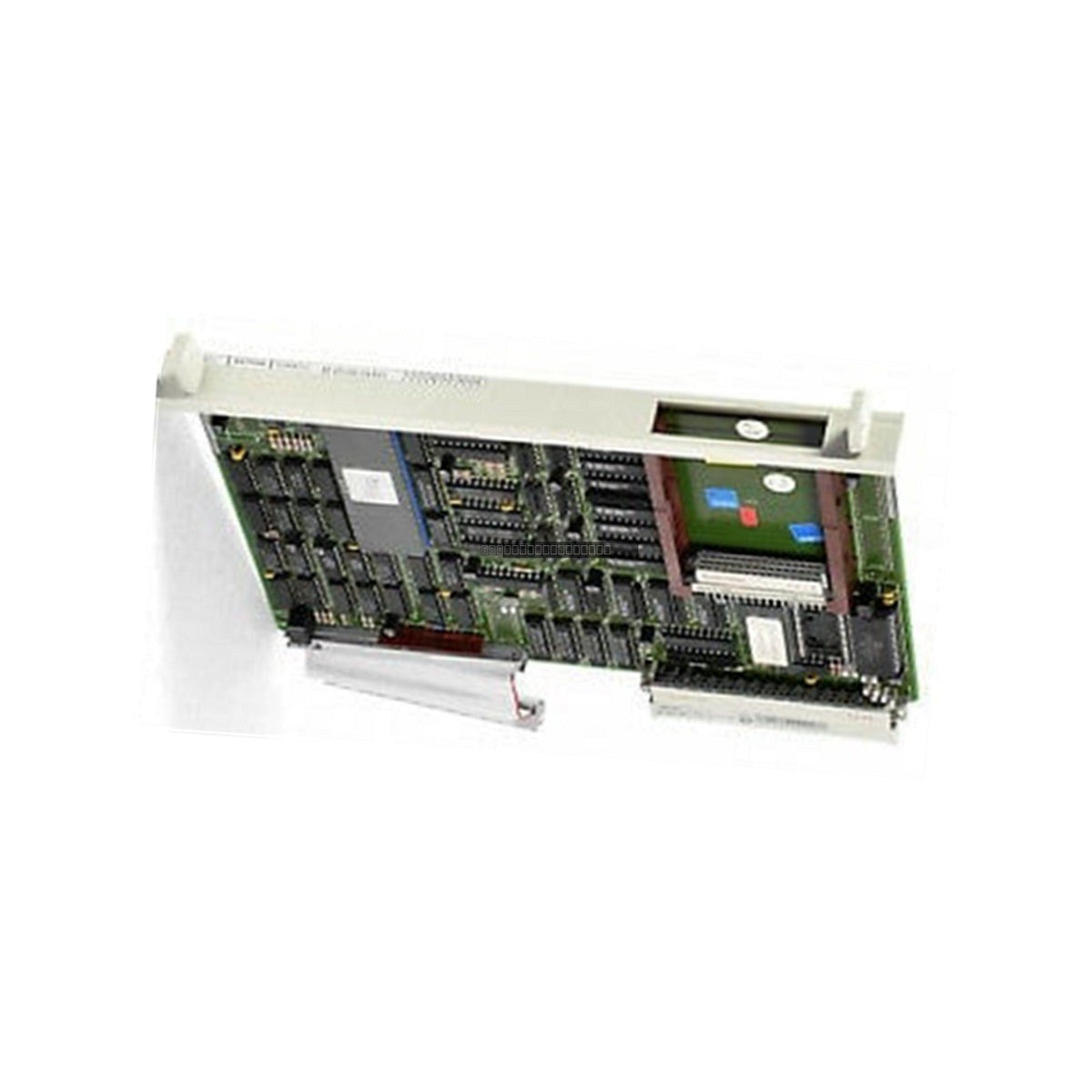

Siemens 6ES5526-3LA21 Simatic S5 CP 526 Communications Expansion Board

Siemens 6ES5526-3LA21 Simatic S5 CP 526 Communications Expansion Board

Description

The Siemens 6ES5526-3LA21 is a specialized CP 526 communications expansion board engineered for the Simatic S5 programmable logic controller (PLC) platform. This module is designed to offload complex data processing,...

21 people are viewing this right now

Availability: Low stock: 3 left

SKU: 6ES5526-3LA21
Vendor: Siemens
Category: Communications Expansion Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5526-3LA21 is a specialized CP 526 communications expansion board engineered for the Simatic S5 programmable logic controller (PLC) platform. This module is designed to offload complex data processing, visualization, and peripheral interfacing tasks from the main CPU, ensuring stable performance in legacy automation environments. It is a critical component for maintaining operational continuity in heavy industrial sectors, including power generation, chemical processing, and steel manufacturing, by facilitating reliable communication and data exchange.

Features

  • Dedicated onboard microprocessor for autonomous communication handling.
  • Direct backplane bus integration to minimize CPU overhead.
  • Supports point-to-point serial communication, printer interfacing, and operator panel connectivity.
  • Optimized for text string management and screen display configuration tasks.
  • Robust design suitable for long-term deployment in mature S5 control architectures.

Applications

This expansion board is primarily utilized in Simatic S5 systems requiring enhanced communication capabilities. It is frequently deployed for human-machine interface (HMI) integration, peripheral device management, and data logging applications where deterministic PLC cycle times must be preserved.

Technical Specifications

Model 6ES5526-3LA21
Series Simatic S5
Module Type CP 526 Communications Expansion Board
Operating Temperature 0 to 55 deg C
Storage Temperature -40 to 70 deg C
Relative Humidity 95% non-condensing
Power Supply 5 VDC (via S5 backplane)
Current Consumption 1.2 A typical

Installation Guidelines

  • Ensure the PLC rack power is disconnected before installing or removing the CP 526 module to prevent electrical damage.
  • Verify that the module is correctly seated in the designated S5 backplane slot and that the locking mechanism is engaged.
  • Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal components.
  • Ensure adequate ventilation within the control cabinet to maintain operating temperatures within the specified 0 to 55 deg C range.
  • Route communication cables away from high-voltage lines and sources of electromagnetic interference (EMI) to ensure signal integrity.

FAQ

What is the primary function of the CP 526 module?

The CP 526 serves as a communications processor that offloads HMI and peripheral data handling from the Simatic S5 CPU, allowing the main processor to focus on core control logic.

Is this module compatible with all S5 systems?

The 6ES5526-3LA21 is designed for the Simatic S5 series. Please consult your specific S5 CPU manual and rack configuration to ensure compatibility with your existing backplane and firmware revisions.
