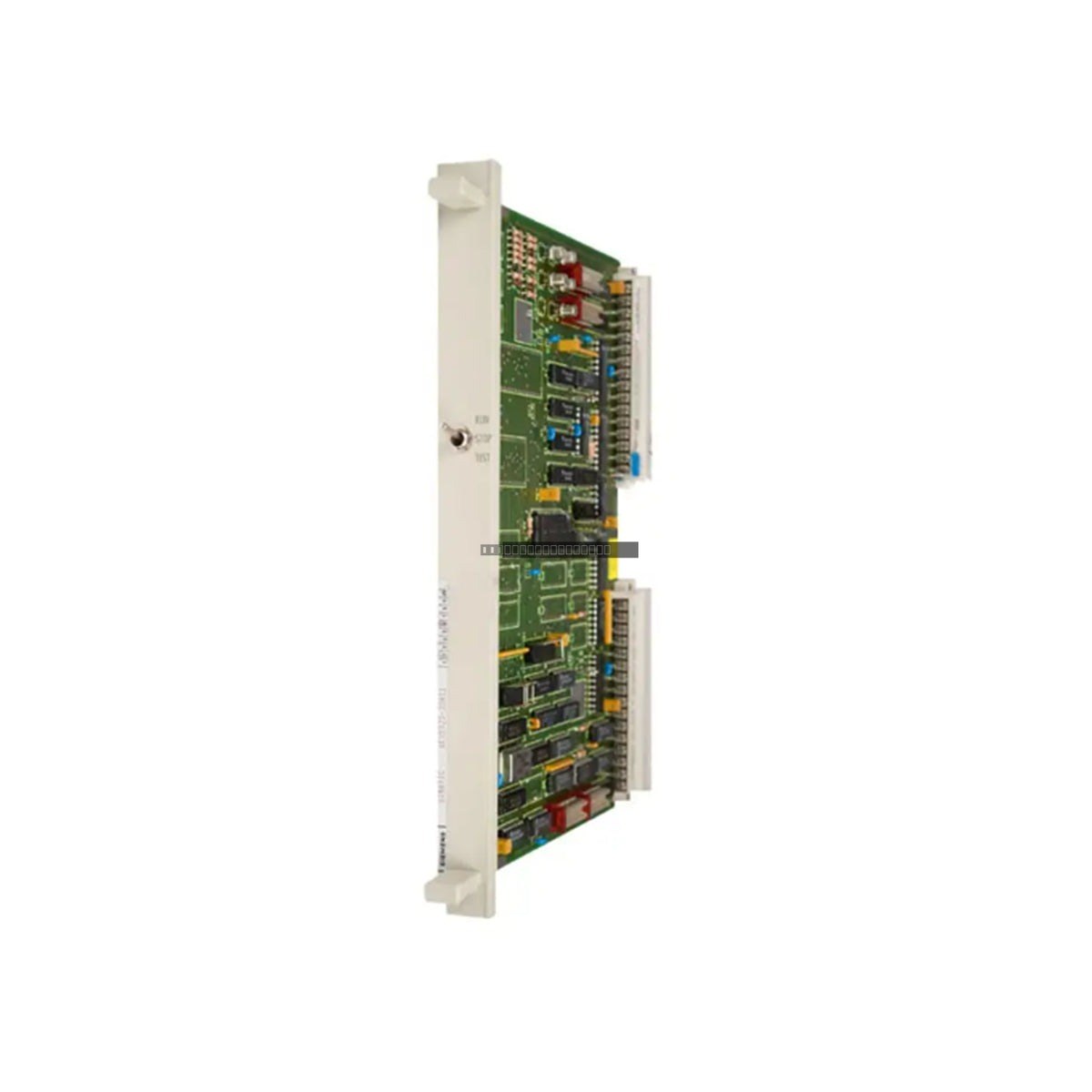

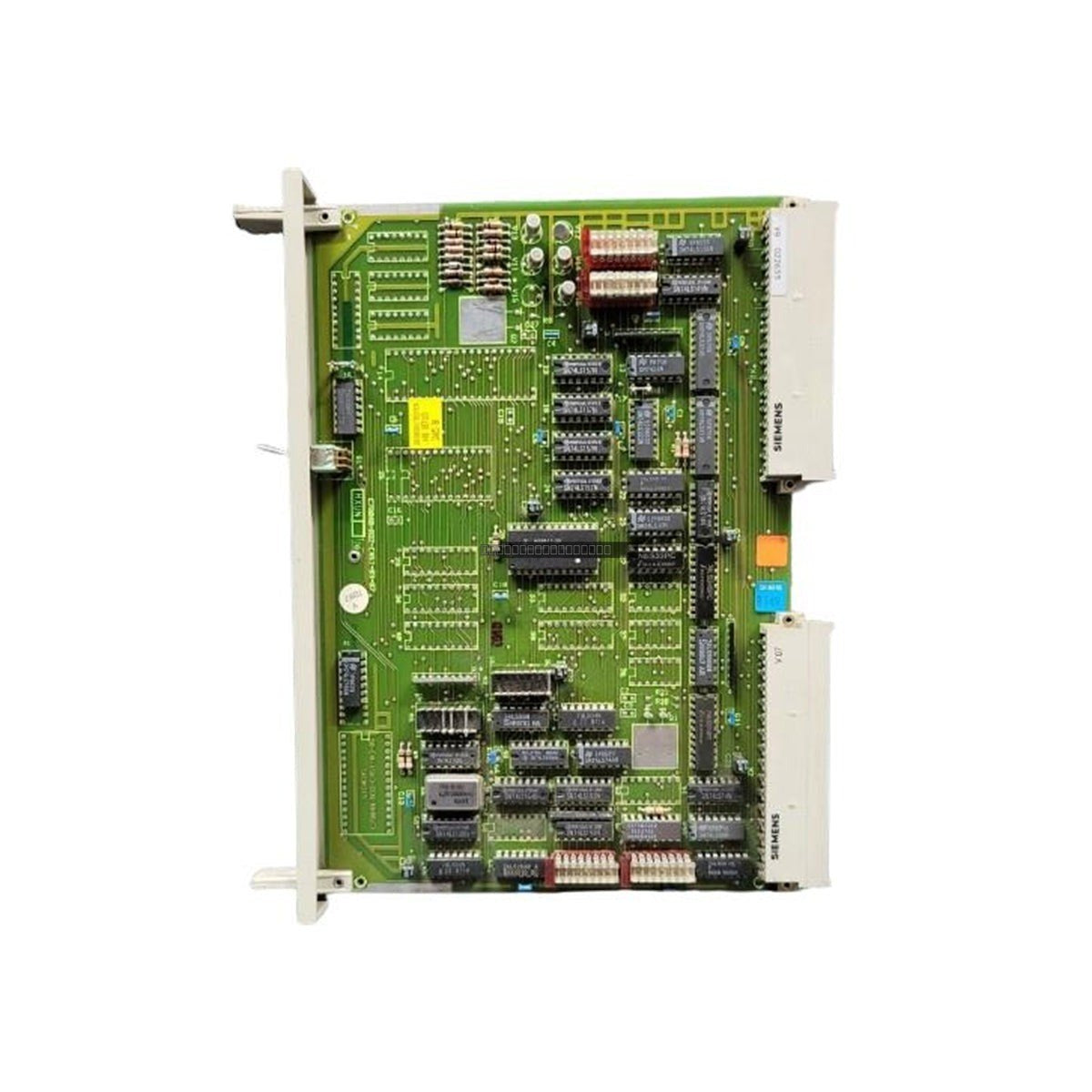

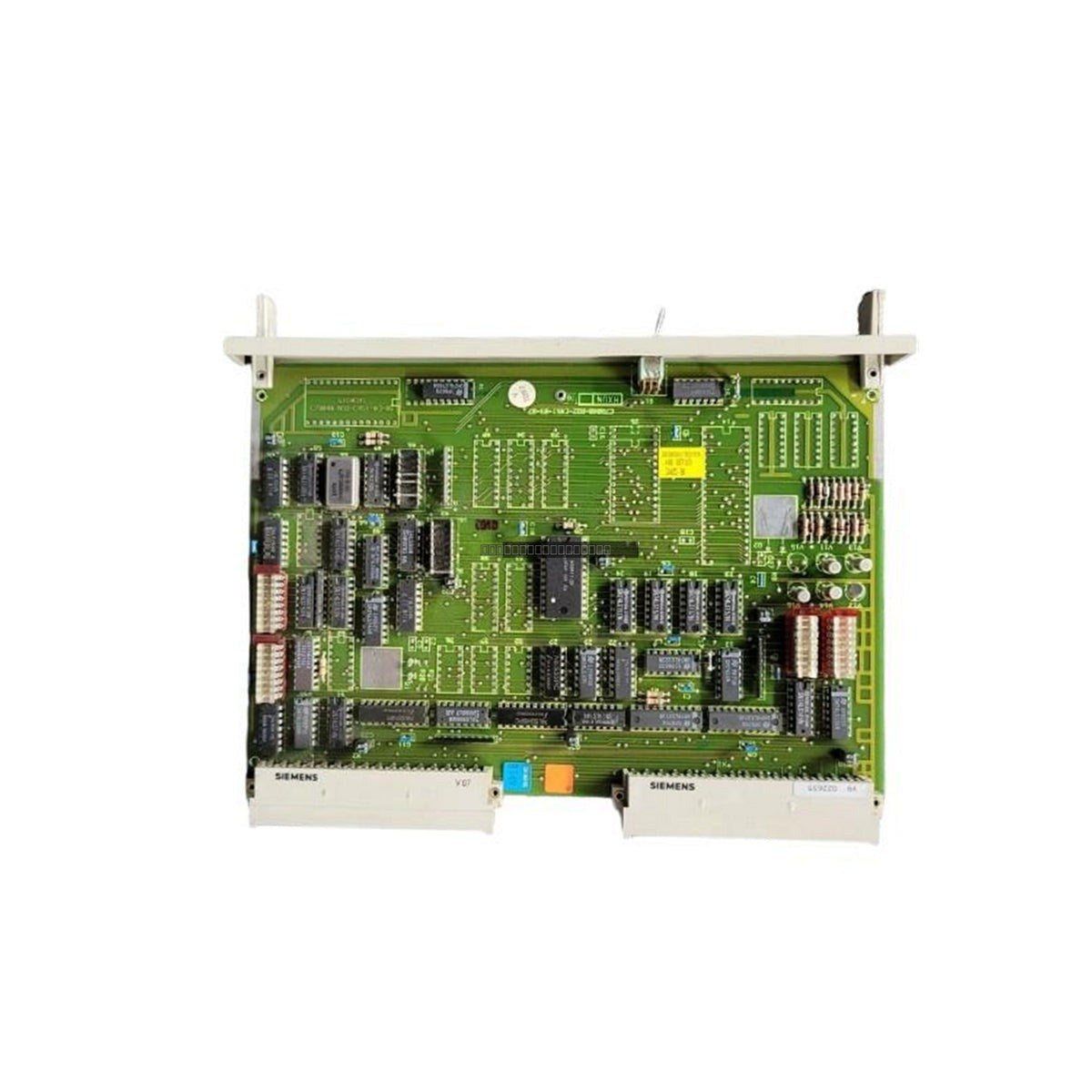

Siemens 6ES5923-3UA11 Simatic S5 Coordinator Module

Siemens 6ES5923-3UA11 Simatic S5 Coordinator Module

Description

The Siemens 6ES5923-3UA11 is a specialized coordinator module designed for multi-processor configurations within the Simatic S5-135U and S5-155U automation systems. This module acts as a central hardware arbitrator, managing bus...

25 people are viewing this right now

Availability: Low stock: 7 left

SKU: 6ES5923-3UA11
Vendor: Siemens
Category: Coordinator Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5923-3UA11 is a specialized coordinator module designed for multi-processor configurations within the Simatic S5-135U and S5-155U automation systems. This module acts as a central hardware arbitrator, managing bus access and inter-processor communication for systems utilizing between two and four CPUs. By facilitating high-speed synchronization and preventing bus contention, the module ensures deterministic performance in critical industrial applications such as power generation and large-scale manufacturing.

Features

  • Multi-Processor Arbitration: Dynamically manages bus mastership to prevent data collisions during simultaneous memory access by multiple CPUs.
  • High-Speed Communication: Provides 2048 inter-processor communication bit memories for efficient flag status exchange between parallel processors.
  • Compact Design: Occupies a single slot in the central rack, optimizing space for additional I/O or processing modules.
  • Hardware-Level Control: Executes arbitration logic directly at the backplane level for minimal latency and high reliability.

Applications

This module is essential for complex automation tasks requiring parallel processing power. Common applications include high-speed automotive assembly lines, chemical process control, and power plant management where multiple CPUs must share a single backplane bus without compromising system timing or data integrity.

Technical Specifications

Model 6ES5923-3UA11
Series Simatic S5-135U / S5-155U
Module Type Coordinator Module
Slot Requirement 1-Slot
CPU Capacity 2 to 4 CPUs
Bit Memory 2048 bits
Power Consumption 1.5 A at 5 VDC (from backplane)
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 70 deg C

Installation Guidelines

  • Power Off: Always disconnect power from the S5 rack before inserting or removing the coordinator module to prevent electrical damage.
  • Slot Alignment: Ensure the module is properly aligned with the backplane connector pins before applying pressure to seat the board.
  • ESD Handling: Use standard electrostatic discharge (ESD) precautions, including a wrist strap, when handling the module to protect sensitive internal logic.
  • Environment: Ensure the cabinet provides adequate ventilation to maintain operating temperatures within the specified 0 to 60 deg C range.

FAQ

Does this module require a programming device port?

No, the 6ES5923-3UA11 does not feature an onboard programming device port. It operates as a dedicated hardware arbitrator for the backplane bus.

Can this module be used in any S5 rack?

This module is specifically engineered for the Simatic S5-135U and S5-155U series racks to manage multi-processor synchronization.
