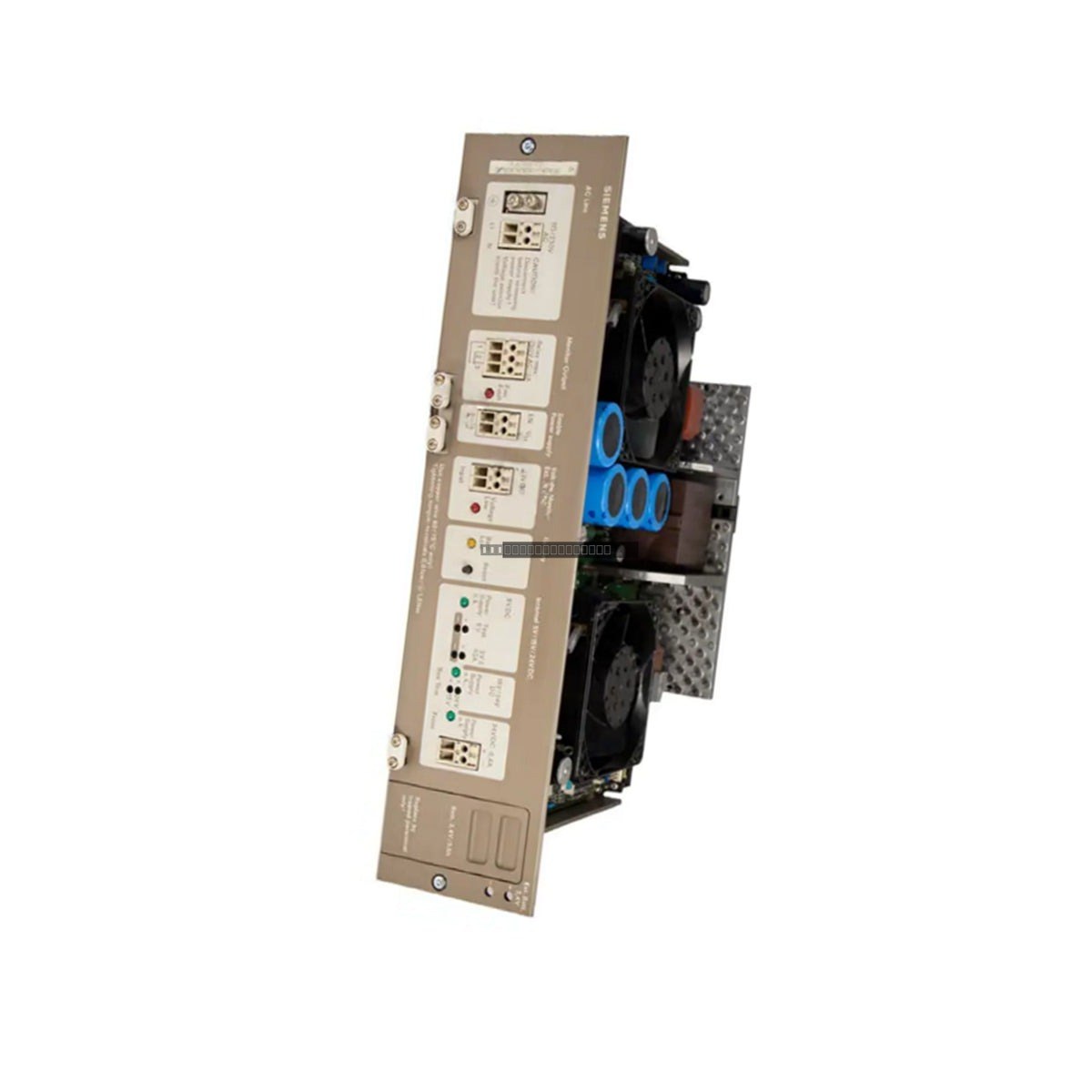

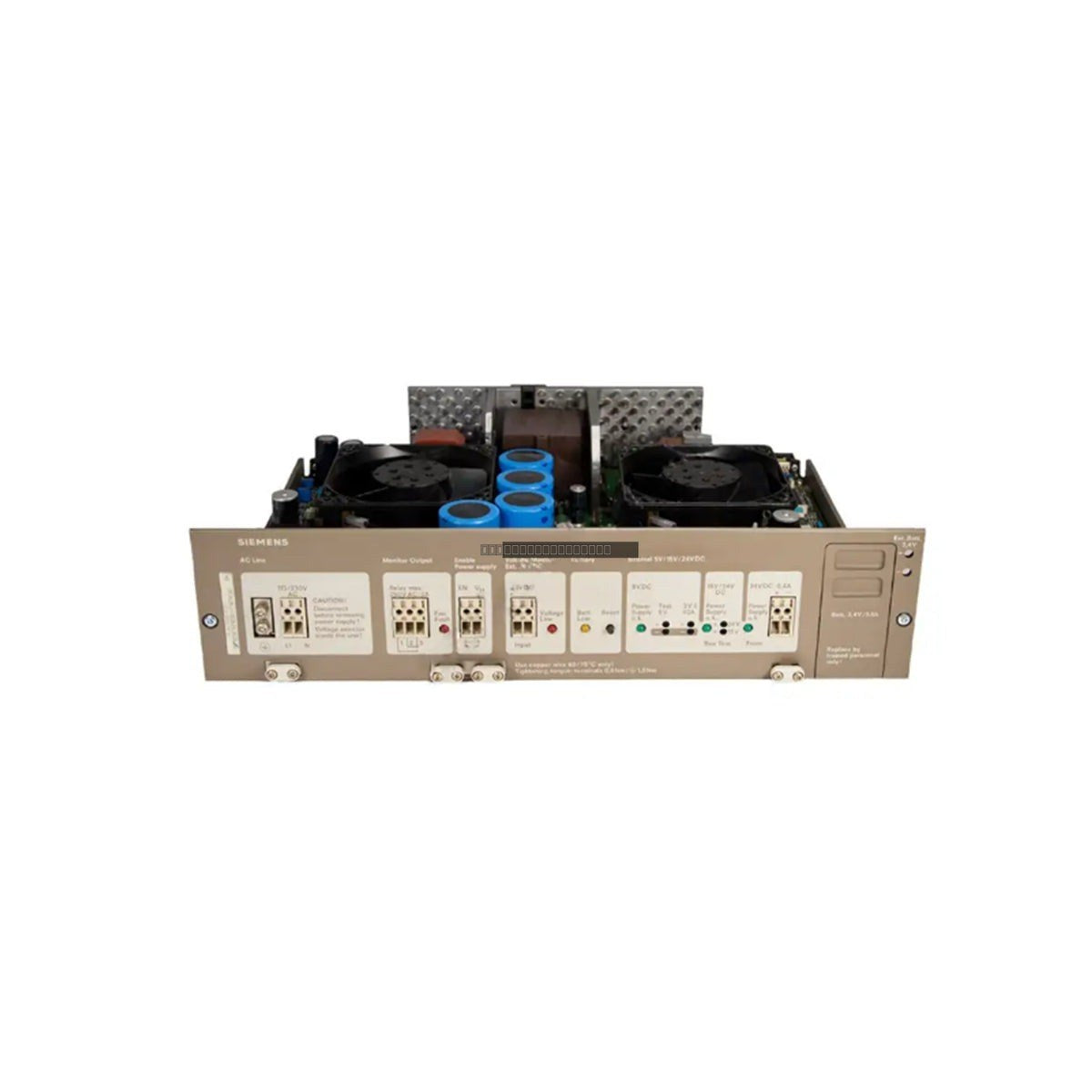

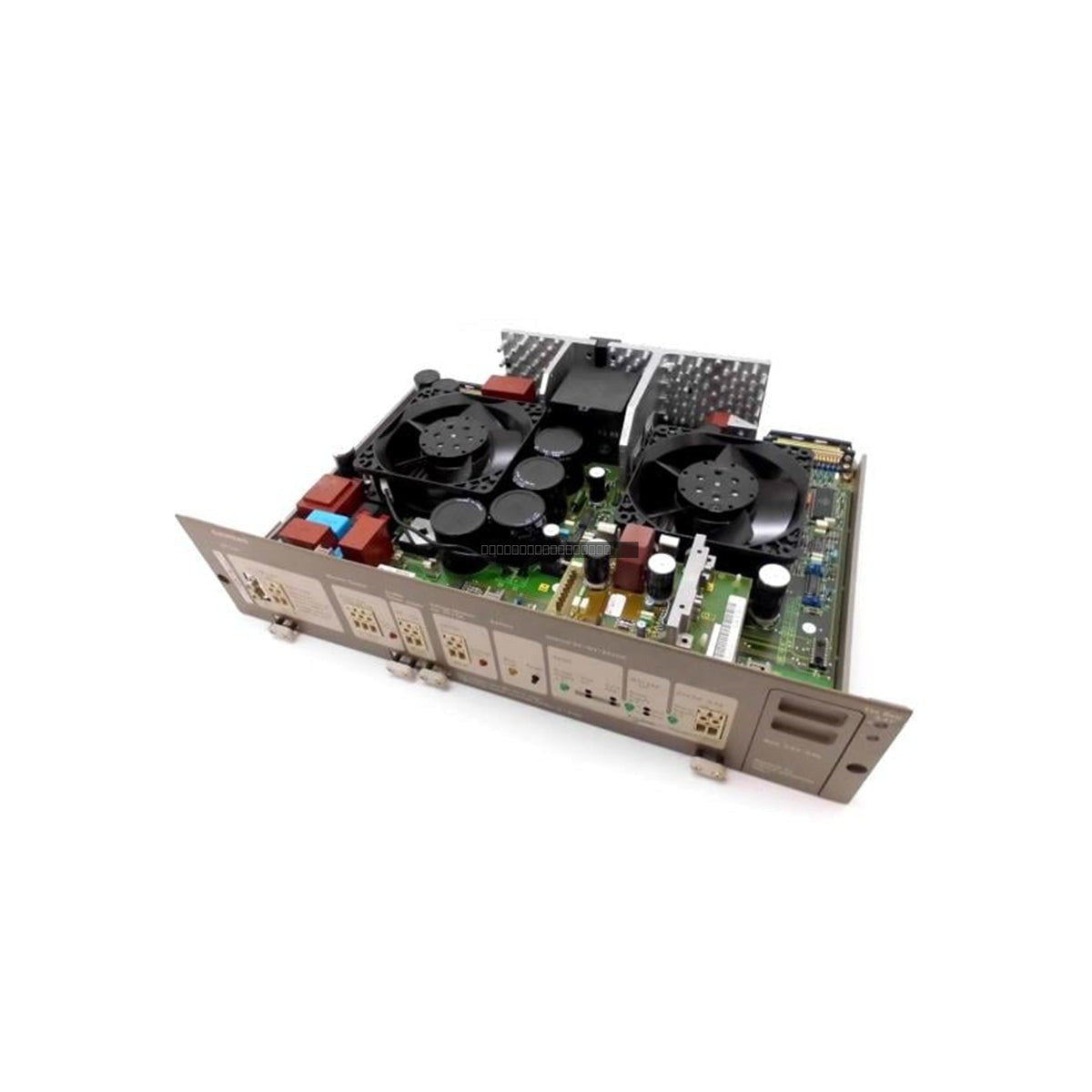

Siemens 6ES5955-3LF12 Simatic S5 Power Supply Unit

Siemens 6ES5955-3LF12 Simatic S5 Power Supply Unit

The Siemens 6ES5955-3LF12 is a robust, high-capacity power supply unit designed for the Simatic S5 automation system. It serves as a critical component for powering central controllers and expansion racks,...

19 people are viewing this right now

Availability: Low stock: 8 left

SKU: 6ES5955-3LF12
Vendor: Siemens
Category: Power Supply Unit
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Siemens 6ES5955-3LF12 is a robust, high-capacity power supply unit designed for the Simatic S5 automation system. It serves as a critical component for powering central controllers and expansion racks, including the S5-135U, S5-150U, S5-155E, and S5-185U series. This unit ensures reliable operation by converting standard 115 VAC or 230 VAC mains input into a stable 5 VDC logic supply, capable of handling high-current demands in demanding industrial environments.

Features

  • High Current Capacity: Delivers up to 40 A at 5 VDC for complex backplane configurations.
  • Flexible Input: User-selectable input voltage settings for 115 VAC or 230 VAC operation.
  • Protection Circuits: Integrated overvoltage (OVP) and overcurrent (OCP) protection to safeguard backplane components.
  • Galvanic Isolation: High-barrier isolation between input mains and internal logic rails to mitigate field-side electrical interference.
  • Thermal Management: Heavy-duty aluminum heat sinks designed for efficient heat dissipation within standard rack-guided airflow channels.

Applications

This power supply is engineered for legacy Simatic S5 systems found in heavy industrial sectors, including continuous chemical processing plants, automated container terminals, and metal rolling mills. It is essential for maintaining system integrity and preventing downtime in legacy control architectures.

Technical Specifications

Model 6ES5955-3LF12
Series Simatic S5 (955 Series)
Input Voltage 115 VAC / 230 VAC (50/60 Hz)
Output Voltage 5 VDC
Max Output Current 40 A
Operating Temperature 0 to 55 deg C
Storage Temperature -40 to 70 deg C

Installation Guidelines

  • Power Off: Always disconnect the main power source before installing or removing the module from the rack.
  • Mounting: Ensure the unit is securely seated in the designated chassis slot to maintain proper electrical contact with the backplane.
  • Ventilation: Do not obstruct the airflow channels; ensure adequate clearance above and below the unit to allow for natural convection cooling.
  • Grounding: Verify that the rack chassis is properly grounded to prevent electrical noise and ensure safety.
  • Input Configuration: Confirm the input voltage link settings match the local supply grid before applying power.

FAQ

Is this power supply compatible with all S5 racks?

This model is specifically designed for the S5-135U, S5-150U, S5-155E, and S5-185U configurations. Please verify your specific rack model before installation.

What should I do if the power supply trips?

The unit features internal protection. If it trips, check for short circuits on the backplane or excessive current draw from connected modules. Ensure the input voltage is stable and within the specified range.
