Description

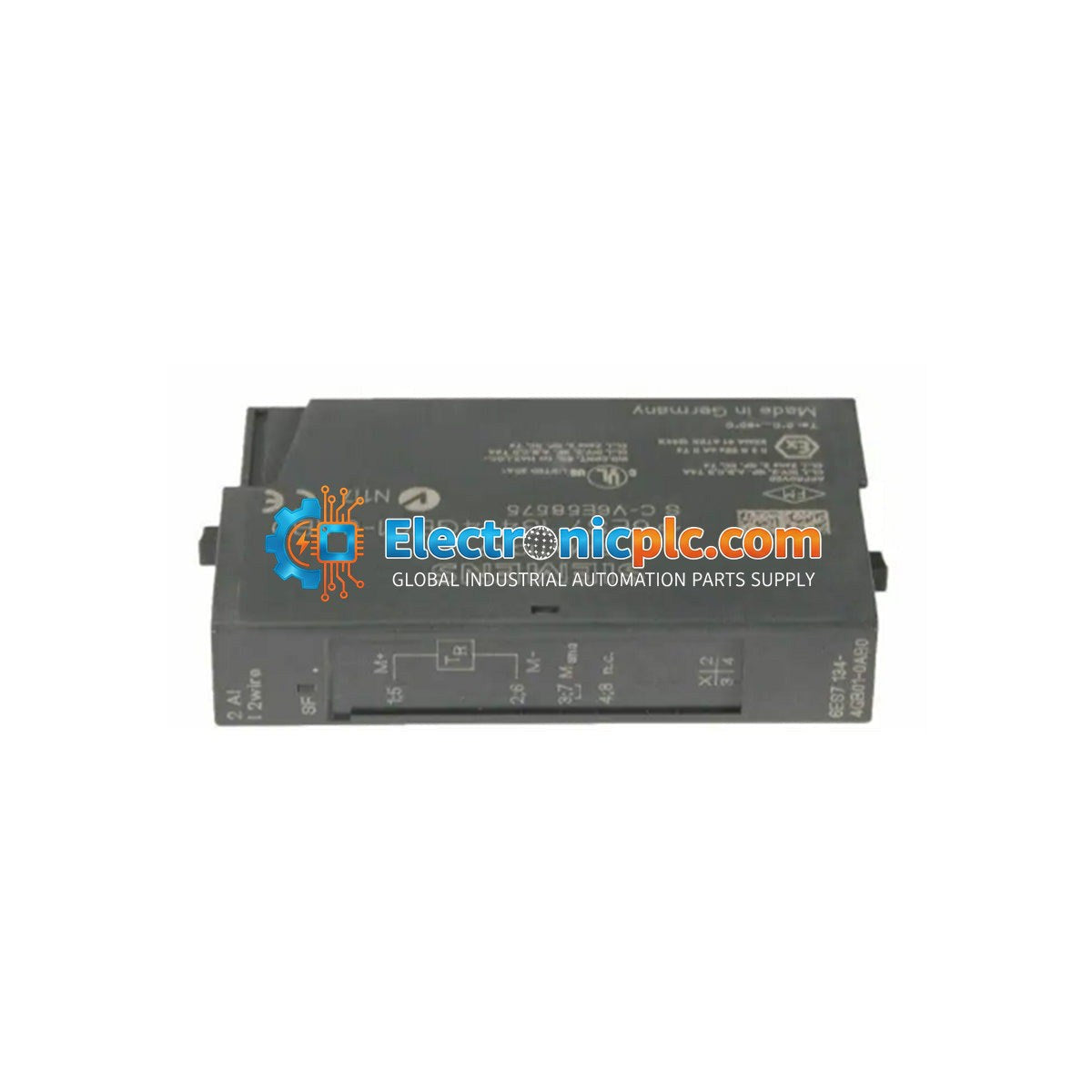

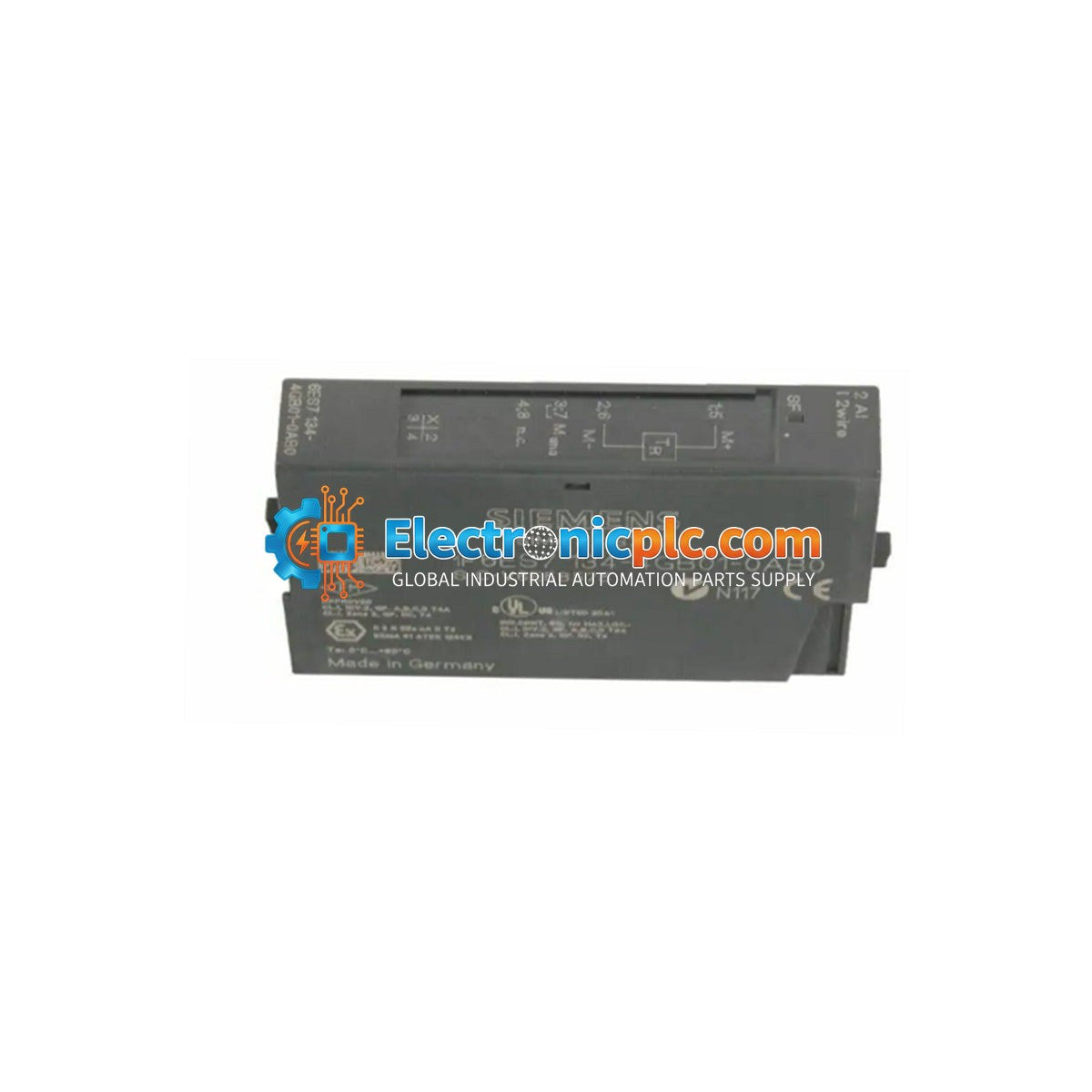

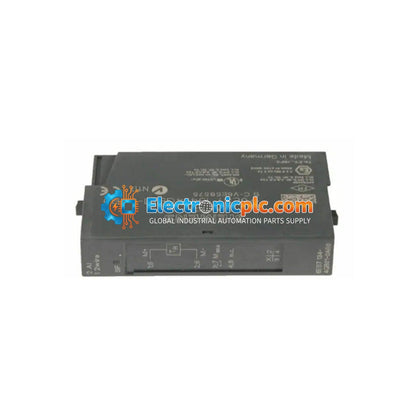

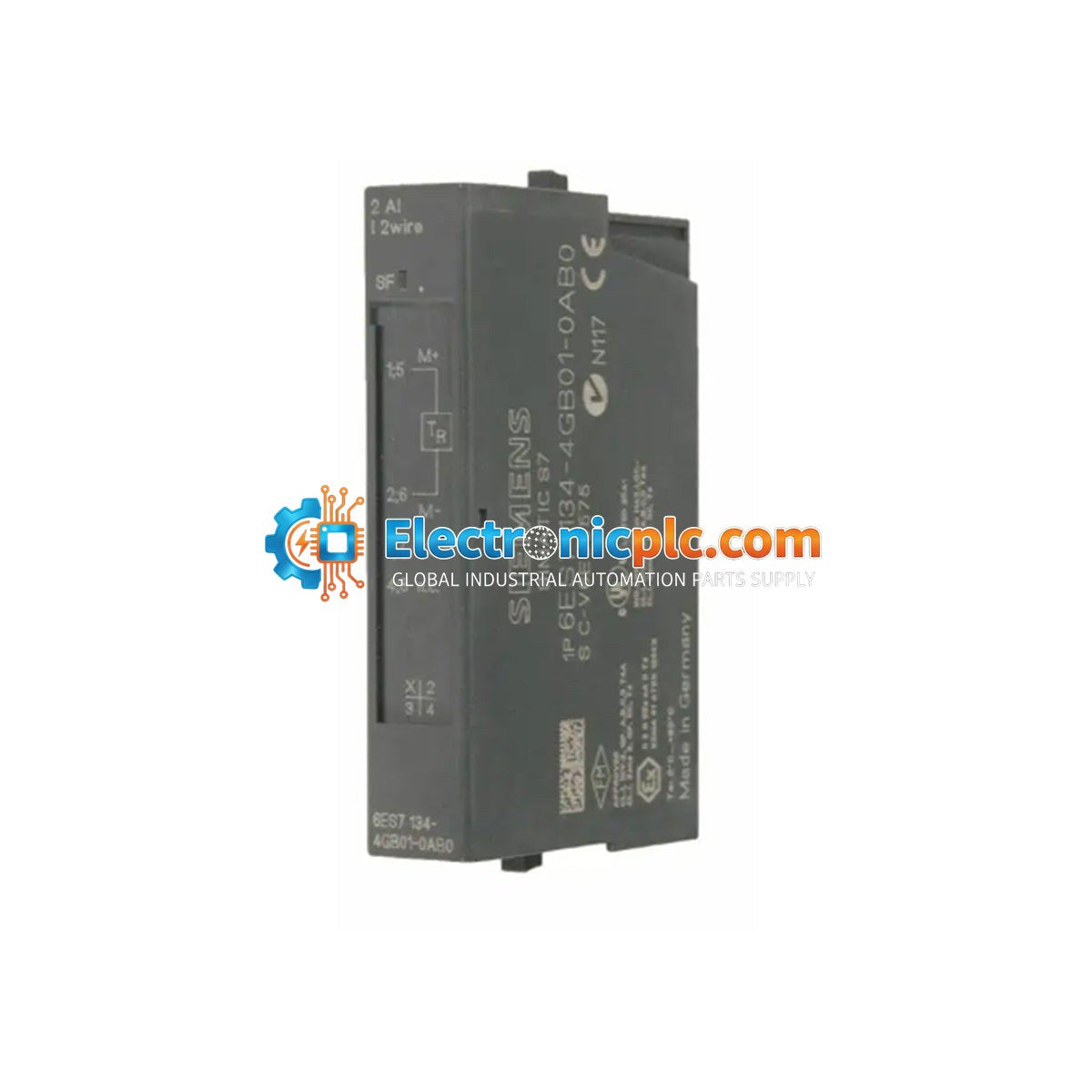

The Siemens 6ES7134-4GB01-0AB0 is a SIMATIC DP electronic module for the ET 200S distributed I/O system. This 2-channel analog input module (2AI I-2DMU ST) is designed to process standard 4 to 20 mA current signals from 2-wire transducers. With a compact 15 mm width, it is engineered for high-density I/O configurations in industrial automation environments, providing reliable data acquisition for pressure, flow, and level monitoring applications.

Features

• 2-channel analog current input for 2-wire transducers (4-20 mA).
• 13-bit resolution with a cycle time of 65 ms per channel.
• Ultra-compact 15 mm module width for space-saving ET 200S rack assemblies.
• Integrated diagnostic SF (Group Fault) LED for rapid status identification.
• Reverse polarity protection with a destruction limit of 35 mA per channel.
• Parameterizable digital smoothing and filtering capabilities.

Applications

• Water and wastewater treatment monitoring (pressure and dosing levels).
• Chemical and petrochemical process instrumentation.
• Marine and maritime auxiliary monitoring systems.
• Hydrostatic and differential pressure measurement.
• Flow tracking via electromagnetic or vortex flow meters.

Technical Specifications

Installation Guidelines

• Ensure the 35 mm DIN rail is securely mounted horizontally within the enclosure.
• Snap the terminal module onto the DIN rail and slide it laterally to engage with the adjacent ET 200S interface or power module.
• Align the 6ES7134-4GB01-0AB0 electronic module with the terminal module guide rails and press firmly until it clicks into place.
• Always power down the system before inserting or removing electronic modules to prevent electrical damage or bus communication errors.
• Maintain proper grounding and shielding practices for analog signal cabling to minimize EMI interference.

FAQs

What is the current consumption of the 6ES7134-4GB01-0AB0 module?

The module draws a maximum of 80 mA from the 24 V load power supply (L+) and 10 mA from the 3.3 V backplane bus.

What type of signals does this module accept?

This module is specifically designed for 2-wire transducers providing a 4 to 20 mA analog current signal.

What does the SF LED indicate?

The SF (Group Fault) LED provides a visual indication of group-level errors, such as open circuits or internal module faults.
