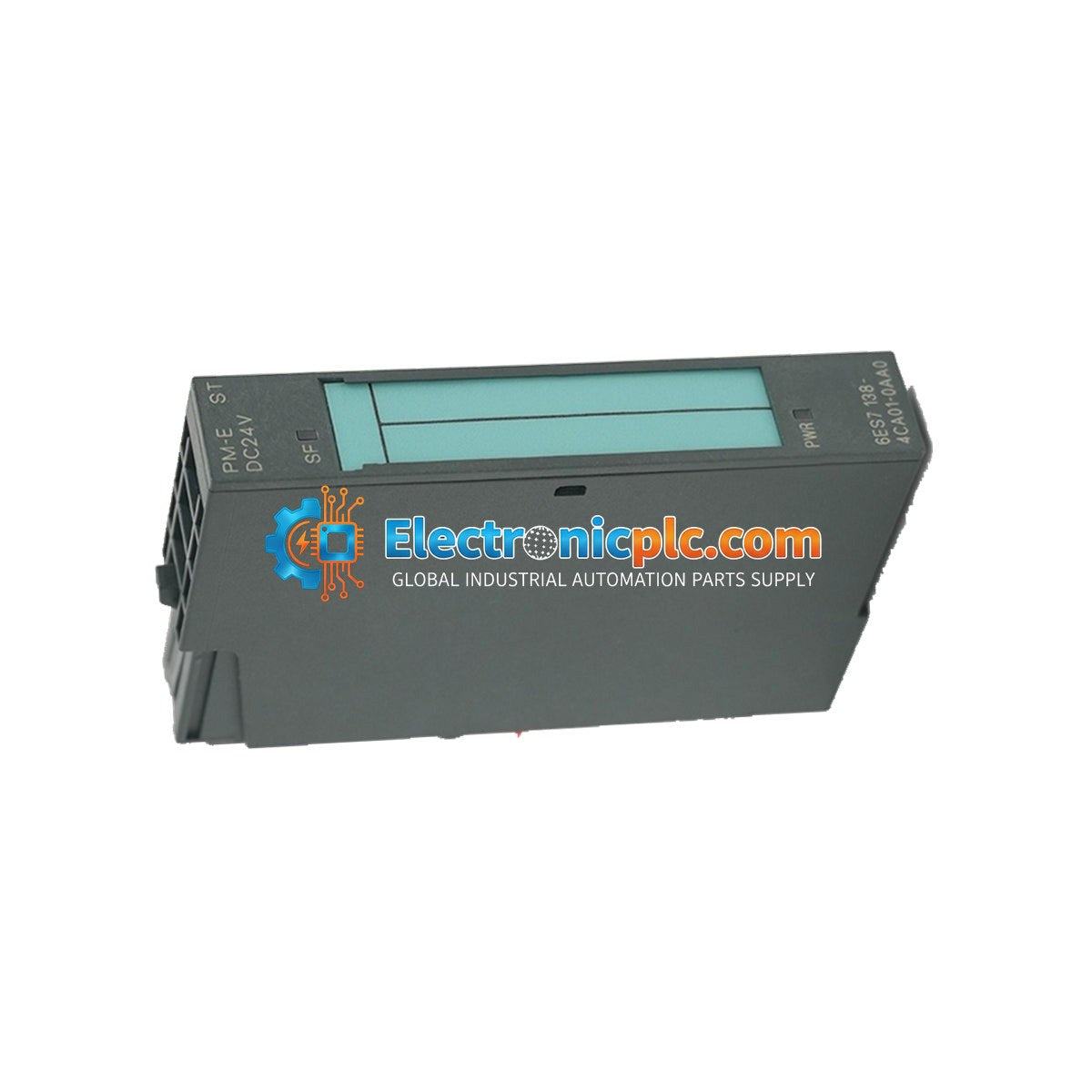

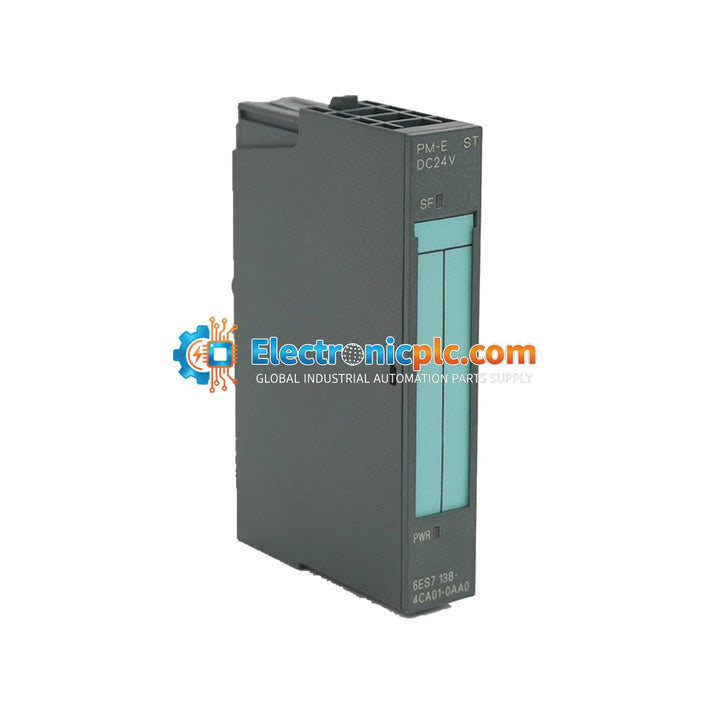

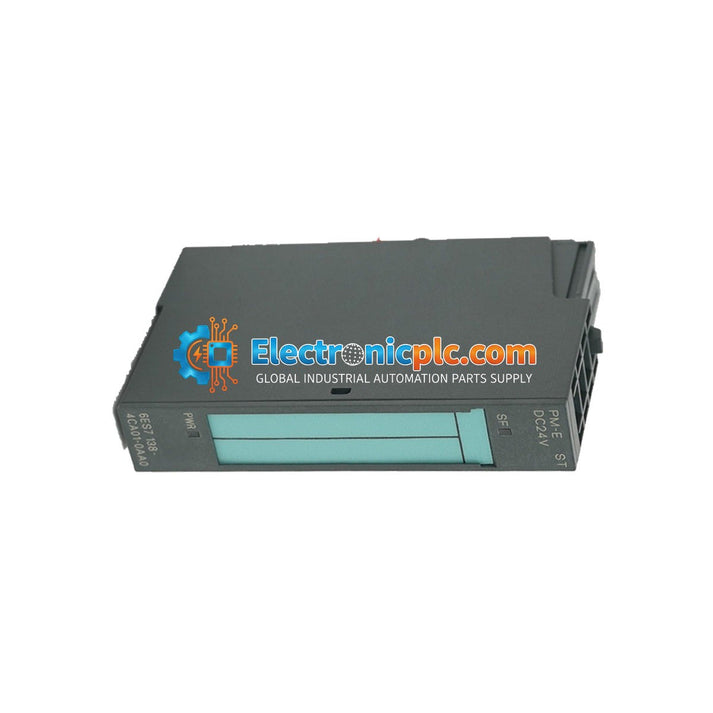

Siemens 6ES7138-4CA01-0AA0 SIMATIC DP PM-E Power Module

Siemens 6ES7138-4CA01-0AA0 SIMATIC DP PM-E Power Module

Description

The Siemens SIMATIC DP 6ES7138-4CA01-0AA0 is a PM-E power module designed for the ET 200S distributed I/O system. This module serves as an essential interface for supplying load voltage to...

24 people are viewing this right now

Availability: Low stock: 4 left

SKU: 6ES7138-4CA01-0AA0
Vendor: Siemens
Category: Power Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens SIMATIC DP 6ES7138-4CA01-0AA0 is a PM-E power module designed for the ET 200S distributed I/O system. This module serves as an essential interface for supplying load voltage to connected sensors and actuators, providing necessary electrical isolation and system segmentation within the I/O station. The module monitors the supply voltage for all electronic modules within its specific voltage group, ensuring reliable operation of the distributed I/O.

Features

  • Designed for the SIMATIC ET 200S distributed I/O system
  • Integrated diagnostic capabilities for load voltage monitoring
  • Supports 24 V DC supply voltage
  • Compatible with fail-safe modules
  • Status byte reporting via process input image (PII)
  • Efficient power management with low power loss

Applications

  • Automotive and manufacturing machine control
  • Building automation and low-voltage control systems
  • Distributed data acquisition for assembly lines
  • Marine and industrial infrastructure applications

Technical Specifications

Product Model 6ES7138-4CA01-0AA0
Rated Voltage (DC) 24 V
Current Carrying Capacity (up to 60 degC) Max. 10 A
Current Consumption (without load) Max. 4 mA
Power Loss (typical) 0.1 W
Operating Temperature 0 to 55 degC (vertical installation)

Installation Guidelines

  • The module must be mounted onto a compatible TM-P terminal module to receive power and signal connectivity.
  • Ensure the power supply is disconnected before inserting or removing the module from the rack.
  • Connect the 24 V DC load voltage directly to the terminals of the TM-P terminal module.
  • Commissioning and maintenance should only be performed by qualified personnel.
  • Ensure proper grounding and labeling of circuits in accordance with local safety standards.
  • Maintain adequate ventilation to ensure the module operates within its specified temperature range.

FAQ

What is the 6ES7138-4CA01-0AA0?

The Siemens 6ES7138-4CA01-0AA0 is a 24V DC PM-E power module for the SIMATIC ET 200S distributed I/O system.

What diagnostics does it support?

It provides diagnostic monitoring, such as detecting missing load voltage, which is reported via the status byte in the process input image.

Is this module suitable for fail-safe applications?

Yes, the PM-E DC24V power module is suitable for use with fail-safe modules in the ET 200S system.
