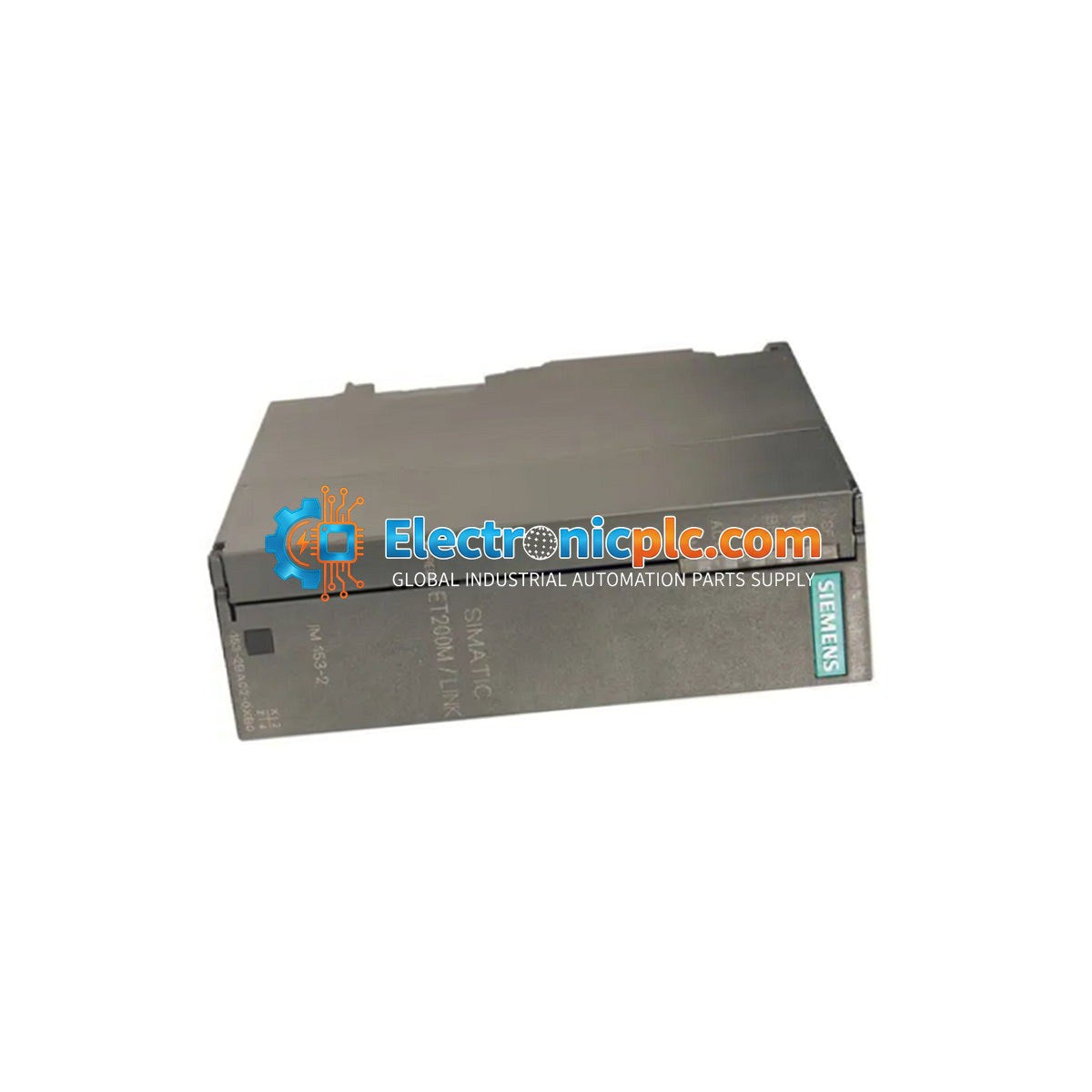

Siemens 6ES7153-2BA02-0XB0 IM 153-2 DP High Feature Interface Module

Siemens 6ES7153-2BA02-0XB0 IM 153-2 DP High Feature Interface Module

Description

The Siemens 6ES7153-2BA02-0XB0 is a high-performance IM 153-2 interface module designed for the SIMATIC ET 200M distributed I/O system. This High Feature (HF) module serves as a PROFIBUS DP slave,...

15 people are viewing this right now

Availability: Low stock: 4 left

SKU: 6ES7153-2BA02-0XB0
Vendor: Siemens
Category: Interface Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES7153-2BA02-0XB0 is a high-performance IM 153-2 interface module designed for the SIMATIC ET 200M distributed I/O system. This High Feature (HF) module serves as a PROFIBUS DP slave, enabling the connection of up to 12 S7-300 signal, function, or communication modules to a PROFIBUS DP network. It is engineered for demanding industrial applications requiring high availability, isochronous mode support, and precise time stamping.

Features

  • Supports up to 12 S7-300 modules per station.
  • Integrated support for redundancy and time stamping.
  • Compatible with isochronous mode for high-speed, synchronized control tasks.
  • Extended data support for HART secondary variables.
  • Supports operation of 64-channel modules (32 signals per slot).
  • Slave initiative support for Drive ES and Switch ES integration.

Technical Specifications

Product Model 6ES7153-2BA02-0XB0
Product Type IM 153-2 DP HF Interface Module
Supply Voltage Range (DC) 20.4 V to 28.8 V
Recommended External Protection 2.5 A
Vendor ID 801Eh
Maximum Modules per Station 12

Installation Guidelines

  • Ensure the power supply is disconnected before installing or removing the module from the S7-300 mounting rail.
  • The module must be securely seated on the DIN rail or rack to ensure proper backplane bus communication.
  • Maintain proper grounding practices to minimize electromagnetic interference (EMI).
  • Ensure adequate ventilation around the module to prevent overheating, adhering to standard industrial cabinet clearance requirements.
  • Use shielded PROFIBUS cables and ensure proper termination at the end of the bus segment to maintain signal integrity.
  • Handle with care to prevent electrostatic discharge (ESD) damage to the internal components.

FAQ

What is the primary function of the 6ES7153-2BA02-0XB0?

This module acts as a PROFIBUS DP interface (slave) for the ET 200M system, allowing you to connect S7-300 I/O modules to a PROFIBUS network for distributed automation.

Does this module support HART communication?

Yes, this High Feature version supports extended data for HART secondary variables, allowing for easier integration of smart field devices.

Can this module be used in redundant systems?

Yes, the IM 153-2 HF is designed to support redundancy configurations, making it suitable for high-availability automation environments.
