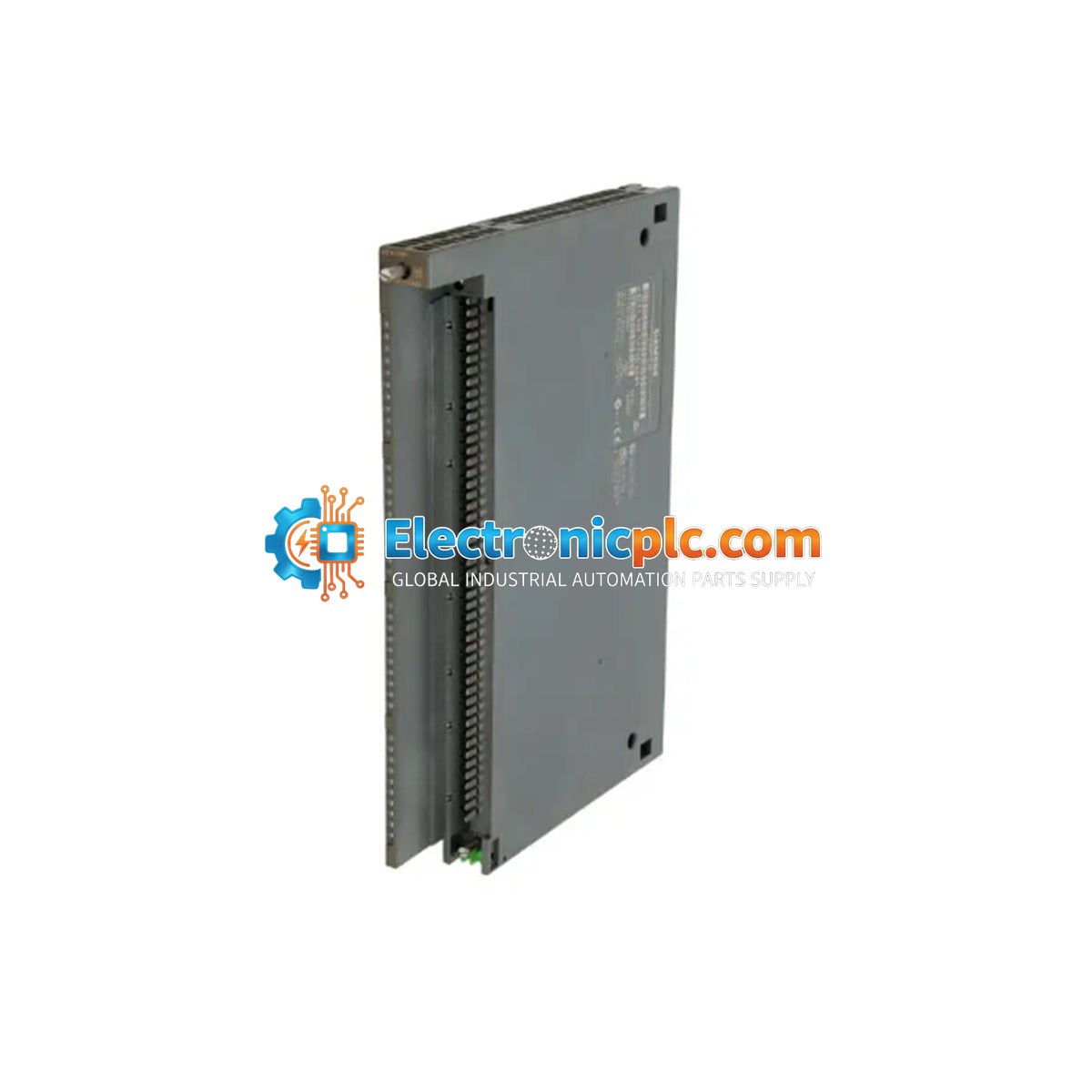

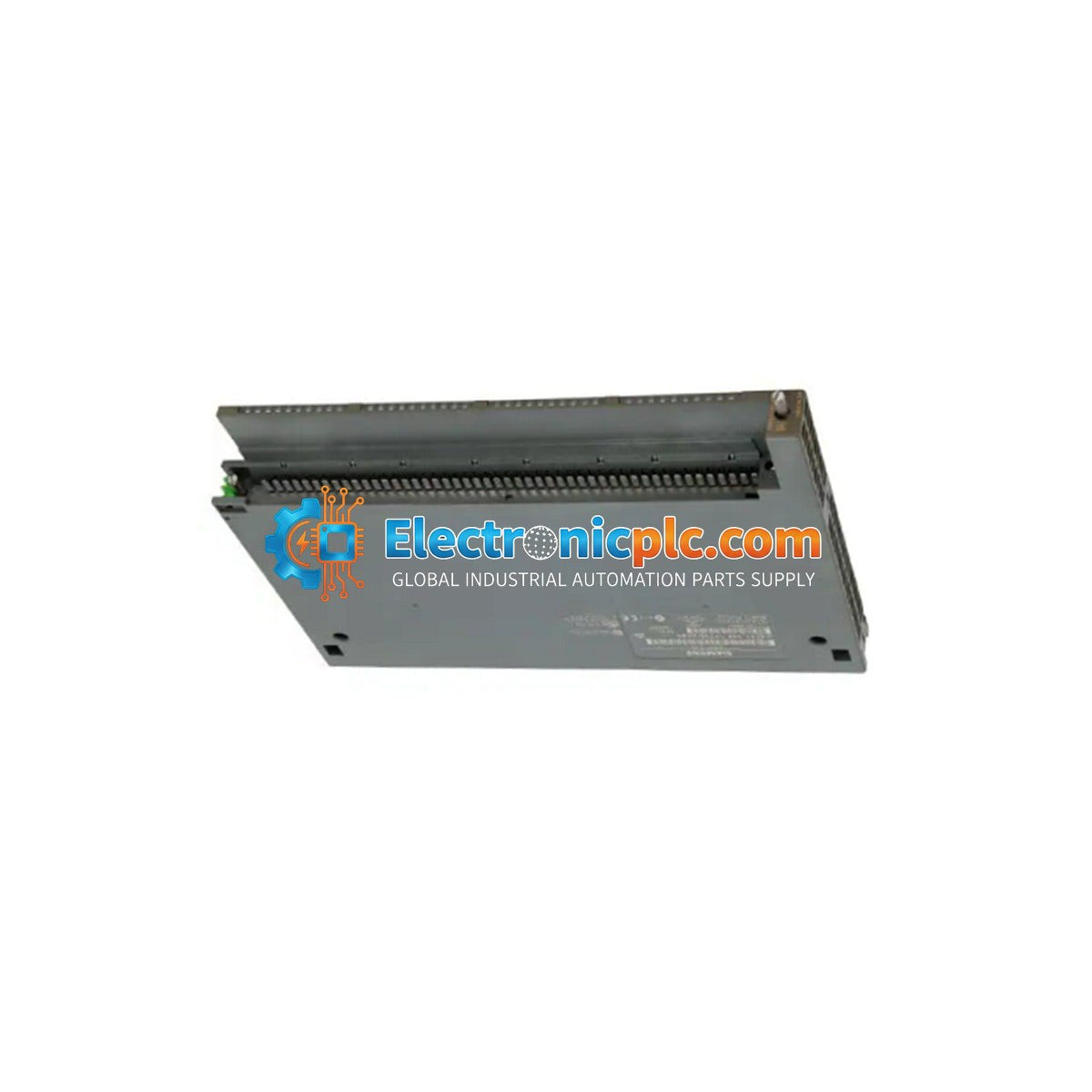

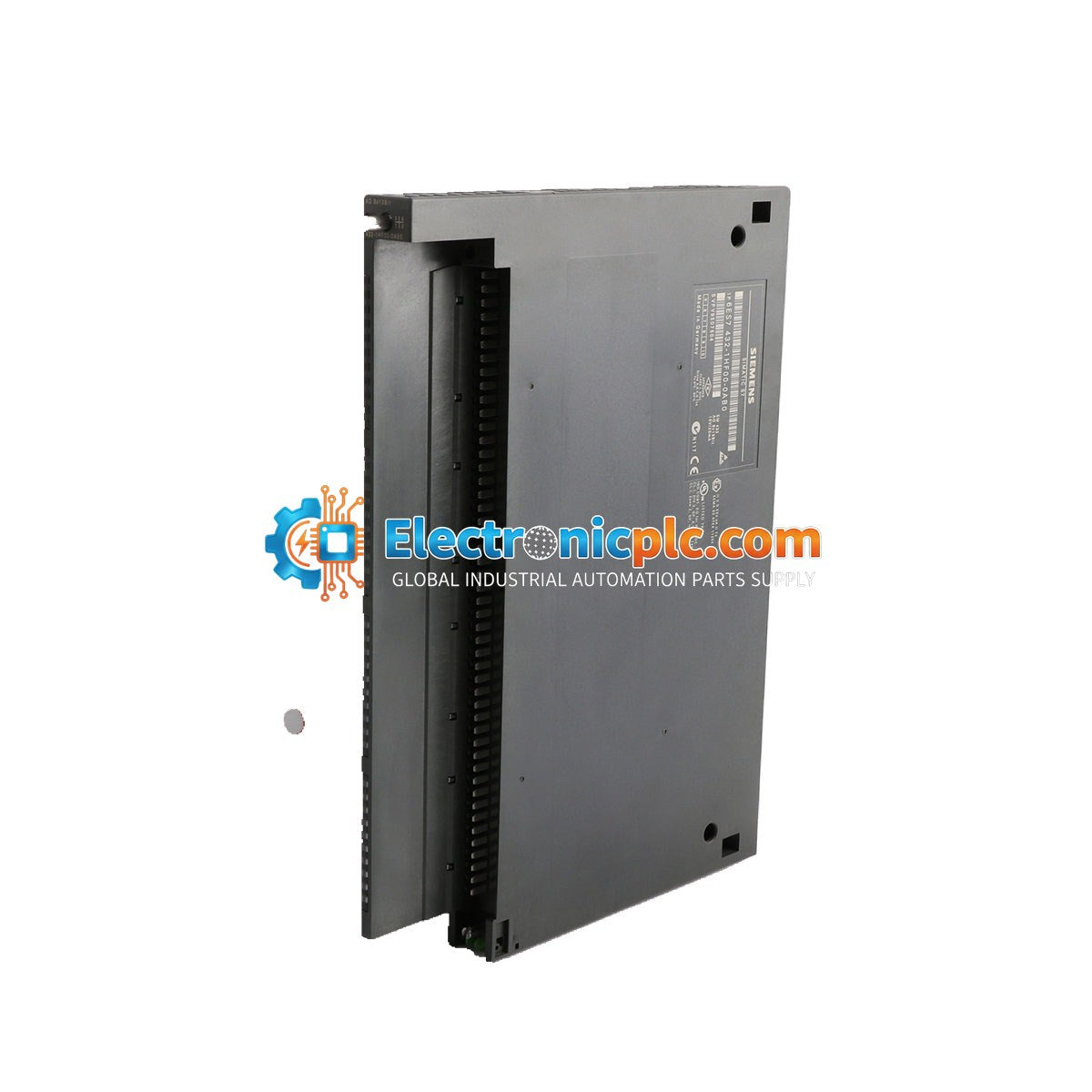

Siemens 6ES7432-1HF00-0AB0 SIMATIC S7-400 Analog Output Module

Siemens 6ES7432-1HF00-0AB0 SIMATIC S7-400 Analog Output Module

Description

The Siemens 6ES7432-1HF00-0AB0 is a high-performance analog output module designed for the SIMATIC S7-400 automation system. This SM 432 module provides 8 isolated analog output channels, offering reliable signal conversion...

22 people are viewing this right now

Availability: Low stock: 1 left

SKU: 6ES7432-1HF00-0AB0
Vendor: Siemens
Category: Analog Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES7432-1HF00-0AB0 is a high-performance analog output module designed for the SIMATIC S7-400 automation system. This SM 432 module provides 8 isolated analog output channels, offering reliable signal conversion for industrial control applications. It is engineered for rack-mounted configurations, ensuring seamless integration into existing S7-400 backplanes.

Features

  • 8 analog output channels with 13-bit resolution.
  • Optically isolated outputs for enhanced signal integrity and noise immunity.
  • Integrated short-circuit protection for voltage outputs.
  • Designed for standard S7-400 rack mounting.
  • Optimized for low power loss (typ. 9 W) in demanding industrial environments.

Technical Specifications

Model 6ES7432-1HF00-0AB0
System SIMATIC S7-400
Number of Outputs 8
Resolution 13-bit
Rated Voltage (DC) 24 V
Current Consumption (Backplane) 150 mA (5 V DC)
Current Consumption (Load) 200 mA (no load) / 400 mA (rated load)
Power Loss 9 W
Short-Circuit Protection Yes (Voltage output)
Max Short-Circuit Current 30 mA
Max No-Load Voltage (Current output) 19 V

Installation Guidelines

  • Ensure the S7-400 rack is powered down before inserting or removing the module to prevent electrical damage.
  • Verify the module is correctly seated in the rack slot and secured with the provided locking mechanisms.
  • Use shielded cables for all analog signal wiring to minimize electromagnetic interference (EMI).
  • Maintain proper ventilation within the control cabinet to ensure the module operates within its thermal limits.
  • Handle with care using ESD-safe practices to protect internal circuitry from electrostatic discharge.

FAQ

What is the primary function of the 6ES7432-1HF00-0AB0?

This module serves as an analog output interface for the Siemens S7-400 PLC, converting digital values from the controller into analog signals for field devices such as actuators, valves, or drives.

Is this module optically isolated?

Yes, the 6ES7432-1HF00-0AB0 features optical isolation to protect the backplane and controller from potential electrical surges or ground loops in the field wiring.
