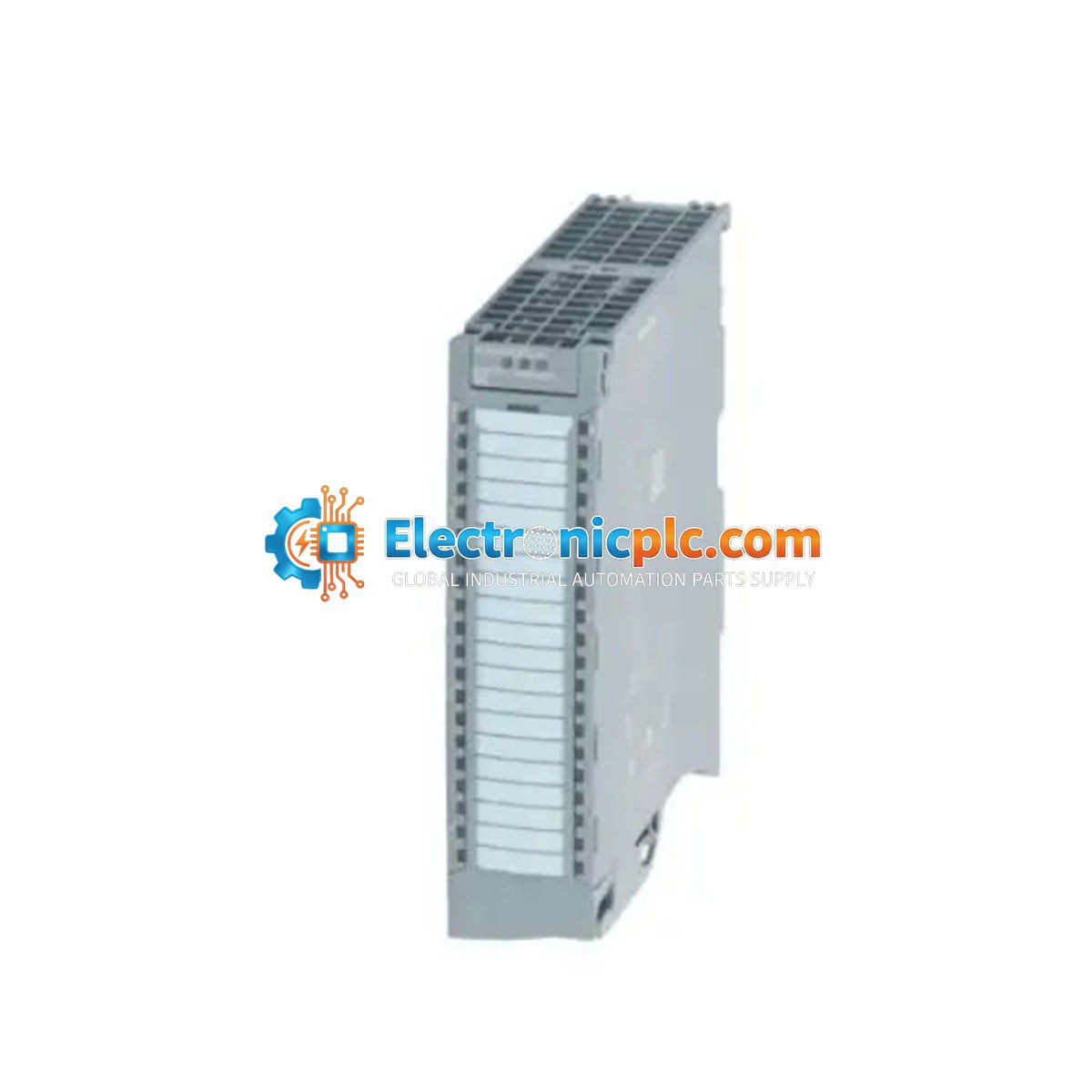

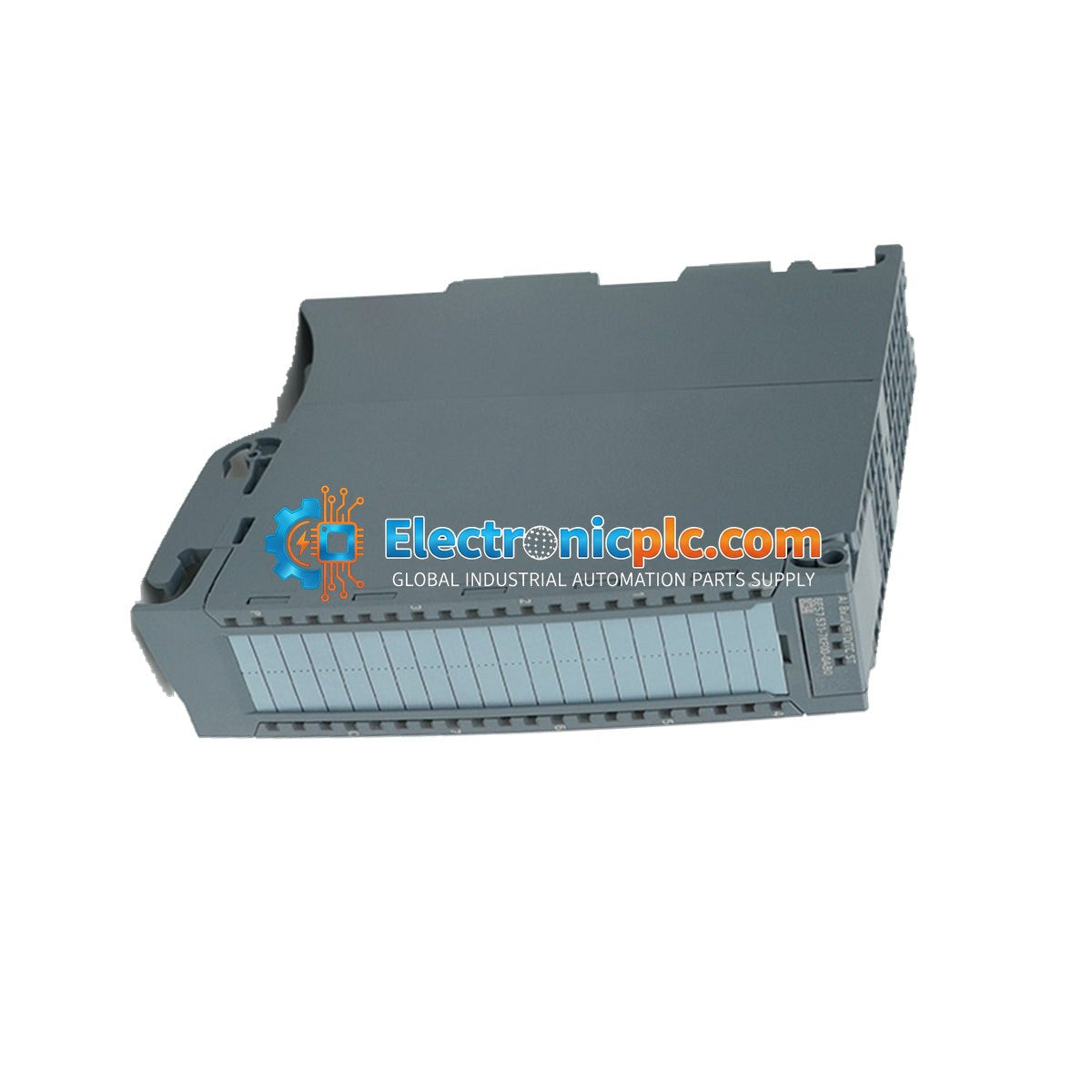

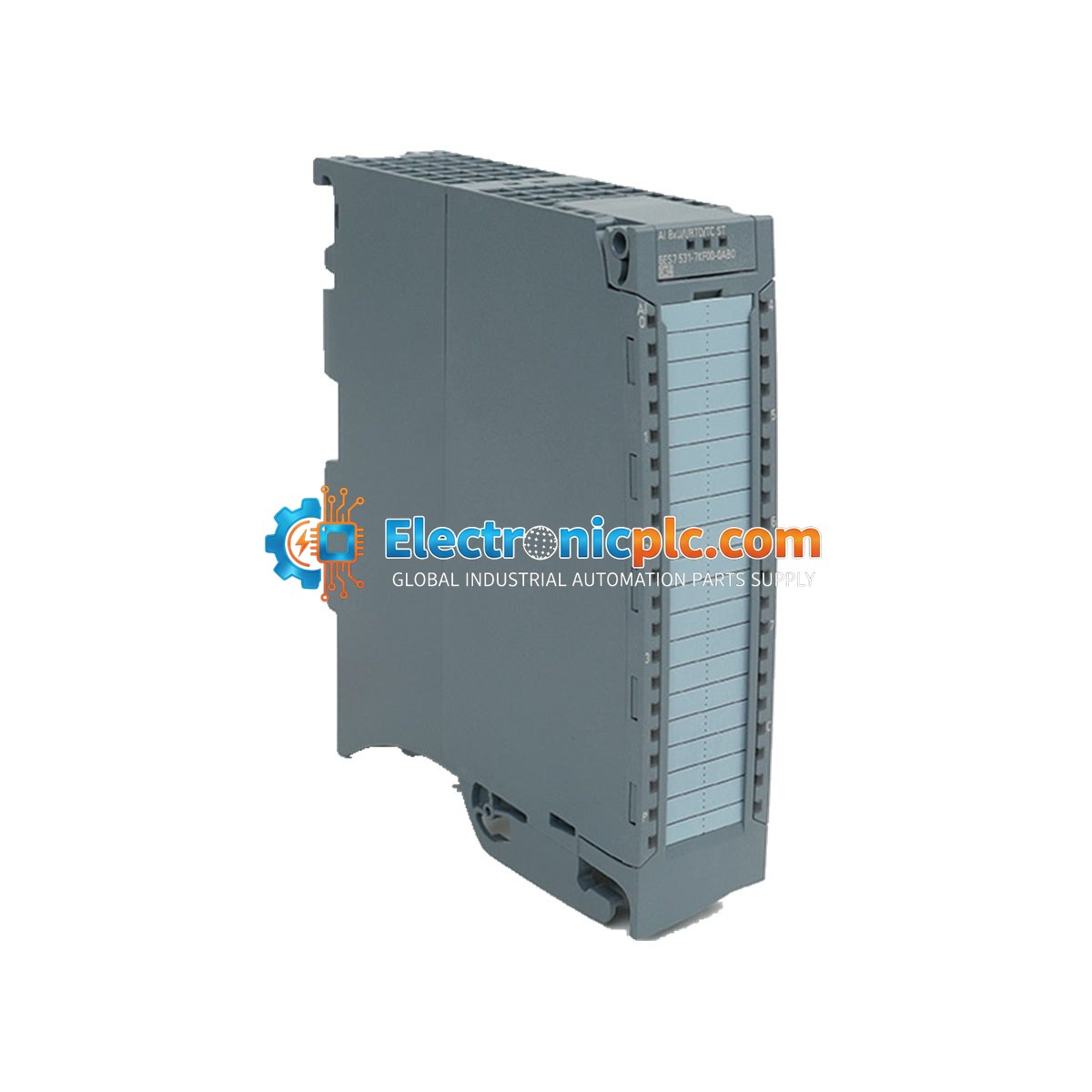

Siemens 6ES7531-7KF00-0AB0 SIMATIC S7-1500 Analog Input Module

Siemens 6ES7531-7KF00-0AB0 SIMATIC S7-1500 Analog Input Module

Description

The Siemens 6ES7531-7KF00-0AB0 is an analog input module designed for the SIMATIC S7-1500 automation system. This module provides 8 channels of high-resolution analog signal processing, suitable for a wide range...

20 people are viewing this right now

Availability: Low stock: 1 left

SKU: 6ES7531-7KF00-0AB0
Vendor: Siemens
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES7531-7KF00-0AB0 is an analog input module designed for the SIMATIC S7-1500 automation system. This module provides 8 channels of high-resolution analog signal processing, suitable for a wide range of industrial measurement and control applications. It supports various voltage and current input ranges, offering flexibility for connecting sensors and transmitters directly to the PLC backplane.

Features

  • 8 analog input channels with 16-bit resolution for high-precision data acquisition.
  • Supports multiple input ranges: +/-10V, 0-10V, 0-5V, +/-5V, 0-20mA, and 4-20mA.
  • Integrated diagnostic functions to monitor signal integrity and module health.
  • Supports hardware interrupts for time-critical process response.
  • Compatible with the SIMATIC S7-1500 system architecture.
  • Requires a separate front connector for field wiring.

Technical Specifications

Model 6ES7531-7KF00-0AB0
Channels 8
Resolution 16-bit
Rated Supply Voltage (DC) 24V (20.4V to 28.8V)
Max. Current Consumption 240 mA (at 24V DC)
Power Loss (typ.) 2.7 W
Backplane Power 0.7 W
Firmware Version V2.0.0
HW Functional Status From FS01

Installation Guidelines

  • Ensure the S7-1500 CPU and power supply are powered down before installing or removing the module from the mounting rail.
  • Mount the module on a standard 35mm DIN rail using the integrated locking mechanism.
  • Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI).
  • Ensure proper grounding of the cable shields at the entry point to the control cabinet.
  • The front connector (ordered separately) must be wired according to the specific channel configuration before being seated into the module.
  • Maintain adequate clearance around the module to ensure proper ventilation and heat dissipation.

FAQ

Does this module include the front connector?

No, the front connector is not included with the module and must be ordered separately.

What is the resolution of the analog inputs?

This module features a 16-bit resolution, providing high-precision conversion for the supported voltage and current ranges.

Is this module compatible with all S7-1500 CPUs?

Yes, the 6ES7531-7KF00-0AB0 is designed for use within the standard SIMATIC S7-1500 product family. Please verify your specific CPU firmware requirements if using advanced features.
